1. Introdución
Thank you for choosing the Haier 602L Side-by-Side Refrigerator, Model HRS-682KGU1. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
2. Información de seguridade
Para garantir un funcionamento seguro, siga sempre estas precaucións básicas:
- Asegúrate de que o frigorífico estea debidamente conectado á terra.
- Non dane o circuíto de refrixerante.
- Manter as aberturas de ventilación libres de obstáculos.
- Non empregue dispositivos mecánicos ou outros medios para acelerar o proceso de desconxelación, distintos dos recomendados polo fabricante.
- Non utilice aparellos eléctricos dentro dos compartimentos de almacenamento de alimentos, a non ser que sexan do tipo recomendado polo fabricante.
- Desenchufe o aparello antes de limpar ou realizar o mantemento.
- Manteña os nenos lonxe dos materiais de embalaxe para evitar asfixia.
3. Produto rematadoview
The Haier HRS-682KGU1 is a 602-liter, 3-star rated, frost-free side-by-side refrigerator featuring a premium glass finish. It is designed for modern households, offering advanced cooling technologies and smart functionalities.
Características principais:
- 100% Convertible: Adapt storage space between fridge and freezer as needed.
- Conectividade Wi-Fi: Remote control and monitoring via a smart home system.
- Tecnoloxía experta en inversores: Energy-efficient operation with reduced noise and extended compressor lifespan.
- Panel de visualización dixital: External touch control for precise temperature settings.
- Triple Twist Ice Maker: Convenient access to ice cubes.
- Tecnoloxía Deo Fresh: Eliminates odors and maintains food freshness for longer.
- Smart Sense AI: Regulates temperature settings for optimal performance.
- Separate Fruit and Vegetable Boxes: Dedicated compartments for organized and fresh produce storage.

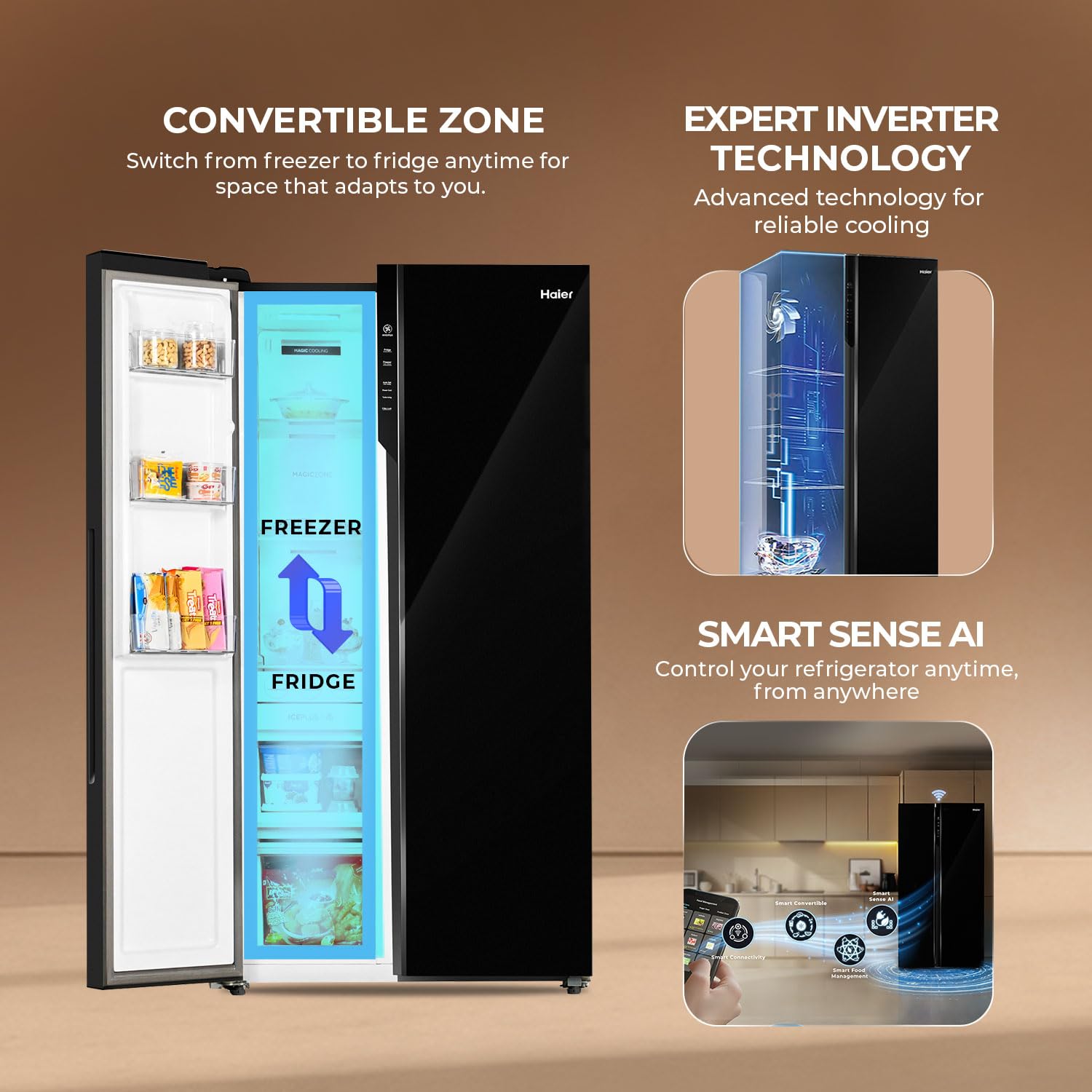

Figura 3.1: Máisview of Refrigerator Features
Figure 3.2: Haier 602L Side-by-Side Refrigerator (HRS-682KGU1)
4. Configuración e instalación
4.1 Desembalaxe
Carefully remove all packaging materials. Inspect the refrigerator for any damage. Keep packaging away from children.
4.2 Colocación
- Coloque o frigorífico nunha superficie firme e nivelada.
- Ensure adequate ventilation around the appliance (at least 10 cm clearance on sides and back).
- Evitar a luz solar directa ou a proximidade a fontes de calor (por exemplo, forno, radiador).
- The refrigerator operates on 230V and features stabilizer-free operation within a specified voltagrango.
Figura 4.1: Fronte View for Placement Reference
Figura 4.2: Dimensións do frigorífico
4.3 Limpeza inicial
Before first use, clean the interior and exterior with a soft cloth and mild detergent. Wipe dry thoroughly.
4.4 Conexión de alimentación
Plug the refrigerator into a dedicated, properly grounded electrical outlet. Allow the appliance to run for at least 4-6 hours empty before loading food to reach optimal cooling temperatures.
5. Instrucións de funcionamento
5.1 Digital Display Panel
The external digital display panel allows you to monitor and adjust the refrigerator's settings without opening the doors, thus minimizing cooling loss. Use the touch controls to set desired temperatures for the fridge and freezer compartments.
Figura 5.1: Panel de control dixital
Video 5.1: Demonstration of the refrigerator's control panel and interior features, including temperature adjustment and internal layout.
5.2 Zona máxica convertible
The Magic Convertible Zone allows you to switch a compartment between freezer and fridge modes, providing flexible storage options based on your needs. Refer to the digital display panel for specific controls to adjust this zone.
Figure 5.2: Magic Convertible Zone Functionality
5.3 Wi-Fi Connectivity and Smart Sense AI
This refrigerator is Wi-Fi enabled, allowing you to connect it to your smart home system. Through the dedicated app, you can remotely monitor and control settings, manage food inventory, and receive intelligent recommendations via Smart Sense AI.
Figure 5.3: Smart Sense AI and Wi-Fi Control
5.4 Triple Twist Ice Maker
The Triple Twist Ice Maker provides a continuous supply of ice. To use, fill the ice trays with water, allow them to freeze, then twist the knobs to release the ice into the collection box below.
Figure 5.4: Triple Twist Ice Maker
5.5 External Water Dispenser
For quick access to chilled water, use the external water dispenser located on the freezer door. Simply press a glass against the lever to dispense water without opening the refrigerator door, helping to maintain internal temperature and save energy.
Video 5.2: Product demonstration video highlighting features including the external water dispenser, 100% fridge space, and convertible zone.
5.6 Fresh Food Storage
Utilize the dedicated Fresh Box compartments for fruits and vegetables. These separate drawers help maintain optimal humidity and prevent odor mixing, extending the freshness of your produce.
Figure 5.5: Organized Interior with Fresh Boxes
6. Mantemento e coidados
6.1 Limpeza
- Interior: Regularly clean the interior with a solution of mild soap and warm water. Remove shelves and drawers for thorough cleaning.
- Exterior: Limpe as superficies exteriores cun suave, damp cloth. For the glass finish, use a glass cleaner.
- Xunta antibacteriana: Clean the door gaskets regularly to ensure a tight seal and prevent mold growth.
- Desenchufe sempre a neveira antes de limpala.
6.2 Deo Fresh Technology
The integrated Deo Fresh Technology actively eliminates odors and purifies the air inside the refrigerator, keeping your food fresh and odor-free. No specific maintenance is required for this feature, but regular cleaning of the interior helps its effectiveness.
Figure 6.1: Deo Fresh Technology in action
7 Solución de problemas
Antes de contactar co servizo técnico, comproba os seguintes problemas comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| O frigorífico non arrefría | Poder outage; enchufe non inserido; temperatura axustada demasiado alta; porta deixada aberta. | Check power supply; ensure plug is secure; adjust temperature; close door properly. |
| Ruídos pouco comúns | Aparello non nivelado; elementos que vibran no interior; ruídos normais de funcionamento (por exemplo, fluxo de refrixerante). | Level the appliance; rearrange items; normal sounds are not a fault. |
| Fuga de auga | Drain hole blocked; water tank for dispenser overflowing. | Clear drain hole; check water tank level. |
| A pantalla dixital non funciona | Power issue; temporary glitch. | Check power; unplug for 5 minutes and plug back in. |
If the problem persists after checking these points, please contact Haier customer service.
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | HRS-682KGU1 |
| Marca | Haier |
| Capacidade | 602 Litres (Fresh Food: 398L, Freezer: 204L) |
| Configuración | Side-by-Side, 2 Door |
| Cor | Vidro Negro |
| Valoración enerxética | 3 estrelas |
| Consumo Enerxético Anual | 528 quilovatios hora ao ano |
| Tipo de sistema de descongelación | Libre de xeadas |
| Dimensións (D x W x H) | 69.7P x 90.5L x 177.5H centímetros |
| Peso do elemento | 103 quilogramos |
| Tipo de estante | Vidro endurecido |
| Características adicionais | Inverter Compressor, Wi-Fi, Convertible Freezer, Adjustable Temperature Control |
| Compoñentes incluídos | 1 Refrigerator Unit, Egg Tray, Ice Tray |
9. Garantía e soporte
Your Haier 602L Side-by-Side Refrigerator (Model: HRS-682KGU1) comes with a Garantía completa de 1 anos sobre o produto e un 10 ano de garantía on the inverter compressor. This warranty covers manufacturing defects under normal use.
For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Haier India website. Please retain your purchase invoice for warranty validation.
