D-Line Full Motion TV Wall Bracket (13-27 Inch) Instruction Manual

Introdución

This manual provides detailed instructions for the installation, operation, and maintenance of your D-Line Full Motion TV Wall Bracket. This bracket is designed to securely mount 13-27 inch televisions and monitors, offering full motion capabilities for optimal viewing angles. It supports VESA patterns of 75x75mm and 100x100mm and can hold devices up to 55lbs (25kg).

Instrucións de configuración

1. Que hai na caixa

Antes de comezar a instalación, comproba que estean presentes todos os compoñentes:

D-Line Full Motion TV Wall Bracket Assembly
Mounting hardware for solid walls (concrete/brick)
Mounting hardware for stud walls
Nivel de espírito
TV mounting screws (various sizes for VESA compatibility)
Chave chave
Chave Allen
Clip de xestión de cables
Guía de instalación

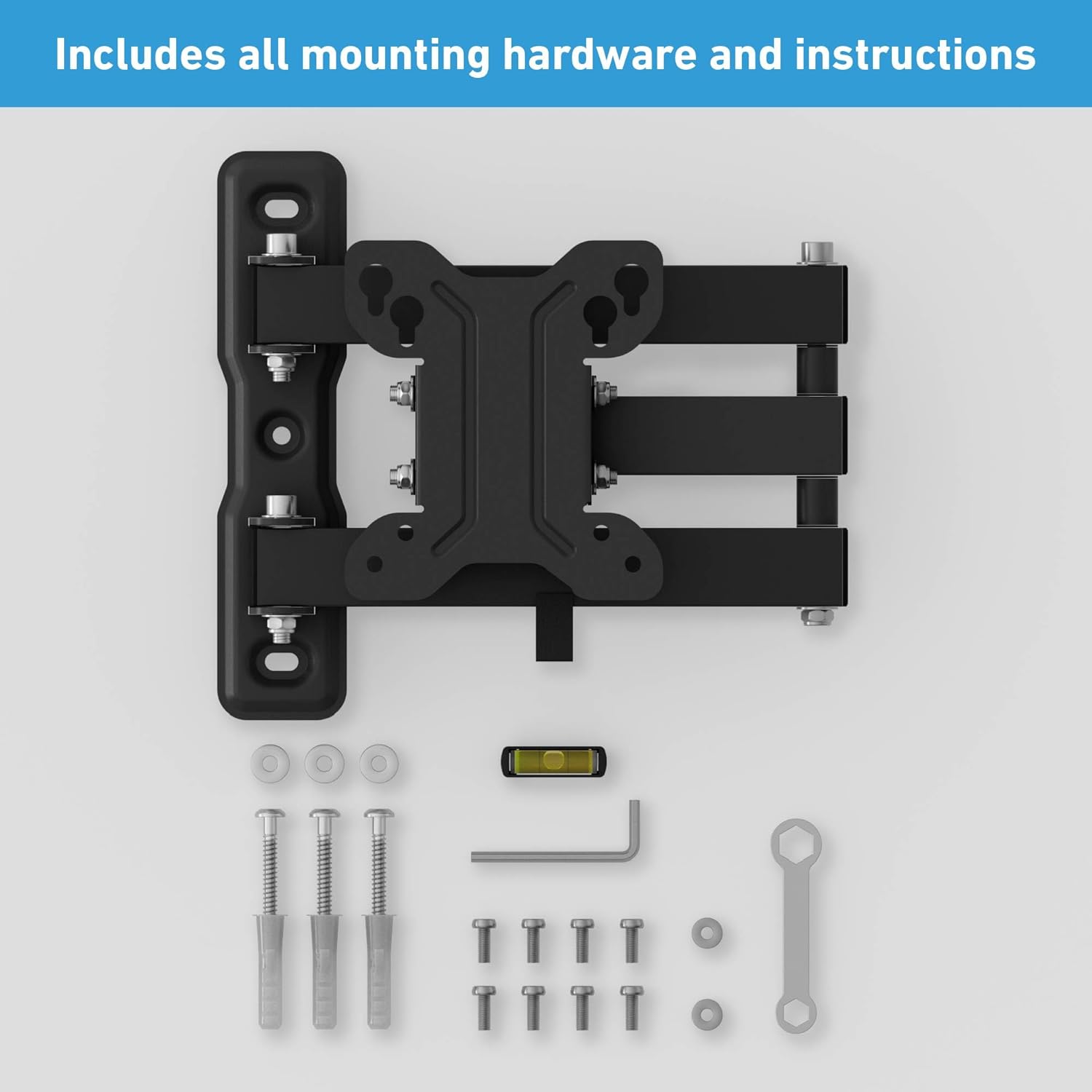

Contents of the D-Line Full Motion TV Wall Bracket package, including the bracket, various screws, a spirit level, spanner, and Allen key.

Image: All mounting hardware and instructions included in the package.

2. Ferramentas necesarias (non incluídas)

Taladro eléctrico
Appropriate drill bits for your wall type
Stud finder (for stud wall installation)
Desaparafusador
Lapis para marcar

3. Wall Type Considerations

The D-Line Full Motion TV Wall Bracket is suitable for mounting on concrete, stud, and brick walls. It is crucial to identify your wall type before installation to ensure proper and safe mounting.

Diagram showing the TV wall bracket mounted on concrete, stud, and brick walls, with a warning not to mount on drywall alone.

Image: Illustration of mounting on concrete, stud, and brick walls. Important: Do not mount on drywall alone.

4. Montaxe da placa de parede

Seleccionar localización: Choose a suitable location on your wall, ensuring it is free from electrical wires or plumbing. Use a stud finder for stud walls.
Marcar os buratos: Position the wall plate at the desired height and use a pencil to mark the drilling points. Use the included spirit level to ensure the marks are perfectly horizontal.
Perforación: Drill pilot holes at the marked locations using the appropriate drill bit for your wall type.
Placa de parede segura: Attach the wall plate to the wall using the provided screws and anchors (for concrete/brick) or wood screws (for stud walls). Ensure it is firmly secured.

5. Attaching TV to Bracket

This bracket is compatible with TVs and monitors ranging from 13 to 27 inches, supporting VESA patterns 75x75mm and 100x100mm.

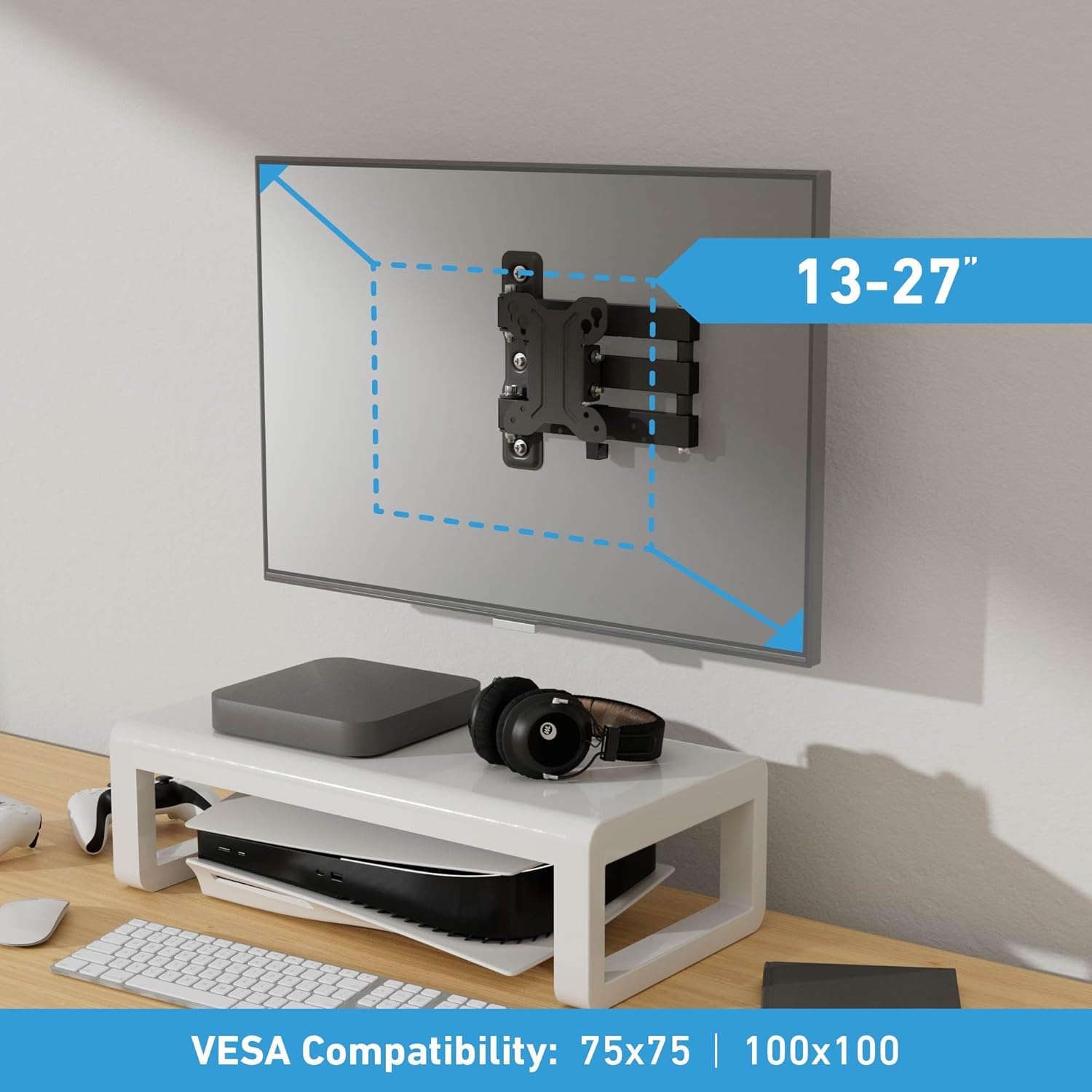

A TV mounted on the D-Line wall bracket, showing the compatible screen size range of 13-27 inches and VESA compatibility of 75x75mm and 100x100mm.

Image: The bracket supports 13-27 inch TVs with VESA 75x75mm and 100x100mm patterns.

Attach VESA Plate to TV: Carefully place your TV face down on a soft, clean surface. Align the VESA mounting holes on the back of your TV with the corresponding holes on the bracket's VESA plate. Use the appropriate screws from the provided hardware kit to secure the VESA plate to your TV. Do not overtighten.
Mount TV to Wall Bracket: With assistance, carefully lift the TV with the attached VESA plate and hook it onto the wall-mounted arm assembly. Ensure the TV is securely seated on the bracket.
Televisión segura: Tighten any safety screws or locking mechanisms on the bracket to prevent accidental dislodgement of the TV.

6. Guía de vídeo de instalación

For a visual guide on the installation process, please refer to the official D-Line Full Motion TV Mount installation video:

Video: Official D-Line Full Motion TV Mount (DTBTA100-DL) installation guide. This video demonstrates the step-by-step process for mounting the bracket and attaching your TV.

Instrucións de funcionamento

Axustando Viewángulo ing

The D-Line Full Motion TV Wall Bracket allows for flexible adjustment to achieve your preferred viewángulo de ing:

Inclinación: The bracket allows for a tilt range of +/- 15 degrees. Gently push or pull the top or bottom of your TV to adjust the vertical angle.
Turn (Swivel): The bracket offers a turn range of +/- 90 degrees. Carefully swivel the TV left or right to adjust the horizontal angle.
Ampliar: The bracket can extend your TV from 1.9 inches (4.8cm) up to 15.4 inches (39.1cm) from the wall. Gently pull the TV forward or push it back towards the wall.

Four images demonstrating the viewing angle adjustments: flat to the wall, tilt range of +/-15 degrees, turn range of +/-90 degrees, and combined tilt and turn.

Image: Demonstrates the bracket's ability to adjust viewing angles, including flat to wall, tilt, turn, and combined tilt and turn.

Un lado view of the TV wall bracket extended from the wall, showing the extension range from 1.9 inches to 15.4 inches.

Image: The bracket extends the TV from 1.9 inches to 15.4 inches from the wall.

Xestión de cables

Use the included cable management clip to organize and route your TV cables along the bracket arm. This helps maintain a tidy appearance and prevents cables from snagging during adjustments.

A close-up of the TV wall bracket showing cables neatly routed through an included cable management clip on the arm.

Image: The bracket includes a cable management clip to keep cords organized.

Mantemento

To ensure the longevity and safe operation of your D-Line TV Wall Bracket, follow these maintenance guidelines:

Inspección periódica: Comprobe periodicamente todos os parafusos e conexións para asegurarse de que permanecen axustados. Volva a apertalos se detecta algunha folgura.
Limpeza: Clean the bracket with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.
Movemento: If the bracket's movement becomes stiff, apply a small amount of silicone-based lubricant to the moving joints.

Resolución de problemas

If you encounter any issues during or after installation, refer to the following common solutions:

Problema	Causa posible	Solución
O televisor non está nivelado despois da instalación.	Wall plate not level during mounting.	Carefully loosen the wall plate screws, adjust using the spirit level, and re-tighten.
Bracket feels loose on the wall.	Screws not fully tightened or incorrect anchors used.	Ensure all wall plate screws are securely tightened. Verify correct anchors were used for your wall type.
TV mounting screws do not fit.	Incorrect screw size selected for your TV.	Refer to your TV's manual for correct VESA screw size. Use the appropriate screws from the provided kit.
Difficulty adjusting the bracket's movement.	As unións poden estar demasiado apertadas ou precisar lubricación.	Check if any adjustment bolts are overtightened. Apply a small amount of silicone lubricant to the joints if necessary.

Especificacións do produto

The D-Line Full Motion TV Wall Bracket offers the following specifications:

Compatibilidade do tamaño da pantalla: 13-27 polgadas
Compatibilidade VESA: 75x75mm, 100x100mm
Capacidade de peso: Ata 55 libras (25 kg)
Rango de inclinación: +/- 15 graos
Turn (Swivel) Range: +/- 90 graos
Rango de extensión: 1.9 polgadas a 15.4 polgadas (4.8 cm a 39.1 cm)
Material: Aceiro de alta calidade
Cor: Negro
Tipo de montaxe: Soporte de parede
Peso do artigo: 3.52 libras (1.6 kg)
Dimensións do paquete: 10.43 x 8.98 x 2.52 polgadas (26.5 x 22.8 x 6.4 cm)

A close-up image of the D-Line TV wall bracket mounted on a wall, with an overlay indicating it holds up to 55lbs.

Image: The D-Line Full Motion TV Wall Bracket is tested to hold up to 55lbs.

Información da garantía

For detailed warranty information regarding your D-Line Full Motion TV Wall Bracket, please refer to the official D-Line website or contact D-Line customer support directly. Warranty terms and conditions may vary by region.

Atención ao cliente

If you require further assistance, have questions about installation, or need to report a missing part, please contact D-Line customer support through their official websitio web ou a información de contacto que se inclúe na embalaxe do produto.

D-Line D-Line
