SEESII Impact Driver Instruction Manual

1. Introdución

Thank you for choosing the SEESII Impact Driver Model QZJ02. This powerful and versatile electric impact driver is designed for various fastening tasks, offering a high-performance brushless motor, multiple speed settings, and smart modes for optimal control. It is compatible with Makita 18V lithium-ion batteries, providing convenience for users who already own compatible battery systems. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting.

2. Información de seguridade

Siga sempre as precaucións de seguridade básicas ao usar ferramentas eléctricas para reducir o risco de incendio, descarga eléctrica e lesións persoais.

• Le todas as instrucións: Familiarícese co funcionamento da ferramenta e as pautas de seguridade antes do seu uso.
• Usar o equipo de protección individual (EPI) axeitado: Use sempre lentes de seguridade, protección auditiva e luvas.
• Manter a zona de traballo limpa e ben iluminada: As zonas desordenadas ou escuras invitan a accidentes.
• Evita ambientes perigosos: Non use ferramentas eléctricas en damp or wet locations, or where flammable liquids or gases are present.
• Asegurar a peza de traballo: Sempre clamp ou asegurar a peza de traballo doutro xeito para evitar o movemento durante o funcionamento.
• Manteña unha posición e un equilibrio adecuados: Non se exceda.
• Desconectar a alimentación: Retire sempre a batería antes de facer axustes, cambiar accesorios ou gardar a ferramenta.
• Usa a ferramenta axeitada para o traballo: Non force unha ferramenta ou accesorio pequeno para facer o traballo dunha ferramenta de alta resistencia.
• Almacenar ferramentas inactivas: Cando non se utilicen, as ferramentas deben gardarse nun lugar seco, alto ou pechado con chave, fóra do alcance dos nenos.
• Comprobar se hai pezas danadas: Before using the tool, carefully check for any damaged parts to ensure it will operate properly and perform its intended function.

3. Produto rematadoview

The SEESII Impact Driver QZJ02 is engineered for efficiency and durability. Key features include:

• Motor sen escobillas: Provides higher efficiency, longer lifespan, and reduced maintenance compared to brushed motors.
• Configuración de 4 velocidades: Offers 'Fastest', 'Strong', 'Medium', and 'Weak' modes to match various application requirements.
• 4 Smart Modes: Dedicated modes for wood, bolts, thin Tekus boards, and thick Tekus boards, with a memory function to recall the last used mode.
• Disparador de velocidade variable: Allows precise control over rotation speed with finger pressure.
• Interruptor de avance/retroceso: Easily change the rotation direction for tightening and loosening fasteners.
• 4-Eye LED Light: Illuminates the work area for improved visibility in dark conditions.
• Deseño compacto e lixeiro: Enhances maneuverability and reduces user fatigue.
• Makita 18V Battery Compatibility: Designed to work with various Makita 18V lithium-ion batteries (BL1820b, BL1830b, BL1840b, BL1850b, BL1860b).

Figura 3.1: global view of the SEESII Impact Driver QZJ02.

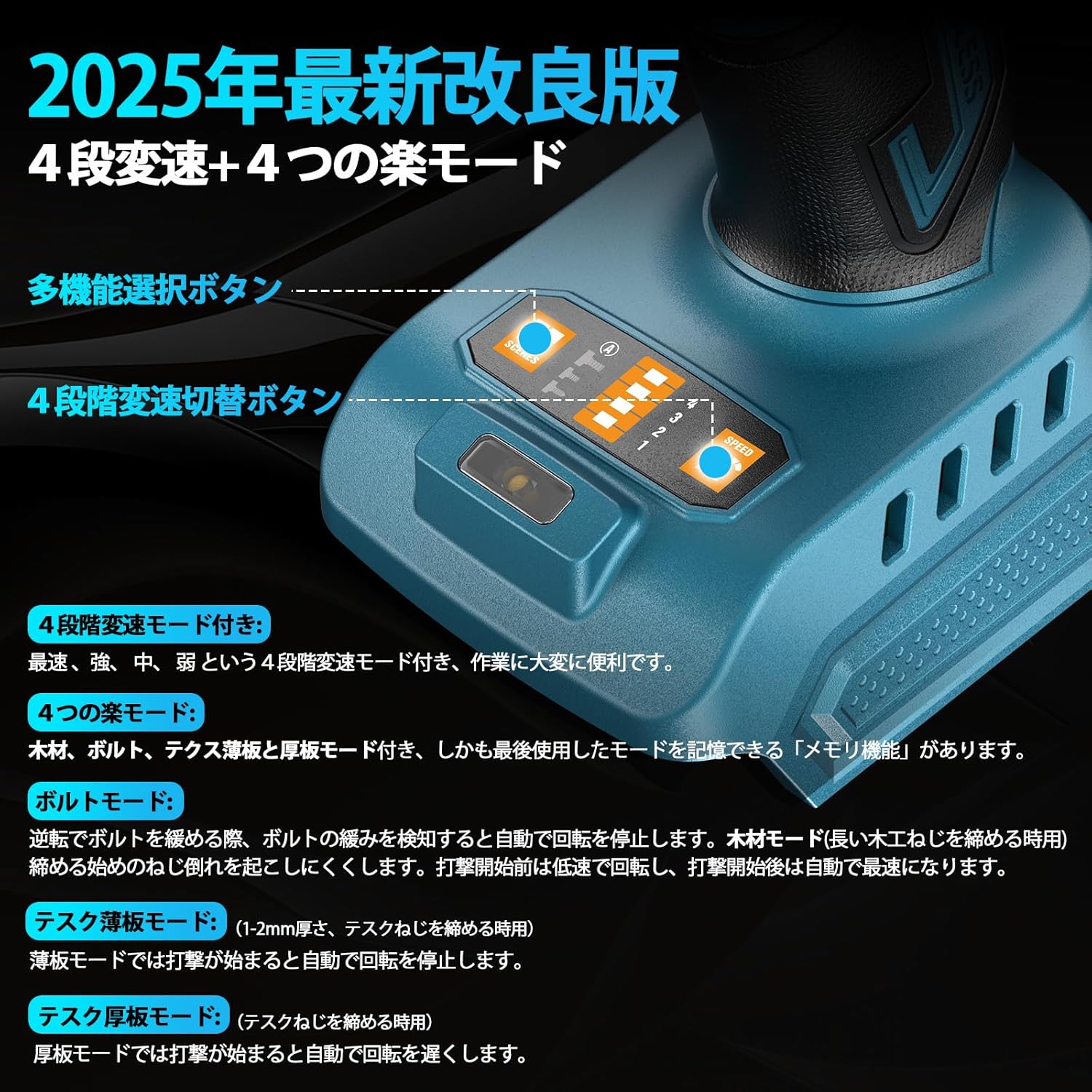

Figure 3.2: Illustration of the 4-speed settings and 4 smart modes, including a multi-function selection button and a 4-stage speed switching button.

Figure 3.3: Depiction of the brushless motor technology and maximum torque of 230N·m, highlighting its efficiency and durability.

Figure 3.4: Visual representation of the impact driver's compatibility with various Makita 18V lithium-ion batteries (BL1820, BL1830, BL1840, BL1850, BL1860).

4. Configuración

4.1 Instalación da batería

The SEESII Impact Driver is compatible with Makita 18V lithium-ion batteries. To install the battery, align the battery pack with the base of the tool and slide it in until it clicks securely into place. To remove, press the release button on the battery and slide it out.

Instalación de 4.2 bits

To install a driver bit, pull the bit holder forward, insert the bit fully into the chuck, and then release the bit holder. Ensure the bit is securely locked in place by gently pulling on it. To remove, pull the bit holder forward and pull the bit out.

5. Instrucións de funcionamento

5.1 Encendido/apagado

To power on the tool, simply press the trigger. The tool will start rotating. Release the trigger to stop the tool. For safety, ensure the forward/reverse switch is in the neutral (locked) position when not in use to prevent accidental startup.

5.2 Selección de modo

The impact driver features 4-speed settings and 4 smart modes. Use the mode selection button (often located near the battery indicator) to cycle through the available modes. The LED indicators will show the currently selected mode. The tool also has a memory function that recalls the last used mode.

• Configuración de 4 velocidades: Adjust the maximum rotation speed (Fastest, Strong, Medium, Weak) for different materials and fastener types.
• 4 Smart Modes: Specific modes optimized for wood, bolts, thin Tekus boards, and thick Tekus boards. These modes automatically adjust impact and rotation for optimal results and to prevent damage.

5.3 Variable Speed and Forward/Reverse

The trigger allows for variable speed control; the harder you press, the faster the tool rotates. The forward/reverse switch, located above the trigger, allows you to change the direction of rotation. Push it to the left for forward (tightening) and to the right for reverse (loosening). Position it in the middle to lock the trigger for safety.

5.4 Luz de traballo LED

The integrated 4-eye LED light automatically illuminates when the trigger is pressed, providing clear visibility of the work area. This feature is particularly useful in dimly lit environments.

6. Mantemento

Regular maintenance ensures the longevity and optimal performance of your SEESII Impact Driver.

• Limpeza: Manteña limpas as aberturas de ventilación da ferramenta para evitar o sobrequecemento. Use un pano suave eamp pano para limpar o exterior. Non empregue produtos químicos agresivos nin produtos de limpeza abrasivos.
• Coidado da batería: Garda as baterías nun lugar fresco e seco, lonxe da luz solar directa. Non gardes as baterías completamente descargadas durante períodos prolongados.
• Mantemento de brocas: Ensure bits are clean and free from debris. Replace worn or damaged bits to maintain efficiency and prevent damage to fasteners.
• Almacenamento: Store the tool and accessories in a dry, secure location, out of reach of children and away from extreme temperatures.

7 Solución de problemas

Se tes problemas co teu atornillador de impacto, consulta os seguintes problemas e solucións comúns:

8. Especificacións

8.1 Torque Test Demonstration

This video demonstrates the torque capabilities of an impact driver, loosening and tightening a nut set to 300N·m. While the video mentions 'YOIbuy PRO', the tool's appearance and functionality are highly similar to the SEESII model, providing a relevant demonstration of power.

9. Garantía e soporte

SEESII products undergo strict quality control before shipment. In the unlikely event of a defect, we offer a refund or free replacement. Our products come with a 1-year warranty period.

9.1 Contactar con Soporte

If you have any questions or concerns regarding the product, please contact us through your order history:

1. Vaia a "Historial de pedidos".
2. Select the relevant order.
3. Click on 'View Order Details'.
4. Fai clic en "Contactar co vendedor".

We aim to respond to your inquiries within 24 hours.
