Manual de usuario

1. Introdución

Thank you for choosing the VINGLI Large Shoe Cabinet. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new shoe cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

This image displays the VINGLI Large Shoe Cabinet in a rustic brown finish, with its three louvered doors open, revealing multiple tiers of shoe storage. The cabinet is filled with various types of footwear, demonstrating its capacity.

2. Información de seguridade

To ensure safe use of your VINGLI Large Shoe Cabinet, please adhere to the following safety guidelines:

• Monte sempre o armario sobre unha superficie suave e limpa para evitar rabuñaduras.
• Asegúrate de que todos os parafusos e elementos de fixación estean ben axustados antes do uso. Comprobe periodicamente e volva a axustalos segundo sexa necesario.
• An anti-tipping device is provided. It is crucial to install this device to prevent accidental tipping, especially in households with children or pets.
• Non permita que os nenos suban ou xoguen co armario.
• Distribuír o peso uniformemente polas baldas para manter a estabilidade.
• Manteña o armario lonxe da luz solar directa e da humidade excesiva para evitar danos materiais.

This image demonstrates the invisible anti-tipping device included with the VINGLI Shoe Cabinet, designed to secure the cabinet to the wall and prevent accidental tipping, enhancing safety, especially in homes with children.

3. Compoñentes e hardware

Before assembly, verify that all components and hardware listed in your product's specific instruction manual are present. The package typically includes:

• Wooden panels (sides, top, bottom, shelves, doors)
• Hardware bag (screws, cam locks, cam bolts, wooden dowels, plastic embedded nuts, magnetic door holders, metal handles, anti-tipping kit)
• Manual de montaxe

Note: Some models may have pre-installed plastic embedded nuts. Extra nuts are provided in the hardware kit if needed.

4. Instrucións de configuración e montaxe

Follow these steps carefully for proper assembly. It is recommended to have two people for quicker and easier installation.

4.1 Consellos para a Asemblea Xeral

• Identifique todas as pezas e os accesorios antes de comezar.
• Use the provided screwdriver or a similar tool for tightening.
• Non aperte demasiado os parafusos para evitar danar a madeira.

4.2 Three-in-One Connector & Wooden Dowel Installation Guide

This video demonstrates the correct method for installing the crucial three-in-one connectors and wooden dowels, which are fundamental for the cabinet's stability.

4.3 Key Assembly Steps (Refer to your specific manual for detailed diagrams)

1. Attach Cam Bolts and Dowels: Insert wooden dowels and cam bolts into the designated holes on the panels. Ensure cam bolts are tightened with a screwdriver.
2. Conectar paneis: Align panels and insert cam bolts into the cam lock holes. Insert cam locks and turn them clockwise with a screwdriver to secure the connection. Ensure the cross mark on the cam lock faces the cam bolt for proper engagement.
3. Instalar o panel traseiro: Secure the back panel using small nails or screws provided.
4. Instalar estantes: Insert shelf pins into the desired height holes. Place shelves onto the pins. The shelves are adjustable to accommodate various shoe sizes, including boots.
5. Fixar portas: Secure hinges to the doors and then attach the doors to the cabinet frame. Install magnetic door holders for soft closing and metal handles for easy opening.
6. Instalar o dispositivo antivuelco: Secure the anti-tipping strap to the top of the cabinet and then to a wall stud using the provided hardware.

This diagram illustrates the key dimensions of the VINGLI Large Shoe Cabinet, including its width (45.66 inches), depth (13.97 inches), and height (41.92 inches), along with internal shelf measurements.

This image highlights the adjustable shelf feature of the VINGLI Shoe Cabinet. It shows how shelves can be repositioned to accommodate various shoe sizes, from regular shoes to taller boots, maximizing storage flexibility.

5. Instrucións de funcionamento

The VINGLI Large Shoe Cabinet is designed for convenient and organized shoe storage.

• Baldas axustables: The cabinet features adjustable shelves. To change shelf height, remove the shelf, reposition the shelf pins to the desired holes, and then place the shelf back on the pins. This allows for flexible storage of various shoe types, including high heels and boots.
• Louvered Doors: The slatted louvered doors are designed to provide ventilation, helping to prevent odors and keep your shoes fresh.
• Magnetic Door Holders: The magnetic door holders ensure soft and quiet opening and closing of the cabinet doors.
• Superficie superior: The raised round edges on the top surface provide a stable area for placing small items like keys, decorative pieces, or other entryway essentials.
• Underneath Area: The spacious area underneath the cabinet allows for easy cleaning and can also be used for storing slippers or a robot vacuum.

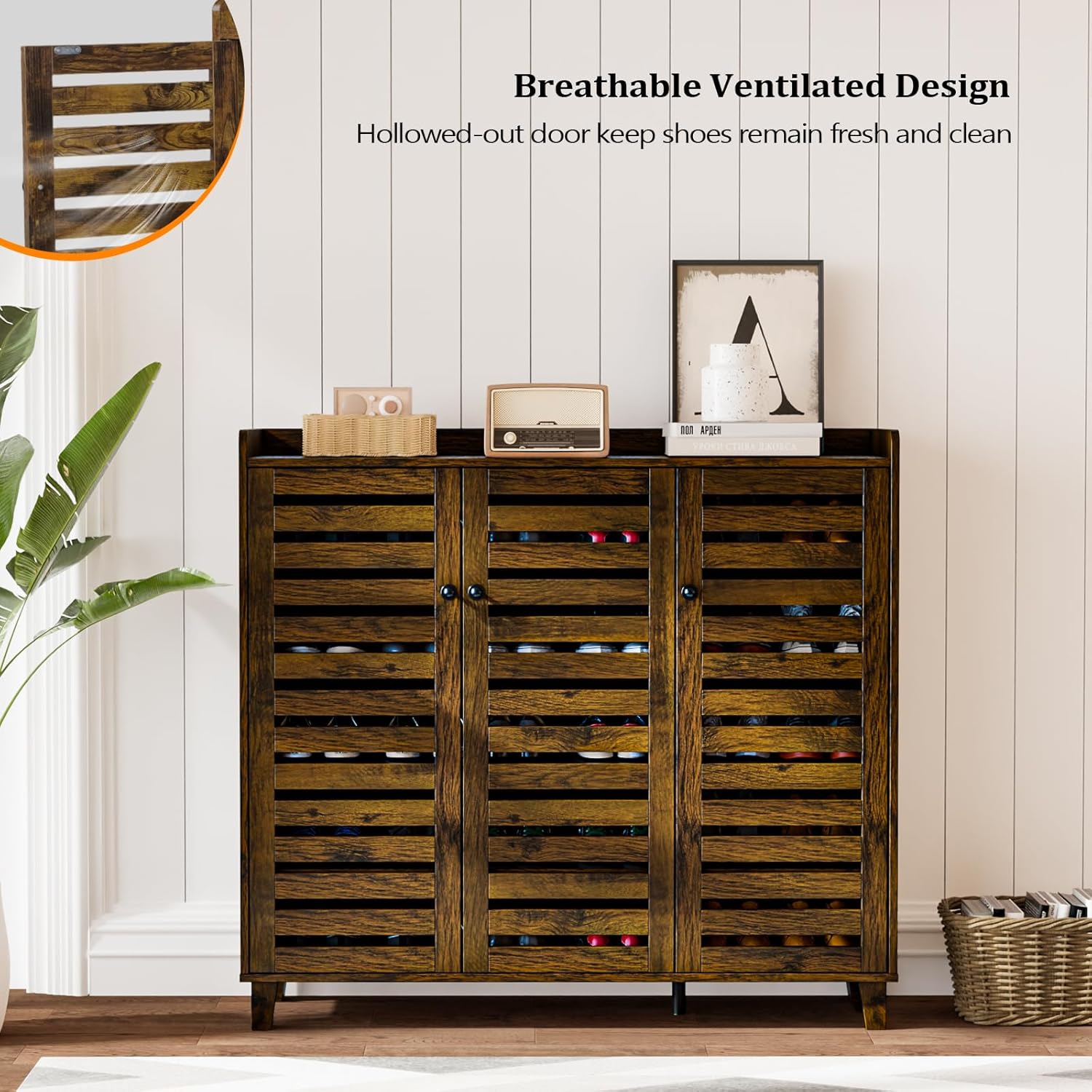

This image focuses on the louvered door design of the VINGLI Shoe Cabinet, which promotes air circulation to keep shoes fresh and prevent odors.

This collage showcases several user-friendly design elements: raised edges on top for secure item placement, a magnetic door holder for soft closing, durable metal round handles, and ample space underneath for easy cleaning and slipper storage.

6. Mantemento

Un coidado axeitado prolongará a vida útil e o aspecto do teu zapateiro.

• Limpeza: Limpar as superficies do armario cun pano suave eamp pano. Evite o uso de produtos químicos agresivos ou produtos de limpeza abrasivos, xa que poden danar o acabado.
• Verquidos: Immediately wipe up any spills to prevent moisture damage to the wood. The waterproof surface helps protect against accidental liquid exposure.
• Desempolvado: Limpa o po do armario con regularidade para evitar acumulacións.
• Verificación de hardware: Comprobe periodicamente todos os parafusos e conexións para asegurarse de que permanecen ben axustados. Volva a apertalos se é necesario.

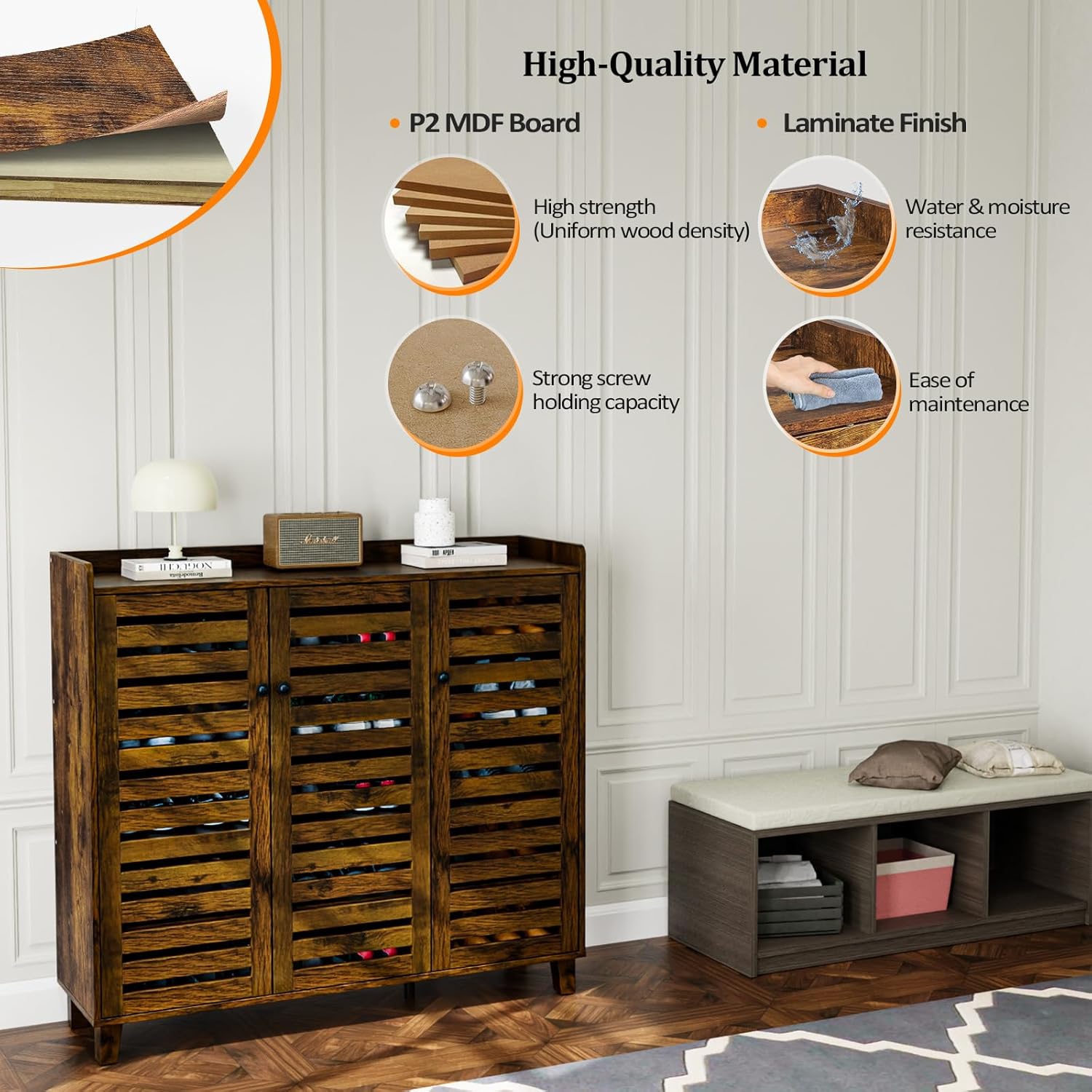

This diagram details the construction materials of the VINGLI Shoe Cabinet, featuring P2 MDF board for strength and a scratch-resistant, waterproof laminate finish for durability and easy maintenance.

7 Solución de problemas

If you encounter any issues with your VINGLI Large Shoe Cabinet, refer to the following common problems and solutions:

8. Especificacións

9. Garantía e soporte

VINGLI stands behind the quality of its products.

• Garantía: Your VINGLI Large Shoe Cabinet comes with a Worry-Free 24-Month Quality Warranty.
• Atención ao cliente: VINGLI provides professional customer service before and after your purchase. If you have any questions, concerns, or require assistance with missing/damaged parts, please do not hesitate to contact us. We aim to respond within 24 hours.

For support, please visit the official VINGLI store on Amazon or contact us through your purchase platform.
