Zodiac Nicheless LED Underwater Light User Manual

1. Produto rematadoview

The Zodiac Pro Series White Light is an energy-efficient LED underwater light designed to illuminate your pool or spa. It features a compact 2-inch lens that is barely visible during the day, allowing for more even lighting without creating bright spots or dim areas. This light is engineered for easy installation and reliable performance.

Características principais:

• 12 Volt, 30 Watt LED light
• 100 Foot Cord for flexible installation
• White-only illumination for clear, bright light
• Wider beam spread brightens the hard-to-reach corner
• Redundant seal for improved leak prevention
• Easy installation into any 1-1/2" threaded wall fitting
• Does not require bonding
• Can be controlled by a single light switch or integrated with Zodiac Smart Color Control systems.

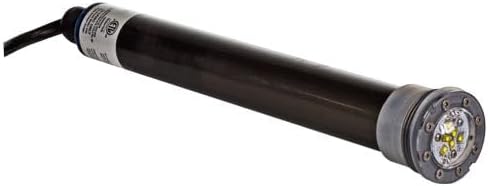

Figura 1: Zodiac Nicheless LED Underwater Light. This image shows the cylindrical light fixture with its integrated cord and the small, multi-LED lens at one end.

2. Información de seguridade

Please read and understand all safety instructions before installing or operating this product. Failure to follow these instructions could result in serious injury or property damage.

• Seguridade eléctrica: Always disconnect power at the circuit breaker before attempting any installation, maintenance, or repair. This product operates on 12V, but proper electrical connections are crucial.
• Instalación profesional: Installation should be performed by a qualified electrician or pool professional in accordance with all local and national electrical codes.
• Inmersión en auga: This light is designed for underwater use only. Ensure all seals are intact and connections are watertight before submerging.
• Integridade do cable: Do not cut, splice, or damage the power cord. Any damage to the cord can compromise the waterproof seal and create a safety hazard.
• Nenos e animais: Manteña os nenos e as mascotas lonxe da zona de instalación.

3. Configuración e instalación

The Zodiac Nicheless LED Underwater Light is designed for straightforward installation into standard pool fittings.

Ferramentas e materiais necesarios:

• Cinta selladora de roscas (cinta de teflón)
• Adjustable wrench (if needed for tightening)
• Appropriate electrical wiring and transformer (12V AC)

Pasos de instalación:

1. Prepare the Niche: Ensure the 1-1/2" threaded wall fitting in your pool or spa is clean and free of debris.
2. Aplicar sellador: Apply thread sealant tape (e.g., Teflon tape) to the threads of the light fixture to ensure a watertight seal.
3. Screw into Fitting: Carefully screw the Zodiac Nicheless LED light into the 1-1/2" threaded wall fitting. Hand-tighten first, then use an adjustable wrench if necessary, ensuring not to overtighten.
4. Ruta o cable: Route the 100-foot power cord through the conduit to the transformer location. Ensure the cord is not kinked or damaged during routing.
5. Conexión eléctrica: Connect the light's power cord to a compatible 12V AC transformer. Follow the transformer's instructions for proper wiring. Ensure all electrical connections are secure and protected from moisture.
6. Proba de funcionamento: Once installed and wired, turn on the power to the circuit and test the light's operation.

Note: This light does not require bonding, simplifying the installation process. The redundant seal design minimizes potential leak paths.

4. Instrucións de funcionamento

The Zodiac Nicheless LED Underwater Light is designed for simple operation.

Operación básica:

• Control On/Off: The light can be turned on and off using a standard light switch connected to its power supply.
• Integración de sistemas: For advanced control, this light seamlessly interfaces with the Zodiac Smart Color Control system. Refer to your Zodiac Smart Color Control system's manual for detailed instructions on integrating and controlling the light.

5. Mantemento

The Zodiac Nicheless LED Underwater Light requires minimal maintenance to ensure long-lasting performance.

• Inspección periódica: Periodically inspect the light fixture and its cord for any signs of damage, wear, or leaks. Address any issues promptly.
• Limpeza: If the lens becomes dirty or covered with algae, gently clean it with a soft brush or cloth. Do not use abrasive cleaners or harsh chemicals that could damage the lens or seals.
• Invernización: If you winterize your pool, follow standard pool winterization procedures. Ensure the light remains submerged or is removed and stored according to local guidelines if the water level is lowered below the light.
• Non hai pezas reparables polo usuario: The LED light assembly contains no user-serviceable parts. Do not attempt to open or repair the light fixture. Contact a qualified professional for service if needed.

6 Solución de problemas

If you encounter issues with your Zodiac Nicheless LED Underwater Light, refer to the following common troubleshooting steps:

If the problem persists after attempting these steps, contact a qualified pool professional or the manufacturer for assistance.

7. Especificacións

• Nome do modelo: Acuarelas
• Número de modelo do artigo: CPLVLEDS30 (also JLUW30W100)
• Marca: Generic (Manufactured by Jandy Zodiac)
• Tipo de luz: LED
• Cor: White-Only
• Voltage: 12 voltios
• Wattage: 30 Watts
• Lonxitude do cable: 100 pés
• Tamaño da lente: 2 polgadas
• Tipo de montaxe: Wall Mount (1-1/2" threaded fitting)
• Fonte de enerxía: dc
• Característica especial: Eficiencia enerxética
• Peso do artigo: 8.5 libras
• País de orixe: EUA

8. Garantía e soporte

For warranty information and technical support, please contact the manufacturer, Jandy Zodiac, or the authorized seller from whom you purchased this product.

Garda o comprobante de compra para calquera reclamación de garantía.

Vendedor: Legacy Parts & Hardware

Política de devolución: 30-day refund/replacement policy from the seller.
