EBTOOLS 2MP 1920P HD Endoscope Inspection Camera User Manual

Introdución

Grazas pola compraasing the EBTOOLS 2MP 1920P HD Endoscope Inspection Camera. This device is designed for inspecting hard-to-reach areas, providing clear images and videos. It features an IP67 waterproof probe, 8 adjustable LED lights, and compatibility with iOS and Android devices. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

Produto rematadoview

The EBTOOLS Endoscope Inspection Camera offers advanced features for detailed inspections:

• Imaxe de alta resolución: Equipped with a 2.0MP camera, it captures clear snapshot images and videos at 1920x1440 resolution.
• Iluminación LED axustable: Features 8 adjustable LED lights to provide optimal brightness in dark or dimly lit environments, ensuring clear visibility.
• Flexible and Durable Probe: The 7.9mm semi-rigid cable can be freely bent and maintains its shape, allowing easy navigation through complex spaces.
• Clasificación de impermeabilidade IP67: The camera probe is IP67 rated, enabling it to operate underwater for up to 1 hour at a maximum depth of 3.28 feet (1 meter).
• Ampla compatibilidade: Easily connects to iOS 9.0 and above, and Android 7 and above devices via a simple interface.
• Aplicacións versátiles: Ideal for inspecting car engines, plumbing, residential wiring, and other inaccessible areas.

Image: The EBTOOLS Endoscope Camera, showcasing its flexible cable, control unit, and USB-C connector.

Contido do paquete

Verifique que todos os elementos estean presentes no seu paquete:

• 1 x Endoscope Camera (1m / 3.28ft)
• 1 x Adaptador
• 4 mangas
• 1 x Sleeve Storage Bottle
• 1 x manual de instrucións

Guía de configuración

1. Descarga a aplicación:

   Busca SUP-ANESOK in your device's APP store (compatible with iOS 9.0+ and Android 7+). Alternatively, scan the QR code provided in the included instruction manual to download the application.

2. Conecta o endoscopio:

   Plug the endoscope camera's USB-C connector into your compatible smartphone or tablet. Ensure the connection is secure.

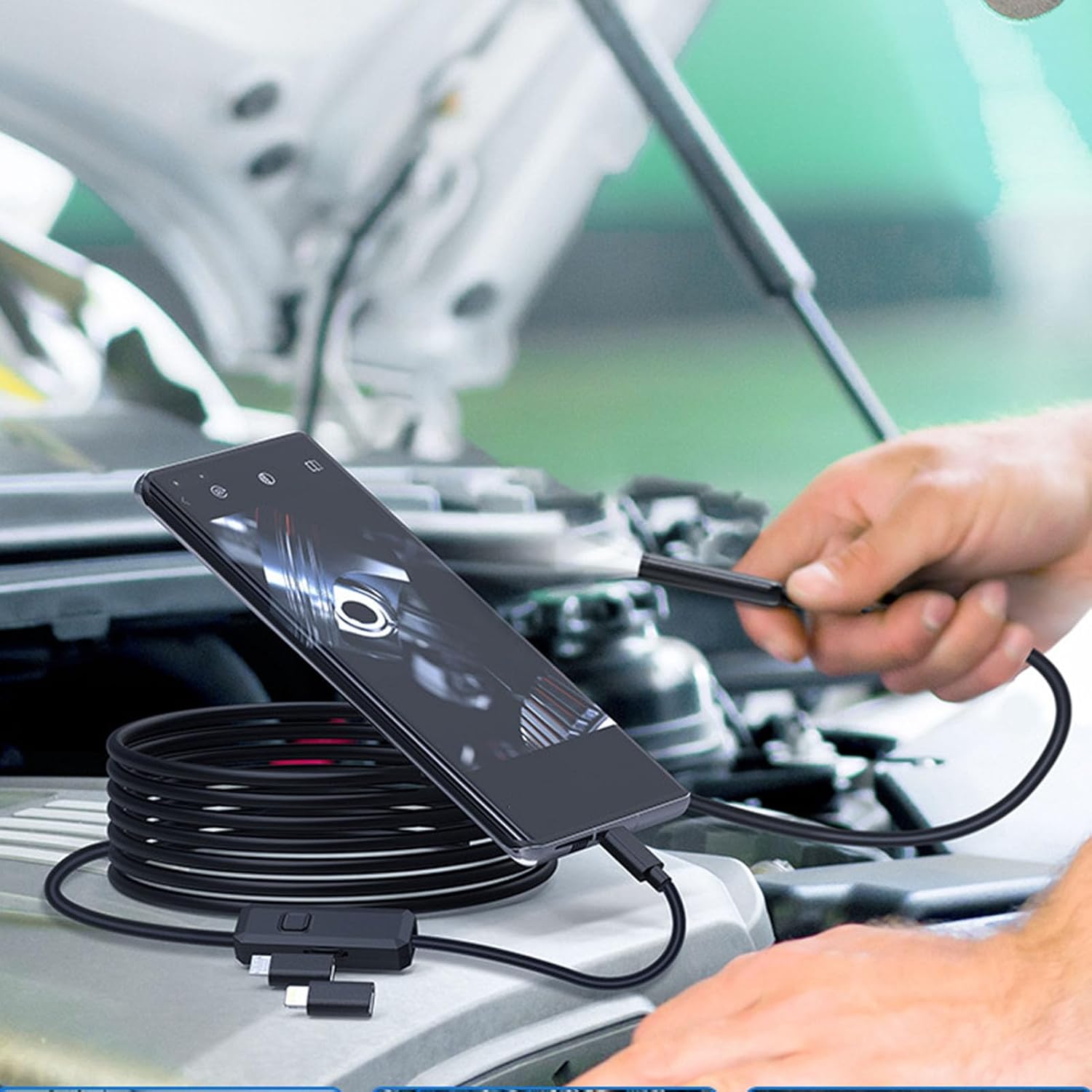

   Image: The endoscope camera connected to a smartphone, demonstrating its use for inspecting a car engine.
3. Iniciar a aplicación:

   Abre o SUP-ANESOK application on your device. The camera feed should appear automatically.

4. Axustar as luces LED:

   Use the integrated control unit on the cable to adjust the brightness of the 8 LED lights. This allows for optimal visibility in various lighting conditions.



   Imaxe: Primeiro plano view of the endoscope camera head, highlighting the 8 LED lights and illustrating the 2-10cm focal length.

Instrucións de funcionamento

1. Positioning the Probe:

   Carefully guide the 7.9mm semi-rigid probe into the area you wish to inspect. The flexible cable allows you to maneuver it around obstacles.



   Image: The endoscope camera demonstrating its versatility in various inspection scenarios, including AC vents, industrial pipes, and structural cracks.
2. Axustar o foco e o brillo:

   The camera has a focal length of approximately 2-10cm (0.79-3.94 inches). Adjust the distance to the object for the clearest image. Use the LED brightness control on the cable to enhance visibility as needed.

3. Captura de imaxes e vídeos:

   Dentro do SUP-ANESOK application, you can capture still images or record videos. Refer to the app's interface for specific buttons or gestures. The control unit on the cable also features a one-click photo button.



   Image: A close-up of the endoscope's control unit, highlighting the one-click photo button for easy image capture.
4. ReviewMedios de comunicación:

   Captured images and videos are saved directly to your connected device's gallery or within the SUP-ANESOK application. You can review eles en calquera momento.

Mantemento

• Limpeza da lente: After each use, gently wipe the camera lens with a soft, dry cloth to remove any debris or moisture. For stubborn dirt, use a lens cleaning solution sparingly.
• Coidado do cable: Avoid sharp bends or kinks in the cable. Store it neatly coiled to prevent damage. The cable features a pure copper superconducting wire core for durability and stable image transmission.
• Exposición á auga: While the probe is IP67 waterproof, ensure the USB connector and control unit are kept dry. If the probe has been submerged, dry it thoroughly before storage.
• Almacenamento: Store the endoscope camera in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided sleeve storage bottle for accessories.

Imaxe: Unha detallada view of the endoscope cable's internal structure, highlighting the pure copper superconducting wire core for enhanced durability and signal integrity.

Image: The endoscope camera probe submerged in water, visually confirming its IP67 waterproof rating and suitability for wet environments.

Resolución de problemas

Especificacións

Garantía e Soporte

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official EBTOOLS websitio. Garde o recibo da compra como proba de compra para calquera reclamación de garantía.

For further assistance, you may contact EBTOOLS customer service through their official channels. The brand store link is EBTOOLS Store on Amazon.co.jp.
