MURNELAP Carburetor and Maintenance Kit for Homelite F3040 (UT-15176) String Trimmer

1. Introdución

This manual provides essential instructions for the proper installation, maintenance, and care of your MURNELAP Carburetor and associated replacement parts for the Homelite F3040 (UT-15176) string trimmer. Adhering to these guidelines will help ensure optimal performance and longevity of your equipment. This kit is designed to replace Homelite part number 984534001.

2. Compoñentes do produto

The MURNELAP replacement kit includes the following components:

• Carburador
• Bujía
• Válvula de corte de combustible
• Fuel Filters (2)
• Manguera Clamps (2)
• Filtro de aire
• Prefiltro de espuma

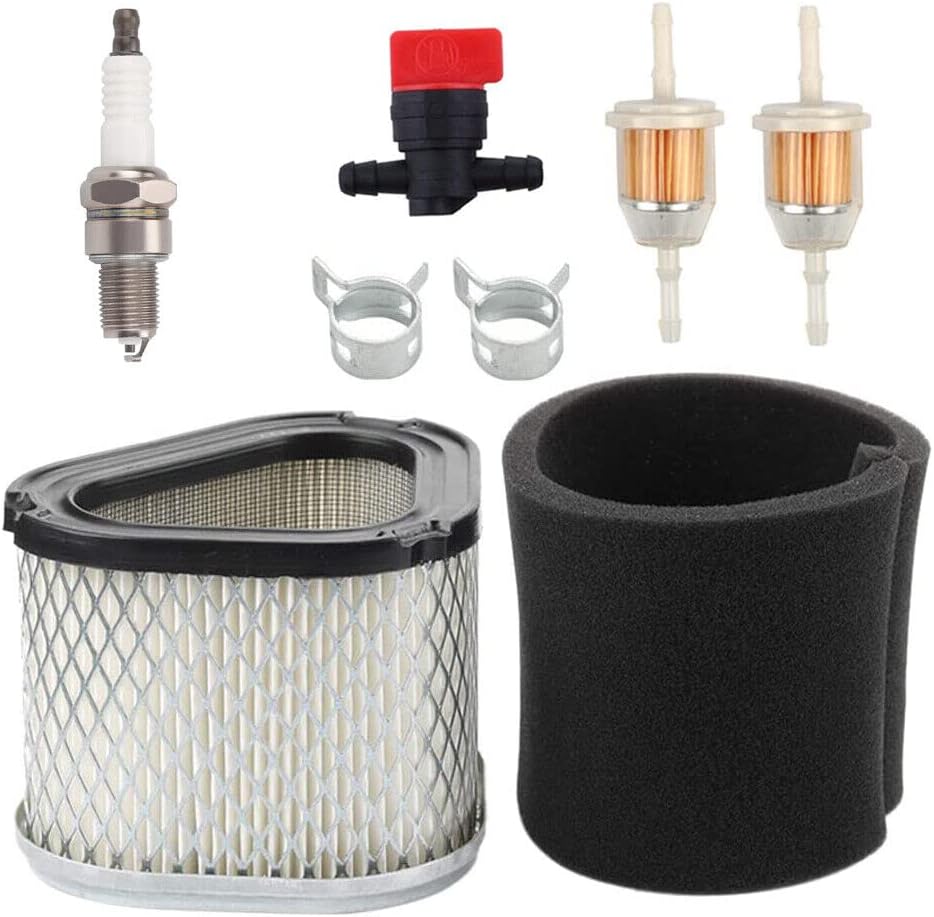

Figura 2.1: Acabadoview of the MURNELAP Carburetor and Maintenance Kit components. This image displays a spark plug, a red and black fuel shut-off valve, two clear fuel filters with brass elements, two metal hose clamps, a rectangular air filter with a mesh screen, and a black foam pre-filter.

3. Instrucións de instalación

Before beginning any installation, ensure the string trimmer's engine is off and cool, and disconnect the spark plug wire to prevent accidental starting. Always wear appropriate safety gear, including gloves and eye protection.

3.1. Verify Fit

For optimal performance and to ensure a precise fit, carefully compare the appearance and dimensions of the new parts with the original components of your Homelite F3040 (UT-15176) string trimmer before installation.

3.2. Carburetor Replacement

1. Locate the existing carburetor on your string trimmer.
2. Carefully disconnect the fuel lines, throttle linkage, and any other connections to the old carburetor. Note their positions for reassembly.
3. Remove the mounting bolts securing the old carburetor and detach it.
4. Install the new MURNELAP carburetor, ensuring all gaskets are properly seated.
5. Reconnect the fuel lines, throttle linkage, and any other connections in their original positions. Use the new hose clamps se é necesario.

3.3. Substitución da buxía

1. Remove the spark plug boot from the existing spark plug.
2. Using a spark plug wrench, carefully unscrew and remove the old spark plug.
3. Thread the new spark plug into the engine by hand to avoid cross-threading.
4. Tighten the spark plug with the wrench until snug, then reconnect the spark plug boot.

3.4. Fuel Filter and Fuel Valve Replacement

1. Drain any fuel from the fuel tank into an approved container.
2. Locate the fuel lines and existing fuel filter inside the fuel tank.
3. Carefully pull the old fuel filter out of the tank and disconnect it from the fuel line.
4. Install the new fuel filter onto the fuel line and place it inside the tank.
5. Replace the existing fuel shut-off valve in the fuel line if present, ensuring proper orientation for fuel flow. Secure with new clamps.

3.5. Substitución do filtro de aire

1. Locate the air filter housing, typically near the carburetor.
2. Open the air filter housing cover and remove the old air filter and foam pre-filter.
3. Install the new foam pre-filter over the new air filter.
4. Place the new air filter assembly into the housing and secure the cover.

4. Funcionamento (posterior á instalación)

After completing the installation of all components, ensure all connections are secure and there are no fuel leaks. Refill the fuel tank with the appropriate fuel mixture for your Homelite string trimmer. Follow your trimmer's original operating instructions for starting and running the engine. The new carburetor is designed to provide smooth and efficient engine performance.

5. Mantemento

Regular maintenance of your string trimmer's fuel and air systems is crucial for reliable operation and extends the life of your equipment. Inspect these components periodically.

• Filtro de ar: Check the air filter and foam pre-filter regularly for dirt and debris. Clean or replace as needed to ensure proper airflow to the carburetor. A clogged air filter can lead to poor engine performance.
• Filtro de combustible: Inspect the fuel filter for clogs or contamination. Replace if it appears dirty or restricted to prevent fuel delivery issues to the carburetor.
• Buxía: Examine the spark plug for wear, carbon buildup, or damage. Replace if electrodes are worn or fouled to ensure consistent ignition.
• Fuel Lines and Connections: Periodically check fuel lines for cracks, leaks, or deterioration. Ensure all connections, including the fuel shut-off valve, are secure.

6 Solución de problemas

If your string trimmer experiences issues after installing the new components, consider the following common troubleshooting steps:

• O motor non arranca:
  • Asegúrese de que o cable da bujía estea ben conectado.
  • Check for fuel in the tank and ensure the fuel shut-off valve is open.
  • Comprobe que a buxía estea limpa e produza faísca.
  • Confirm the air filter is clean and not restricting airflow.
• Engine Runs Rough or Lacks Power:
  • Inspeccione o filtro de aire para ver se hai obstrucións.
  • Check the fuel filter for restrictions.
  • Ensure all fuel lines are properly connected and free of leaks.
  • Verify the carburetor is securely mounted and all linkages are correctly attached.
• Fugas de combustible:
  • Tighten all fuel line connections and hose clamps.
  • Inspect fuel lines and the fuel shut-off valve for cracks or damage.
  • Ensure carburetor gaskets are properly seated.

7. Especificacións

8. Garantía e soporte

Specific warranty details for this MURNELAP product are not provided within this manual. For warranty information, technical support, or assistance with installation and troubleshooting beyond the scope of this guide, please contact the manufacturer directly or refer to the product listing where you purchased the item.
