1. Produto rematadoview
The HUUM Chimney Barrel Kit is designed for use with HUUM wood-fired sauna stoves, specifically for barrel sauna installations where the chimney extends vertically through the ceiling. This kit provides the necessary components for a safe and functional chimney system, ensuring proper ventilation and exhaust for your sauna stove.
Image 1.1: Main components of the HUUM Chimney Barrel Kit. This image displays the various parts included in the kit, such as pipes, caps, and flashing, essential for a complete chimney installation.
2. Información de seguridade
Always prioritize safety during installation and operation. Improper installation or use of a chimney system can lead to fire hazards, carbon monoxide poisoning, or other serious injuries. Adhere to all local building codes and regulations. If you are unsure about any step, consult a qualified professional.
- Ensure all connections are secure and airtight to prevent smoke and carbon monoxide leaks.
- Maintain proper clearances from combustible materials as specified in the detailed installation manual.
- Regularly inspect the chimney system for any signs of damage, corrosion, or blockages.
- Never operate a sauna stove without a properly installed and maintained chimney system.
3. Contido do paquete
The HUUM Chimney Barrel Kit includes the following components:
- Tubo de parede simple
- Welded chimney base
- Double-wall chimney
- Inclined ceiling cover plates (2 parts)
- Double-wall straight pipe
- Tapajuntas de goma universal para teito
- Colar de choiva
- Tapón de cheminea
- Installation manual (detailed)
Imaxe 3.1: Unha explosión view of the HUUM Chimney Barrel Kit components. This image illustrates each individual part of the kit, aiding in identification during assembly and installation.
4. Configuración e instalación
Installation of the HUUM Chimney Barrel Kit requires careful attention to detail and adherence to the included comprehensive installation manual. This kit is designed for vertical mounting through the ceiling of a barrel sauna and is compatible with all HUUM wood-fired sauna stoves.
- Review Manual: Thoroughly read the entire installation manual provided with the kit before beginning.
- Preparación do sitio: Prepare the ceiling opening according to the dimensions specified in the manual, ensuring proper clearances from combustible materials.
- Instalación base: Install the welded chimney base onto the sauna stove's exhaust outlet.
- Montaxe de tubos: Connect the single-wall pipe, followed by the double-wall chimney and double-wall straight pipe, ensuring all sections are securely fastened.
- Flashing and Sealing: Install the universal rubber roof flashing and rain collar to create a watertight seal where the chimney penetrates the roof.
- Chimney Cap: Secure the chimney cap at the top of the chimney system to prevent debris and rain entry.
- Inspección final: After installation, perform a thorough inspection to confirm all components are correctly assembled, secure, and meet safety requirements.
For detailed diagrams and step-by-step instructions, refer to the dedicated installation manual included in your package.

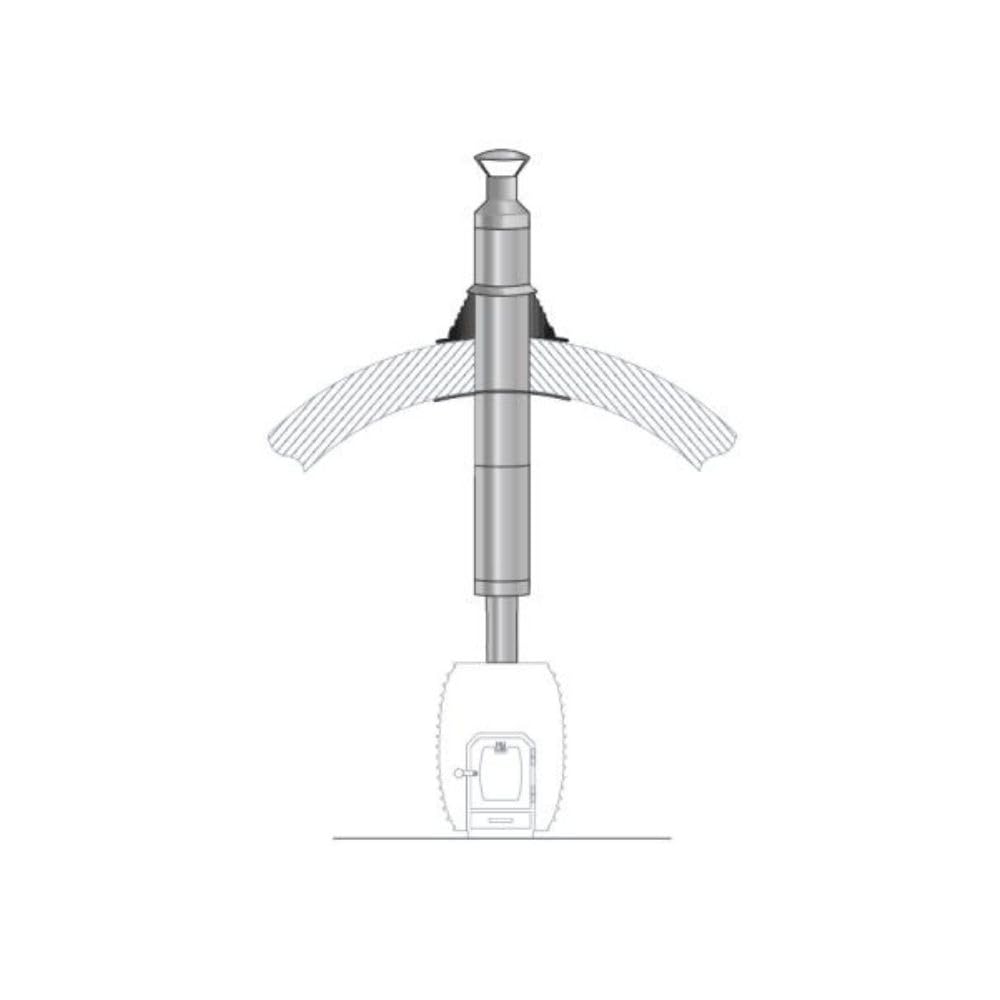

Image 4.1: A HUUM Chimney Barrel Kit installed on a barrel sauna. This image demonstrates the typical appearance of the chimney system once correctly assembled and integrated with a sauna structure.
5. Instrucións de funcionamento
The HUUM Chimney Barrel Kit itself does not have operational controls; its function is passive, providing a safe exhaust path for the sauna stove. Proper operation of your sauna stove, which utilizes this chimney kit, involves:
- Using only recommended fuel (e.g., dry, seasoned wood).
- Ensuring adequate airflow for combustion.
- Monitoring the fire and heat output according to your sauna stove's instructions.
- Never overloading the stove with fuel.
Always refer to the operating manual of your specific HUUM wood-fired sauna stove for detailed instructions on its safe and efficient use.
6. Mantemento
Regular maintenance of your HUUM Chimney Barrel Kit is crucial for safety and longevity. Neglecting maintenance can lead to creosote buildup, reduced performance, and fire hazards.
- Limpeza de chemineas: Have the chimney system inspected and cleaned by a certified chimney sweep at least once a year, or more frequently if you use your sauna stove often.
- Inspección visual: Periodically inspect all visible parts of the chimney, including the cap, flashing, and pipe sections, for any signs of damage, rust, or loose connections.
- Creosote Check: Check for creosote buildup, especially in the single-wall pipe section. If creosote accumulation is significant (1/4 inch or more), cleaning is immediately required.
- Integridade do selo: Ensure that all seals and connections remain tight and free from leaks.
7 Solución de problemas
This section addresses common issues that may arise with a chimney system. For complex problems, consult a professional.
| Problema | Causa posible | Solución |
|---|---|---|
| Smoke entering sauna | Blocked chimney, insufficient draft, improper stove operation, loose connections. | Check for blockages (e.g., bird nests, creosote). Ensure stove air inlets are open. Verify all chimney connections are tight. Consult stove manual for proper firing technique. |
| Poor stove performance / Weak fire | Insufficient draft, wet wood, chimney blockage. | Ensure chimney is clear. Use dry, seasoned wood. Check for proper air supply to the stove. |
| Water leaks around chimney | Damaged or improperly installed roof flashing/rain collar. | Inspect roof flashing and rain collar for damage or incorrect sealing. Re-seal or replace as necessary. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | CTC-CTW-CBK |
| Dimensións do produto | 39.37 x 12 x 10 polgadas |
| Peso do elemento | 50 libras |
| Fabricante | HUUM |
| Compatibilidade | All HUUM wood-fired sauna stoves |
| Posición de montaxe | Vertical, through ceiling (for barrel saunas) |
| Single-wall pipe length | 9.8 polgadas (250 mm) |
| Double-wall chimney length | 19.7 polgadas (500 mm) |
| Double-wall straight pipe length | 39.37 polgadas (1000 mm) |
9. Información da garantía
Specific warranty details for the HUUM Chimney Barrel Kit are not provided within the available product information. Please refer to the official HUUM website or contact HUUM customer support directly for comprehensive warranty terms and conditions.
10. Atención ao cliente
For technical assistance, installation queries, or any other support needs regarding your HUUM Chimney Barrel Kit, please visit the official HUUM website or contact their customer service department. Contact information was not available in the provided product details.
You may also find helpful resources and frequently asked questions on the HUUM Store on Amazon.
