Introdución
This instruction manual provides detailed guidance for the safe and proper installation, operation, and maintenance of your Generic Surface Element Replacement Kit. This kit includes two 6-inch and two 8-inch surface elements designed for various General Electric and Kenmore electric range models. Please read this manual thoroughly before proceeding with installation.
Información de seguridade
- ALWAYS disconnect power to the range at the circuit breaker or by unplugging the appliance before attempting any installation or maintenance. Failure to do so can result in electric shock or serious injury.
- Use o equipo de protección individual axeitado, como luvas, durante a instalación.
- Ensure the new elements are correctly seated and connected before restoring power.
- Se non tes claro algún paso, consulta cun técnico cualificado de electrodomésticos.
- Manteña os nenos e as mascotas lonxe da zona de traballo durante a instalación.

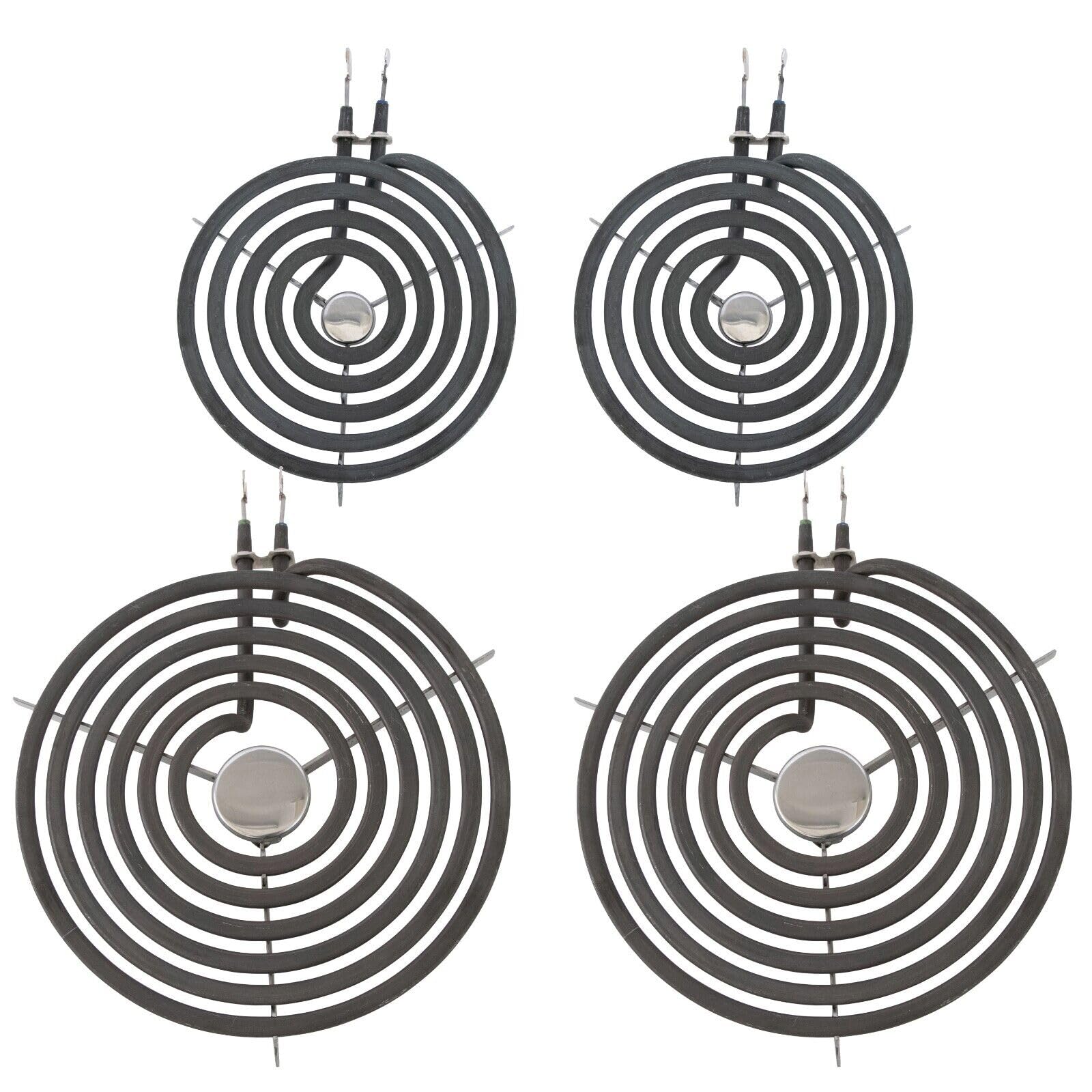

Contido do paquete
O seu paquete debe conter os seguintes elementos:
- Two (2) 6-inch Surface Heating Elements
- Two (2) 8-inch Surface Heating Elements
Instrucións de instalación
Follow these steps to replace the surface elements on your electric range:
- Desconectar a enerxía: Turn off the power to your range at the main circuit breaker or unplug the appliance from the wall outlet. Verify that the power is off before proceeding.
- Eliminar elemento antigo: Gently lift the existing surface element. It should pull straight out from the receptacle. Note the size (6-inch or 8-inch) and the orientation of the terminals.
- Inspeccionar o receptáculo: Check the receptacle for any signs of damage or corrosion. Clean if necessary.
- Instalar novo elemento: Align the terminals of the new surface element with the slots in the receptacle. Push the element firmly and evenly into the receptacle until it is fully seated. Ensure the element is level and stable.
- Repeat for all elements: Replace all necessary elements, ensuring correct sizing for each burner.
- Restaurar enerxía: Once all elements are securely installed, restore power to the range at the circuit breaker or by plugging it back in.
- Test Elements: Turn on each burner to a low setting to ensure the new elements heat up properly.
This image displays a single spiral surface heating element, typically used on electric ranges. It features a coiled metal heating tube with a central support and two electrical terminals at the base for connection.
Instrucións de funcionamento
These surface elements function identically to your original range elements. Use your range's control knobs to select the desired heat setting for cooking. The elements will heat up and cool down according to the selected setting.
- Always use cookware appropriate for electric coil burners.
- Ensure cookware completely covers the element for efficient heating.
- Avoid placing empty cookware on a hot element.
Mantemento e coidados
Proper maintenance ensures the longevity and efficiency of your surface elements:
- Limpeza: Allow elements to cool completely before cleaning. Wipe spills immediately. For stubborn stains, you may gently scrub with a non-abrasive cleaner and a soft cloth. Do not immerse elements in water.
- Element Removal for Cleaning: For thorough cleaning of the drip pans beneath, elements can be carefully removed by lifting and pulling them out of their receptacles. Reinstall them securely after cleaning.
- Evitar a sobrecarga: Do not place excessively heavy pots or pans on the elements, as this can cause damage.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| Element does not heat. | No power to the range; element not fully seated; faulty element or receptacle. | Check circuit breaker. Ensure element is pushed firmly into receptacle. If still not working, the element or receptacle may need replacement. |
| Element heats slowly or unevenly. | Incorrect cookware; element not fully seated; low voltage. | Use flat-bottomed cookware that matches element size. Ensure element is fully seated. Check household voltage. |
| Element sparks or smokes. | Food residue; moisture; faulty element. | Immediately disconnect power. Clean element thoroughly. Ensure element is dry before use. If sparking persists, replace the element. |
Especificacións
- Tipo de produto: Surface Heating Element Replacement Kit
- Cantidade: 4 elements (2 x 6-inch, 2 x 8-inch)
- Fabricante: Xenérico
- Número de peza: JB500G2H5
- Número de modelo do artigo: JB490G3J4
- ASIN: B0DHGQ64PL
Compatibilidade
This replacement kit is designed for various General Electric and Kenmore electric range models. It is crucial to verify your specific range model number to ensure proper fit and function. You can typically find your model number on a label located around the oven door frame, behind the storage drawer, or on the back of the range.
Known Compatible General Electric Models include, but are not limited to:
- GRML3520ZWW-1, GRML3520ZWW-2, GRML3520ZWW-3, GRML3525ZWW-1
- GRML3640ZCC-2, GRML3640ZWH-2, GRML3640ZWH-3, GRML3640ZWW-2, GRML3640ZWW-3
- GRSL3495ZWW-1, GRSL3500SM-2, GRSL3500ZWH-2, GRSL3500ZWW-2, GRSL3500ZWW-3
- GRSL3520ZWH-2, GRSL3520ZWH-3, GRSL3520ZWW-2, GRSL3520ZWW-3, GRSL3525ZWW-1
- GRSL3640ZCC-1, GRSL3640ZCC-2, GRSL3640ZCC-3, GRSL3640ZWH-2, GRSL3640ZWH-3, GRSL3640ZWW-3, GRSL3640ZWW-4
- HRCL3600SM-2, HRML3400ACC-1, HRML3400AWH-1, HRML3400AWW-1
- HRML3400ZAD-1, HRML3400ZAD-2, HRML3400ZCC-1, HRML3400ZCC-2, HRML3400ZWH-1
Known Compatible Kenmore Models include, but are not limited to:
- 22101, 22102, 22105, 22106, 22107, 22108
- 36342482200, 36342482201, 36342484200, 36342484201
- 3639308810, 3639378810, 3639858810, 3639878810
- 91142045, 91142047, 9114272590, 9114282590
If your model number is not listed, please contact customer support with your appliance's full model number to confirm compatibility before purchase or installation.
Garantía e Soporte
Este produto vén cun Garantía de devolución de diñeiro de 90 días from the date of purchase. If you are not satisfied with the product, a full refund will be provided.
For any questions regarding compatibility, installation, or product performance, please contact customer support. We aim to resolve your inquiries within 24 hours.
