ms 930104
Parque infantil MS L - 120x120 - Beixe - Manual de instrucións
Modelo: 930104
1. Produto rematadoview
The MS Baby Playpen L (120x120 Beige) offers a spacious and secure environment for your child to play and explore. Designed for safety and convenience, this foldable playpen features breathable mesh sides, a zippered door for easy access, and anti-slip suction cups for stability. It promotes motor skill development and provides a controlled space for your little one.
Image 1.1: The MS Baby Playpen L, showing its spacious design and included carry bag.

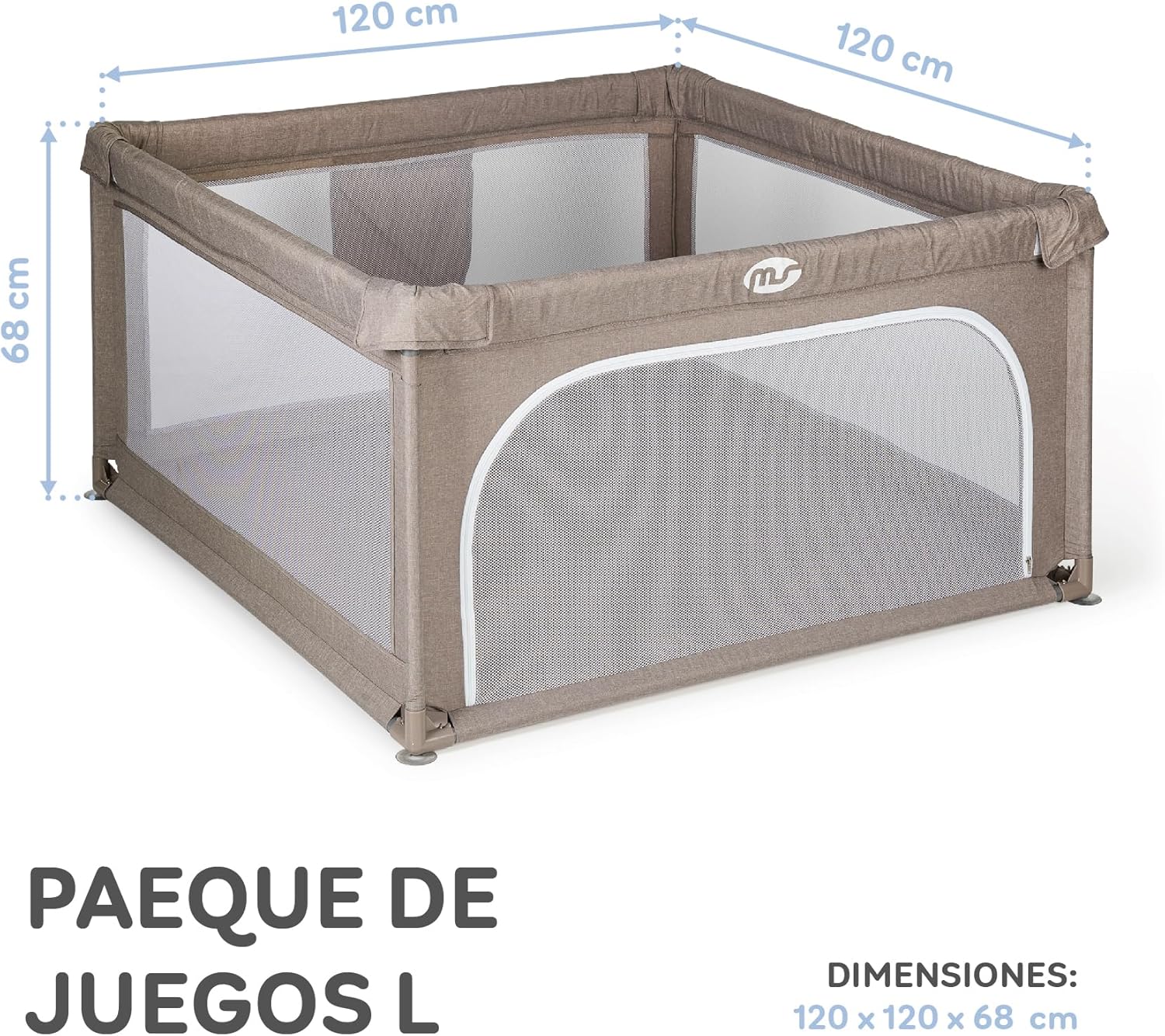

Image 1.2: Dimensions of the playpen: 120 cm (length) x 120 cm (width) x 68 cm (height).
2. Información de seguridade
Your child's safety is our top priority. Please read and follow all safety instructions carefully.
- Always ensure the playpen is fully and correctly assembled before placing your child inside.
- Do not leave your child unattended in the playpen. Constant supervision is required.
- Manteña o parque infantil lonxe de chamas abertas, quentadores e outras fontes de calor.
- Non empregues o parque infantil se algunha peza está rota, rasgada ou falta. Ponte en contacto co servizo de atención ao cliente para obter pezas de reposto.
- Ensure the zippered door is securely closed when your child is inside.
- The playpen is designed with no sharp edges to prevent injuries.
- For added comfort and safety, consider placing a soft mat or puzzle tiles on the floor of the playpen, as it does not include a padded base.

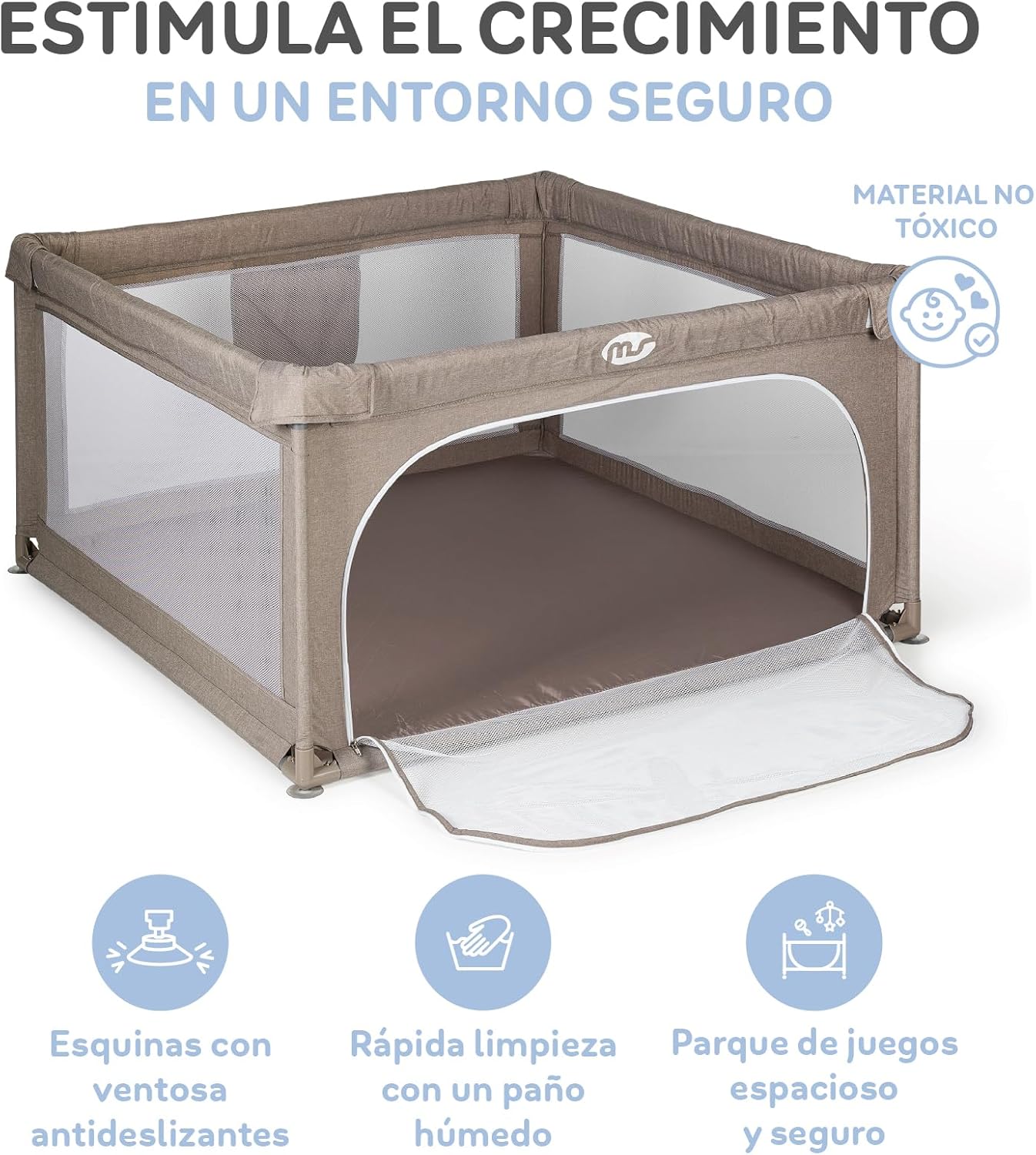

Image 2.1: Key safety and design features, including non-toxic material and anti-slip suction cups.
3. Lista de compoñentes
Before assembly, please verify that all the following components are present:
| Compoñente | Cantidade | Descrición |
|---|---|---|
| Metal Frame Tubes | Varía segundo o tamaño | Pre-cut metal tubes forming the playpen structure. |
| Conectores | Varía segundo o tamaño | Plastic connectors for joining frame tubes. |
| Recinto de tela | 1 | Polyester mesh fabric forming the walls and floor, with zippered door. |
| Ventosas antideslizantes | 4 | Attached to corner connectors for floor stability. |
| Bolsa de transporte | 1 | Para un almacenamento e transporte cómodos. |
4. Instrucións de configuración
The MS Baby Playpen is designed for easy assembly and disassembly without tools. Follow these steps for proper setup:
- Desempaquetar compoñentes: Remove all parts from the carry bag and lay them out on a clean, flat surface.
- Montar a estrutura base: Connect the metal tubes using the plastic connectors to form the rectangular base. Ensure each tube clicks securely into place.
- Attach Fabric Enclosure: Slide the fabric enclosure over the assembled base frame. Ensure the zippered door is open during this step to facilitate fitting.
- Assemble Side and Top Frames: Insert the vertical metal tubes into the designated sleeves on the fabric enclosure, then connect them to the base frame and to each other at the top corners using the remaining connectors.
- Secure Top Rail Padding: Wrap the padded fabric covers around the top rails and secure them with the hook-and-loop fasteners.
- Comprobar a estabilidade: Press down on the corner suction cups to ensure they firmly grip the floor, providing maximum stability.
- Verificación final: Verify that all connections are secure and the playpen is stable before allowing your child to use it.
Video 4.1: Official product video demonstrating the assembly process and key features of the playpen.
Vídeo 4.2: Outra presentación oficial do produto en vídeoasing the playpen in use with children, highlighting its spaciousness and accessibility.
5. Instrucións de funcionamento
Using your MS Baby Playpen is straightforward:
- Colocación do seu fillo/a: Use the wide zippered door for easy entry and exit. Ensure the zipper is fully closed once your child is inside.
- Visibilidade: The breathable mesh sides allow for excellent ventilation and constant visibility, so you can always see your child, and they can see you.
- Área de xogo: The large 120x120 cm area provides ample space for your child to play with toys, crawl, and stand safely.
- Portabilidade: When not in use, the playpen can be easily disassembled and stored in its compact carry bag, making it ideal for travel or small spaces.
Image 5.1: Children enjoying the playpen, demonstrating the practical pocket and wide zippered door.
6. Mantemento
To keep your MS Baby Playpen clean and hygienic:
- Limpeza: The playpen can be quickly cleaned with a damp cloth. Use mild soap if necessary, and wipe thoroughly to remove any residue.
- Secado: Allow the fabric to air dry completely before folding and storing to prevent mold or mildew.
- Inspección: Regularly inspect all components for wear and tear, especially the mesh, zippers, and connectors.
7 Solución de problemas
If you encounter any issues with your playpen, please refer to the following common solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| Playpen feels unstable or wobbly. | Connections not fully secured or suction cups not engaged. | Ensure all metal tubes are fully inserted into connectors and click into place. Press down on the corner suction cups to create a strong seal with the floor. |
| Difficulty with assembly/disassembly. | Incorrect order of assembly or tubes not aligned. | Refer to the setup instructions and video. Ensure the zippered door is open during fabric enclosure attachment. If a tube is stuck, gently wiggle and pull/push. |
| Fabric enclosure does not fit correctly. | May be slightly misaligned or not fully stretched. | Ensure the frame is perfectly square. Gently pull and adjust the fabric to fit snugly around the frame. |
| Strong odor from new product. | New product smell. | The material is non-toxic. Allow the playpen to air out in a well-ventilated area for 24-48 hours before first use. |
If you experience any issues not listed here, or if the problem persists, please contact MS customer support.
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | 930104 |
| Dimensións (L x W x H) | 120 x 120 x 68 cm |
| Peso do produto | 1 kg |
| Idade recomendada | 6 meses - 3 anos |
| Composición do material | 80% Iron, 20% Polyester |
| Cor | Beixe |
| Características adicionais | Anti-slip, Foldable, Breathable, Portable, Safe |
9. Garantía e soporte
This product comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to order replacement parts, please visit the official MS websitio ou póñase en contacto co seu departamento de atención ao cliente.
MS Customer Support: Please refer to the contact information provided on the product packaging or the official MS websitio.
Recursos en liña: For additional tips and product information, visit the MS Brand Store on Amazon.
