Home Smart Visual Cat Eye Camera Electronic Cateye Door Mirror with Screen Surveillance Video Doorbell

Introdución

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Home Smart Visual Cat Eye Camera Electronic Cateye Door Mirror with Screen Surveillance Video Doorbell. This wireless doorbell system offers enhanced home security and communication, featuring a visual display, two-way intercom, and infrared night vision capabilities. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

Información de seguridade

Para garantir un funcionamento seguro e evitar danos, observe as seguintes precaucións:

• Non expoña o dispositivo a temperaturas extremas, humidade ou luz solar directa.
• Evite deixar caer ou someter o dispositivo a fortes impactos.
• Non intente desmontar nin reparar o dispositivo vostede mesmo. Encargue todo o mantemento a persoal cualificado.
• Manteña o dispositivo lonxe da auga e doutros líquidos.
• Empregue só o adaptador de corrente e os accesorios especificados.
• Ensure proper ventilation around the indoor monitor.

Contido do paquete

Comprobe se o paquete contén os seguintes elementos:

• 1 x Outdoor Doorbell Unit
• 1 x Indoor Monitor with Screen
• 1 x batería
• 1 x Memory Card (32GB)
• 1 x cable de carga USB
• 1 x Mounting Bracket and Screws
• 1 x Manual de usuario (este documento)

Produto rematadoview

Familiarize yourself with the components of your visual doorbell system:

Figura 1: The Home Smart Visual Doorbell system, showing the outdoor doorbell unit on the left and the indoor monitor with screen on the right.

Outdoor Doorbell Unit:

• Lente da cámara: Captura a fonte de vídeo.
• Sensores infravermellos: Enables night vision.
• Botón de chamada: Activates the doorbell and initiates communication.
• Micrófono: Para audio bidireccional.
• Relator: Para audio bidireccional.

Monitor de interior:

• Pantalla de visualización: Shows live video feed from the outdoor unit.
• Botóns de control: For navigation, volume, and menu access.
• Micrófono: Para audio bidireccional.
• Relator: Para audio bidireccional.
• Ranura para tarxetas de memoria: For the included 32GB memory card.
• Porto de carga: Para fonte de alimentación.

Configuración e instalación

The system is designed for wireless installation and one-touch pairing.

1. Carga dos dispositivos:

1. Before first use, fully charge both the outdoor doorbell unit and the indoor monitor using the provided USB charging cable.
2. The indoor monitor can be kept plugged in for long-term online use.

Figura 2: The indoor monitor connected to a power outlet for continuous operation.

2. Inserting the Memory Card:

1. Locate the memory card slot on the side of the indoor monitor.
2. Gently insert the provided 32GB memory card until it clicks into place. This card is essential for recording video and images.

3. Mounting the Outdoor Doorbell Unit:

1. Choose a suitable location on your door frame or wall, typically at eye level, ensuring a clear view de visitantes.
2. Use the provided mounting bracket and screws to securely attach the outdoor unit.
3. Ensure the unit is protected from direct rain and extreme weather conditions if possible.

4. Pairing the Devices (One-Touch Pairing):

1. Power on both the outdoor doorbell unit and the indoor monitor.
2. The devices are designed for automatic, one-touch pairing. They should connect wirelessly without complex networking setup.
3. Se o emparellamento non se produce automaticamente, consulte a sección de resolución de problemas.

Instrucións de funcionamento

Recibindo unha chamada:

1. When a visitor presses the call button on the outdoor unit, the indoor monitor will ring and display the live video feed.
2. Press the answer button on the indoor monitor to initiate two-way communication.
3. To end the call, press the hang-up button.

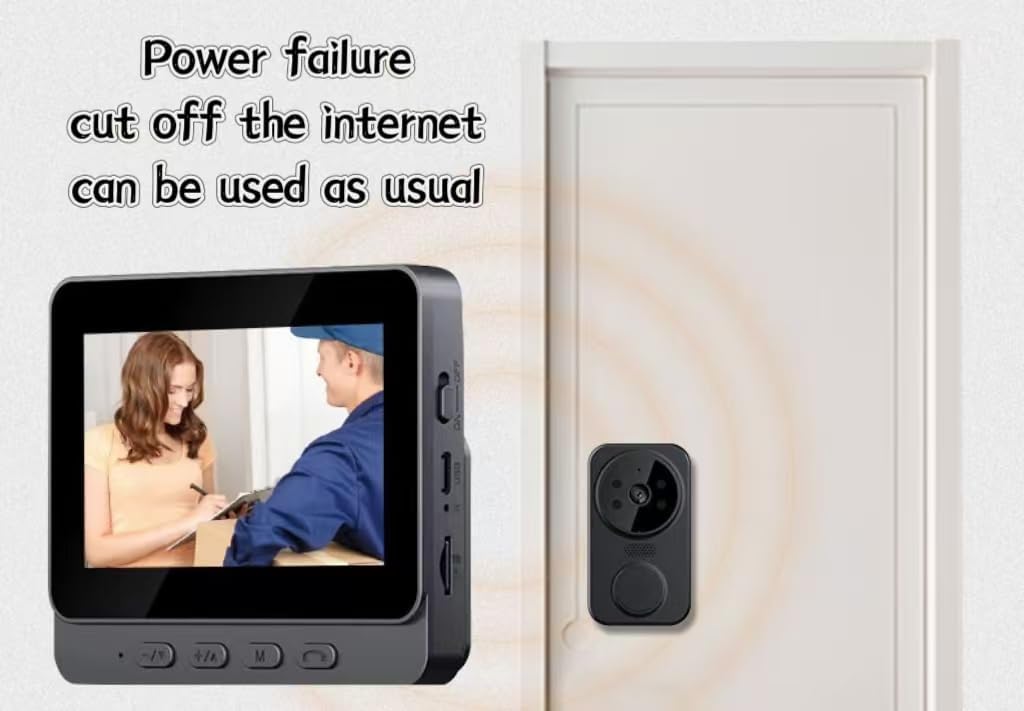

Figura 3: The indoor monitor displaying a visitor at the door, demonstrating the system's functionality even without internet connection.

Intercomunicador bidireccional:

The system supports clear two-way audio communication between the outdoor unit and the indoor monitor, allowing for easy and fast communication with visitors.

Visión nocturna por infravermellos:

The outdoor unit is equipped with infrared sensors, providing clear visibility and recording capabilities even in low-light conditions or complete darkness.

Gravación e reprodución:

• The system automatically records video and captures images when the doorbell is pressed or motion is detected (if motion detection is enabled).
• Acceso gravado footage and images via the menu on the indoor monitor. Navigate using the control buttons.

Operación fóra de liña:

This doorbell system operates on a 2.4 template and does not require internet networking. It functions normally even during power outages or if your home internet is down.

Mantemento

• Limpeza: Use a soft, dry cloth to clean the surfaces of both units. Do not use abrasive cleaners or solvents.
• Duración da batería: Monitor the battery indicator on the indoor monitor. Recharge the outdoor unit as needed. The indoor unit can remain plugged in.
• Tarxeta de memoria: Periódicamente review and delete old recordings from the memory card to ensure sufficient storage space. Format the card if necessary (refer to the indoor monitor's menu for this option).

Resolución de problemas

Especificacións

Garantía e Soporte

For warranty information and technical support, please contact the manufacturer or your retailer. Keep your purchase receipt as proof of purchase.

Manufacturer: qita
