FLIPSKY TFT Advanced Display V2.0 User Manual

1. Introdución

This manual provides detailed instructions for the installation, operation, and maintenance of your FLIPSKY TFT Advanced Display V2.0. This display is designed to enhance your e-bike experience with its advanced features, including GPS functionality, IP65 waterproofing, and a clear TFT color screen. Please read this manual thoroughly before using the product to ensure proper function and safety.

2. Produto rematadoview

The FLIPSKY TFT Advanced Display V2.0 offers a comprehensive interface for monitoring your e-bike's performance. Its robust design and intuitive interface make it a valuable addition to your setup.

Características principais:

• Clear TFT Display: 3.2-inch RGB color display with 240*320 resolution for enhanced readability.
• Función GPS: Built-in GPS module for automatic time calibration and tracking.
• Clasificación de impermeabilidade IP65: Ensures durability and performance in various weather conditions.
• Soporte multilingüe: Supports Chinese, English, and Russian for broader user accessibility.
• Visualización de datos en tempo real: Provides instant access to cycling and ESC data, including speed, mileage, riding time, power output, energy recovery, and temperatures.
• Compacto e lixeiro: Dimensions of 124.4*68.1*18.5mm and a weight of 116g for easy integration.
• Enhanced Human-Computer Interaction: Displays ESC energy consumption and maximum data records.

Que hai na caixa:

The package includes the FLIPSKY TFT Advanced Display V2.0 and a user manual. Please ensure all components are present upon unboxing.

Image: FLIPSKY TFT Advanced Display V2.0 with various connection cables and accessories.

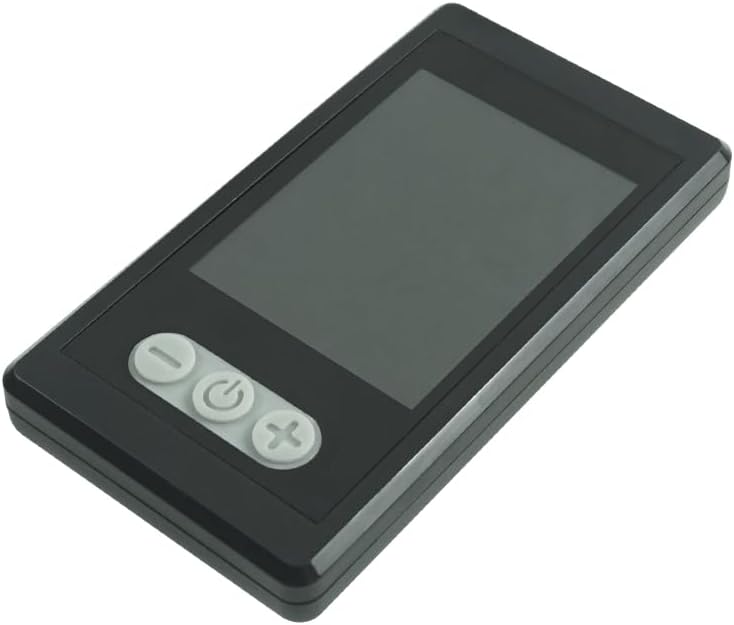

Imaxe: Fronte view of the FLIPSKY TFT Advanced Display V2.0, highlighting the display screen and the three control buttons.

Image: FLIPSKY TFT Advanced Display V2.0 with its physical dimensions (length, width, thickness) clearly labeled in millimeters.

3. Configuración

Proper installation and wiring are crucial for the display's functionality. Follow the diagram and instructions carefully.

Diagrama de cableado:

Image: Detailed wiring diagram illustrating the connection of the FLIPSKY TFT Advanced Display V2.0 to an Electronic Speed Controller (ESC) using a UART communication mode, including waterproof M6 male and female connectors and a USB cable.

Connect the display to your Electronic Speed Controller (ESC) using the provided UART communication cable. Ensure the waterproof M6 connectors are securely fastened. The USB cable is typically used for firmware updates or advanced configuration via a computer.

Supported ESC Types:

• FTESC: Flipsky Non VESC ESCs
• FSESC: ESCs based on VESC
• FOCBOX: FOCBOX Unity

Ensure your ESC is compatible with one of the listed types for proper communication with the display.

Vídeo de configuración:

4. Instrucións de funcionamento

The display features three buttons for navigation and control. Familiarize yourself with their functions for optimal use.

Funcións do botón:

Display Modes and Data:

The display provides various screens to show real-time data and cycling records. Navigate between screens using the "-" and "+" buttons.

• Interfaz de conducción: Displays current speed, battery level, mileage, and other essential real-time riding data.
• ESC Interface: Shows detailed ESC data, including power output, energy recovery, and temperature.
• Interface de configuración: Allows configuration of various parameters such as speed units, battery settings, and language.
• Record Interface: View historical cycling data, including total mileage, average speed, and maximum values.

Image: A comprehensive manual page detailing the display's layout, button functionalities, and the wiring diagram, providing a quick reference for users.

Función GPS:

The built-in GPS module automatically calibrates the date and time. You can manually set your time zone in the settings menu. The display will synchronize time while riding.

Configuración de idioma:

The display supports Chinese, English, and Russian. You can switch between languages in the settings menu to suit your preference.

Firmware Update (IAP Mode):

The display supports firmware updates via IAP mode. Refer to the video above for a demonstration on how to access this feature and update your device's software.

5. Mantemento

To ensure the longevity and optimal performance of your FLIPSKY TFT Advanced Display V2.0, follow these maintenance guidelines:

• Limpeza: Use un suave, damp cloth to clean the display screen and casing. Evite produtos de limpeza abrasivos ou solventes que poidan danar a superficie.
• Resistencia á auga: The display has an IP65 rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. While it can withstand splashes and rain, avoid submerging the device in water.
• Almacenamento: When not in use for extended periods, store the display in a cool, dry place away from direct sunlight and extreme temperatures.
• Conexións por cable: Periodically check all cable connections for tightness and signs of wear. Ensure waterproof connectors are clean and properly sealed.

6 Solución de problemas

If you encounter issues with your display, refer to the following common troubleshooting steps:

• A pantalla non se acende:
  • Comprobe todas as conexións de alimentación para asegurarse de que estean seguras.
  • Verify that the e-bike's battery has sufficient charge.
  • Ensure the power button is pressed and held for the required duration to turn on the device.
• No Data Displayed / Incorrect Readings:
  • Confirm that the UART communication cable is correctly connected between the display and the ESC.
  • Ensure your ESC type is supported (FTESC, FSESC, FOCBOX Unity).
  • Check ESC settings to ensure data output via UART is enabled and configured correctly.
  • If GPS data is incorrect, ensure the device has a clear view do ceo para a adquisición de satélites.
• Botóns que non responden:
  • Ensure the display is not in a locked mode (if applicable).
  • Restart the display by powering it off and on again.
  • Comprobe se hai algunha obstrución física ou dano nos botóns.
• Problemas de actualización do firmware:
  • Ensure a stable power supply during the update process.
  • Follow the firmware update instructions precisely.
  • If using a computer, ensure the correct drivers are installed for the USB connection.

For further assistance, please contact FLIPSKY customer support or refer to the official resources provided in the support section.

7. Especificacións

8. Garantía e soporte

Garantía: This product comes with a 2-month warranty from the manufacturer, Flipsky. Please retain your proof of purchase for warranty claims.

Soporte: For technical support, troubleshooting beyond this manual, or warranty inquiries, please contact FLIPSKY directly. Additional resources, including updated manuals and software, may be available through their official channels.

Recursos en liña: For more detailed information and downloads, please visit the official FLIPSKY support page or the following link:

FLIPSKY Online Resources (External Link)
