Manual do usuario da olla a presión e freidora de aire Ninja Foodi FD302 Pro 11 en 1

1. Información importante de seguridade

Please read all instructions thoroughly before operating your Ninja Foodi FD302. Failure to follow these safety instructions may result in property damage, personal injury, or death.

• Seguridade eléctrica: Ensure the appliance is connected to a grounded outlet. Do not immerse the main unit in water or other liquids.
• Seguridade da presión: Never force open the lid while the unit is pressurized. Always ensure the pressure release valve is clear before and after use.
• Superficies quentes: Surfaces of the appliance become hot during and after operation. Use oven mitts or pot holders when handling hot components.
• Nenos e animais: Keep the appliance out of reach of children and pets. Close supervision is necessary when any appliance is used by or near children.
• Uso axeitado: Use the appliance only for its intended household use as described in this manual. Do not use attachments not recommended by the manufacturer.

2. Produto rematadoview

The Ninja Foodi FD302 is an 11-in-1 Pro Pressure Cooker & Air Fryer Combo designed to offer versatile cooking solutions. It combines pressure cooking for tender results with air frying for a crispy finish, all in a single nonstick pot. This appliance is equipped with TenderCrisp Technology, allowing you to quickly cook ingredients and then crisp them to perfection.

As características principais inclúen:

• Versatilidade 11 en 1: Functions include Pressure Cook, Air Fry, Slow Cook, Bake, Dehydrate, Sous Vide, Steam, Sear/Sauté, Broil, Yogurt, and Keep Warm.
• TenderCrisp Technology: Achieve tender, juicy results that are crispy on the outside.
• Gran capacidade: A 6.5-quart cooking pot accommodates large meals, such as a 5-lb chicken or a 6-lb roast.
• Cociña máis saudable: The 4.6-quart Cook & Crisp Plate allows air frying with up to 75% less fat than traditional methods.
• Precision Cook Control: Ensures accurate temperature management for consistent results.

Figure 2.1: The Ninja Foodi FD302 highlighting its 6.5-Qt capacity, stainless steel finish, 11 functions, and included recipe guide.

3. Compoñentes e accesorios

Your Ninja Foodi FD302 comes with several essential components and accessories to enhance your cooking experience. Familiarize yourself with each part before use.

Figura 3.1: Explotado view of the Ninja Foodi FD302, illustrating its main parts.

Compoñentes incluídos:

• Unidade principal: A base do aparello que contén o elemento calefactor e o panel de control.
• Tapa a presión: Used for pressure cooking, steaming, slow cooking, and yogurt functions. Features a pressure release valve.
• Tapa crocante: Attached to the main unit, used for air frying, baking/roasting, broiling, and dehydrating.
• Pote de cociña antiaderente de 6.5 cuartos: The primary cooking vessel, ceramic-coated for easy cleaning. Fits a 5-lb chicken or 6-lb roast.
• 4.6-Quart Cook & Crisp Plate: Designed for air frying, allowing up to 3 lbs of hand-cut French fries.
• Stainless Steel Nesting Broil Rack: Provides additional capacity for broiling or steaming, and nests inside the pot for convenient storage.
• Chef-Inspired 45-Recipe Cookbook: A guide with over 45 recipes to help you get started.
• Additional Cooking Charts: For meal preparation guidance.

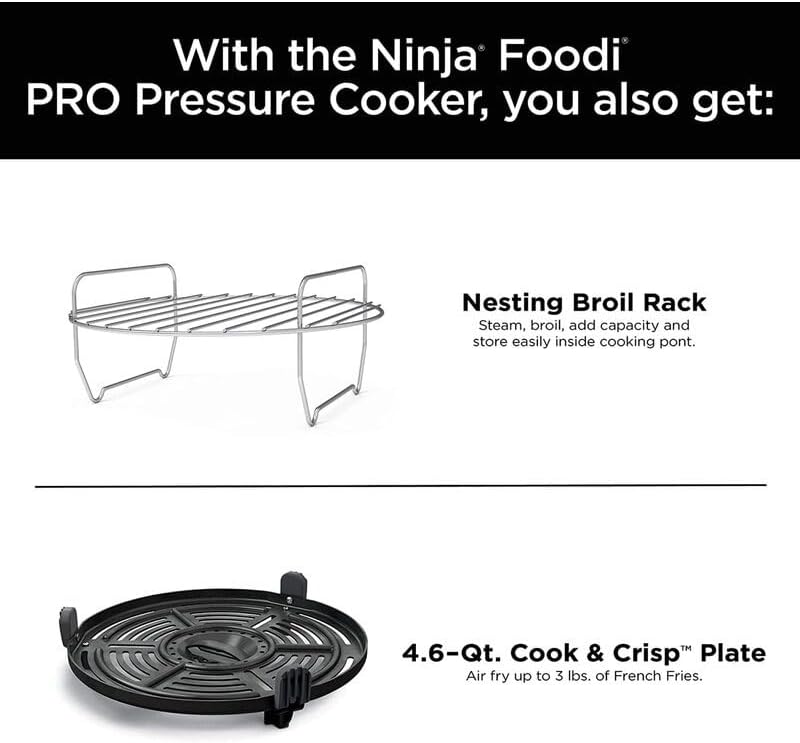

Figure 3.2: The Nesting Broil Rack and 4.6-Quart Cook & Crisp Plate, essential accessories for versatile cooking.

4. Initial Setup and Assembly

Before using your Ninja Foodi FD302 for the first time, follow these steps to ensure proper setup and cleanliness.

4.1 Desembalaxe e limpeza

1. Retire todos os materiais de embalaxe, adhesivos e etiquetas da unidade.
2. Wash the cooking pot, Cook & Crisp Plate, and Nesting Broil Rack in warm, soapy water. Rinse thoroughly and dry completely. Note: The main unit is not dishwasher safe.
3. Wipe the interior and exterior of the main unit with a clean, damp pano.
4. Inspect the pressure lid and crisping lid for any damage or obstructions. Ensure the silicone gasket on the pressure lid is properly seated.

4.2 Asemblea

1. Coloque a unidade principal sobre unha superficie limpa, seca e nivelada.
2. Insert the 6.5-quart nonstick cooking pot into the main unit. Ensure it is seated correctly and does not wobble.
3. Depending on your cooking method, either place the pressure lid or close the crisping lid.
   • For Pressure Cooking/Steaming/Slow Cooking: Align the arrow on the pressure lid with the arrow on the main unit handle, then turn clockwise until it locks into place.
   • For Air Frying/Baking/Broiling/Dehydrating: Simply lower the crisping lid until it rests securely on the main unit.
4. Conecta o cable de alimentación a unha toma de corrente con conexión a terra. A unidade emitirá un pitido e a pantalla iluminarase.

5. Instrucións de funcionamento

The Ninja Foodi FD302 offers 11 versatile cooking functions. This section provides an overview of the control panel and how to use each function.

5.1 Panel de control rematadoview

Figure 5.1: The intuitive control panel of the Ninja Foodi FD302.

The control panel features a digital display, function buttons, temperature/time adjustment buttons, and Start/Stop button. The display shows cooking time, temperature, and status indicators.

5.2 funcións de cociña

To select a function, press the corresponding button. Use the TEMP and TIME arrows to adjust settings. Press START/STOP to begin or end cooking.

Figure 5.2: The 11 cooking functions available on the Ninja Foodi FD302.

• Cociña a presión: For quickly cooking food under pressure, locking in moisture and flavor. Use with the pressure lid.
• Vapor: Gently cooks delicate foods like vegetables and fish. Use with the pressure lid and nesting broil rack.
• Cociña lenta: Ideal for tenderizing meats and developing rich flavors over extended periods. Use with the pressure lid.
• Saltear/Saltear: Browns ingredients in the cooking pot before pressure cooking or slow cooking, or for standalone sautéing. Use with the crisping lid open or removed.
• Air Crisp: Circulates hot air to give foods a crispy, golden finish with little to no oil. Use with the crisping lid and Cook & Crisp Plate.
• Ás/Asado: For baking cakes, breads, or roasting meats and vegetables. Use with the crisping lid.
• Asar: Provides high heat from above for browning and caramelizing. Use with the crisping lid and nesting broil rack.
• Sous Vide: Precision cooking for perfectly cooked proteins. Requires water in the pot and food sealed in a bag. Use with the pressure lid.

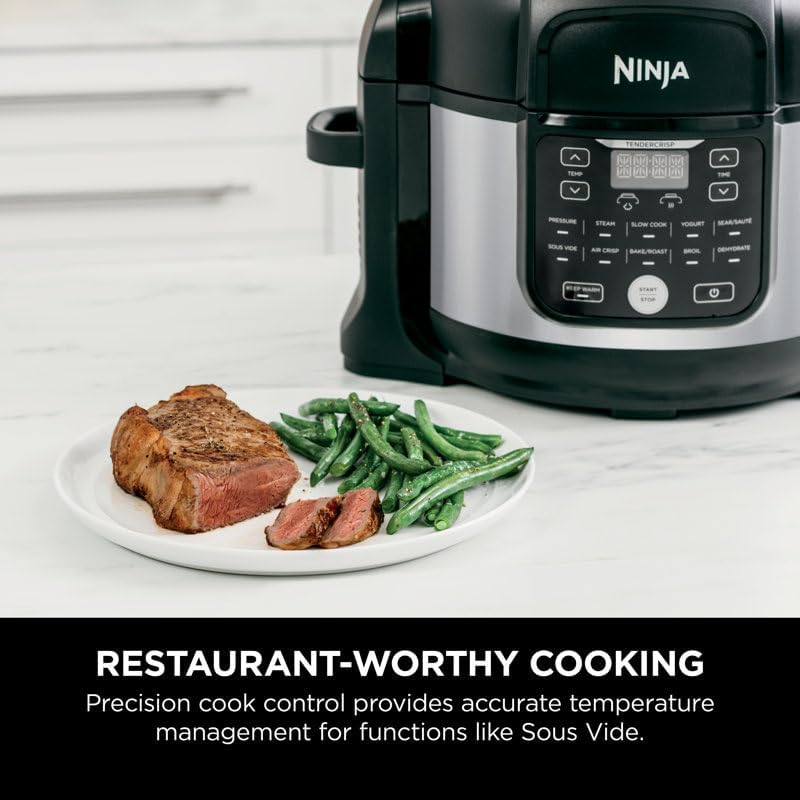

  Figura 5.3: Example of precision cooking results, achievable with functions like Sous Vide.

• Iogur: For making homemade yogurt. Use with the pressure lid.
• Deshidratar: Removes moisture from foods for healthy snacks like jerky and dried fruit. Use with the crisping lid and Cook & Crisp Plate or nesting broil rack.
• Manter quente: Automatically activates after some cooking cycles to keep food warm. Can also be selected manually.

5.3 TenderCrisp Technology

The unique TenderCrisp Technology allows you to pressure cook ingredients to lock in juices, then finish them with a crispy, golden texture using the crisping lid. This is ideal for whole chickens, roasts, or any food you want to be tender on the inside and crispy on the outside.

Figure 5.4: The Ninja Foodi FD302 demonstrating its TenderCrisp capability with a whole roasted chicken and air-fried french fries.

6. Coidados e mantemento

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Ninja Foodi FD302.

6.1 Limpeza

• Desenchufe sempre a unidade antes de limpala. Deixa que se arrefríe completamente.
• Pote de cociña, prato Cook & Croc, grella para grellar aniñada: These components are non dishwasher safe. Wash them with warm, soapy water using a non-abrasive sponge or cloth. Rinse and dry thoroughly.
• Tapa a presión: Lavar con auga morna e xabón. Retirar a xunta de silicona e a tapa anticontaminación para unha limpeza completa. Asegurarse de que todas as pezas estean secas antes de volvelas montar.
• Tapa crocante: Limpe o interior e o exterior con anuncioamp pano. Non mergullo na auga.
• Unidade principal: Limpe o exterior cun limpo, damp pano. Nunca mergulle a unidade principal en auga nin en ningún outro líquido.
• Residuos de alimentos: For stubborn food residue, soak the cooking pot in warm, soapy water before cleaning. Do not use abrasive cleaning pads or steel wool.

6.2 Almacenamento

Store the appliance in a cool, dry place. Ensure all components are clean and dry before storage. The nesting broil rack can be stored inside the cooking pot for space efficiency.

7. Guía de solución de problemas

If you encounter any issues with your Ninja Foodi FD302, refer to the following common problems and their solutions.

Se o problema persiste despois de probar estas solucións, póñase en contacto co servizo de atención ao cliente.

8. Especificacións do produto

9. Garantía e soporte

This product is covered by a manufacturer's warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the manufacturer's official websitio.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact the manufacturer's customer service department. Contact information can typically be found on the product packaging or the manufacturer's websitio.

Please have your model number (FD302) and purchase date ready when contacting support.
