Manual de substitución da válvula de entrada de auga

1. Introdución

This manual provides detailed instructions for the installation, operation, and maintenance of the Water Inlet Valve Replacement. This component is designed to be compatible with various Frigidaire dishwasher models, ensuring proper water supply to the appliance. Please read this manual thoroughly before beginning any installation or maintenance procedures.

2. Información de seguridade

WARNING: Before attempting any repair or replacement, always disconnect power to the dishwasher at the circuit breaker and turn off the water supply to the appliance. Failure to do so can result in electric shock, water damage, or personal injury.

• Asegúrate de que todas as conexións estean seguras para evitar fugas.
• Usar equipos de protección individual axeitados, como luvas e protección ocular.
• Se non tes claro algún paso, consulta cun técnico cualificado de electrodomésticos.

3. Compoñentes do produto

The Water Inlet Valve Replacement includes the main valve assembly. Familiarize yourself with the component before installation.

Figura 3.1: Fronte view of the water inlet valve, showing the solenoid and threaded inlet connection.

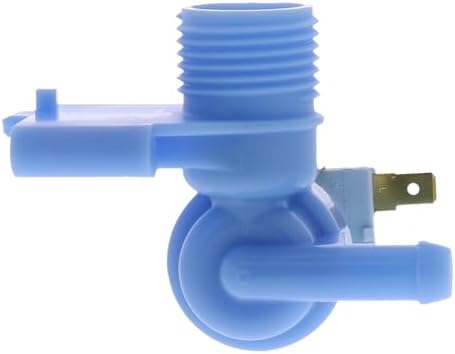

Figura 3.2: Pro lateralfile of the water inlet valve, highlighting the electrical terminals and water outlet.

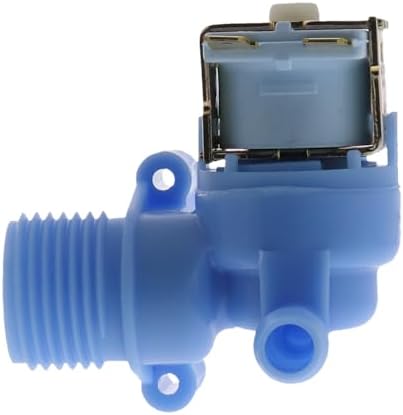

Figura 3.3: View of the water inlet valve from another angle, showing mounting points and hose connections.

Figure 3.4: Angled perspective of the water inlet valve, providing a comprehensive view of its structure.

4. Configuración e instalación

Follow these steps to replace the water inlet valve in your Frigidaire dishwasher. Refer to your specific dishwasher model's service manual for detailed disassembly instructions if needed.

1. Preparación:
   • Disconnect the dishwasher from the electrical power supply by unplugging it or turning off the circuit breaker.
   • Pecha a válvula de subministración de auga do lavalouzas.
   • Carefully pull the dishwasher out from its cabinet enclosure to access the rear or bottom.
2. Locate the Old Valve:
   • Identify the existing water inlet valve, typically located at the bottom front or rear of the dishwasher.
3. Desconectar as mangueiras e o cableado:
   • Place a towel or small pan underneath the valve to catch any residual water.
   • Desconecte a liña de abastecemento de auga da chave.
   • Disconnect the outlet hose (leading to the dishwasher tub) from the valve.
   • Carefully disconnect the electrical wiring harness from the valve's solenoid terminals. Note the orientation of the wires if necessary.
4. Retirar a válvula antiga:
   • Unscrew any mounting screws or release any clips holding the old valve in place.
   • Remove the old valve from the dishwasher.
5. Instalar a nova válvula:
   • Position the new water inlet valve in the same location as the old one.
   • Secure the new valve with the mounting screws or clips.
   • Connect the electrical wiring harness to the solenoid terminals on the new valve. Ensure a secure connection.
   • Connect the outlet hose to the new valve, ensuring the clamp está debidamente asegurado.
   • Connect the main water supply line to the threaded inlet of the new valve. Use thread seal tape if recommended for your connection type to prevent leaks.
6. Test and Finalize:
   • Slowly turn on the water supply valve to the dishwasher and check for any leaks around the new valve connections. Tighten connections if necessary.
   • Restore electrical power to the dishwasher.
   • Run a short wash cycle to confirm proper operation and check for any leaks during the fill cycle.
   • Once confirmed, carefully push the dishwasher back into its cabinet enclosure.

5. Principios de funcionamento

The water inlet valve is an electrically operated solenoid valve that controls the flow of water into the dishwasher. When the dishwasher's control board signals for water, the solenoid is energized, opening the valve and allowing water to enter the tub. Once the required water level is reached, the control board de-energizes the solenoid, closing the valve and stopping the water flow. This precise control is essential for the dishwasher's proper functioning during various cycles.

6. Mantemento

The water inlet valve is generally a sealed unit and does not require routine maintenance. However, to ensure its longevity and proper function:

• Periodically inspect the water supply hose and connections for any signs of leaks or wear.
• Ensure the water supply to your home is free of excessive sediment, which can clog the valve's internal filter screen (if present). Some valves have a small screen at the inlet that can be cleaned if water flow issues arise.
• Avoid using harsh chemicals near the valve or its connections.

7 Solución de problemas

If you experience issues after replacing the water inlet valve, consider the following common problems and solutions:

8. Especificacións

• Tipo de peza: Water Inlet Valve Replacement
• Material: Stainless Steel (internal components), Plastic (housing)
• Compatibilidade: Designed for various Frigidaire dishwasher models (e.g., FFCD2413US6B, FFCD2413UW3A, FFCD2413UW4A, FFCD2413UW5A, FFCD2413UW6B, FFCD2418UB2A, and others listed in product description).
• Fabricante: Xenérico
• Número de modelo (Example): FDPC4221AS2A

9. Garantía e soporte

This aftermarket replacement part is manufactured to fit the listed models. If you are not sure about the compatibility, please contact the seller for advice. The seller aims to resolve problems within 24 hours.

Garantía de devolución do diñeiro: A refund will be provided within 90 days from the date of purchase if you are not satisfied with the product.

For further assistance or inquiries, please refer to the contact information provided by your retailer or the product's original purchase platform.
