1. Produto rematadoview

This manual provides essential information for the safe and efficient operation of your Bosch Series 4 Washer Dryer, model WNA24400GC. This appliance combines washing and drying functions, offering convenience and space-saving benefits. It features a 9kg washing capacity and a 5kg drying capacity, making it suitable for various laundry needs. The washer dryer includes Iron Assist steam treatment to reduce wrinkles and dries as efficiently as it washes.

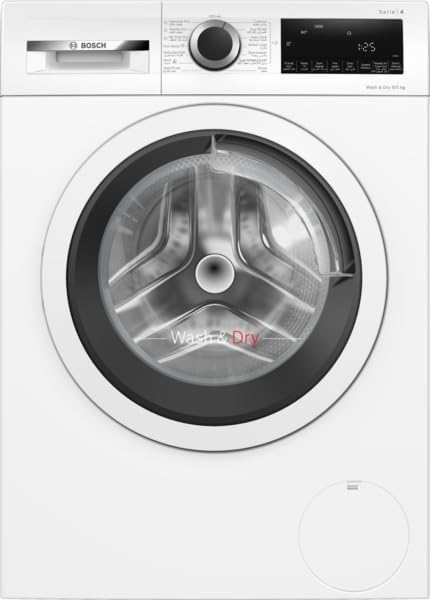

Figura 1.1: Fronte view of the Bosch Series 4 Washer Dryer, showing the main door, control panel, and detergent dispenser.

Figura 1.2: detallada view of the control panel, featuring the program selector dial and LED display for cycle information.

2. Información de seguridade

Lea e siga sempre todas as instrucións de seguridade antes de usar o aparello para evitar lesións persoais ou danos materiais. Garde este manual para futuras consultas.

2.1 Seguridade xeral

• Asegúrese de que o aparello estea correctamente conectado a terra.
• Non permita que os nenos xoguen co aparello nin o fagan funcionar.
• Desenchufe o aparello antes de limpar ou realizar o mantemento.
• Non faga funcionar o aparello se está danado.
• Manteña os materiais inflamables lonxe do aparello.

2.2 Seguridade infantil

The appliance is equipped with a Bloqueo infantil feature to prevent unintended operation. Refer to the "Operating" section for instructions on how to activate and deactivate the child lock.

3. Configuración e instalación

Proper installation is crucial for the performance and longevity of your washer dryer. It is recommended to have the appliance installed by a qualified technician.

3.1 Desembalaxe

Carefully remove all packaging materials and transport bolts. Retain packaging for future transport if needed.

3.2 Posicionamento

• Coloque o aparello nunha superficie firme e nivelada.
• Garantir unha ventilación adecuada ao redor do aparello.
• The appliance features Pernas de nivelación axustables to ensure stability and reduce vibration during operation. Adjust them as necessary.

3.3 Conexións de auga e electricidade

• Conecte a mangueira de entrada de auga a unha toma de auga fría.
• Ensure the drain hose is properly installed into a suitable drain.
• Connect the power cord to a grounded electrical outlet (220 Volts, 10 Amps).

Figure 3.1: The washer dryer positioned in a laundry area, demonstrating its compact design and front-load access.

4. Instrucións de funcionamento

This section guides you through the daily operation of your Bosch washer dryer.

4.1 Carga da roupa

• Clasifica a roupa por tipo de tecido, cor e grao de sucidade.
• Do not overload the drum. The maximum washing capacity is 9kg, and drying capacity is 5kg.
• O Función de recarga allows you to add or remove items during the initial phase of a wash cycle.

4.2 Engadir deterxente e suavizante

Use the detergent dispenser drawer for appropriate amounts of detergent and fabric softener according to the manufacturer's instructions and load size.

4.3 Selección dun programa

Turn the program selector dial to choose the desired wash or wash & dry program. The Pantalla LED grande will show program information and remaining time.

• Wash & Dry 60: Efficiently washes and dries small loads (up to 1kg) in just 60 minutes.
• Secado automático: Automatically dries your laundry to the desired dryness level, preventing over-drying and protecting fabrics.
• Iron Assist: A clever steam treatment that smooths dried laundry, reducing wrinkles and making ironing easier.
• ActiveWater Plus: Optimizes water usage based on load size and fabric type, ensuring efficient washing.
• Eco Silence Drive: Features a quiet, efficient, and durable motor for enhanced performance.

Figure 4.1: The AutoDry feature logo, signifying automatic drying for optimal results.

4.4 Iniciar e deter un programa

Press the Start/Pause button to begin the selected program. Press it again to pause the program. To cancel a program, turn the program selector dial to 'Off' or hold the Start/Pause button for a few seconds.

5. Mantemento e coidados

Un mantemento regular garante un rendemento óptimo e prolonga a vida útil do seu electrodoméstico.

5.1 Limpeza do dispensador de deterxente

Retire e limpe periodicamente o caixón dosificador de deterxente para evitar a acumulación de residuos.

5.2 Limpeza do tambor

Run a maintenance wash cycle (e.g., 'Drum Clean' program if available) regularly to clean the drum and prevent odors.

5.3 Limpeza do filtro de pelusa

For drying efficiency, clean the lint filter after every drying cycle. The filter is typically located near the door opening or at the bottom front of the appliance.

5.4 Limpeza exterior

Limpe as superficies exteriores cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.

6 Solución de problemas

Antes de contactar co servizo de atención ao cliente, consulte a seguinte táboa para ver os problemas comúns e as súas solucións.

7. Especificacións

Technical data for the Bosch Series 4 Washer Dryer WNA24400GC.

• Modelo: WNA24400GC
• Marca: BOSCH
• Tipo: Lavadora e secadora de carga frontal
• Capacidade de lavado: 9 quilogramos
• Capacidade de secado: 5 quilogramos
• Dimensións (HxWxD): 84.8 cm x 59.8 cm x 59 cm
• Peso: 74.2 quilogramos
• Voltage: 220 voltios
• Wattage: 1900 vatios
• Ampera: 10 Amps
• Material do tambor: Aceiro inoxidable
• Características especiais: Child Lock, Adjustable Leveling Legs, Reload Function, LED Display, Vibration Reduction, Auto Dry, Iron Assist, Eco Silence Drive, ActiveWater Plus.

8. Garantía e soporte

For warranty information and customer support, please refer to the warranty card included with your appliance or visit the official BOSCH websitio. Os termos e condicións específicos da garantía poden variar segundo a rexión.

This manual does not contain specific warranty details or direct support contact information. Please consult your purchase documentation or the manufacturer's official resources for the most accurate and up-to-date information.
