Manual do usuario da estación de enerxía portátil Dabbsson 600L

1. Introdución e finalview

The Dabbsson 600L Portable Power Station is a versatile and compact power solution designed for various applications, including camping, RV trips, residential use, and home backup. It features a 768Wh semi-solid LiFePO4 battery, providing a stable 600W AC output with a peak Power Boost of up to 900W for certain appliances. This unit is built for durability and safety, offering over 4000 charging cycles and a lifespan of 10+ years.

Key features include ultra-fast charging, multiple output ports, smart app control, and an Uninterruptible Power Supply (EPS) function for seamless power during outages.

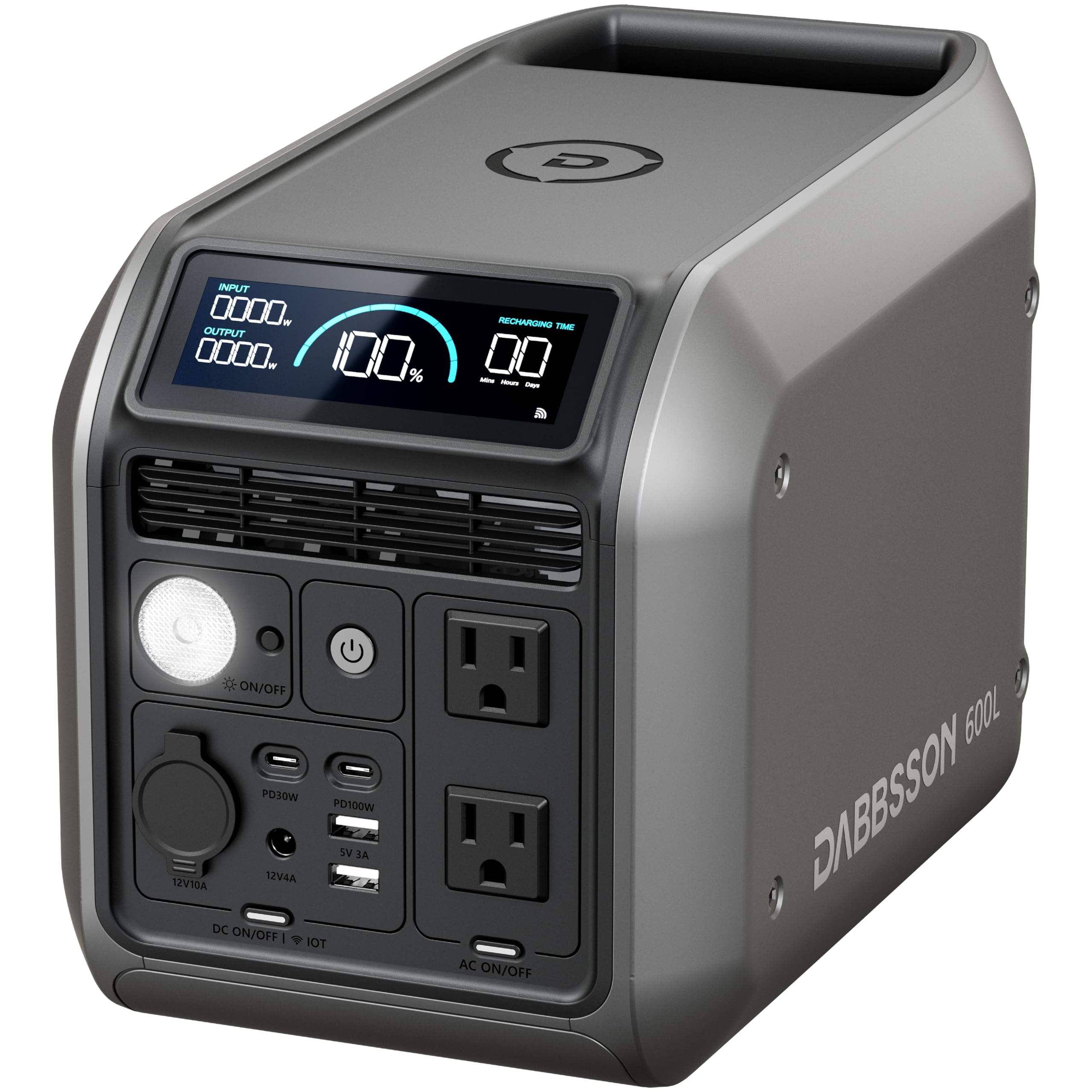

Figure 1: The Dabbsson 600L Portable Power Station, a compact and robust unit.

2. Contido do paquete

Ao desembalar, asegúrate de que estean presentes todos os seguintes elementos:

• 1 × Dabbsson 600L Portable Power Station
• 1 × AC Charging Cable
• 1 × cable de carga de coche
• 1 × Manual de usuario

Figure 2: The Dabbsson 600L Portable Power Station and its included charging cables.

3. Configuración

Before first use, fully charge the Dabbsson 600L. It is recommended to charge the unit to 100% to optimize battery performance and ensure readiness for use.

Carga inicial

1. Connect the AC charging cable to the AC Input Port on the back of the power station.
2. Conecte o outro extremo do cable de carga de CA a unha toma de parede estándar.
3. The LCD screen will display the charging status. The unit will charge from 0% to 100% in approximately 1.6 hours using ultra-fast AC charging.

Figure 3: The Dabbsson 600L charging from a standard AC wall outlet, showing the fast charging capability.

4. Instrucións de funcionamento

Encendido/apagado

• To power on the unit, press and hold the Main Power Button (located on the front panel) for a few seconds until the LCD screen illuminates.
• To power off the unit, press and hold the Main Power Button again until the LCD screen turns off.

Usando os portos de saída

The Dabbsson 600L features 8 versatile output ports to power various devices simultaneously:

• 2 × AC Outlets (600W rated, 900W Power Boost): For standard household appliances. Press the AC Power Button to activate.
• 1 × USB-C 100W Port: For fast charging laptops, tablets, and smartphones.
• 1 × USB-C 30W Port: For charging smaller USB-C devices.
• 2 × USB-A Ports: For charging various USB-A compatible devices.
• 1 × Car Port (126W): For 12V car appliances like mini-fridges or air compressors.
• 1 × DC5521 Output Port: For specific DC devices.

Press the DC Power Button/IoT to activate the DC and USB ports.

Figure 4: The Dabbsson 600L powering multiple devices simultaneously, showcasinos seus distintos portos de saída.

Luz LED integrada

The unit includes an integrated LED light with three modes (Soft, Bright, SOS) for illumination during camping or emergencies. Press the Light On/Off button to cycle through the modes.

5. Carga da central eléctrica

The Dabbsson 600L offers multiple recharging options:

• Toma de corrente de parede: Recharge from 0% to 100% in approximately 1.6 hours using the included AC charging cable.
• Panel solar (non incluído): Connect a 100-200W solar panel to the Solar/Car Charging Input Port (XT60). The unit supports up to 200W Max MPPT solar input.
• Outlet de coche: Use the included car charging cable to recharge from your vehicle's 12V socket.
• Combined AC + Solar Input: For faster recharging, combine AC and solar input.

Figure 5: The Dabbsson 600L being charged by a solar panel, demonstrating its renewable energy compatibility.

6. Control intelixente de aplicacións

Manage and monitor your Dabbsson 600L using the dedicated Dabbsson App, available for both Bluetooth and Wi-Fi connectivity.

• Monitorización en tempo real: View battery status, input/output wattage, e o tempo de execución restante.
• Control remoto: Turn AC/DC outputs on/off, adjust charging speed, and control the LED light.
• Custom Charge Limits: Set maximum charge levels (e.g., 80%) to extend battery lifespan.
• Scheduled Operations: Program startup, shutdown, charging, and discharging times.
• Modo silencioso: Optimize charging for minimal noise, defaulting to 130W.

Figure 6: A smartphone screen showing the Dabbsson app interface, allowing for smart control and monitoring of the power station.

7. Uninterruptible Power Supply (EPS) Function

The Dabbsson 600L features an EPS function with a switch-over time of less than 15ms. When connected to a wall outlet and powering devices, if grid power is lost, the unit automatically switches to battery power, ensuring continuous operation for connected essential devices.

Figure 7: The Dabbsson 600L acting as an Uninterruptible Power Supply (UPS), providing continuous power to a device during a simulated power cut.

8. Mantemento

To ensure the longevity and optimal performance of your Dabbsson 600L Portable Power Station, follow these maintenance guidelines:

• Almacenamento: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures.
• Frecuencia de carga: For prolonged storage, charge the unit to 50-80% every 3-6 months to maintain battery health.
• Limpeza: Use a dry, soft cloth to clean the exterior. Avoid using harsh chemicals or abrasive materials.
• Temperatura: Operate and store the unit within the recommended temperature ranges specified in the specifications section.
• Lonxevidade da batería: The semi-solid LiFePO4 battery is designed for over 4000 charging cycles, retaining 80% of its capacity after 10 years of use. Intelligent trickle charging helps ensure battery longevity and safety.

Figura 8: Un interno view highlighting the semi-solid LiFePO4 battery cells, known for their long lifespan and safety.

9 Solución de problemas

If you encounter issues with your Dabbsson 600L, refer to the following common troubleshooting steps:

• A unidade non se acende: Ensure the battery is charged. Connect to an AC outlet to charge.
• Sen saída dos portos: Verify that the respective AC or DC power buttons are activated. Check if the device connected requires more power than the port can supply.
• Protección contra sobrecarga: If the unit shuts down due to overload, disconnect the high-power device and restart the power station. Ensure the total wattage of connected devices does not exceed 600W (or 900W with Power Boost for compatible devices).
• Ruído do ventilador: The internal cooling fan may activate during high power output or charging to maintain optimal temperature. This is normal. If the noise is excessive or unusual, contact customer service.
• Problemas de conectividade da aplicación: Ensure Bluetooth or Wi-Fi is enabled on your smartphone and the power station. Try restarting both devices.

For persistent issues, please contact Dabbsson customer service.

10. Especificacións

11. Garantía e soporte

The Dabbsson 600L Portable Power Station comes with an industry-leading 5-year warranty (3 years standard + 2-year extension upon registration). For warranty details, technical support, or any questions, please contact the Dabbsson customer service team.

Contact information can typically be found on the official Dabbsson website or through the Dabbsson App.

Figure 9: Dabbsson customer support team ready to assist with product inquiries and warranty claims.

12. Vídeo oficial do produto

Video 1: Official Dabbsson 600L Main Promotional Video. This video provides a visual overview of the Dabbsson 600L Portable Power Station, highlighting its key features, portability, and various use cases in outdoor and indoor environments. It demonstrates the product's design, multiple output ports, and charging capabilities.
