Introdución
Thank you for choosing the Advwin Dual Zone Air Fryer AF538T. This innovative 7-in-1 appliance combines the functions of an air fryer and a grill, allowing you to fry, grill, roast, and bake with less oil. Featuring a 6L total capacity, a durable borosilicate glass basket, and intuitive touch controls, this manual provides essential information for safe and efficient operation. Please read this manual thoroughly before first use and keep it for future reference.
Instrucións de seguridade importantes
Ao usar electrodomésticos, débense seguir sempre as precaucións de seguridade básicas para reducir o risco de incendio, descarga eléctrica e lesións.
- Le todas as instrucións antes de usar o aparello.
- Non toque superficies quentes. Use asas ou botóns.
- Para protexerse contra descargas eléctricas, non mergulle o cable, os enchufes nin a unidade principal en auga ou noutro líquido.
- É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
- Desenchufe da toma cando non estea en uso e antes de limpalo. Deixar arrefriar antes de poñer ou quitar pezas.
- Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou teña dano dalgún xeito.
- O uso de accesorios non recomendados polo fabricante do aparello pode causar lesións.
- Non use ao aire libre.
- Non deixes que o cable colgue do bordo da mesa ou do mostrador nin toque superficies quentes.
- Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
- Débese ter moito coidado ao mover un aparello que conteña aceite quente ou outros líquidos quentes.
- Conecte sempre primeiro o enchufe ao electrodoméstico e, a seguir, o cable á toma de corrente. Para desconectalo, poña calquera control na posición de apagado e, a seguir, retire o enchufe da toma de corrente.
- Non use o aparello para outros usos que os previstos.
- Asegúrese de colocar o aparello nunha superficie estable e resistente á calor.
- Non bloquee ningunha abertura de ventilación.
- The glass basket can become very hot. Always use oven mitts when handling.
Compoñentes do produto
Familiarize yourself with the parts of your Advwin Dual Zone Air Fryer.
Imaxe: Acabadoview of the Advwin Dual Zone Air Fryer and its detachable components. This includes the main air fryer unit, the removable glass basket, the cooking pot, a glass lid for the cooking pot, a mesh rack for air frying, and a heat-proof mat. The diagram also indicates how to rotate the handle to switch modes.
- Unidade principal: Alberga o elemento calefactor e o panel de control.
- Glass Basket (4.5L): Used for air frying. Features a transparent design for monitoring food.
- Cooking Pot (1.5L): Used for grilling/frying pan mode.
- Tapa de vidro: For use with the cooking pot.
- Mesh Rack: Placed inside the glass basket for optimal air circulation during air frying.
- Heat Proof Mat: For safe placement of hot components.
Configuración e primeiro uso
- Desempaquetar: Retire con coidado todos os materiais de embalaxe e as etiquetas promocionais do electrodoméstico.
- Compoñentes limpos: Wash the glass basket, cooking pot, glass lid, and mesh rack with warm, soapy water. Rinse thoroughly and dry completely. The main unit should be wiped with a damp cloth. Note: These components are not dishwasher safe.
- Colocación: Place the main unit on a stable, flat, heat-resistant surface, away from walls or other appliances to ensure proper ventilation.
- Queimado inicial (opcional pero recomendado): Before cooking food, it is recommended to run the appliance empty for about 10-15 minutes at 180°C (350°F) to eliminate any manufacturing odors. Ensure the area is well-ventilated during this process.
Instrucións de funcionamento
Switching Between Air Fryer and Grill Modes
The Advwin Dual Zone Air Fryer features a unique 180° flip design to switch between the air fryer and grill modes.
Imaxe: This image demonstrates the process of switching between the air fryer and grill/frying pan modes. It shows the air fryer basket in use, then the steps to remove the basket, unlock the main unit, rotate it 180 degrees, lock it into the new position, and finally place the cooking pot (skillet) on top for grilling.
- To switch from Air Fryer to Grill Mode:
- Ensure the appliance is off and cooled down.
- Remove the glass basket from the main unit.
- Locate the unlock mechanism (usually a button or lever) and activate it.
- Carefully hold the handle and rotate the main unit 180 degrees until it clicks into place, exposing the top heating element.
- Place the cooking pot (skillet) onto the top heating element.
- To switch from Grill to Air Fryer Mode:
- Ensure the appliance is off and cooled down.
- Remove the cooking pot from the main unit.
- Locate the unlock mechanism and activate it.
- Carefully hold the handle and rotate the main unit 180 degrees until it clicks into place, exposing the bottom cavity for the air fryer basket.
- Insert the glass basket into the main unit.
Using the Control Panel and Presets

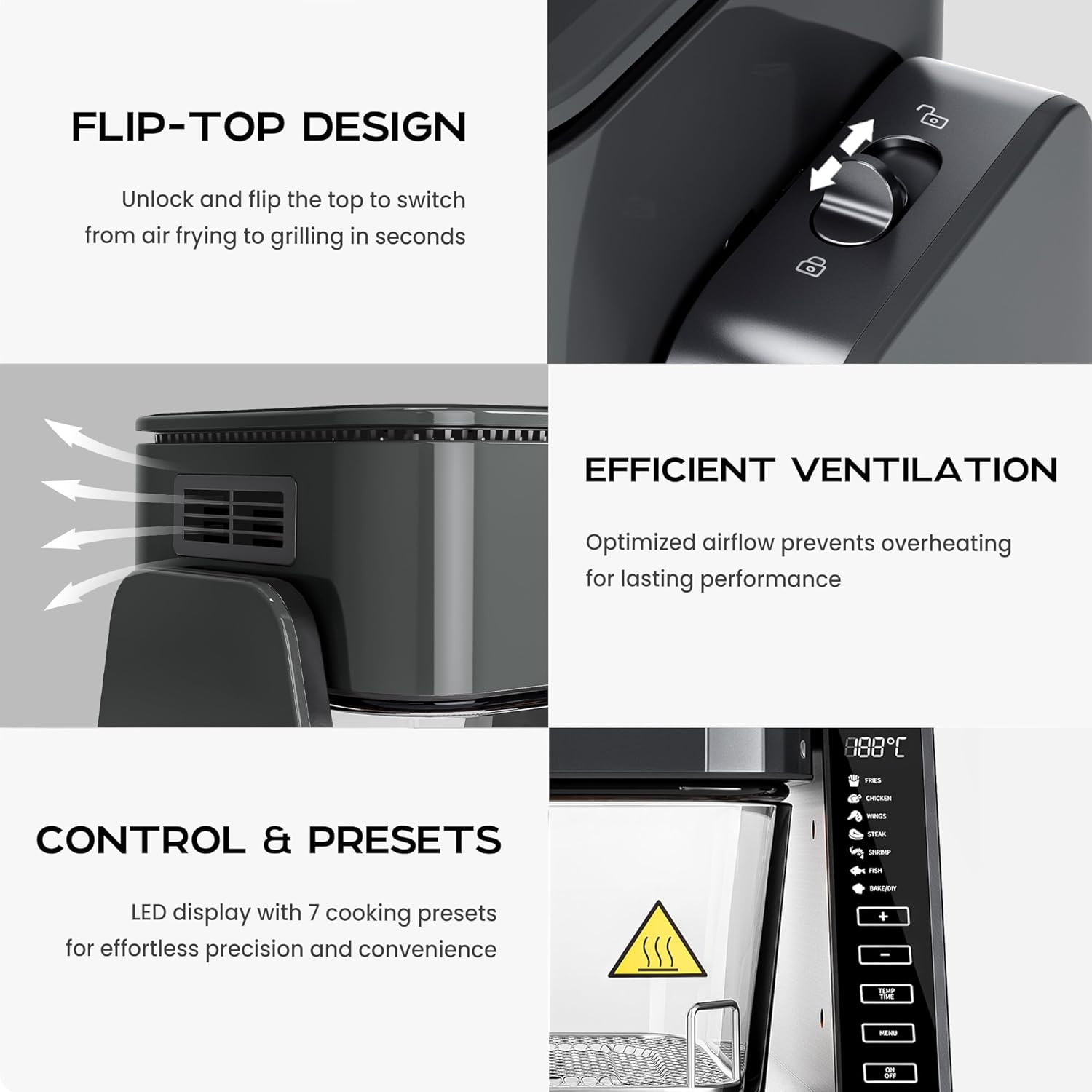

Imaxe: This image highlights the touch control panel and LED display. It shows the various preset icons for different food types (e.g., fries, chicken, steak, fish, shrimp, bakery) and the temperature/time adjustment buttons. The display shows a temperature of 188°C.
The appliance features a touch control panel with an LED display and 7 pre-programmed cooking presets.
- Botón de encendido: Press to turn the appliance on/off.
- Iconas predefinidas: Select one of the 7 preset cooking functions (e.g., Fries, Chicken, Steak, Fish, Shrimp, Bakery) for automatic time and temperature settings.
- Control de temperatura (+/-): Adjust the cooking temperature. Air Fryer mode: 40-200°C. Grill mode: 150-200°C.
- Control de tempo (+/-): Adjust the cooking time (up to 60 minutes).
- Botón Inicio/Pausa: Begin or pause the cooking cycle.
To use, select a preset or manually set the desired temperature and time, then press the Start button. The appliance will automatically shut off when the timer expires. The memory function retains the last used settings if the appliance is not unplugged.
Consellos de cociña
Imaxe: This image illustrates the versatility of the appliance, showcasing different cooking methods. It displays a pizza being air-fried in the glass basket, and other dishes being prepared in the cooking pot. Icons at the bottom indicate "Deep Fryer", "Frying Pan", and "Air Fryer" modes.
- For best air frying results, shake the basket halfway through cooking for even crisping.
- Lightly oiling food before air frying can enhance crispiness.
- Do not overfill the basket or cooking pot to ensure even cooking and air circulation.
- The transparent glass basket allows you to monitor cooking progress without opening the unit, helping to maintain consistent temperature.
Coidados e Mantemento
Proper cleaning and maintenance will ensure the longevity and optimal performance of your Advwin Air Fryer.
- Antes da limpeza: Desenchufe sempre o aparello e deixe que se arrefríe completamente antes de limpalo.
- Glass Basket, Cooking Pot, Mesh Rack, Glass Lid: Wash these components with warm, soapy water using a non-abrasive sponge. Rinse thoroughly and dry completely. These parts are non apto para lavalouzas.
- Unidade principal: Limpar o exterior da unidade principal con publicidadeamp pano. Non mergulle a unidade principal en auga nin en ningún outro líquido.
- Elemento de calefacción: After the unit has cooled, gently wipe the heating element with a damp pano para eliminar calquera resto de comida.
- Almacenamento: Garde o aparello nun lugar fresco e seco unha vez que estea limpo e seco.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O aparello non se acende. | Non conectado. Avaría na toma de corrente. | Asegúrate de que o cable de alimentación estea conectado correctamente a unha toma de corrente que funcione. |
| A comida non se cociña uniformemente. | Basket/pot is overcrowded. Temperature/time settings incorrect. | Do not overcrowd the basket/pot. Cook in smaller batches if necessary. Adjust temperature and time settings as per recipe. Shake the air fryer basket halfway through cooking. |
| Fume branco do aparello. | Residuos de graxa dun uso anterior. Exceso de aceite nos alimentos. | Clean the appliance thoroughly, especially the heating element and basket/pot. Reduce the amount of oil used on food. |
| A comida non é crocante. | Not enough oil (for certain foods). Overcrowding. Incorrect temperature. | Lightly brush food with oil. Do not overcrowd. Increase temperature slightly or extend cooking time. |
Especificacións
Imaxe: Esta imaxe ofrece unha visión detalladaview of the product's specifications, including its 6L total capacity, voltage (220-240V), power (1500W), capacity breakdown (4.5L + 1.5L), time setting range (1-60 minutes), and temperature range (150-200°C). It also shows the overall dimensions of the unit.
| Número de modelo | AF538T |
| Poder | 1500 W |
| Voltage | 220-240 V |
| Capacidade total | 6 L (4.5 L Air Fryer Basket + 1.5 L Grill Pot) |
| Rango de temperatura da freidora de aire | 40 °C - 200 °C |
| Rango de temperatura da grella | 150 °C - 200 °C |
| Intervalo de temporizador | 1 - 60 minutos |
| Método de control | Pantalla táctil |
| Dimensións do produto (L x W x H) | 29 cm x 22 cm x 30 cm (aprox.) |
| Peso | 6.1 kg |
| Material principal | ABS (exterior), Borosilicate Glass (basket) |
| Revestimento antiadherente | Non |
| Compoñentes aptos para lavalouzas | Non |
Garantía e Soporte
Specific warranty information for the Advwin Dual Zone Air Fryer AF538T is not provided in this manual. Please refer to the warranty card included with your purchase or contact Advwin customer support for details regarding warranty coverage and service.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Advwin customer service through their official websitio web ou a información de contacto proporcionada co produto.
