Sunjoy Outdoor Cedar Wooden Gazebo Instruction Manual

Model: B0F17F7XYY

1. Introdución

This manual provides detailed instructions for the assembly, operation, and maintenance of your Sunjoy Outdoor Cedar Wooden Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This gazebo is designed to provide a covered outdoor space for relaxation and entertainment.

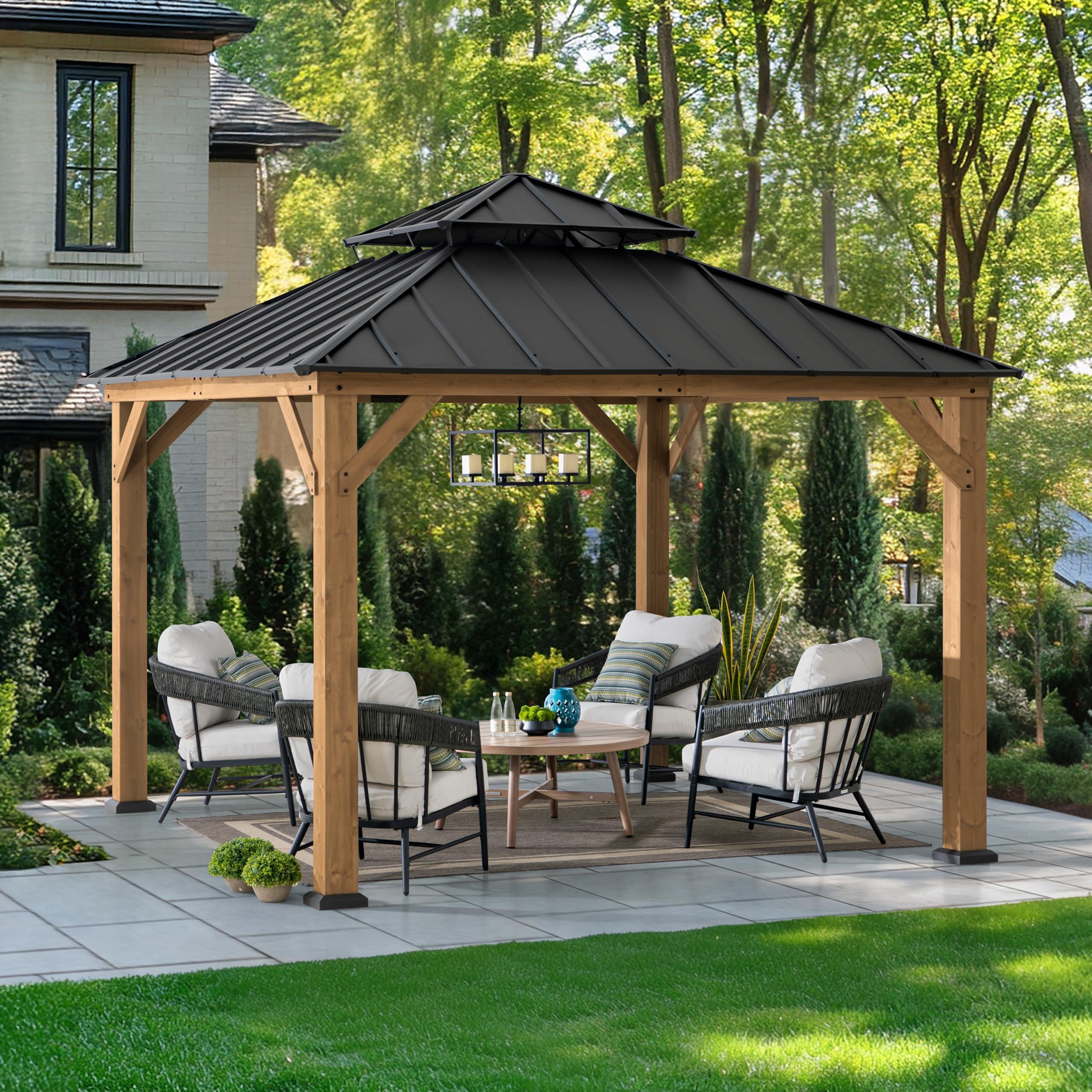

Sunjoy Outdoor Cedar Wooden Gazebo assembled in a backyard setting

Image: The Sunjoy Outdoor Cedar Wooden Gazebo, showcasing its overall design and functionality in an outdoor environment.

2. Información de seguridade

Always prioritize safety during assembly and use. Ensure all components are securely fastened. This gazebo is designed for outdoor use. Do not use in extreme weather conditions without proper anchoring.

  • Montaxe: Always assemble with at least two adults. Wear appropriate safety gear.
  • Ancoraxe: Unha ancoraxe axeitada é crucial para a estabilidade, especialmente en condicións de vento.
  • Límite de peso: Do not hang excessively heavy items from the ceiling hook.
  • Liquidación: Ensure adequate clearance around the gazebo for safe use and maintenance.
Diagram showing wind resistance levels for gazebo anchoring methods

Image: Illustration detailing recommended wind resistance based on anchoring methods: 35-40 MPH for ground placement, 40-60 MPH with anchoring stakes, and 64-73 MPH with expansion bolts.

3. Configuración e montaxe

The Sunjoy Gazebo is designed for straightforward assembly with pre-cut parts and illustrated instructions. Assembly typically requires two or more adults.

  1. Desempaquetar compoñentes: Carefully unpack all boxes and identify all parts against the provided parts list (not included in this manual, refer to packaging).
  2. Preparar sitio: Choose a level, stable surface for installation. Ensure adequate space for assembly.
  3. Montaxe do cadro: Follow the step-by-step instructions to connect the cedar wood posts and beams.
  4. Instalar o tellado: Securely attach the 2-tier steel roof panels.
  5. Anchor Gazebo: Anchor the gazebo to the ground using appropriate methods (stakes or expansion bolts) for your local weather conditions.
Assembled gazebo at night with string lights, illustrating ease of construction

Image: An assembled gazebo at night, illuminated by string lights, emphasizing the ease of construction and the resulting inviting outdoor space.

4. Características clave

4.1 Ventilated 2-Tier Top

The gazebo features a ventilated 2-tier steel roof. This design allows for improved air circulation, reducing heat buildup and providing a comfortable environment. It also offers protection from harmful UV rays while allowing wind to pass through freely.

Close-up of the gazebo's ventilated 2-tier roof design

Imaxe: Unha detallada view of the ventilated 2-tier steel roof, highlighting its design for air circulation and UV protection.

4.2 Premium Cedar Wood Frame

The frame and posts are constructed from premium cedar wood, known for its durability and natural resistance to decay. This reinforced wooden structure provides strength and stability to the gazebo.

Close-up of the cedar wood frame construction

Image: A close-up showing the premium cedar wood frame construction, emphasizing the quality of the material and joinery.

4.3 Sturdy and Stable Build

The gazebo is supported by four sturdy 11.6x11.6 cm wooden posts. These posts, combined with proper anchoring, ensure the gazebo remains stable and resistant to strong winds and harsh weather conditions.

Detail of a sturdy gazebo post base

Imaxe: Unha detallada view of the sturdy post base, illustrating the robust construction designed for stability and durability.

4.4 Ceiling Hook

An integrated ceiling hook is provided for suspending light fixtures, such as chandeliers, or other decorative items. Ensure any suspended items do not exceed the hook's weight capacity.

Close-up of the integrated ceiling hook

Image: A close-up of the built-in ceiling hook, suitable for hanging light fixtures or decorative elements.

4.5 Built-in Dual Rail System

The gazebo includes a built-in dual rail system, allowing for easy installation of mesh netting or curtains (netting and curtains are not included with the gazebo).

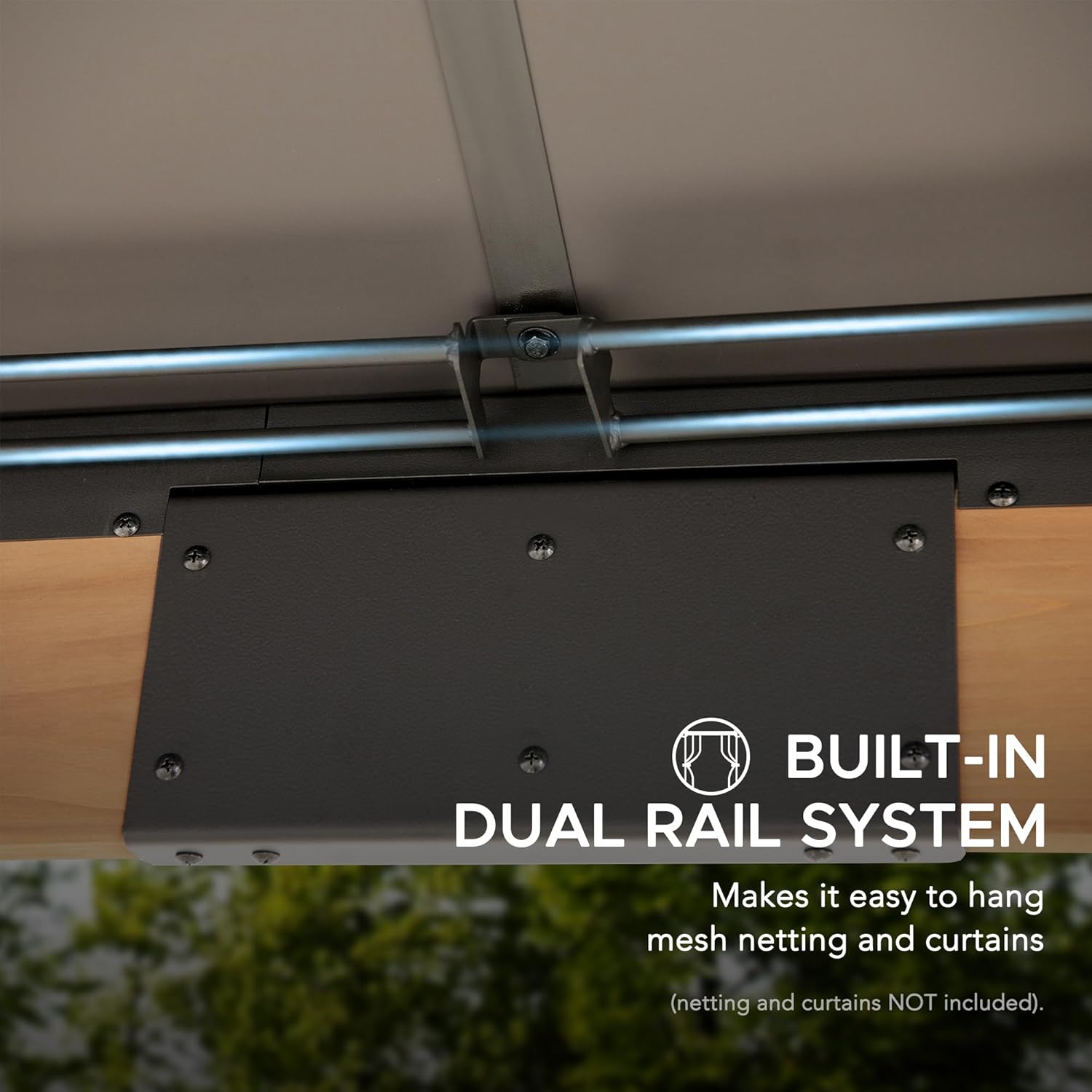

Detail of the built-in dual rail system for curtains or netting

Imaxe: Unha detallada view of the built-in dual rail system, designed for hanging mesh netting or curtains.

5. Funcionamento e uso

Once assembled and securely anchored, your Sunjoy Gazebo provides a versatile outdoor living space. It is suitable for various activities such as dining, entertaining, or simply relaxing outdoors. The 2-tier roof design ensures comfort by promoting airflow.

  • Ventilación: The 2-tier roof design naturally encourages air circulation.
  • Iluminación: Utilize the ceiling hook for ambient lighting.
  • Personalización: The dual rail system allows for adding privacy curtains or insect netting (sold separately).

6. Mantemento

Un mantemento regular prolongará a vida útil e o aspecto do teu gazebo.

  • Coidado da madeira: Periodically inspect the cedar wood frame for any signs of wear or damage. Clean with a mild soap and water solution. Consider applying a wood sealant annually to protect against weathering and maintain its appearance.
  • Steel Roof Care: Clean the steel roof with a soft cloth and mild detergent. Avoid abrasive cleaners that could damage the powder-coated finish. Inspect for any rust or damage and address promptly.
  • Fixadores: Comprobe periodicamente todos os parafusos e tornillos para asegurarse de que seguen axustados. Volva a apertalos segundo sexa necesario.
  • Invernización: In areas with heavy snow or extreme cold, consider removing snow accumulation from the roof to prevent structural stress.

7 Solución de problemas

Se tes problemas co teu gazebo, considera as seguintes solucións habituais:

  • Inestabilidade: Ensure all anchoring points are secure and that the gazebo is placed on a level surface. Check all frame connections for tightness.
  • Acumulación de auga no tellado: Verify that the roof panels are correctly installed and that there are no obstructions preventing proper water runoff. The 2-tier design is intended to prevent significant pooling.
  • Wood Discoloration: Cedar wood naturally weathers over time. Regular cleaning and application of a wood sealant can help maintain its original color.

8. Especificacións

MarcaGoza do sol
Número de modeloB0F17F7XYY
MaterialCedar Wood, Powder-Coated Steel
CorAnthracite (Roof), Chestnut (Wood Frame)
Dimensións do produto (L x W x H)131.1" x 131.1" x 120.08" (aprox. 333 cm x 333 cm x 305 cm)
Requírese montaxeSi
Tipo de telladoVentilated 2-Tier Steel Roof
Detailed dimensions diagram of the Sunjoy gazebo

Image: A technical diagram illustrating the precise dimensions of the gazebo, including height, width, and post spacing.

9. Garantía e soporte

For warranty information and customer support, please refer to the documentation included with your product packaging or visit the official Sunjoy websitio. Conserve o recibo de compra para reclamacións de garantía.

Fabricante: Goza do sol

Websitio: Visit the Sunjoy Store on Amazon
