VEVOR Outdoor Camping Oven and Stove Combo (Model FD998) Instruction Manual

1. Introdución

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your VEVOR 2-in-1 Portable Gas Camping Stove Oven Combo, Model FD998. Please read all instructions carefully before use to ensure proper functionality and safety.

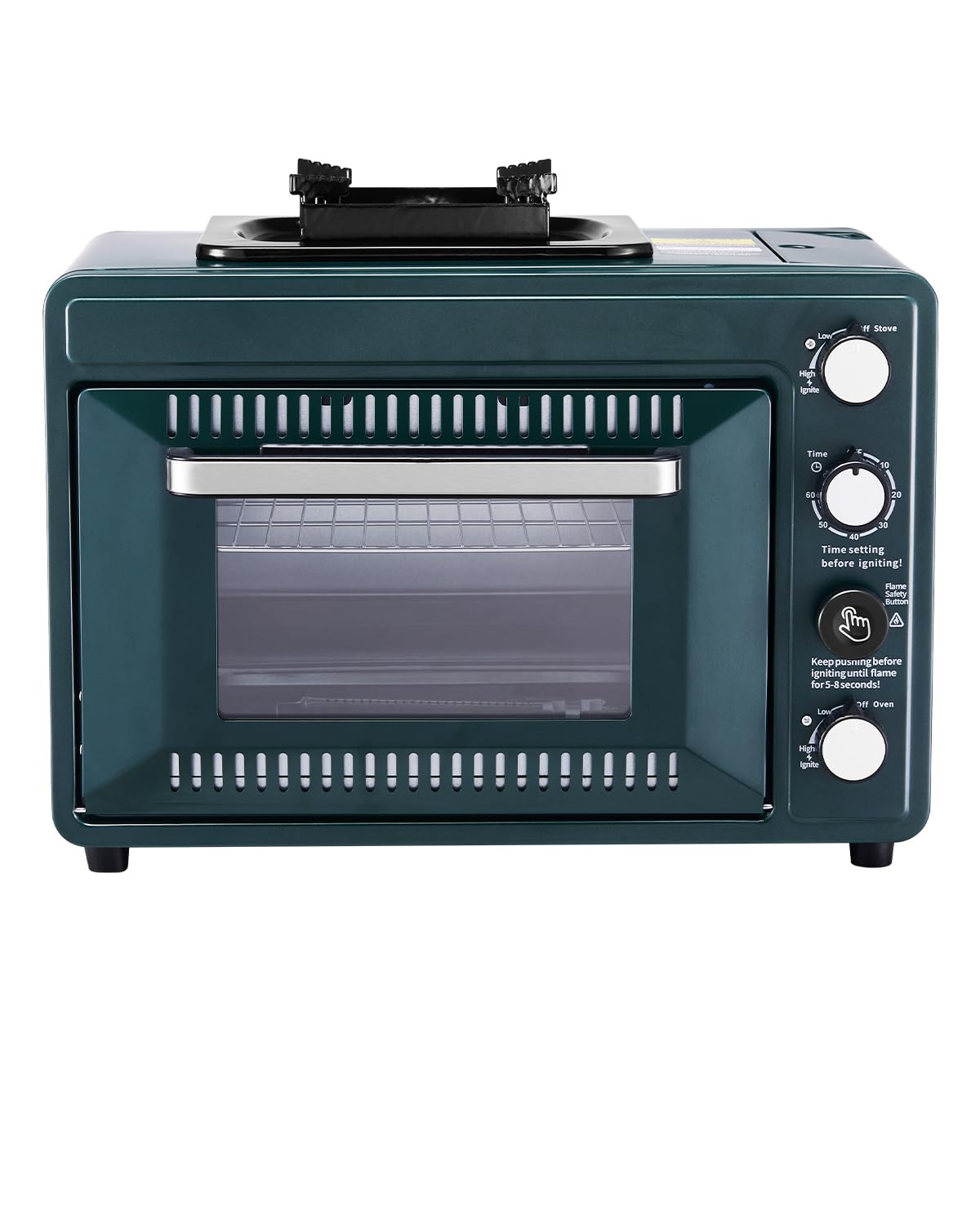

Image 1.1: The VEVOR Outdoor Camping Oven and Stove Combo, showcasing o seu deseño compacto.

2. Información de seguridade

WARNING: Failure to follow these safety instructions may result in fire, explosion, serious injury, or death.

• Só para uso exterior: Este aparello está deseñado só para uso no exterior. Non o opere en interiores nin en espazos pechados. Asegúrese de que haxa unha ventilación axeitada.
• Tipo de combustible: Use only universal butane canisters as specified by the manufacturer. Do not use other fuel types.
• Comprobación de fugas de gas: Before each use, check for gas leaks using a soapy water solution. Never use an open flame to check for leaks.
• Liquidación: Maintain a safe distance from combustible materials (walls, tents, foliage, etc.) during operation.
• Superficie estable: Always operate the appliance on a firm, level, non-combustible surface.
• Superficies quentes: The appliance becomes hot during use. Allow it to cool completely before handling or storing. Use heat-resistant gloves if necessary.
• Nenos e animais: Manteña os nenos e as mascotas lonxe do aparello durante o funcionamento e mentres estea arrefriando.
• Butane Canister Overheating Warning: User reports indicate that the butane canister for the stove burner may become excessively hot and cease functioning if the oven is operated for extended periods. To prevent this, it is recommended to remove the stove's butane canister when using the oven for prolonged cooking sessions. Always monitor the appliance during use.
• Función de temporizador: The 60-minute timer is for convenience but does not replace supervision. Always monitor cooking progress.

3. Produto rematadoview

The VEVOR FD998 is a versatile 2-in-1 outdoor cooking appliance, combining a gas stove on top with a functional oven below. It is designed for portability and efficiency in various outdoor settings.

Image 3.1: Illustrates the 2-in-1 functionality with a stovetop burner and an oven compartment.

Características principais:

• Deseño 2 en 1: Combines a stovetop burner and an oven for diverse cooking options.
• Adjustable Flame Control: Separate control knobs for precise heat adjustment for both stove and oven.
• Temporizador de 60 minutos: Integrated timer for convenient oven operation.
• Deseño a proba de vento: Features a heat-sealed chamber and raised wind guard for stable flame performance in outdoor conditions.
• 25L Capacity Oven: Spacious oven interior, suitable for various dishes.

Image 3.2: Demonstrates the windproof design, showing the insulated chamber and raised wind guard.

4. Configuración

4.1 Desembalaxe

1. Retire con coidado o aparello e todos os accesorios da embalaxe.
2. Comprobe se houbo algún dano durante o transporte. Se está danado, non o use e póñase en contacto co servizo de atención ao cliente.
3. Ensure all components listed in the specifications are present.

4.2 Fuel Installation (Butane Canister)

The appliance uses universal butane canisters. There are separate compartments for the stove and oven butane canisters.

1. Open the butane canister compartment door.
2. Align the collar of the butane canister with the appliance's connector.
3. Push the canister firmly into place until it clicks and locks securely. Ensure a tight fit to prevent gas leaks.
4. Pecha a porta do compartimento.
5. Repeat for the second canister if using both stove and oven simultaneously.

Importante: As noted in the safety section, consider removing the stove's butane canister when operating the oven for extended periods to prevent overheating of the stove's canister.

Video 4.1: A demonstration of the VEVOR Camping Oven Stove Combo, including setup and component overview.

5. Instrucións de funcionamento

5.1 Funcionamento da estufa

1. Ensure a butane canister is correctly installed in the stove compartment.
2. Place cookware on the stovetop burner grate.
3. Turn the 'Stove Flame Control Knob' to the 'Ignite' position. You should hear a click and see the flame ignite.
4. Adjust the flame intensity by turning the knob between 'Low' and 'High' as needed.
5. To turn off, rotate the knob to the 'Off' position.

5.2 Funcionamento do forno

The oven features a 60-minute timer and adjustable flame control.

Image 5.1: Close-up of the control panel, showing the stove flame control, oven timer, oven ignition switch, and oven flame control knobs.

1. Ensure a butane canister is correctly installed in the oven compartment.
2. Place food inside the oven on the provided grill rack or baking tray.
3. Set the desired cooking time using the 'Oven Timer Knob' (0-60 minutes). The oven will not ignite if the timer is not set.
4. Press and hold the 'Oven Ignition Security Switch' (marked with a hand icon) for 5-8 seconds while simultaneously turning the 'Oven Flame Control Knob' to the 'Ignite' position. You should see the oven flame ignite through the viewxanela.
5. Once ignited, release the security switch.
6. Adjust the oven flame intensity by turning the 'Oven Flame Control Knob' between 'Low' and 'High' to achieve the desired temperature. The oven can reach 270℃ (518℉) in 10 minutes and 350℃ (662℉) in 15 minutes.
7. When the timer expires, the oven flame will automatically shut off. To manually turn off the oven, rotate the 'Oven Flame Control Knob' to the 'Off' position.

Image 5.2: The oven interior, showing food baking on the rack and tray.

5.3 Timer Usage

The 60-minute timer is a mechanical timer. Turn the knob clockwise to set the desired cooking duration. The timer will tick down and automatically shut off the oven burner when it reaches zero. This feature helps prevent overcooking.

Vídeo 5.3: Unha análise detalladaview of the VEVOR 2-in-1 Outdoor Oven and Gas Stove Combo in operation.

6. Mantemento

6.1 Limpeza

• Always ensure the appliance is completely cool before cleaning.
• Remove butane canisters before cleaning.
• Limpe as superficies exteriores con anuncioamp pano e deterxente suave. Non use produtos de limpeza abrasivos nin estropajos.
• The grill rack and baking tray can be washed with warm soapy water.
• Ensure all parts are dry before reassembly or storage.

6.2 Almacenamento

• Garde o aparello nun lugar fresco e seco, lonxe da luz solar directa e da humidade.
• Always remove butane canisters before storing the appliance.
• Keep the appliance covered to protect it from dust and debris.

7 Solución de problemas

8. Especificacións

The following table outlines the key specifications for the VEVOR Outdoor Camping Oven and Stove Combo (Model FD998).

Image 8.1: Visual representation of the product dimensions and key specifications.

9. Garantía e soporte

Para obter información sobre a garantía e a atención ao cliente, consulte a páxina oficial de VEVOR. websitio web ou póñase en contacto co seu vendedor. Garde o recibo da compra para reclamacións de garantía.
