Generic BL0021 Focused Shock Wave Therapy Machine User Manual

1. Introdución

The Generic BL0021 is an electromagnetic focused shock wave therapy machine designed for various therapeutic applications. This device operates on the physical principle of electromagnetic induction, generating precisely dosed shock wave energy. These shock waves are produced externally in water and then transmitted into biological tissues, creating an accurately defined focal zone that can penetrate the skin without significant energy loss.

This manual provides essential information for the safe and effective use of the BL0021 device. Please read it thoroughly before operation.

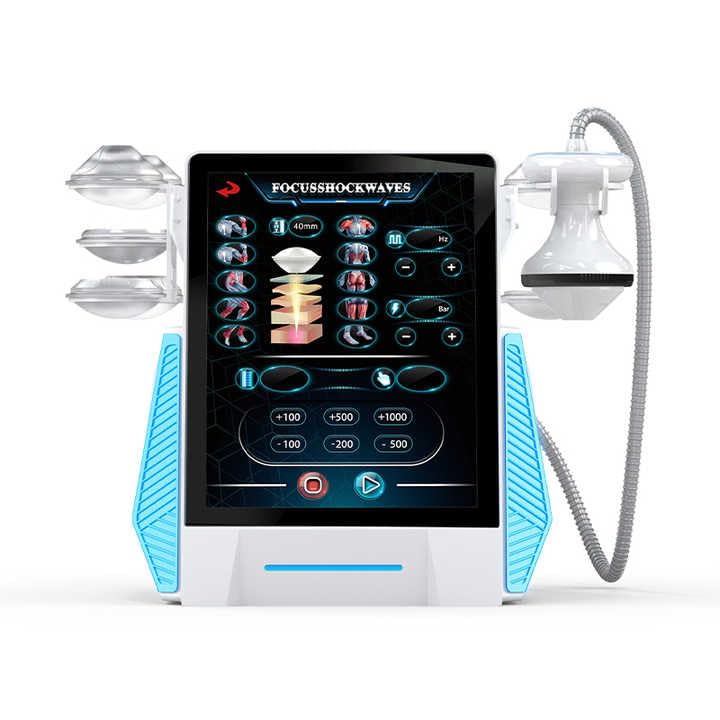

Figura 1: Máisview of the Generic BL0021 Focused Shock Wave Therapy Machine.

2. Información de seguridade

Importante: Read all safety warnings and instructions before using this device. Failure to follow these instructions may result in injury or device malfunction.

• This device is not for use during pregnancy.
• Consult a healthcare professional for specific medical conditions, including Erectile Dysfunction (ED) treatment.
• Always turn off and unplug the device after each use.
• Follow all general safety instructions provided with the device.
• The device is not water resistant. Avoid contact with liquids.
• This is a professional-grade device. Operation should be performed by trained individuals or under professional guidance.

Exención de responsabilidade legal: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This device is intended for therapeutic use as described in this manual.

3. Instrucións de configuración

Follow these steps to set up your BL0021 device:

1. Desempaquetar o dispositivo: Retire con coidado todos os compoñentes da embalaxe. Inspeccione se sufriu algún dano durante o transporte.
2. Coloca o dispositivo: Position the main unit on a stable, flat surface, ensuring adequate ventilation around the unit.
3. Conecte o cable de alimentación: Plug the power cord into the designated port on the device, then into a suitable electrical outlet.
4. Attach Applicator: Securely connect the shockwave applicator to the main unit as per the connection points.
5. Encendido inicial: Turn on the device using the main power switch. The user interface screen should illuminate.

Figure 2: Device with applicator connected, ready for operation.

4. Instrucións de funcionamento

Once the device is set up, follow these general steps for operation:

1. User Interface Setup: Navigate the touchscreen interface to select desired treatment parameters. This may include treatment type, intensity, and duration.
2. Seleccionar área de tratamento: The interface allows selection of specific body areas for treatment.
3. Posicionar o dispositivo: Apply the shockwave applicator to the affected area of the body. Ensure proper contact with the skin.
4. Initiate Treatment: Start the treatment session according to the recommended duration and intensity settings. Monitor the patient and device throughout the session.
5. Tratamento final: Upon completion, turn off the device and unplug it from the power source.

Figura 3: detallada view of the device's control panel and interface.

5. Applications and Treatment Areas

The BL0021 Focused Shock Wave Therapy Machine is designed to promote tendon and soft tissue healing, aid in recovery from sports injuries, and alleviate pain associated with bone inflammation. It stimulates the body's self-repair mechanisms, enhances metabolism, and supports natural healing processes.

This device is suitable for use on a variety of body areas, providing personalized shockwave therapy for optimal results. Common application areas include:

• Ombros: For conditions like calcific tendinitis and shoulder pain syndrome.
• Cóbados: Effective for tennis elbow and golf elbow.
• Pulsos: Addresses wrist pain syndrome and carpal tunnel syndrome.
• Volver: Useful for lumbago (lumbar fasciitis/muscle strain).
• Cadeiras: Targets hip pain (piriformis syndrome) and femoral greater trochanteric pain syndrome.
• Thighs: For hamstring strain and iliotibial band syndrome.
• Xeonllos: Addresses knee pain, patellar chondromalacia, and patellar tendinitis.
• Pés: Effective for heel pain syndrome (plantar fasciitis/calcaneal bone spurs) and Achilles tendon pain syndrome.
• Shins: For shin splints (tibial anterior muscle syndrome/tibial medial stress syndrome).

Figure 4: Illustrative diagram of treatable musculoskeletal conditions.

Figure 5: General areas for physiotherapy massage and associated benefits.

5.1. Focused vs. Radial Shockwave Comparison

The BL0021 utilizes focused shockwave technology. Below is a comparison of focused and radial shockwave characteristics:

Figure 6: Comparison of Focused Shockwave and Radial Shockwave technologies.

6. Especificacións

7. Mantemento

Proper maintenance ensures the longevity and optimal performance of your BL0021 device.

• Limpeza: After each use, wipe down the device and applicator with a soft, damp cloth. Use a mild, non-abrasive cleaner if necessary. Ensure the device is unplugged before cleaning.
• Almacenamento: Store the device in a clean, dry environment, away from direct sunlight and extreme temperatures. Protect the applicator from damage.
• Inspección: Regularly inspect the power cord, applicator cable, and device housing for any signs of wear or damage. Do not operate the device if any damage is observed.
• Servizo profesional: For any internal issues or complex repairs, contact qualified service personnel. Do not attempt to open or repair the device yourself.

8 Solución de problemas

This section provides solutions to common issues you might encounter with your BL0021 device.

• O dispositivo non se acende:
  • Asegúrate de que o cable de alimentación estea conectado correctamente tanto ao dispositivo como a unha toma de corrente que funcione.
  • Check the main power switch on the device.
  • Verify the electrical outlet is functional by plugging in another appliance.
• No Shockwave Output:
  • Confirm the applicator is correctly attached to the main unit.
  • Check the settings on the user interface to ensure treatment is initiated and parameters are set correctly.
  • Ensure there are no error messages displayed on the screen.
• Ruído ou cheiro inusual:
  • Apague e desconecte o dispositivo inmediatamente.
  • Contact customer support or qualified service personnel. Do not attempt to operate the device.

For issues not covered here, please refer to the support information in Section 9.

9. Garantía e soporte

This product is offered with a 30-day easy return policy. For specific warranty details, please refer to the documentation provided at the time of purchase or contact the seller directly.

For customer support, technical assistance, or warranty claims, please contact the seller, beilangbeauty, through the platform where the purchase was made. Provide your model number (BL0021) and ASIN (B0F894QSMV) for faster service.

Información do vendedor:

• Seller Name: beilangbeauty
• ASIN: B0F894QSMV
