1. Introdución
This instruction manual provides detailed guidance for the proper installation, maintenance, and troubleshooting of your MURNELAP 38 Deck Spindle Repair Kit. This kit is designed to restore optimal performance to the mower deck of compatible Murray models M115-38, M135-38, 13AC77LF058, and 13BC77LF058.
A seguridade primeiro: Always prioritize safety. Read and understand all instructions before beginning any repair work. Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves. Disconnect the spark plug wire or remove the battery to prevent accidental engine starting before working on the mower deck.
2. Kit Contents and Compatibility
The MURNELAP 38 Deck Spindle Repair Kit includes all necessary components for repairing the spindle assembly on specified 38-inch mower decks. Please verify the contents against the image below.
- Spindle bearings (typically 4 per kit for a complete repair)
- Other necessary components for spindle repair (e.g., seals, spacers, bolts, depending on specific kit configuration)
Compatibilidade: This kit is specifically designed for Murray lawn mower models M115-38, M135-38, 13AC77LF058, and 13BC77LF058 with a 38-inch cutting deck. Ensure your mower model matches these specifications for proper fitment.

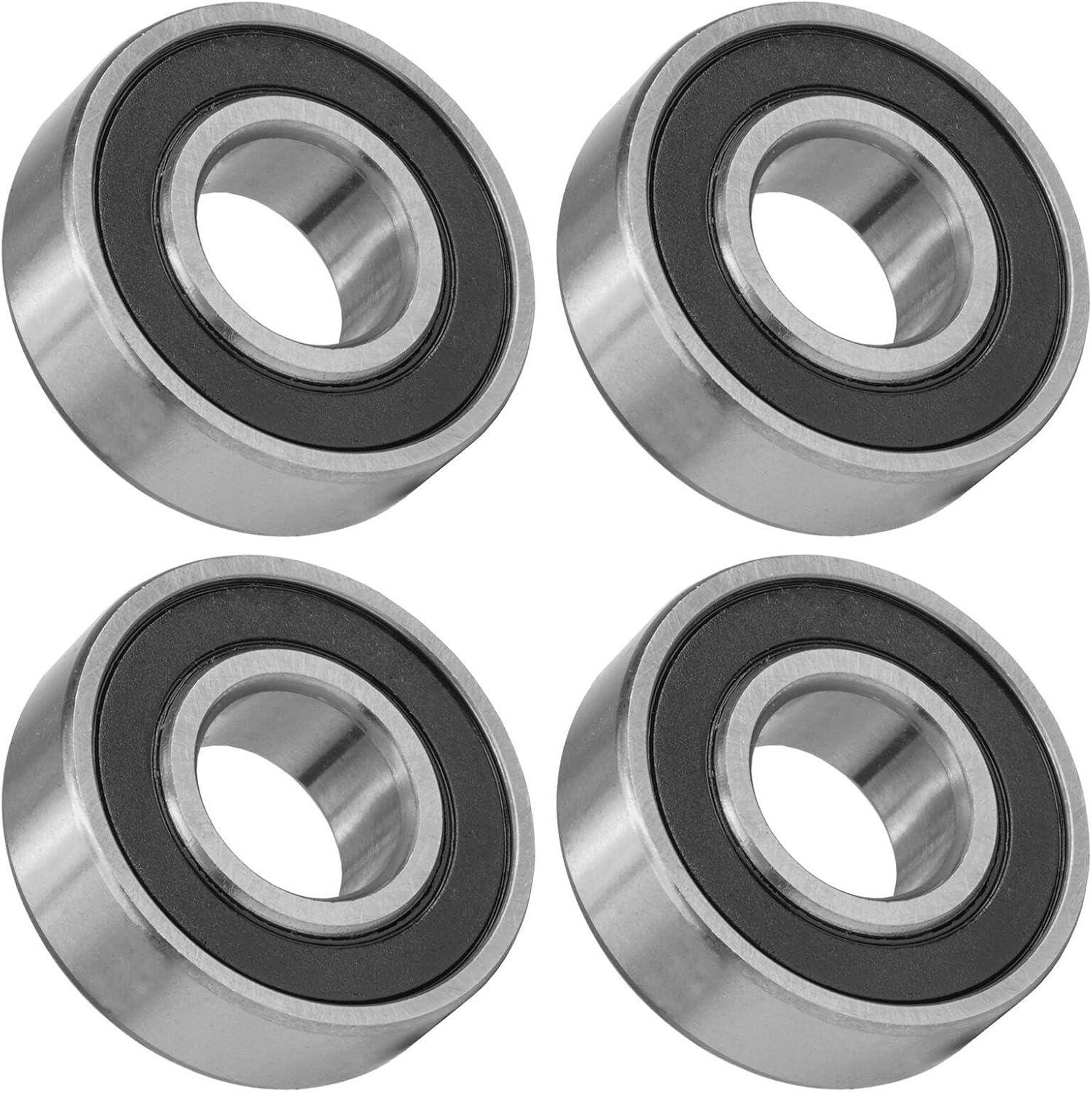

Image 1: Components of the MURNELAP 38 Deck Spindle Repair Kit. This image displays four spindle bearings, which are key components for restoring the functionality of your mower's deck spindle.
3. Configuración e instalación
3.1 Ferramentas necesarias
- Wrench set (metric and/or standard, depending on mower)
- Xogo de chaves e trinquete
- Set de destornilladores
- Grease gun (if applicable for new bearings)
- Pry bar or large screwdriver (for leverage)
- Wire brush or scraper (for cleaning)
- Safety glasses and work gloves
3.2 Procedemento de instalación
- Preparar a segadora: Park the mower on a flat, level surface. Engage the parking brake. Disconnect the spark plug wire or remove the battery to prevent accidental starting. Remove the mower deck from the tractor according to your mower's owner's manual.
- Access the Spindle: Flip the mower deck over to access the underside. Remove the blade attached to the spindle you intend to repair. Note the orientation of any washers or spacers.
- Remove the Old Spindle Assembly: Locate the bolts securing the spindle housing to the mower deck. Remove these bolts. You may need to use a pry bar to separate the spindle housing if it's seized. Carefully remove the entire spindle assembly.
- Disassemble the Spindle: If only bearings are being replaced, disassemble the spindle housing to remove the old bearings. Clean the spindle shaft and housing thoroughly, removing any rust, dirt, or old grease.
- Instalar novos compoñentes: Press or tap the new bearings into the spindle housing. Ensure they are seated correctly and squarely. Reassemble the spindle shaft with any new seals or spacers provided in the kit.
- Reinstall Spindle Assembly: Place the repaired spindle assembly back onto the mower deck. Secure it with the original or new mounting bolts, tightening them evenly.
- Reattach Blade: Reinstall the mower blade, ensuring it is properly seated and tightened to the manufacturer's specified torque. Incorrect blade tightening can lead to vibration and damage.
- Reattach Mower Deck: Reinstall the mower deck onto the tractor, ensuring all belts and linkages are correctly connected.
4. Operating After Repair
After completing the spindle repair and reassembling the mower deck, perform a thorough inspection before operating the mower.
- Comprobación visual: Ensure all bolts are tightened, and there are no loose parts.
- Comprobación da lámina: Confirm the blade is securely attached and spins freely without obstruction.
- Execución de proba: Reconnect the spark plug wire/battery. Start the mower in a safe, open area. Listen for any unusual noises or vibrations. If any issues are detected, immediately shut off the mower and investigate.
The repair kit is designed to restore the smooth and efficient operation of your mower deck. Consistent and dependable operation should be observed.
5. Mantemento
Proper maintenance extends the life of your spindle repair and mower deck.
- Inspección periódica: Periodically inspect the spindle assembly for any signs of wear, looseness, or damage. Check for excessive play in the blade.
- Lubricación: If your new bearings are designed to be greased, follow the mower manufacturer's recommendations for lubrication intervals and type of grease. Many modern sealed bearings are "lubricated for life" and do not require additional greasing.
- Limpeza: Keep the mower deck clean of grass clippings and debris, especially around the spindle housings, to prevent buildup and potential issues.
6 Solución de problemas
If you encounter issues after installing the repair kit, consider the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| Vibración excesiva | Unbalanced blade, loose blade bolt, improperly seated spindle, damaged new bearing. | Check blade balance and tightness. Ensure spindle is fully seated and bolts are torqued. Inspect new bearings for defects. |
| Unusual Noise (Grinding, Squealing) | Improperly installed bearings, lack of lubrication (if applicable), debris in spindle housing. | Recheck bearing installation. Lubricate if necessary. Clean spindle housing. |
| A lámina non xira libremente | Obstruction, seized bearing, incorrect assembly. | Remove obstruction. Disassemble and inspect bearings and assembly for errors. |
If problems persist, consult a qualified service technician or contact MURNELAP customer support.
7. Especificacións
- Produto: 38 Deck Spindle Repair Kit
- Marca: MURNELAP
- Compatible Mower Models: Murray M115-38, M135-38, 13AC77LF058, 13BC77LF058
- Tamaño da plataforma: 38 polgadas
- Contido do kit: Components for spindle repair (e.g., bearings, seals, spacers, bolts)
8. Información da garantía
MURNELAP products are manufactured to high-quality standards. This repair kit is covered by the manufacturer's standard warranty against defects in materials and workmanship. Please retain your proof of purchase. For specific warranty terms and conditions, refer to the documentation included with your purchase or visit the official MURNELAP websitio.
9. Atención ao cliente
If you have any questions regarding the installation, operation, or maintenance of your MURNELAP 38 Deck Spindle Repair Kit, please do not hesitate to contact our customer support team. Provide your product model information and a detailed description of your inquiry for efficient assistance.
Información de contacto:
- Websitio: www.murnelap.com
- Correo electrónico: support@murnelap.com
- Teléfono: Consulte a embalaxe do produto ou websitio para os números de contacto rexionais.
