1. Introdución
Thank you for choosing the Aeitto Countertop Ice Maker. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new ice maker. Please read this manual thoroughly before use and retain it for future reference.

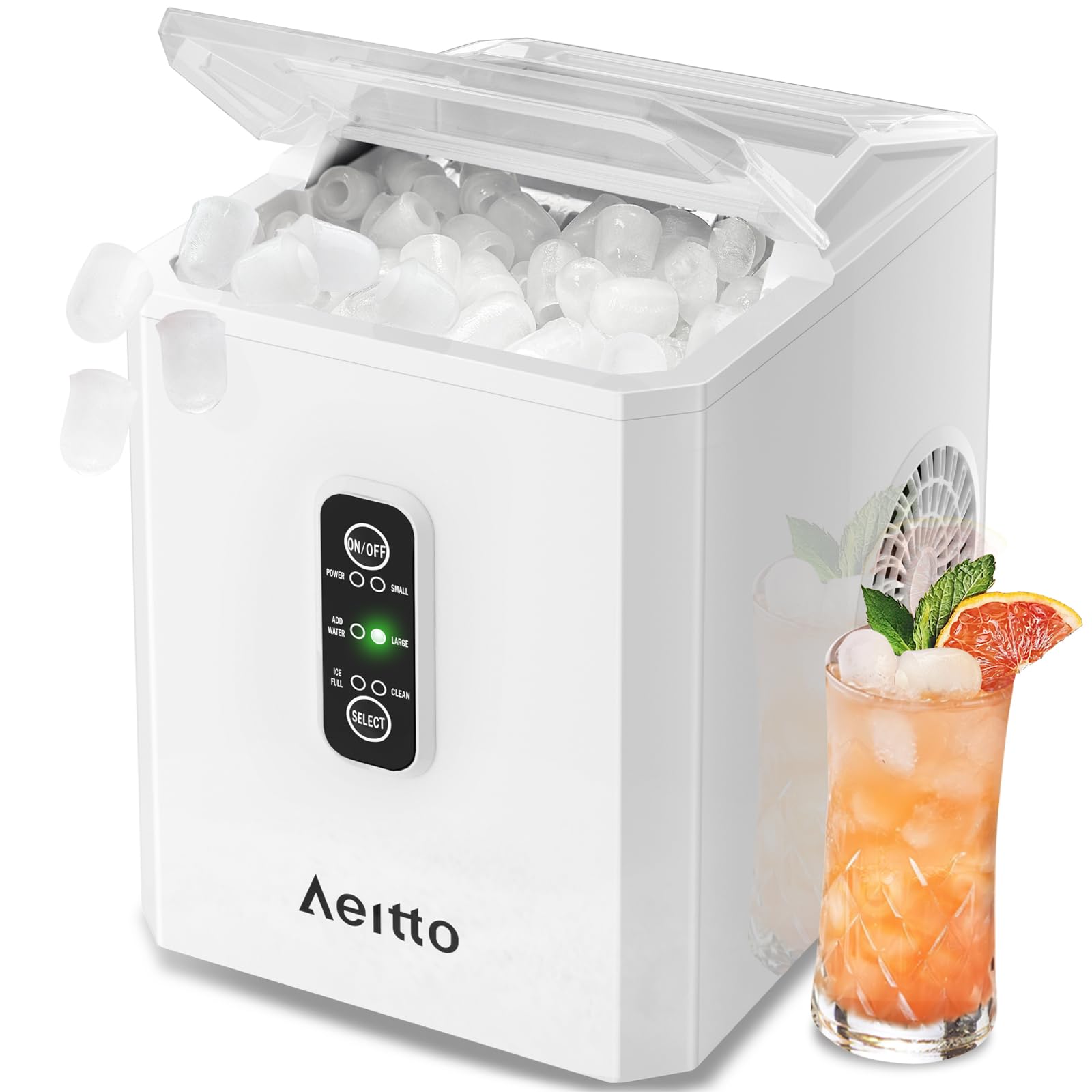

This portable ice maker is designed to produce bullet-shaped ice cubes quickly and efficiently, offering two different ice cube sizes to suit your preferences. Its compact design makes it suitable for various settings, including home kitchens, offices, bars, and RVs.
2. Instrucións de seguridade
- Lea todas as instrucións antes de facer funcionar o aparello.
- Asegurar o voltage coincide coa etiqueta de clasificación do electrodoméstico.
- Non mergulle o aparello, o cable de alimentación nin o enchufe en auga ou outros líquidos.
- Desconecte o aparello da toma de corrente cando non o estea a usar, antes de limpalo ou antes de engadir/quitar pezas.
- Manteña o aparello lonxe de fontes de calor e luz solar directa.
- Non faga funcionar o aparello cun cable ou enchufe danados.
- Este aparello é só para uso doméstico en interiores.
- Os nenos deben ser supervisados para asegurarse de que non xogan co aparello.
- Use só auga potable na máquina de xeo.
3. Produto rematadoview & Características
The Aeitto Ice Maker can produce up to 26 pounds of ice per day, ensuring a continuous supply for your needs.
Produces 9 ice cubes in as little as 6 minutes, providing quick access to fresh ice.
Offers two sizes of bullet ice cubes (Small and Large) to cater to different beverage and cooling requirements.
Features dual viewing windows to monitor the ice-making process and check the ice storage level without opening the lid.
4. Configuración
- Desembalaxe: Retire con coidado a máquina de xeo da súa embalaxe. Retire todos os materiais de embalaxe, incluídas a cinta adhesiva e as etiquetas.
- Colocación: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure there is adequate ventilation around the unit.
- Limpeza inicial: Before first use, clean the interior of the ice maker. Remove the ice basket and wash it with warm water and mild detergent. Wipe the interior with a soft cloth.
- Conexión de alimentación: Enchufe o cable de alimentación a unha toma eléctrica conectada a terra.
- Encher o depósito de auga: Open the lid and pour potable water into the water reservoir up to the 'MAX' fill line. Do not overfill.
Ensure proper placement and water filling for optimal performance.
5. Instrucións de funcionamento
- Encendido: Prema o botón "ON/OFF" para acender a máquina de xeo. A luz indicadora "POWER" acenderase.
- Selecciona o tamaño do xeo: Prema o botón "SELECCIONAR" para escoller entre cubos de xeo pequenos (S) ou grandes (L). A luz indicadora correspondente acenderase.
- Produción de xeo: The ice maker will begin the ice-making cycle. The first batch of ice typically takes 6-13 minutes, depending on the selected size and ambient temperature.
- Indicador de xeo cheo: When the ice basket is full, the 'ICE FULL' indicator light will turn on, and the ice maker will automatically stop producing ice. Remove ice from the basket to resume production.
- Engadir indicador de auga: If the water reservoir is low, the 'ADD WATER' indicator light will turn on. Add more water to the reservoir to continue ice production.
- Apagado: Prema o botón "ON/OFF" para apagar a máquina de xeo cando non a estea en uso.
Watch this video for a demonstration of the ice maker's operation, including water filling, ice production, and ice removal.
6. Mantemento e Limpeza
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Aeitto Ice Maker.
- Función de autolimpeza: The ice maker features a built-in auto-cleaning function. To activate, ensure the water reservoir is filled, then press and hold the 'ON/OFF' button for 5 seconds. The 'CLEAN' indicator light will illuminate, and the cleaning cycle will run for approximately 15 minutes.
- Limpeza manual: For thorough cleaning, unplug the unit. Remove the ice basket. Drain any remaining water from the reservoir by removing the drain plug located at the bottom of the unit. Clean the interior with a soft cloth and a mild detergent solution. Rinse thoroughly and dry.
- Limpeza exterior: Limpe o exterior da máquina de xeo cun pano suave eamp pano. Non use produtos de limpeza ou disolventes abrasivos.
- Almacenamento: Se garda a máquina de xeo durante un período prolongado, asegúrese de que estea completamente seca. Gardea nun lugar fresco e seco.
Follow these steps to utilize the self-cleaning function for a hygienic ice maker.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A máquina de xeo non produce xeo. | Non hai auga no depósito. | Add potable water to the reservoir up to the 'MAX' line. |
| Os cubos de xeo son demasiado pequenos ou están turbios. | A temperatura da auga é demasiado alta. | Use colder water. Ensure the ice maker is in a cool environment. |
| Ice maker stops working. | A cesta de xeo está chea. | Elimina o xeo da cesta. |
| O indicador "ENGADIR AUGA" está aceso. | O nivel da auga é baixo. | Enche o depósito de auga. |
| Ruído inusual durante o funcionamento. | Unit not level or internal components vibrating. | Ensure the unit is on a stable, level surface. Contact customer support if noise persists. |
8. Especificacións
- Marca: Aeitto
- Nome do modelo: 10D3
- Dimensións do produto: 9.9" D x 7.37" W x 10.6" H
- Capacidade: 26 Pounds (Ice Production per Day)
- Wattage: 105 vatios
- Voltage: 110 voltios
- Refrigerante: R600a
- Material: Plástico
- Peso do artigo: 14.33 libras
Compact and space-saving design for various environments.
9. Que hai na caixa
- Máquina de xeo x 1
- Bola de xeo x 1
- Ice Basket x 1
10. Garantía e soporte
For warranty information or technical support, please refer to the product packaging or contact Aeitto customer service directly. Keep your purchase receipt as proof of purchase.
