1. Produto rematadoview
The ALAULM Frameless Sliding Shower Door is designed for modern bathrooms, offering a sleek aesthetic and reliable functionality. This manual provides essential information for the safe installation, operation, and maintenance of your shower door.
Características principais:
- Materiais duradeiros: Features 5/16" (8mm) ANSI-certified tempered glass with a single-sided explosion-proof film for enhanced safety and stability. The 304 stainless steel armrest is corrosion and rust-resistant.
- Excellent Waterproof Performance: Equipped with high-quality waterproof sealing strips and a waterproof barrier to prevent water splashes and keep the bathroom floor dry.
- Deseño flexible: The installation width is adjustable from 56 to 60 inches, allowing for a perfect fit in various shower spaces. The double-sided design permits installation on either the left or right wall.
- Frameless Appearance: A minimalist design that provides a transparent and open visual effect, complementing diverse bathroom styles.
Image 1.1: The ALAULM Frameless Sliding Shower Door in a bathroom setting, showcasing o seu deseño moderno.
2. Información de seguridade
Please read and understand all safety instructions before attempting installation or operation. Failure to follow these instructions may result in injury or product damage.
- Use sempre lentes e luvas de seguridade durante a instalación.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter into small pieces if struck at the edges or corners.
- Ensure the installation surface (walls) is structurally sound and capable of supporting the weight of the shower door.
- Non aperte demasiado os parafusos, xa que isto pode danar os compoñentes ou o vidro.
- Manteña os nenos e as mascotas lonxe da zona de instalación.
- Verify all components are securely fastened before using the shower door.
3. Lista de compoñentes
Your ALAULM Frameless Sliding Shower Door package includes the following components. Please verify all parts are present and undamaged before beginning installation. This product is shipped in two boxes and may arrive separately.
- Tempered Glass Panels (Fixed and Sliding)
- Sliding Track Bar
- Conxuntos de rolos
- Door Handles / Armrest (304 Stainless Steel)
- Wall Brackets and Mounting Hardware
- Waterproof Sealing Strips
- Waterproof Barrier / Bottom Guide
- Installation Screws and Anchors
Imaxe 3.1: Detallada view of the sliding rollers and the stainless steel handle.
4. Configuración e instalación
Professional installation is recommended. If installing yourself, ensure you have the necessary tools and assistance. Refer to the detailed instruction manual included in the packaging for specific step-by-step guidance.
4.1 Lista de verificación previa á instalación:
- Confirm all parts are present and undamaged.
- Ensure the shower opening dimensions are within the 56-60 inch width range.
- Gather necessary tools: drill, level, tape measure, screwdriver, caulk gun, silicone sealant, safety glasses, gloves.
- Locate wall studs for secure mounting of the track bar.
Image 4.1: Shower door size diagram, illustrating the adjustable width from 56.5 to 60 inches and height of 75.5 inches.
4.2 General Installation Steps (Refer to included manual for details):
- Preparar a apertura: Clean the shower curb and walls. Mark the desired height for the top track.
- Instalar a pista superior: Secure the sliding track bar to the wall studs using appropriate mounting hardware. Ensure it is perfectly level.
- Install Fixed Glass Panel: Position and secure the fixed glass panel according to the instructions, ensuring it is plumb.
- Install Sliding Glass Panel: Attach the roller assemblies to the sliding glass panel and hang it on the top track.
- Instalar as asas: Secure the stainless steel armrest to the sliding glass panel.
- Install Waterproofing: Apply the waterproof sealing strips to the edges of the glass panels and install the bottom waterproof barrier/guide.
- Adjust and Seal: Adjust the rollers for smooth operation. Apply silicone sealant as instructed to prevent leaks.
Vídeo 4.2: Un breve resumoview of the ALAULM Frameless Shower Door, demonstrating its appearance and sliding mechanism.
5. Instrucións de funcionamento
The ALAULM Frameless Sliding Shower Door is designed for easy and smooth operation.
- To open or close the shower door, grasp the stainless steel armrest firmly.
- Gently slide the door along the top track. Avoid applying excessive force or slamming the door, as this can cause damage to the rollers or glass.
- Ensure the door is fully closed before showering to prevent water leakage.
6. Mantemento
Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower door.
6.1 Cleaning the Glass:
- Use a soft cloth or sponge with a non-abrasive glass cleaner.
- Avoid cleaners containing harsh chemicals, abrasive particles, or ammonia, as these can damage the glass or its protective film.
- Wipe down the glass after each use to prevent water spots and soap scum buildup.
Image 6.1: Detail of the 5/16-inch (8mm) tempered glass, highlighting its ANSI certification and explosion-proof film.
6.2 Cleaning the Stainless Steel Components:
- Wipe stainless steel parts with a soft, damp pano.
- Dry thoroughly to prevent water spots.
- Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can scratch or corrode the finish.

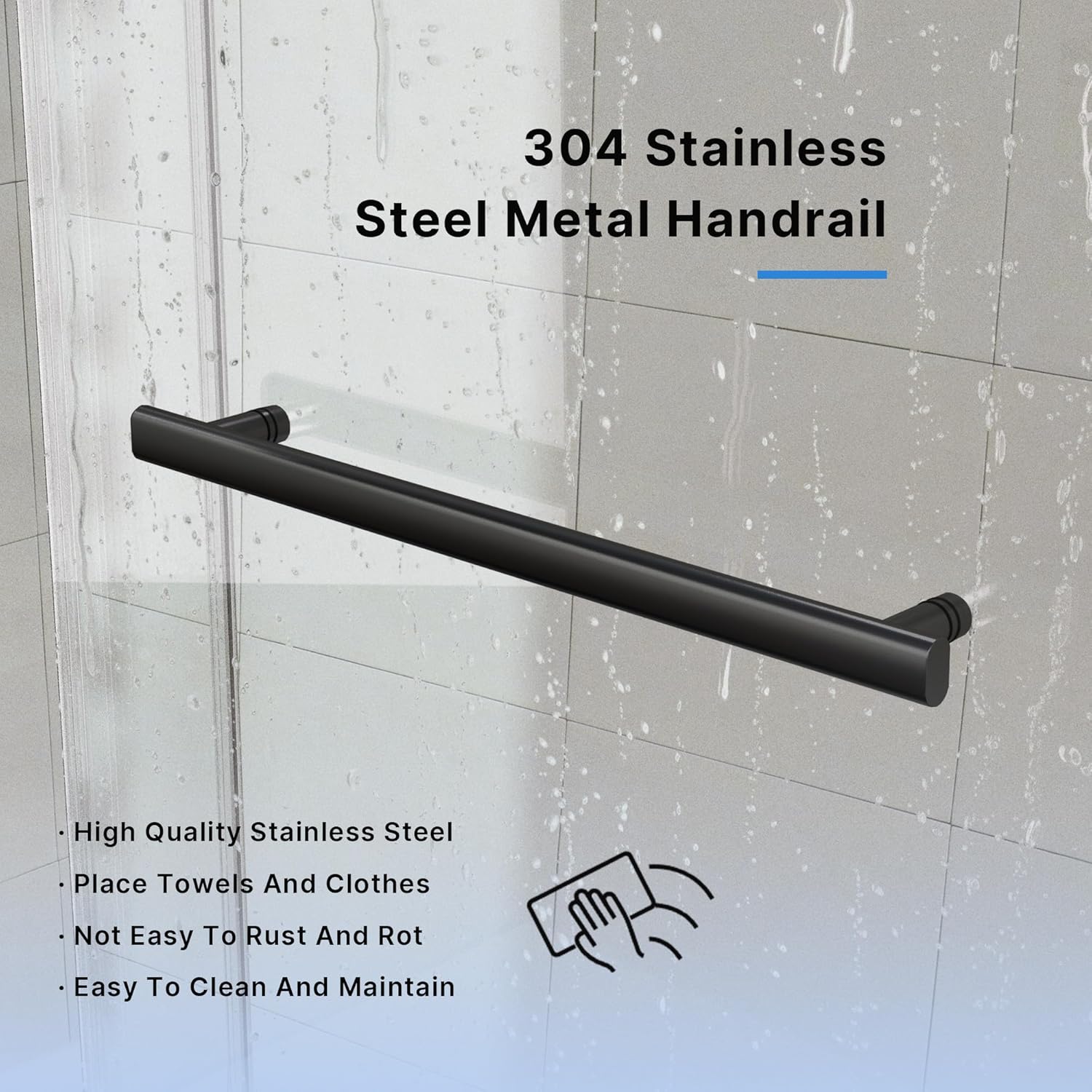

Image 6.2: The 304 Stainless Steel Metal Handrail, designed for durability and easy cleaning.
6.3 Track and Roller Maintenance:
- Keep the top track clean and free of debris to ensure smooth sliding.
- If the door becomes stiff to slide, clean the rollers and apply a small amount of silicone-based lubricant to the track. Avoid oil-based lubricants.
Image 6.3: The waterproof groove design and bottom guide, engineered to prevent water leakage.
7 Solución de problemas
If you encounter issues with your shower door, refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| A porta non escorrega con suavidade. | Debris in track, worn rollers, misaligned track. | Clean the track, inspect rollers for damage, ensure track is level and properly installed. Apply silicone lubricant if needed. |
| Water leakage from the bottom or sides. | Improperly installed sealing strips, damaged waterproof barrier, insufficient sealant. | Check and re-install sealing strips, inspect the waterproof barrier for damage, re-apply silicone sealant where necessary. |
| Door is misaligned or not closing completely. | Track not level, rollers out of adjustment. | Verify the top track is level. Adjust roller height or position as per the installation manual. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Marca | ALAULM |
| Modelo | Porta de ducha corrediza sen marco |
| Ancho axustable | 56 - 60 polgadas |
| Altura | 76 polgadas |
| Espesor de vidro | 5/16 de polgada (8 mm) |
| Tipo de vidro | Tempered, ANSI-certified, with Explosion-Proof Film |
| Tipo de cadro | Sen marco |
| Material | Glass, 304 Stainless Steel |
| Peso do elemento | Aproximadamente 160.9 libras |
| Color (for this variant) | Negro |
9. Garantía e soporte
ALAULM is committed to providing high-quality products. For any questions, concerns, or issues such as missing parts or damage, please contact our customer support team.
Our customer service team aims to respond within 24 hours to assist you with your problem. Please refer to your purchase documentation for specific warranty details.
