1. Introdución
Thank you for choosing the SONGMICS Dual-Compartment Trash Can. This manual provides essential information for the safe and efficient use of your new trash can. Please read it thoroughly before initial use and retain it for future reference.

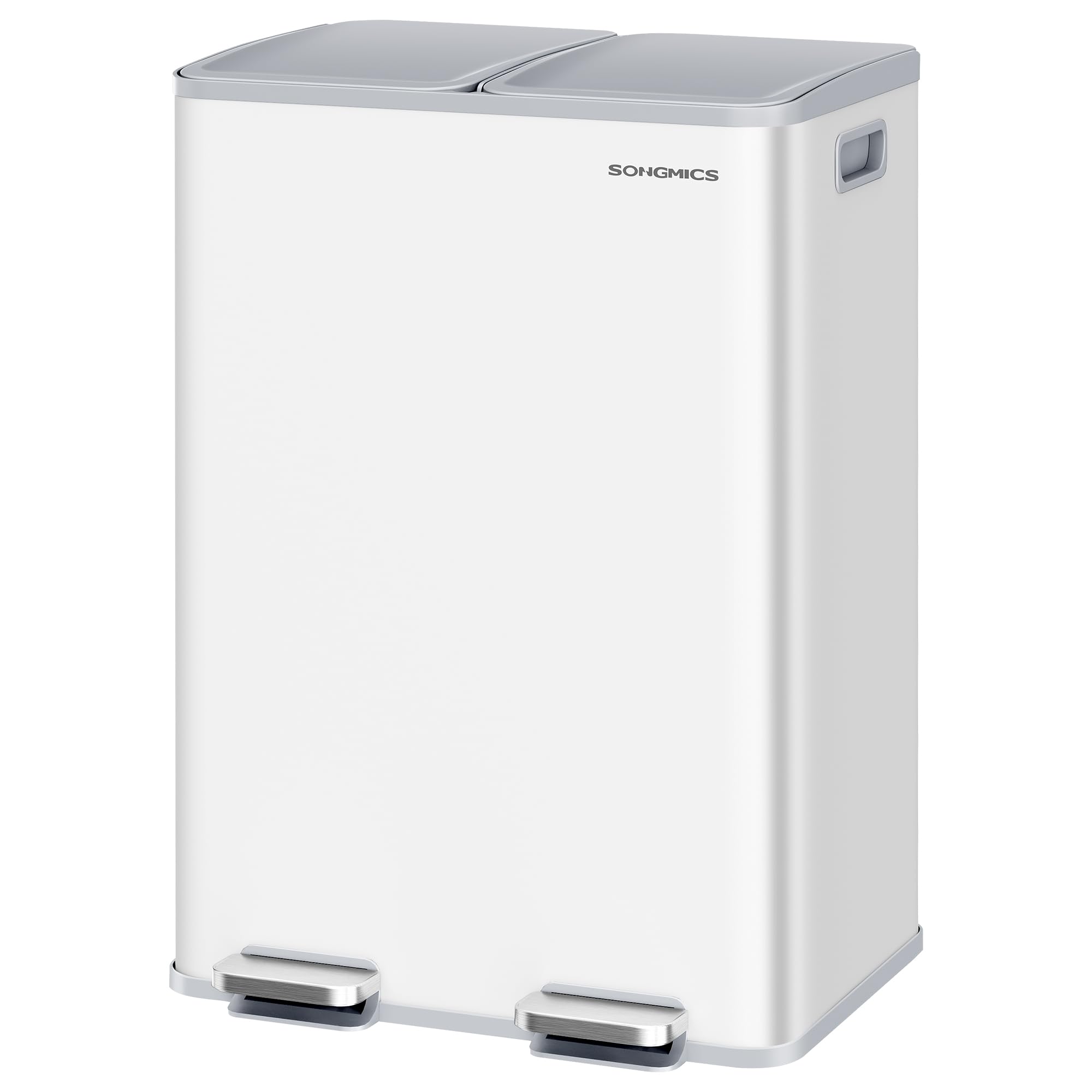

Figure 1: SONGMICS Dual-Compartment Trash Can (Matte White)
2. Instrucións de seguridade
- Manteña o produto lonxe dos nenos e das mascotas para evitar accidentes.
- Do not overload the inner buckets beyond their capacity.
- Avoid placing hot ashes or flammable materials directly into the trash can.
- Do not stand or sit on the lid or pedals.
- Ensure the trash can is placed on a stable, level surface.
- Clean the product regularly to maintain hygiene and prevent odors.
3. Contido do paquete
Comprobe o paquete para asegurarse de que todos os artigos estean presentes e non estean danados:
- 1 x SONGMICS Dual-Compartment Trash Can (Matte White)
- 2 x Removable Inner Buckets
- 15 x Liner Bags (Code H)
4. Configuración
4.1 Desembalaxe
- Retire coidadosamente todos os compoñentes da embalaxe.
- Remove any protective films or packaging materials from the trash can.
- Place the trash can in your desired location, ensuring it is on a flat and stable surface.
4.2 Inserting Inner Buckets
- Lift the main lid of the trash can.
- Place each removable inner bucket into its respective compartment.
Figure 2: Inner buckets are easily removable for cleaning and bag changes.
4.3 Installing Liner Bags
- Place a liner bag into an inner bucket.
- Utilize the bag holes/slots on the inner bucket to secure the liner bag in position, preventing slippage.
Figure 3: Bag holes keep liners securely in place.
5. Instrucións de funcionamento
5.1 Opening the Lid with Pedal
- To open a compartment, gently step on the corresponding foot pedal. The lid will open smoothly.
- Release the pedal to allow the lid to close softly and silently.
Figure 4: The soft-close mechanism ensures quiet operation (below 30 dB).

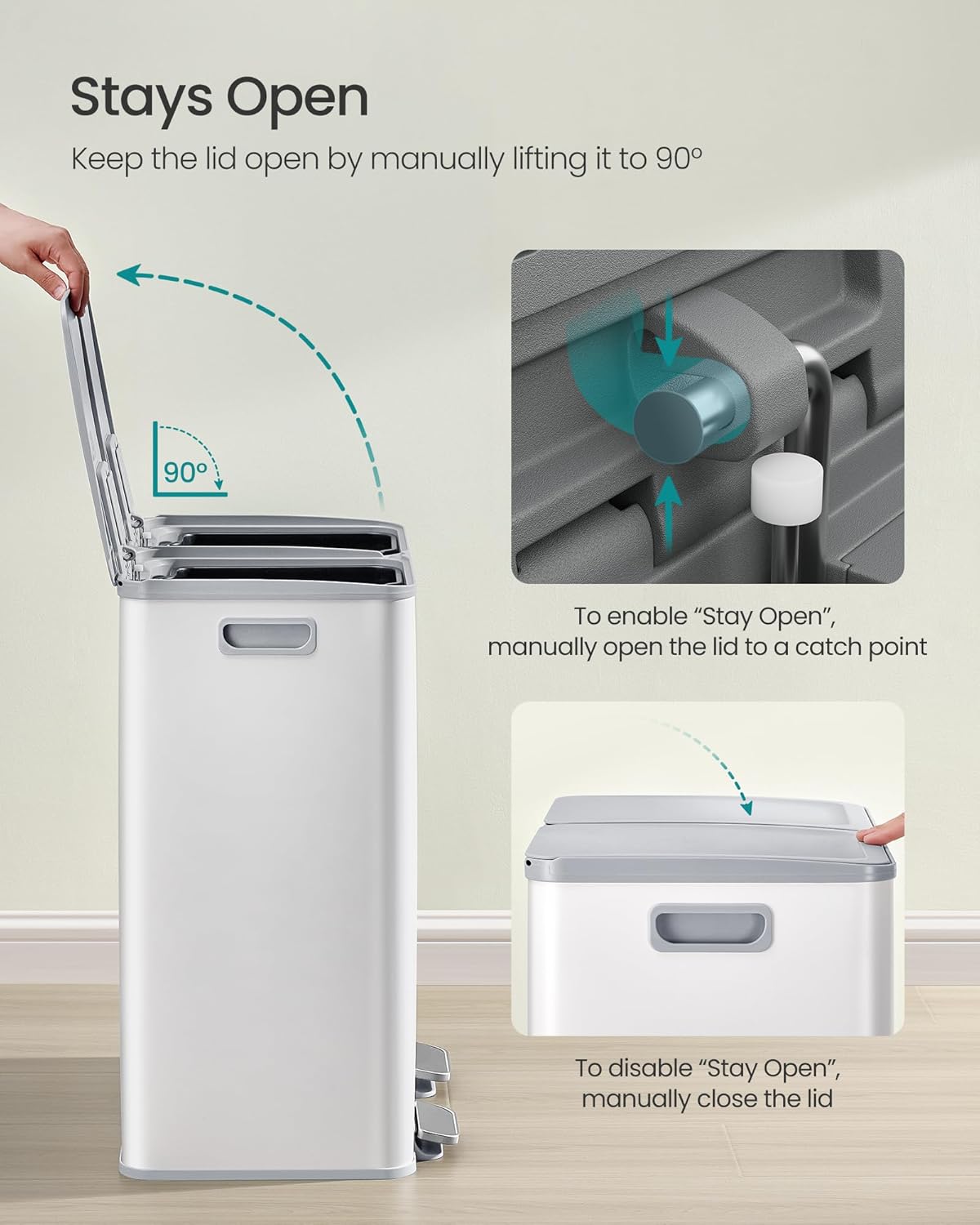

5.2 Keeping the Lid Open (Stay-Open Feature)
- Step on the pedal to open the lid.
- While the lid is open, manually lift it further to a 90° angle until it reaches a catch point and stays open.
- To close, gently push the lid down from the 90° position. It will then engage the soft-close mechanism.
Figure 5: Manually lift the lid to 90° to activate the stay-open function.
5.3 Waste Sorting
This dual-compartment trash can is designed for efficient waste sorting. Use one compartment for general trash and the other for recyclables.
Figure 6: Clearly marked compartments for easy waste separation.
6. Mantemento
6.1 Limpeza do exterior
- Limpar o exterior de aceiro inoxidable cun pano suave eamp pano e un deterxente suave.
- Secar ben cun pano limpo e suave para evitar manchas de auga.
- The fingerprint-resistant finish helps keep the surface clean.
Figure 7: The stainless steel is designed for easy cleaning and resists fingerprints.
6.2 Cleaning Inner Buckets
- Remove the inner buckets from the trash can.
- Wash them with warm, soapy water.
- Rinse thoroughly and allow them to dry completely before placing them back into the trash can.
6.3 Liner Bag Replacement
- This trash can is compatible with SONGMICS 8-gallon trash bags (Code H). Standard kitchen bags may also be used.
- Replace liner bags as needed to maintain hygiene.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| Lid does not open when pedal is pressed. | Obstrución ou dano do mecanismo. | Check for any debris or objects blocking the pedal mechanism. If damaged, contact customer support. |
| Lid does not close softly. | Soft-close mechanism issue or obstruction. | Ensure no items are preventing the lid from closing fully. Check the soft-close mechanism for any visible damage. |
| Cheiros desagradables. | Full trash bags, unsealed lid, or dirty inner buckets. | Empty trash bags regularly. Ensure the lid is fully closed. Clean inner buckets thoroughly. |
| Liner bags slip down. | Incorrect bag size or not secured properly. | Use SONGMICS 8-gallon bags (Code H) or ensure bags are properly secured using the internal bag holes. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | ULTB741W01 |
| Capacidade | 2 x 8 Gallon (2 x 30 L) |
| Cor | Branco Mate |
| Material | Aceiro, plástico PP |
| Dimensións do produto (L x W x H) | 47.6 x 37.7 x 66.9 cm (18.7" x 14.8" x 26.3") |
| Altura con tapa aberta | 39 polgadas (99.1 centímetros) |
| Peso do elemento | 16.2 libras |
| Características especiais | Soft-Close Lid, Foot Pedal Operation, Dual Removable Inner Buckets, Fingerprint-Resistant, Silent, Spacious |
| Compatible Liner Bags | SONGMICS 8-gallon (Code H) |
Figura 8: Dimensións do produto para a planificación da colocación.
9. Garantía e soporte
This product comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to report any issues, please refer to the official SONGMICS website or contact their customer service directly. Please have your model number (ULTB741W01) and purchase information ready when contacting support.
