Garvee 70-inch Farmhouse TV Stand Instruction Manual

1. Introdución

Thank you for choosing the Garvee 70-inch Farmhouse TV Stand. This entertainment center is designed to accommodate TVs up to 75 inches and features a blend of mid-century modern and farmhouse aesthetics. It includes sliding barn doors for concealed storage and adjustable shelves for versatile organization. This manual provides essential information for safe assembly, operation, and maintenance of your new TV stand.

Image: The Garvee 70-inch Farmhouse TV Stand, white with a coffee-colored top, featuring sliding barn doors, shown in a living room with a television placed on it.

2. Información de seguridade

Lea atentamente todas as instrucións de seguridade antes da montaxe e o uso.

• Atención: Be cautious of sharp edges and corners when handling the product components during unpacking and assembly.
• Ensure all connections are securely fastened before placing any items on the TV stand, especially a television.
• Do not exceed the maximum weight capacity for the top surface or shelves. Refer to the Specifications section for details.
• The TV stand features chamfered corners to reduce the risk of accidental bumps. However, always exercise care, especially in households with children.
• Manteña as pezas pequenas e os materiais de embalaxe lonxe dos nenos para evitar riscos de asfixia.
• Monte a unidade sobre unha superficie suave e limpa para evitar rabuñaduras.

3. Contido do paquete

Before beginning assembly, verify that all parts and hardware are present. Each component is clearly labeled for easy identification.

O paquete inclúe:

• All necessary wooden panels and structural components.
• Hardware kit (screws, dowels, cam locks, etc.).
• Sliding barn door hardware (tracks, rollers, handles).
• Adjustable shelf pins.
• Built-in AC sockets and USB ports (pre-installed or requiring simple connection).
• Detailed, step-by-step assembly instructions.

If any parts are missing or damaged, please contact Garvee customer support immediately.

4. Configuración e montaxe

Assembly of the Garvee TV Stand is designed to be straightforward with the included detailed instructions and labeled parts. It is recommended to have at least two people for assembly.

1. Desempaquetar e organizar: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a blanket or carpet) to prevent scratches. Group similar parts and hardware together.
2. Review Instrucións: Read through the entire assembly manual provided in the package before starting. Familiarize yourself with the steps and diagrams.
3. Montar a base: Begin by assembling the base frame of the TV stand according to the instructions. Ensure all connections are snug but do not overtighten screws initially.
4. Fixar os paneis laterais e as baldas: Secure the side panels and fixed central shelves. Pay attention to the orientation of each panel.
5. Instalar guías para portas corredías: Mount the top and bottom tracks for the sliding barn doors. Ensure they are level and properly aligned.
6. Assemble and Hang Doors: Assemble the barn doors and attach the rollers. Carefully hang the doors onto the tracks. Adjust as needed for smooth operation.
7. Inserir andeis axustables: Place the adjustable shelf pins into the desired height positions within the side compartments, then insert the adjustable shelves.
8. Connect Power Unit (if applicable): If your model includes built-in power outlets, follow the instructions to connect the power cord. Ensure it is plugged into a grounded outlet.
9. Apertura final: Once the entire unit is assembled, go back and gently tighten all screws and fasteners to ensure stability. Do not overtighten.

Image: A close-up showing the functional elements of the TV stand: the sliding barn door mechanism, a built-in power strip with AC outlets and USB ports on the top surface, and the three-position adjustable shelves within the side compartments.

5. Instrucións de funcionamento

5.1 Portas corredías de celeiro

The Garvee TV Stand features two sliding barn doors that move along a top track. These doors allow you to conceal or reveal the central shelves or side storage compartments as desired.

• To open or close a door, gently grasp the handle and slide it horizontally along the track.
• Ensure the track is clear of obstructions for smooth movement.

5.2 Baldas axustables

The storage compartments on both sides of the TV stand are equipped with adjustable shelves, offering three different height options.

1. To Adjust Shelf Height: Remove any items from the shelf.
2. Carefully lift the shelf out of its current position.
3. Relocate the four shelf pins to the desired set of holes at the new height.
4. Volva colocar a balda sobre os pasadores, asegurándose de que estea nivelada e segura.

5.3 Built-in Power Outlets (if applicable)

Some models include a built-in power strip with AC sockets and USB ports on the top surface for convenient device charging and power access.

• Ensure the TV stand's main power cord is securely plugged into a grounded wall outlet.
• Use the AC outlets for standard electronic devices.
• Use the USB ports to charge compatible USB-powered devices.
• Non sobrecargues a regleta. Consulta as especificacións da unidade de alimentación para coñecer a potencia máxima.tage.

6. Mantemento

6.1 Limpeza

• To clean the surface of the TV stand, use a dry, soft cloth.
• Avoid using abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the finish.
• The surface is finished with a durable coating designed to protect against scratches and stains.

6.2 Coidados xerais

• Comprobe periodicamente todos os parafusos e elementos de fixación para asegurarse de que permanecen axustados. Aperte de novo se é necesario, pero non os aperte demasiado.
• Keep the TV stand away from direct sunlight and extreme temperature changes to prevent warping or fading.
• Evite colocar obxectos quentes directamente sobre a superficie sen posavasos protectores.

7 Solución de problemas

If you encounter any issues with your Garvee TV Stand, refer to the following common problems and solutions:

8. Especificacións

The following are the technical specifications for the Garvee 70-inch Farmhouse TV Stand (Model 347WEM5520250804):

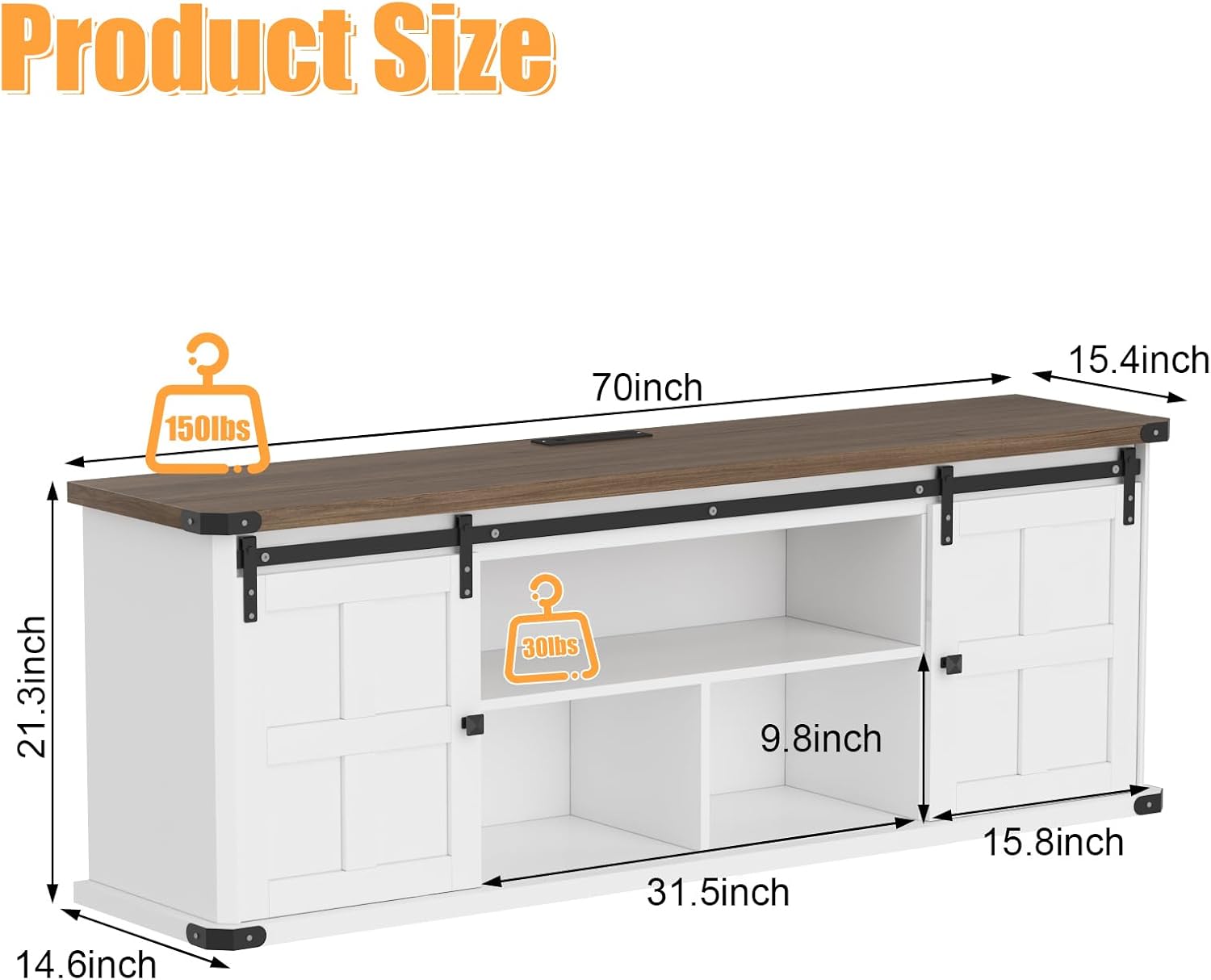

Image: A technical diagram illustrating the overall dimensions of the TV stand: 70 inches (length), 15.4 inches (width/depth), and 21.3 inches (height). It also indicates a maximum weight capacity of 150 lbs for the top surface and 30 lbs for the central shelves.

• Número de modelo: 347WEM5520250804
• Marca: Garvee
• Material: MDF Board (Wood)
• Cor: White + Coffee
• Dimensións do produto (L x W x H): 70 x 15.4 x 21.3 polgadas
• Peso do artigo: 103 libras
• Número de estantes: 3 (1 fixos, 2 axustables)
• Compatibilidade do tamaño da TV: Ata 75 polgadas
• Características especiais: Sliding barn doors, adjustable shelves, chamfered corners, durable coating, built-in AC sockets and USB ports (model dependent).
• Instrucións de coidado: Limpe cun pano seco
• Montaxe: Included instructions, easy assembly.
• GTIN/UPC: 199641473950

Image: An illustration demonstrating that the TV stand is suitable for various television sizes, specifically up to 75 inches, with examples of 45, 55, 65, and 75-inch TVs.

9. Garantía e soporte

Garvee stands behind the quality of its products. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For customer support, missing parts, assembly assistance, or any other inquiries, please contact Garvee customer service through the retailer where the product was purchased or visit the official Garvee store online.

Fabricante: Garvee

Data de primeira dispoñibilidade: 4 de agosto de 2025

Podes atopar máis información e datos de contacto visitando a Tenda Garvee en Amazon.
