Zebronics 2.5" SSD/HDD Enclosure

Introdución

This manual provides instructions for the Zebronics CSH501 2.5" SSD/HDD Enclosure. This device allows you to connect a 2.5-inch SATA Solid State Drive (SSD) or Hard Disk Drive (HDD) to your computer via a USB Type-C 3.1 Gen 1 interface, enabling high-speed data transfer and portable storage solutions. It supports up to 6TB of storage capacity and features a tool-free slide design for easy installation.

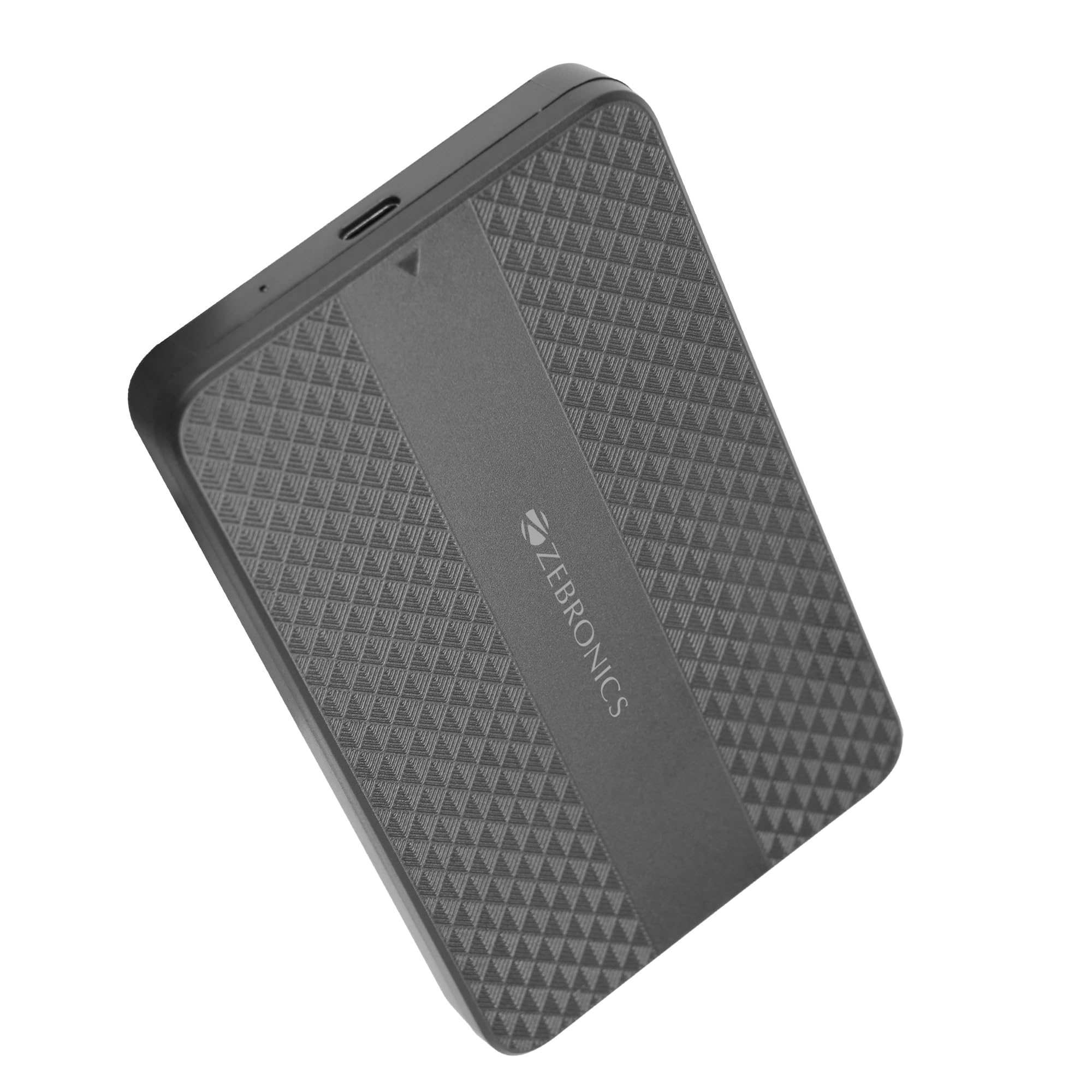

Image: The Zebronics CSH501 2.5 inch SSD/HDD Enclosure, a compact black device with a textured surface and Zebronics branding.

Contido do paquete

Verifica que todos os elementos estean presentes no paquete:

• 1 x 2.5" SATA SSD Enclosure (CSH501)
• 1 x Almofada de escuma
• 1 x USB to Micro B Cable

Especificacións

Configuración e instalación

The CSH501 enclosure features a tool-free slide design for quick and easy installation of your 2.5-inch SATA SSD or HDD.

1. Step 1: Open the Enclosure
   Gently slide the back cover of the enclosure to open it.
2. Step 2: Insert the Drive
   Carefully insert your 2.5-inch SATA SSD or HDD into the enclosure, ensuring it connects securely to the internal SATA connector. You may use the provided foam pad to secure thinner drives. Close the cover by sliding it back until it clicks into place.
3. Paso 3: Conéctese ao ordenador
   Connect the enclosure to your computer using the provided USB to Micro B cable. The enclosure is plug-and-play, requiring no additional drivers for most operating systems.

Image: A three-step visual guide demonstrating the tool-free slide setup: 1. Slide back to open the cover. 2. Insert the drive and close the cover. 3. Connect to the computer for plug & play operation.

Instrucións de funcionamento

Once connected, the enclosure will be recognized by your operating system as an external storage device. You can then access, transfer, and manage files as you would with any other external drive.

• Transferencia de datos: The USB 3.1 Gen 1 interface supports data transfer speeds up to 5 Gbps. Actual speeds may vary based on the connected drive, computer's USB port, and file tipos.
• Compatibilidade do sistema operativo: The enclosure is compatible with Windows, Mac, and Linux operating systems.
• Potencia: The enclosure is bus-powered via the USB connection, eliminating the need for an external power adapter.

Image: The Zebronics CSH501 enclosure connected to a laptop via its USB cable, illustrating its capability for data transfer speeds up to 5Gbps.

Image: The Zebronics CSH501 enclosure connected to a laptop, with text highlighting its compatibility across Windows, Mac, and Linux operating systems.

Mantemento

To ensure the longevity and optimal performance of your Zebronics CSH501 enclosure:

• Manteña o dispositivo limpo e libre de po. Use un pano suave e seco para limpalo.
• Evite expoñer a carcasa a temperaturas extremas, humidade ou luz solar directa.
• Non deixe caer o dispositivo nin someta o dispositivo a fortes impactos.
• Always safely eject the drive from your operating system before disconnecting the enclosure to prevent data corruption.

Resolución de problemas

If you encounter issues with your enclosure, refer to the following common solutions:

• Unidade non detectada:
  • Ensure the drive is properly seated within the enclosure and the cover is closed securely.
  • Tenta conectar a caixa a un porto USB diferente do teu ordenador.
  • Proba cun cable USB diferente.
  • Verify that the drive itself is functional by testing it in another enclosure or directly connecting it to a computer if possible.
  • For new drives, ensure they are initialized and formatted in your operating system's Disk Management (Windows) or Disk Utility (Mac).
• Velocidades de transferencia lentas:
  • Ensure the enclosure is connected to a USB 3.0/3.1 port on your computer. Connecting to a USB 2.0 port will result in slower speeds.
  • The performance of the installed SSD/HDD also affects transfer speeds.
  • Grande file transfers are generally faster than many small file transferencias.
• O recinto quéntase:
  It is normal for the enclosure to become warm during extended use, especially during large data transfers, as heat is dissipated from the internal drive. Ensure adequate airflow around the device.

Garantía e Soporte

The Zebronics CSH501 enclosure comes with a 1 Year Carry-In Warranty to the service center. For warranty claims or technical support, please contact Zebronics customer service.

Información de contacto do fabricante:
Zebronics India Private Limited
Nº 13/7, Smith Road, Royapettah, Chennai - 600 002

For further assistance, visit the official Zebronics websitio web ou póñase en contacto cos seus canais de asistencia.
