ASUS ROG Strix XG34WCDMTG 34-inch OLED Curved Ultrawide Gaming Monitor User Manual

1. Introdución

This manual provides essential information for setting up, operating, and maintaining your ASUS ROG Strix XG34WCDMTG 34-inch OLED Curved Ultrawide Gaming Monitor. The ROG Strix OLED XG34WCDMTG is a 34-inch, 240Hz ultra-wide QD-OLED gaming monitor designed for immersive gaming and entertainment. It features a Neo Proximity Sensor within the ROG OLED Care Pro suite to prevent burn-in by transitioning to a black screen when no user is detected. Additionally, the monitor integrates Google TV, offering direct access to a wide range of streaming applications, movies, and shows without requiring external devices.

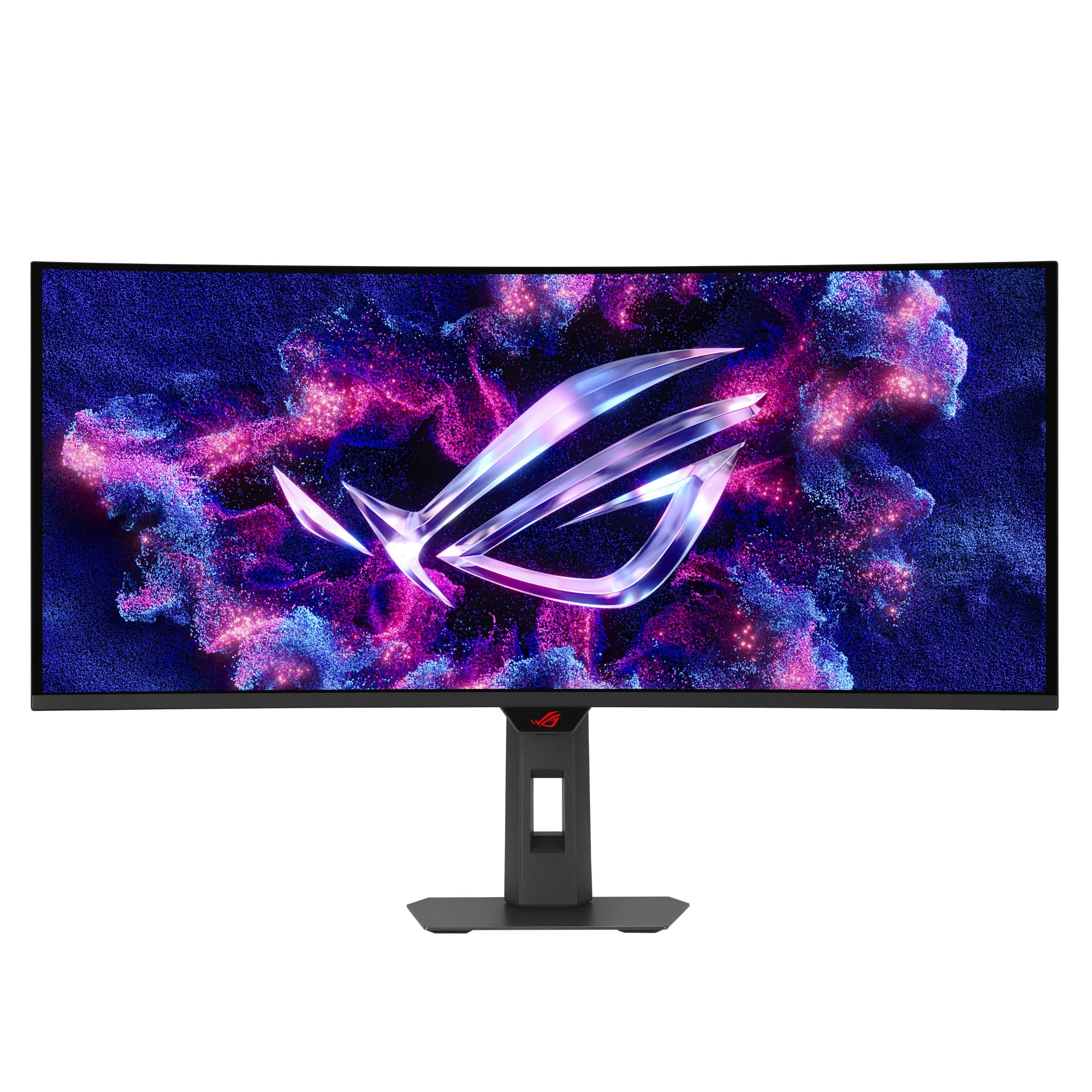

Figure 1.1: ASUS ROG Strix XG34WCDMTG Monitor Front View

2. Que hai na caixa

Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, contact your retailer immediately.

• XG34WCDMTG Monitor
• Remote Controller (with 2x AAA Batteries)
• Cable DisplayPort
• Cable HDMI
• Cable de alimentación
• Cable USB-C
• Pano de microfibra
• Kit de montaxe VESA
• Bolsa ROG
• Guía de inicio rápido
• Tarxeta de garantía

Figura 2.1: Accesorios incluídos

3. Configuración

3.1 Montaxe do soporte

1. Coloque o panel do monitor cara abaixo sobre unha superficie suave e limpa para evitar rabuñaduras.
2. Fixe a base do soporte ao pescozo do soporte, asegurándoa co parafuso proporcionado.
3. Attach the assembled stand to the back of the monitor panel until it clicks into place.

3.2 Cables de conexión

Connect the necessary cables to the monitor's rear ports. Ensure all connections are secure.

• Cable de alimentación: Conecte o cable de alimentación á entrada de alimentación do monitor e despois a unha toma de corrente.
• Entrada de vídeo: Connect either the DisplayPort cable to a DisplayPort 1.4 port on your computer or an HDMI cable to one of the two HDMI 2.1 ports on your computer/device.
• USB-C: For compatible devices, connect the USB-C cable for video, data, and 90W power delivery.
• Hub USB: Connect the USB upstream cable (if applicable) to enable the monitor's USB hub for peripherals.

Figure 3.1: Monitor Connectivity Ports

3.3 Encendido inicial

Press the power button on the monitor or use the remote control to turn on the display. Follow any on-screen prompts for initial setup, including network connection for Google TV features.

4. Instrucións de funcionamento

4.1 Menú de visualización en pantalla (OSD).

The OSD menu allows you to adjust various monitor settings. Use the joystick or buttons on the monitor's rear/bottom edge, or the included remote control, to navigate the menu.

• Xogos: Adjust refresh rate, response time, FreeSync/G-SYNC compatibility, and gaming-specific enhancements like GamePlus (crosshair, timer, FPS counter).
• Imaxe: Control brightness, contrast, color temperature, and HDR settings.
• Selección de entrada: Switch between DisplayPort, HDMI 1, HDMI 2, and USB-C inputs.
• Configuración do sistema: General settings including language, OSD timeout, and power-saving options.

4.2 Google TV Functionality

The integrated Google TV provides a smart TV experience. Use the remote control to navigate the Google TV interface.

• Pantalla de inicio: Access recommended content, installed apps, and settings.
• Aplicacións de streaming: Download and use popular streaming services like Netflix, Disney+, HBO Max, and YouTube.
• Control de voz: Utilize Google Assistant via the remote control for hands-free operation and content search.
• NVIDIA GeForce AGORA: Access cloud gaming directly through the pre-installed NVIDIA GeForce NOW app.

Figura 4.1: Interface de Google TV

4.3 MultiScreen Feature

The MultiScreen feature allows seamless cross-platform entertainment and control of multiple devices using a single keyboard and mouse. Refer to the monitor's OSD menu for specific MultiScreen configuration options.

Figure 4.2: MultiScreen Functionality

5. Características clave

The ASUS ROG Strix XG34WCDMTG monitor incorporates several advanced technologies for an enhanced user experience.

Figure 5.1: Monitor Highlighted Features

5.1 QD-OLED Display Technology

Experience vibrant colors, true blacks, and exceptional contrast with the 34-inch WQHD (3440x1440) QD-OLED curved screen. The 1800R curvature provides an immersive viewexperiencia, atraéndote ao contido.

Figure 5.2: 1800R Curved Display

5.2 Alta taxa de actualización e tempo de resposta

With a 240Hz refresh rate and an ultra-fast 0.03ms response time, the monitor delivers smooth, tear-free visuals, crucial for fast-paced gaming. It supports both AMD FreeSync Premium Pro and G-SYNC Compatible technologies for adaptive synchronization.

5.3 OLED Care Pro with Neo Proximity Sensor

The ROG OLED Care Pro suite includes features designed to protect the OLED panel from burn-in. The Neo Proximity Sensor automatically detects user presence and can transition the screen to black when no user is detected, extending the panel's lifespan. Other features include Pixel Cleaning, Pixel Move, Screen Save, Boundary Detection, Taskbar Detection, Outer Dimming Detection, and Global Dimming Detection.

Figure 5.3: OLED Care Pro Features

5.4 Advanced Cooling Solution

The monitor features an advanced custom heatsink and graphene film to efficiently dissipate heat, ensuring stable performance and contributing to the longevity of the OLED panel.

Figure 5.4: Custom Heatsink Design

5.5 Uniform Brightness

The Uniform Brightness setting helps maintain consistent brightness levels across the entire screen, improving viewing comfort and accuracy, especially for tasks requiring precise color and luminance.

Figure 5.5: Uniform Brightness Comparison

5.6 Audio and HDR

Enjoy stunning HDR visuals with VESA DisplayHDR 400 True Black certification and 99% DCI-P3 color gamut. The monitor also features built-in 5W x2 speakers with Dolby Vision and Dolby Atmos support for immersive cinematic sound.

5.7 Características do coidado dos ollos

The monitor incorporates eye care technologies to reduce eye strain during prolonged use. These include a Blue Light Filter, Flicker-Free technology, and an Anti-glare Screen. The ergonomic design allows for tilt, swivel, and height adjustments to find the most comfortable viewposición de ing.

6. Mantemento

6.1 Limpeza do monitor

• Apague sempre o monitor e desconecte o cable de alimentación antes de limpalo.
• Use a soft, lint-free cloth (like the included microfiber cloth) to gently wipe the screen and exterior surfaces.
• Para marcas difíciles, espolvoree lixeiramenteampEnxágüe o pano con auga ou cun limpador de pantallas suave e non abrasivo. Non pulverice líquido directamente sobre a pantalla.
• Avoid using alcohol, ammonia, or abrasive cleaners, as these can damage the screen coating.

6.2 OLED Care Pro Maintenance

The OLED Care Pro features are designed to automatically maintain the panel. Ensure the monitor is powered off or in standby mode regularly to allow features like Pixel Cleaning to run. The Neo Proximity Sensor will help prevent burn-in by turning off the display when you step away.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

9.1 Garantía do produto

This ASUS ROG Strix XG34WCDMTG monitor comes with a Garantía limitada de 3 anos. Please refer to the included Warranty Card for detailed terms and conditions, including coverage specifics and limitations.

9.2 Atención ao cliente

For technical assistance, troubleshooting, or warranty claims, please visit the official ASUS support website or contact ASUS customer service in your region. Keep your purchase receipt and product serial number handy when contacting support.

Soporte en liña: www.asus.com/support/
