Introdución
This instruction manual provides guidance for the installation and maintenance of the MURNELAP Carburetor Repair Kit. This kit is designed to replace worn or damaged components in specific Walbro carburetors, ensuring optimal performance and extending the life of your equipment. It is compatible with Walbro carburetor models WT742, WT745, WT747, WT748, WT749, and WT751.
Before proceeding, carefully review all instructions and ensure you have the necessary tools and safety equipment. If you are unsure about any step, it is recommended to consult a qualified technician.
Contido do kit
The MURNELAP Carburetor Repair Kit includes various gaskets, diaphragms, and small components necessary for a comprehensive carburetor overhaul. Please verify all parts are present and undamaged upon opening the package.

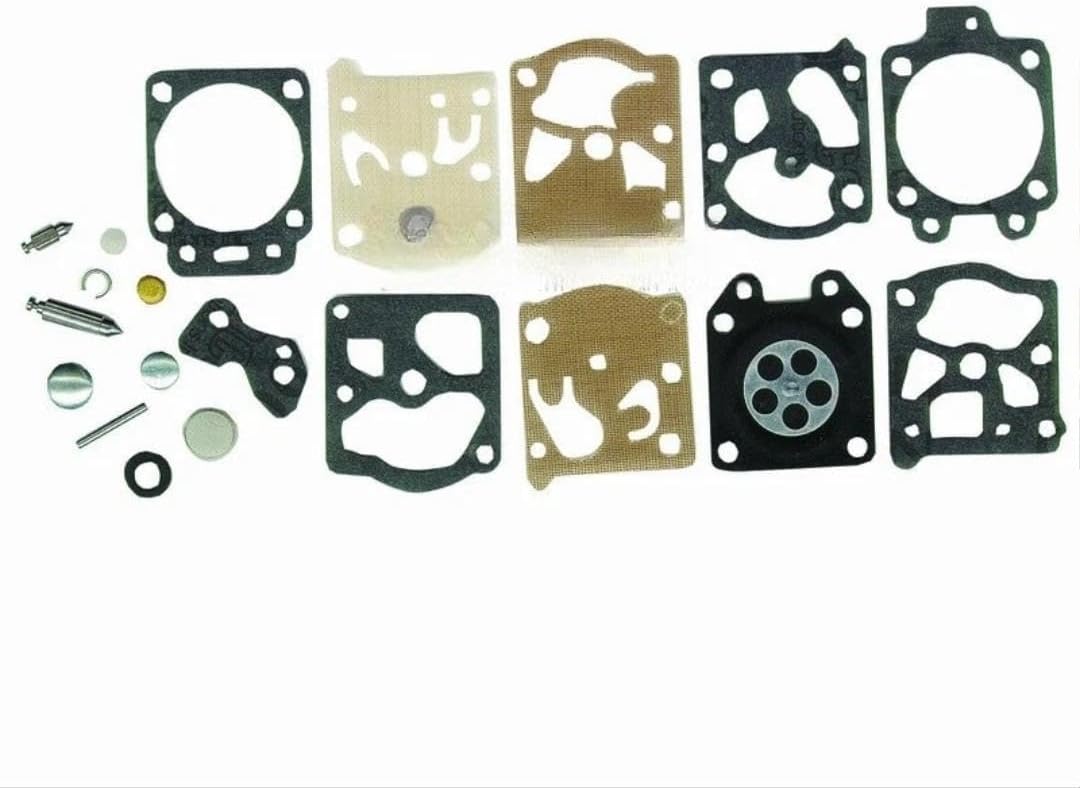

Imaxe 1: Acabadoview of the MURNELAP Carburetor Repair Kit components. This kit contains all necessary gaskets, diaphragms, and small parts for a complete carburetor rebuild.
Precaucións de seguridade
- Always disconnect the spark plug wire before working on any engine to prevent accidental starting.
- Traballar nunha zona ben ventilada.
- Use equipos de protección persoal axeitados, como lentes e luvas de seguridade.
- Handle fuel and cleaning solvents with care, following manufacturer's instructions.
- Keep a fire extinguisher nearby when working with fuel.
Instrucións de instalación
This section outlines the general procedure for replacing carburetor components using the MURNELAP repair kit. Specific disassembly and reassembly steps may vary slightly depending on your exact Walbro carburetor model. Refer to your equipment's service manual for detailed carburetor removal and installation procedures.
- Preparación: Ensure the engine is cool. Disconnect the spark plug wire. Drain any fuel from the carburetor and fuel tank if necessary.
- Carburetor Removal: Carefully remove the carburetor from the engine. Note the position of all hoses and linkages for correct reassembly.
- Desmontaxe: Disassemble the carburetor, paying close attention to the order and orientation of all gaskets, diaphragms, and small parts. Take photos if needed for reference.
- Limpeza: Thoroughly clean all metal parts of the carburetor using a carburetor cleaner. Ensure all passages are clear and free of debris. Inspect for any damage or excessive wear.
- Substitución de compoñentes: Replace all old gaskets, diaphragms, and any other worn components with the new parts from the MURNELAP repair kit. Ensure each new part is installed correctly and in the proper orientation.
- Remontaxe: Reassemble the carburetor, ensuring all screws are tightened to the manufacturer's specifications (if available). Do not overtighten.
- Carburetor Reinstallation: Reinstall the carburetor onto the engine, reconnecting all fuel lines, linkages, and air filter components.
- Axustes iniciais: After reinstallation, you may need to perform initial carburetor adjustments (e.g., idle speed, mixture screws) according to your equipment's service manual.
Operating (Post-Installation Checks)
After installing the repair kit and reassembling the carburetor, perform the following checks before operating your equipment:
- Fuel Connections: Verify all fuel lines are securely connected and free of leaks.
- Ligazóns: Ensure all throttle and choke linkages move freely and are correctly attached.
- Filtro de ar: Confirm the air filter is clean and properly installed.
- Buxía: Volva conectar o fío da bujía.
- Test Start: Start the engine and allow it to warm up. Listen for any unusual noises or signs of improper operation.
- Axustes: Make any necessary fine-tuning adjustments to the carburetor as per your equipment's manual to achieve smooth idle and proper acceleration.
Mantemento
Regular maintenance helps ensure the longevity and performance of your carburetor after repair:
- Calidade do combustible: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues.
- Estabilizador de combustible: Use a fuel stabilizer if storing equipment for extended periods.
- Filtro de ar: Regularly inspect and clean or replace the air filter to prevent dirt from entering the carburetor.
- Limpeza exterior: Keep the exterior of the carburetor clean to prevent debris buildup.
- Inspección periódica: Periodically check fuel lines and connections for cracks or leaks.
Resolución de problemas
If you encounter issues after installing the repair kit, consider the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| O motor non arranca | Incorrect reassembly, clogged fuel line, improper adjustments, spark plug issue. | Review installation steps, check fuel flow, adjust carburetor, inspect spark plug. |
| O motor funciona con dificultade ou cala | Improper fuel mixture, vacuum leak, dirty air filter, incorrect idle speed. | Adjust mixture screws, check for leaks around carburetor, clean/replace air filter, adjust idle. |
| Fugas de combustible do carburador | Gasket not seated correctly, damaged fuel line, float needle issue. | Recheck gasket installation, replace damaged fuel lines, inspect float and needle valve. |
For more detailed troubleshooting, consult your equipment's specific service manual or contact a qualified service technician.
Especificacións
- Nome do produto: Kit de reparación de carburador
- Marca: MURNELAP
- Compatible Walbro Models: WT742, WT745, WT747, WT748, WT749, WT751
- ASIN: B0FPQLDTJ1
- Item Model Number (as per product data): Descrición
Garantía e Soporte
Specific warranty information for this MURNELAP product is not provided in the available documentation. For warranty details or technical support, please refer to the seller's policies or contact MURNELAP directly through their official channels.
When contacting support, please have your product's ASIN (B0FPQLDTJ1) and the compatible Walbro carburetor model number ready.
