ANDELI MIG-135PLUS 4-in-1 Multi-Process Welder Instruction Manual

1. Introdución

Thank you for choosing the ANDELI MIG-135PLUS 4-in-1 Multi-Process Welder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your welding machine. Please read it thoroughly before use and keep it for future reference.

1.1 Precaucións de seguridade

Welding can be dangerous. Always follow safety guidelines to prevent injury or damage. This machine is designed for use by trained individuals or under supervision.

• Always wear appropriate personal protective equipment (PPE), including a welding helmet with suitable shade, welding gloves, protective clothing, and safety shoes.
• Asegurar unha ventilación axeitada na zona de traballo para dispersar os fumes de soldadura.
• Protect bystanders from arc rays and sparks. Use welding screens if necessary.
• Do not weld near flammable materials or in explosive atmospheres.
• Asegúrese de que a máquina de soldar estea debidamente conectada á terra.
• Nunca toque pezas eléctricas activas.
• Desconecte a alimentación antes de realizar calquera mantemento ou cambiar accesorios.

1.2 Contido do paquete

Comprobe que todos os elementos estean presentes ao desembalar:

• ANDELI MIG-135PLUS Welder Unit
• Flux-cored wire spool (gasless)
• Antorcha de soldadura MIG
• Electrode Holder (for MMA welding)
• Cl Claseamp
• Auto-darkening Welding Helmet (convertible to goggles)
• Professional Leather Welding Gloves

Figure 1: ANDELI MIG-135PLUS Welder and included accessories.

2. Configuración

2.1 Conexión de alimentación

• The MIG-135PLUS operates on a 220V/230V power supply. Ensure your power source matches this requirement.
• Connect the power cord securely to a grounded electrical outlet.

2.2 Wire Installation (Flux-Cored MIG)

• Abra o compartimento de alimentación do fío.
• Place the flux-cored wire spool onto the spindle, ensuring it rotates freely.
• Thread the wire through the guide tube and into the drive rollers.
• Close the drive roller tension arm and adjust the tension. The wire should feed smoothly without slipping or deforming.
• Feed the wire through the MIG torch liner until it exits the contact tip.
• The welder supports 0.030'' (0.8mm) and 0.035'' (0.9mm) flux-cored wires.

2.3 Conexión de accesorios

• Antorcha MIG: Connect the MIG torch cable to the corresponding port on the front panel.
• Cl Claseamp: Conecte a terra clamp cable to the negative (-) terminal. Attach the clamp securely to the workpiece, ensuring good electrical contact.
• Electrode Holder (for MMA): Connect the electrode holder cable to the positive (+) terminal for MMA welding.
• Lift TIG Torch (Optional): If using a Lift TIG torch (not included), connect it to the appropriate port as per its instructions.

Figure 2: Front panel connections of the MIG-135PLUS welder.

3. Modos de funcionamento

3.1 4-in-1 Welding Functions

The MIG-135PLUS offers four versatile welding processes:

• Gasless Flux-Cored MIG: Ideal for outdoor use and welding mild steel without the need for shielding gas. Includes a pulsed function for smoother, more stable arcs and finer weld beads.
• Standard Gasless MIG: Basic flux-cored MIG welding.
• Levante TIG: For precise welding of various metals (requires a separate Lift TIG torch, not included).
• Soldadura por electrodo revestido (MMA): For welding with coated electrodes, suitable for thicker materials. Features adjustable Hot Start and Arc Force.

Figura 3: Máisview of the 4-in-1 welding functions.

3.2 Panel de control e pantalla

The welder features a precise 4.1-inch LED digital display that provides real-time welding data such as voltage, current, and wire feed speed. This display is protected by a transparent cover for durability against impacts and splashes.

3.3 Welding Mode Selection (SYNERGIC vs. Manual)

• SYNERGIC Mode (Automatic): Recommended for beginners. The system automatically adjusts voltage based on the wire feed speed, simplifying parameter setup.
• Modo manual: Recommended for experienced users. Allows separate and precise control over welding current and voltage for fine-tuning.

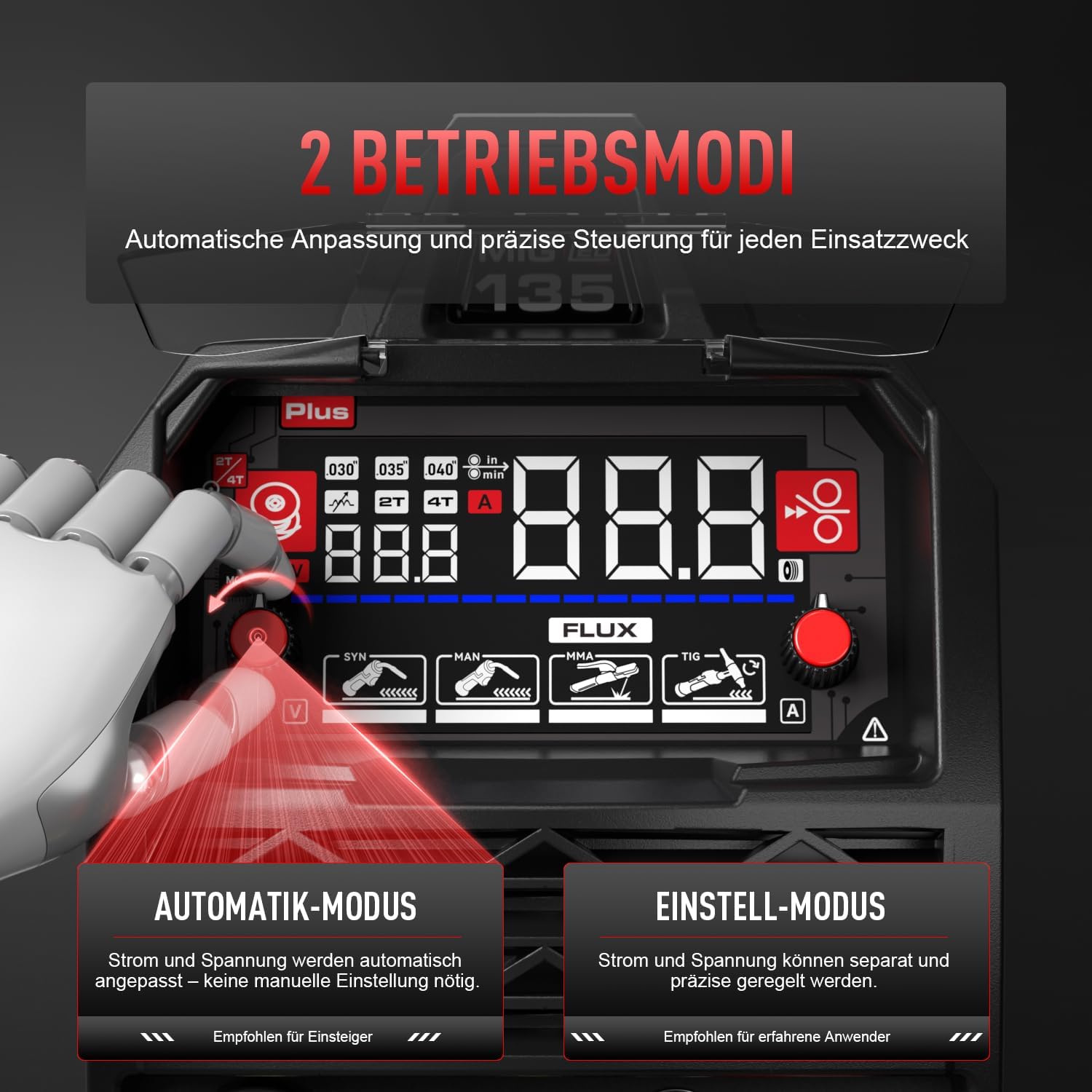

Figure 4: Automatic vs. Manual operating modes.

3.4 2T/4T Trigger Modes

• 2T Mode (Two-Touch): Press and hold the torch trigger to start wire feeding and welding. Release the trigger to stop. Suitable for short welds.
• 4T Mode (Four-Touch): Press the trigger once to start wire feeding and welding. Press it again to stop. Ideal for longer welds, reducing hand fatigue.

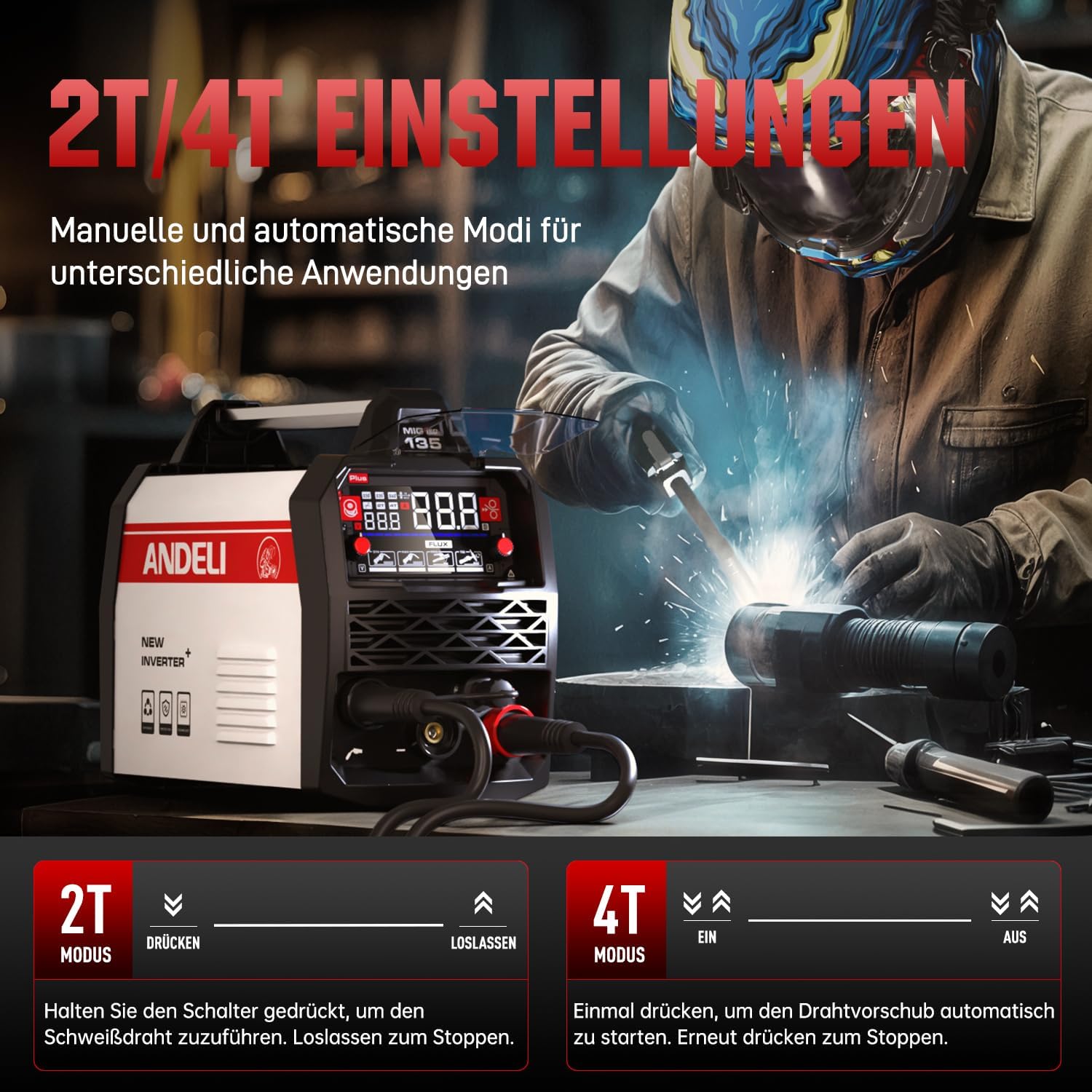

Figure 5: 2T and 4T trigger mode settings.

3.5 Pulsed MIG Welding (Gasless)

The gasless MIG function includes a pulsed mode, which provides a smoother and more stable arc. This results in finer, more uniform weld beads and stronger joints, enhancing the quality and versatility of gasless welding.

Figure 6: Comparison of welding quality with and without pulsed MIG function.

4. Mantemento

Un mantemento regular garante a lonxevidade e o rendemento óptimo da súa máquina de soldar.

• Limpeza: Periodically clean the machine's exterior with a dry cloth. Use compressed air to clear dust from ventilation openings.
• Tocha e cables: Inspeccione a tocha MIG, o portaelectrodos e a conexión de terra.amp cables for any signs of damage, cuts, or loose connections. Replace damaged components immediately.
• Mecanismo de alimentación de arame: Keep the wire feed rollers clean and free of debris. Ensure the wire liner is not clogged.
• Almacenamento: Garde a soldadora nun ambiente seco e limpo, lonxe de po e humidade excesivos.

5 Solución de problemas

The MIG-135PLUS features an advanced protection system against overcurrent, overload, overheating, and overvoltage. If an issue occurs, the machine may automatically shut down or display an error code. Consult the table below for common issues.

Se os problemas persisten despois de intentar estas solucións, póñase en contacto co servizo de atención ao cliente.

6. Especificacións técnicas

7. Garantía e soporte

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact the seller/manufacturer directly. Keep your proof of purchase for warranty claims.
