Introdución
Grazas pola compraasing the advwin 75L Automatic Pet Dryer Box. This manual provides essential information for the safe and efficient operation of your new pet dryer. Please read all instructions carefully before use and retain this manual for future reference.
Información de seguridade
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using electrical appliances. This appliance is for pet drying only. Do not use for any other purpose.
- Le todas as instrucións antes de usar o aparello.
- Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou se caia ou estea danado de calquera xeito.
- Non use ao aire libre nin opere onde se utilicen produtos en aerosol (spray) ou onde se administre osíxeno.
- Desenchufe da toma cando non estea en uso e antes de limpalo.
- Do not allow children to operate this appliance. Close supervision is necessary when any appliance is used by or near children.
- Ensure the pet is comfortable and not distressed during operation. Never leave a pet unattended in the dryer box.
- Do not block air openings or place on a soft surface where openings may be blocked. Keep air openings free of lint, hair, and the like.
- Non mergullo o aparello en auga ou outros líquidos.
- Always place the dryer box on a stable, level surface.
Contido do paquete
Verifica que todos os elementos estean presentes no paquete:
- 1 x advwin 75L Automatic Pet Dryer Box
- 1 x Manual de instrucións (este documento)
Produto rematadoview
Familiarize yourself with the components of your advwin Pet Dryer Box.
Figura 1: En xeral view of the advwin 75L Automatic Pet Dryer Box with the front door open, showing the interior drying space.

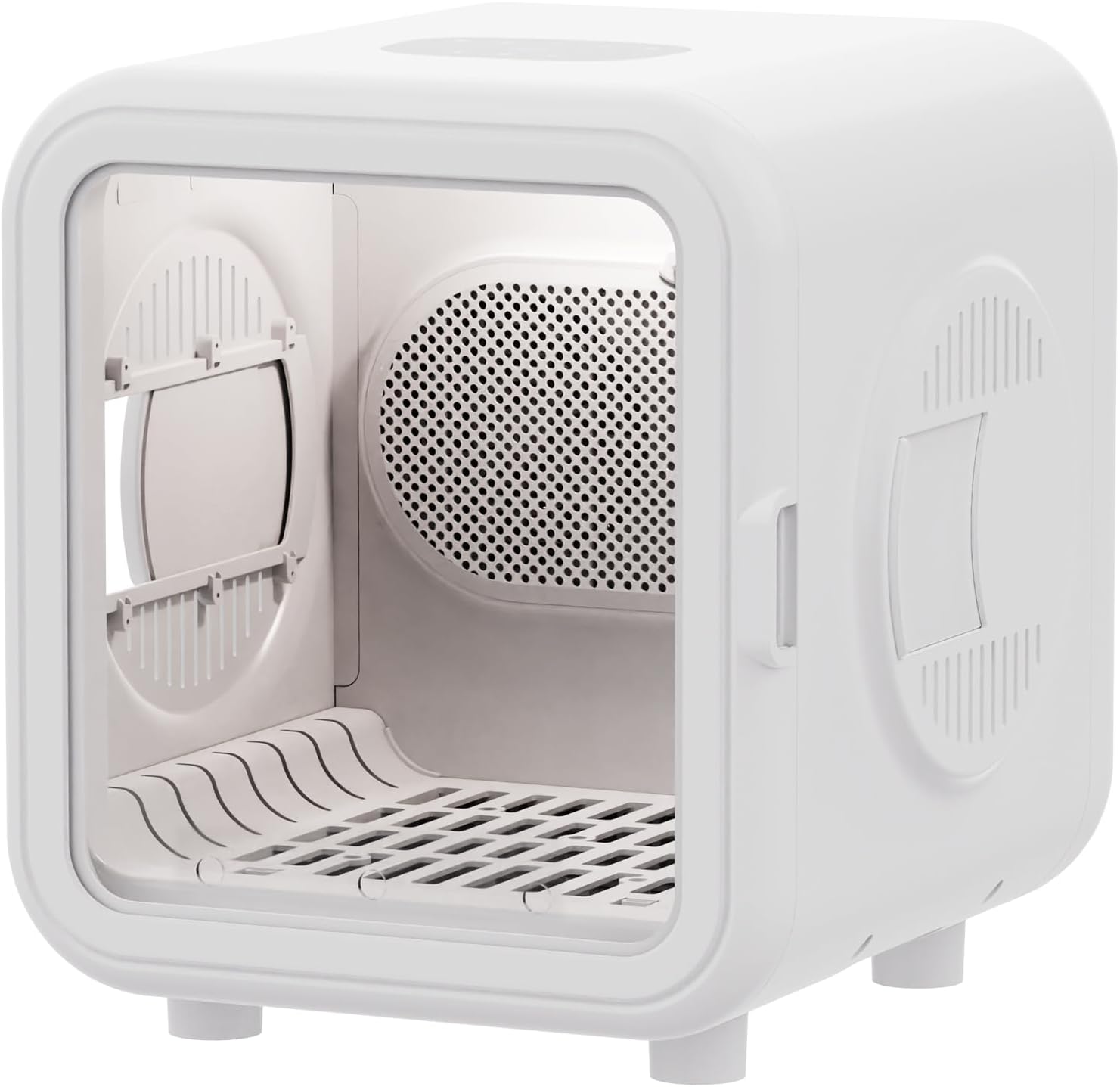

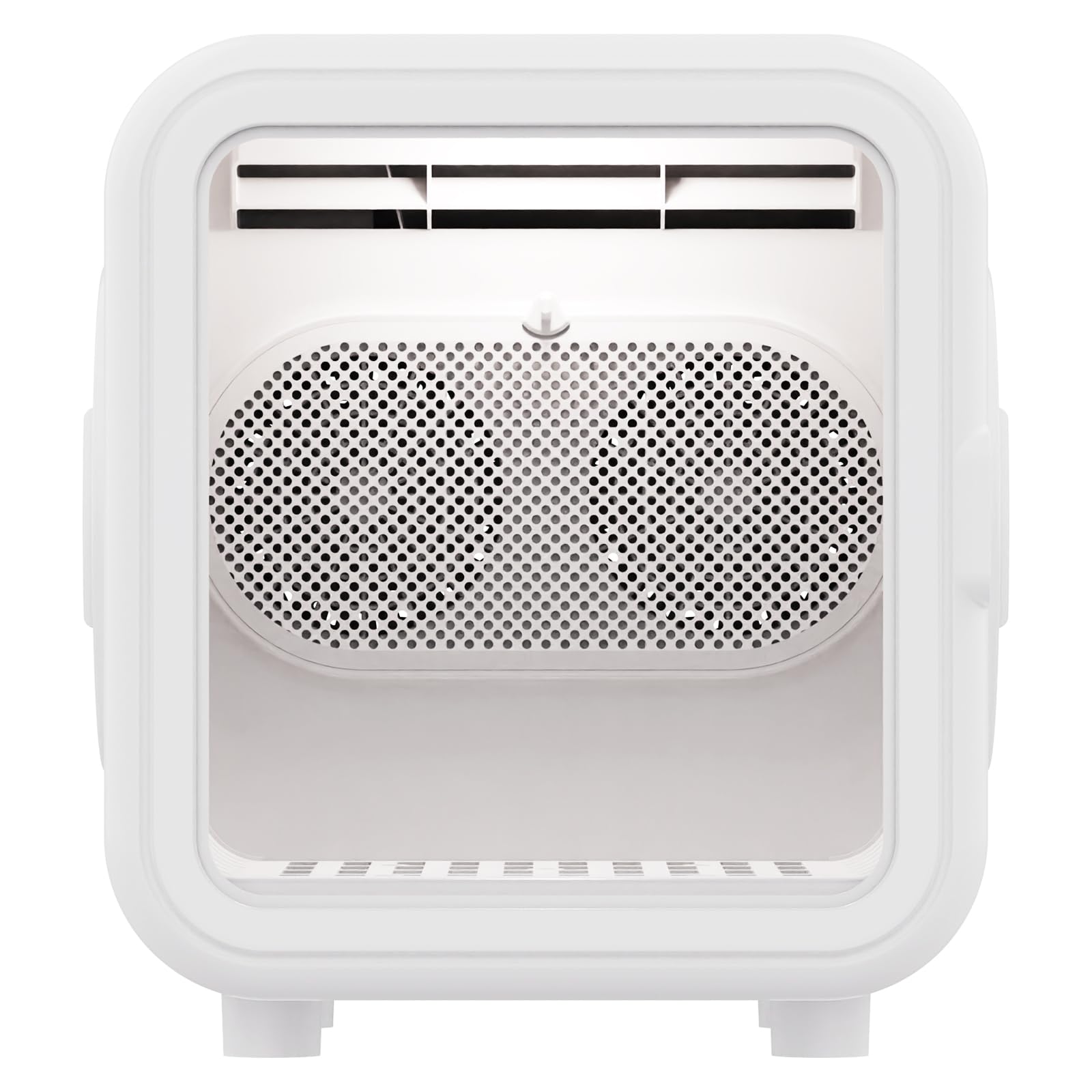

Figura 2: Interior view of the dryer box, highlighting the internal fan and heating element for 360° efficient drying.

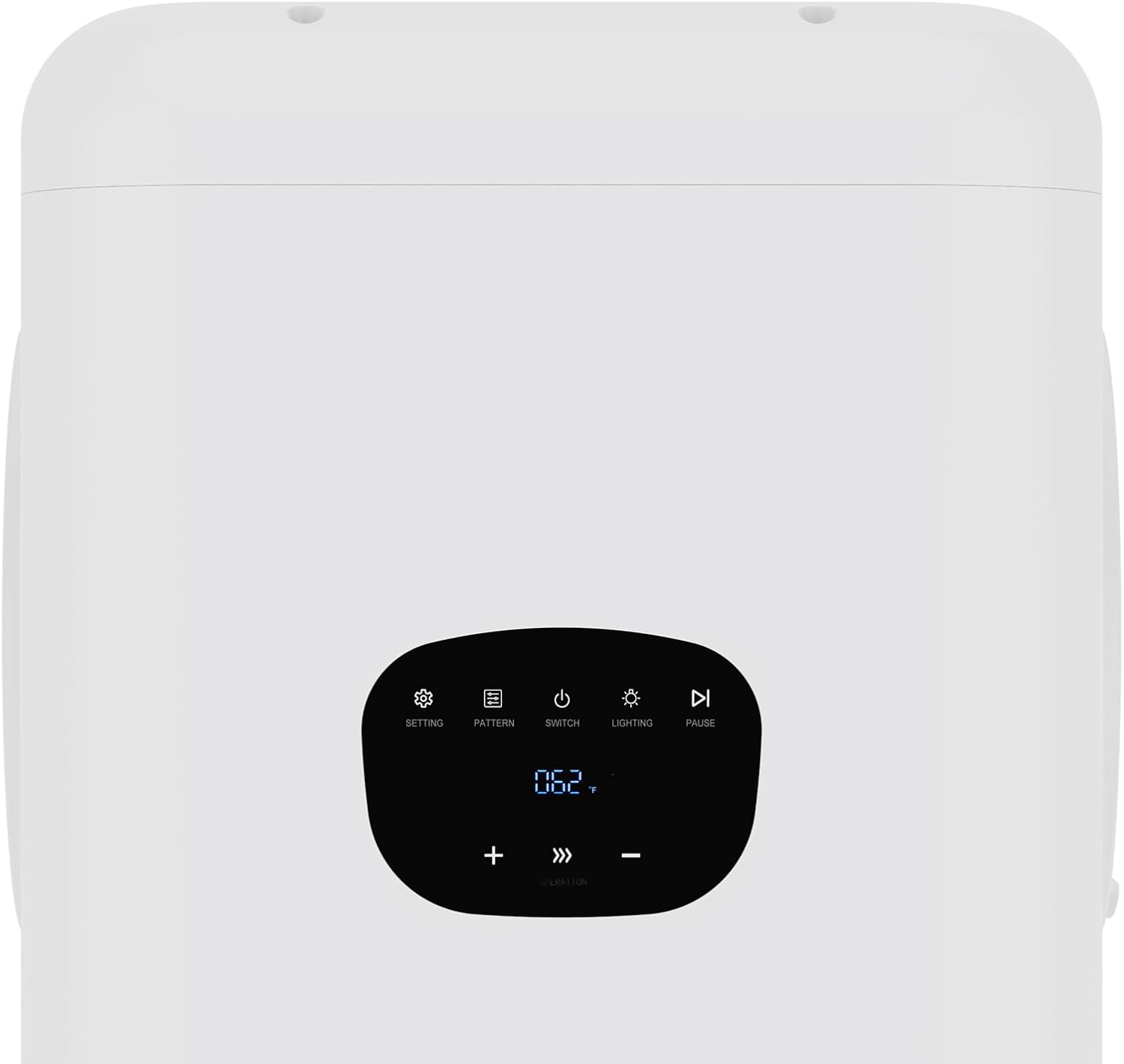

Figura 3: Detallado view of the control panel, featuring buttons for settings, pattern, switch, lighting, and pause, along with temperature display and adjustment controls.
Configuración
- Desembalaxe: Carefully remove all components from the packaging. Inspect the dryer box for any signs of damage.
- Colocación: Place the dryer box on a firm, level, and dry surface. Ensure there is adequate space around the unit for proper ventilation. Avoid placing it near water sources or in direct sunlight.
- Conexión de alimentación: Conecte o cable de alimentación a unha toma de corrente estándar. Asegúrese de que o voltaxe da toma de correntetage matches the specifications of the dryer box.
- Limpeza inicial: Before first use, wipe the interior of the dryer box with a damp cloth to remove any dust or manufacturing residues. Ensure it is completely dry before operation.
Instrucións de funcionamento
Follow these steps to operate your advwin Pet Dryer Box:
1. Acendido/apagado
- Preme o "SWITCH" button on the control panel to turn the unit on or off. The display will illuminate when powered on.
2. Placing Your Pet
- Gently place your pet inside the dryer box. Ensure the pet is calm and comfortable.
- Close the door securely. The door features a secure latch to prevent accidental opening.
3. Mode Selection (5 Modes)
- Preme o "PATTERN" button to cycle through the available drying modes. The display will indicate the selected mode. Refer to the table below for mode descriptions.
| Modo | Descrición | Uso típico |
|---|---|---|
| Mode 1: Gentle Dry | Low heat, low fan speed. Ideal for sensitive pets or initial drying. | Small pets, short hair, or pets sensitive to noise/heat. |
| Mode 2: Standard Dry | Medium heat, medium fan speed. Balanced drying for most pets. | General drying after bathing. |
| Mode 3: Fast Dry | Higher heat, higher fan speed. For quicker drying of thicker coats. | Pets with thick or long hair, when faster drying is needed. |
| Mode 4: Cool Air | No heat, high fan speed. Circulates cool air. | Cooling down pets, or for light air drying without heat. |
| Mode 5: Smart Temperature | Automatically adjusts heat and fan speed based on internal temperature sensors to maintain optimal comfort. | Automated drying for optimal pet comfort and safety. |
4. Control de temperatura
- When not in "Smart Temperature" mode, use the "+" e "-" buttons to adjust the desired temperature. The current temperature will be displayed.
- Always monitor your pet for signs of discomfort or overheating.
5. Configuración do temporizador
- Preme o "SETTING" button to enter timer adjustment mode.
- Usa o "+" e "-" buttons to set the desired drying duration. The dryer will automatically shut off after the set time.
- Recommended drying times vary by pet size, coat type, and wetness. Start with shorter durations and extend if necessary.
6. Iluminación
- Preme o "LIGHTING" button to turn the interior light on or off, allowing you to monitor your pet.
7. Función de pausa
- Preme o "PAUSE" button to temporarily stop the drying cycle. Press again to resume.
Importante: Always ensure your pet has access to fresh water before and after drying. Monitor your pet closely throughout the drying process for any signs of distress or overheating. If your pet shows signs of discomfort, immediately stop the dryer and remove your pet.
Mantemento
Regular maintenance ensures optimal performance and longevity of your pet dryer box.
- Limpeza do interior: After each use, unplug the unit and allow it to cool. Wipe the interior surfaces with a soft, damp cloth. For stubborn stains, use a mild pet-safe cleaner. Ensure the interior is completely dry before next use.
- Limpeza do filtro de aire: The dryer box is equipped with an air filter to prevent pet hair from entering the motor. Locate the filter (usually at the air intake vent). Remove and clean it regularly by brushing off accumulated hair and dust. Wash with water if necessary and ensure it is completely dry before reinserting.
- Limpeza exterior: Limpar o exterior cun pano suave, seco ou lixeiramente húmidoamp pano. Non use produtos de limpeza ou disolventes abrasivos.
- Almacenamento: When not in use for extended periods, unplug the dryer box and store it in a clean, dry place away from direct sunlight and extreme temperatures.
Resolución de problemas
Consulta esta sección para ver os problemas comúns e as súas solucións.
| Problema | Causa posible | Solución |
|---|---|---|
| A secadora non se acende. | Sen fonte de alimentación. Cable de alimentación non conectado correctamente. | Comproba se a toma de corrente funciona. Ensure the power cord is securely plugged into both the unit and the wall outlet. |
| Sen calefacción ou calor insuficiente. | Seleccionouse o modo incorrecto. O filtro de aire está bloqueado. | Select a drying mode that includes heat (e.g., Standard Dry, Fast Dry, Smart Temperature). Limpar o filtro de aire para garantir un fluxo de aire adecuado. |
| Fluxo de aire débil. | O filtro de aire está bloqueado. Air intake/exhaust vents are obstructed. | Limpar o filtro de aire. Ensure no objects are blocking the vents on the dryer box. |
| Pet appears distressed. | A temperatura é demasiado alta. Pet is not accustomed to the dryer. | Immediately pause the dryer and remove your pet. Adjust temperature or mode. Introduce your pet to the dryer gradually with short, supervised sessions. |
Se o problema persiste despois de intentar estas solucións, póñase en contacto co servizo de atención ao cliente.
Especificacións
| Nome da marca | advwin |
| Nome do modelo | Caixa para secador de animais |
| Número de modelo do artigo | Cat Dryer Box 10 |
| Tamaño | 75L |
| Cor | Branco |
| Dimensións do produto (L x W x H) | 19.29 x 18.11 x 19.69 polgadas (49 x 46 x 50 cm) |
| Peso do elemento | 19.4 libras (8.8 kg) |
| Usos específicos | Hair Dryer, Pet Cool House, Pet Warm House |
| Público obxectivo | Gatos, cans pequenos |
Figura 4: Dimensions of the advwin 75L Automatic Pet Dryer Box, showing approximate measurements in inches and centimeters.
Información da garantía
The advwin 75L Automatic Pet Dryer Box comes with a 1 ano de garantía from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance.
Conserve o comprobante de compra para reclamacións de garantía.
Atención ao cliente
If you have any questions, require assistance, or encounter issues not covered in this manual, please contact advwin customer support. For the most up-to-date contact information, please visit the official advwin websitio web ou consulte a documentación da súa compra.
When contacting support, please be prepared to provide your product model number (Cat Dryer Box 10) and proof of purchase.
