Kidilo 6521 Lightweight Foldable Stroller User Manual

Introdución

Thank you for choosing the Kidilo 6521 Lightweight Foldable Stroller. This manual provides essential information for the safe and proper use, assembly, operation, and maintenance of your stroller. Please read it thoroughly before first use and keep it for future reference.

The Kidilo 6521 stroller is designed to offer comfort and convenience for both parents and children from birth up to 36 months, supporting a maximum weight of 22 kg. It features a quick one-hand fold mechanism, multiple adjustable seating positions, a reversible handle, and a 5-point safety harness to ensure your child's safety and comfort.

Información de seguridade

A seguridade do teu fillo/a é primordial. Sigue sempre estas pautas de seguridade:

• Always use the 5-point safety harness to secure your child in the stroller. Ensure it is properly adjusted and fastened.
• Nunca deixes o teu fillo sen vixilancia no carriño.
• Engage the rear wheel brakes sempre que o carriño estea parado.
• Do not overload the stroller or the storage basket. The maximum weight capacity for the child is 22 kg, and for the storage basket is 4.5 kg.
• Ensure all locking devices are engaged antes do uso.
• Do not use accessories that are not approved by the manufacturer.
• Be cautious when folding and unfolding o carriño para evitar que os dedos queden atrapados.
• This stroller is suitable for children from birth up to 36 months.
• The stroller complies with Safety Standard EN 1888 and Stroller Safety Specifications ASTM F833.

Configuración e montaxe

The Kidilo 6521 stroller is designed for quick and easy setup. It comes with the stroller frame as the main included component.

Desdobrando o carriño:

1. Coloque o carriño dobrado sobre unha superficie plana.
2. Release the automatic lock mechanism (if engaged).
3. Hold the handle and lift upwards until the frame fully extends and locks into place. You should hear a click.
4. Ensure all parts are securely locked before placing your child in the stroller.

Attaching Wheels (if detached):

If the wheels are not pre-attached, align the wheel axles with the corresponding slots on the stroller frame and push firmly until they click into place. Pull on the wheels to ensure they are securely fastened.

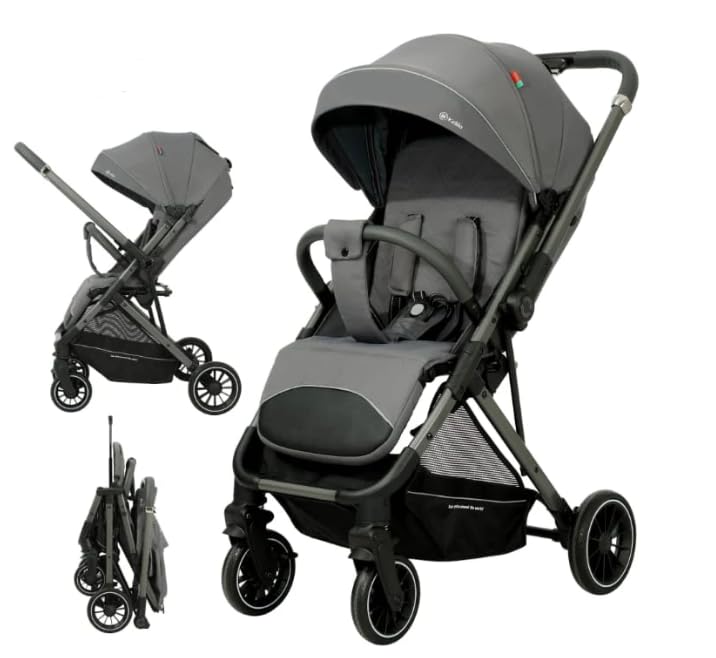

Image: The Kidilo 6521 stroller in grey, shown fully unfolded and assembled, ready for use. This image illustrates the stroller's compact design and main components.

Instrucións de funcionamento

Adjusting Seat Positions:

The stroller offers three adjustable recline positions: sitting, reclining, and fully flat. Locate the recline adjustment mechanism (usually a lever or strap system behind the seat) and adjust to your desired position. Ensure the seat is securely locked in place before use.

Reversible Handle:

The handle can be reversed to allow for parent-facing or forward-facing modes. To reverse the handle, locate the release buttons on both sides of the handle, press them, and swing the handle over to the opposite side until it locks securely.

Axustando a cuberta:

The adjustable canopy provides protection from sun and wind. Simply pull the canopy forward or push it back to adjust its coverage. It is made from durable polyester fabric.

Using the 5-Point Safety Harness:

1. Coloca o teu fillo no asento.
2. Bring the shoulder straps over your child's shoulders and the waist straps around their waist.
3. Insert the buckle tongues into the central buckle until they click.
4. Adjust the straps to ensure a snug but comfortable fit.
5. To release, press the button on the central buckle.

Engaging and Releasing Brakes:

The stroller is equipped with rear wheel brakes for stability. To engage the brakes, press down firmly on the brake lever located near the rear wheels. To release, lift the lever upwards. Always ensure the brakes are fully engaged when the stroller is stationary.

Usando a cesta de almacenamento:

A spacious storage basket is located under the seat. It can hold up to 4.5 kg of essentials. Do not exceed this weight limit.

Axuste do repousa-pés:

The footrest can be adjusted to provide additional comfort as your child grows. Locate the adjustment mechanism under the footrest and set it to the desired angle.

Dobrar o carriño:

To fold the stroller, ensure the seat is in an upright position and the canopy is retracted. Locate the one-hand fold mechanism (often a button or lever on the handle), activate it, and push the stroller downwards until it folds compactly and the automatic lock engages. The folded dimensions are approximately 75 cm (L) x 55 cm (W) x 35 cm (H).

Mantemento

Regular maintenance will prolong the life of your Kidilo 6521 stroller:

• Limpeza do cadro: Wipe the stroller frame with a damp pano.
• Limpeza de tecidos: Remove fabric components and machine wash them in cold water. Air dry all fabric parts completely. Do not use bleach or harsh chemicals.
• Mantemento das rodas: Lubricate the wheels periodically for smooth operation. Keep them free from dirt and debris.
• Fixadores: Regularly check and tighten all screws and connections to ensure they are secure.
• Almacenamento: Store the stroller in a dry place when not in use to prevent rust or mildew.

Resolución de problemas

If you encounter any issues with your stroller, please refer to the following common solutions:

• Dificultade para dobrar/desdobrar: Ensure all locks are disengaged before folding/unfolding. Check for any obstructions in the folding mechanism.
• As rodas non xiran suavemente: Clean any debris from the wheels and axles. Lubricate the wheel mechanisms if necessary.
• Harness Not Securing: Check that all straps are correctly threaded and adjusted. Ensure the buckle components are fully inserted and click into place.
• Brakes Not Engaging: Inspect the brake mechanism for obstructions. Ensure the brake lever is fully depressed.

Se os problemas persisten, póñase en contacto co servizo de atención ao cliente.

Especificacións

Garantía e Soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact the retailer where you purchased the Kidilo 6521 stroller. Keep your proof of purchase for warranty claims.
