Garvee Stainless Steel Sink 2.0 Series Instruction Manual

1. Introdución

Thank you for choosing the Garvee Stainless Steel Sink 2.0 Series. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new sink unit. Please read these instructions thoroughly before installation and retain them for future reference.

This unit features a durable stainless steel construction, designed for rust resistance and easy cleaning, making it suitable for various applications. The specific model covered in this manual is the Single Sink with Workbench and Left Drawer, measuring 29.5"x15.7"x29.5".

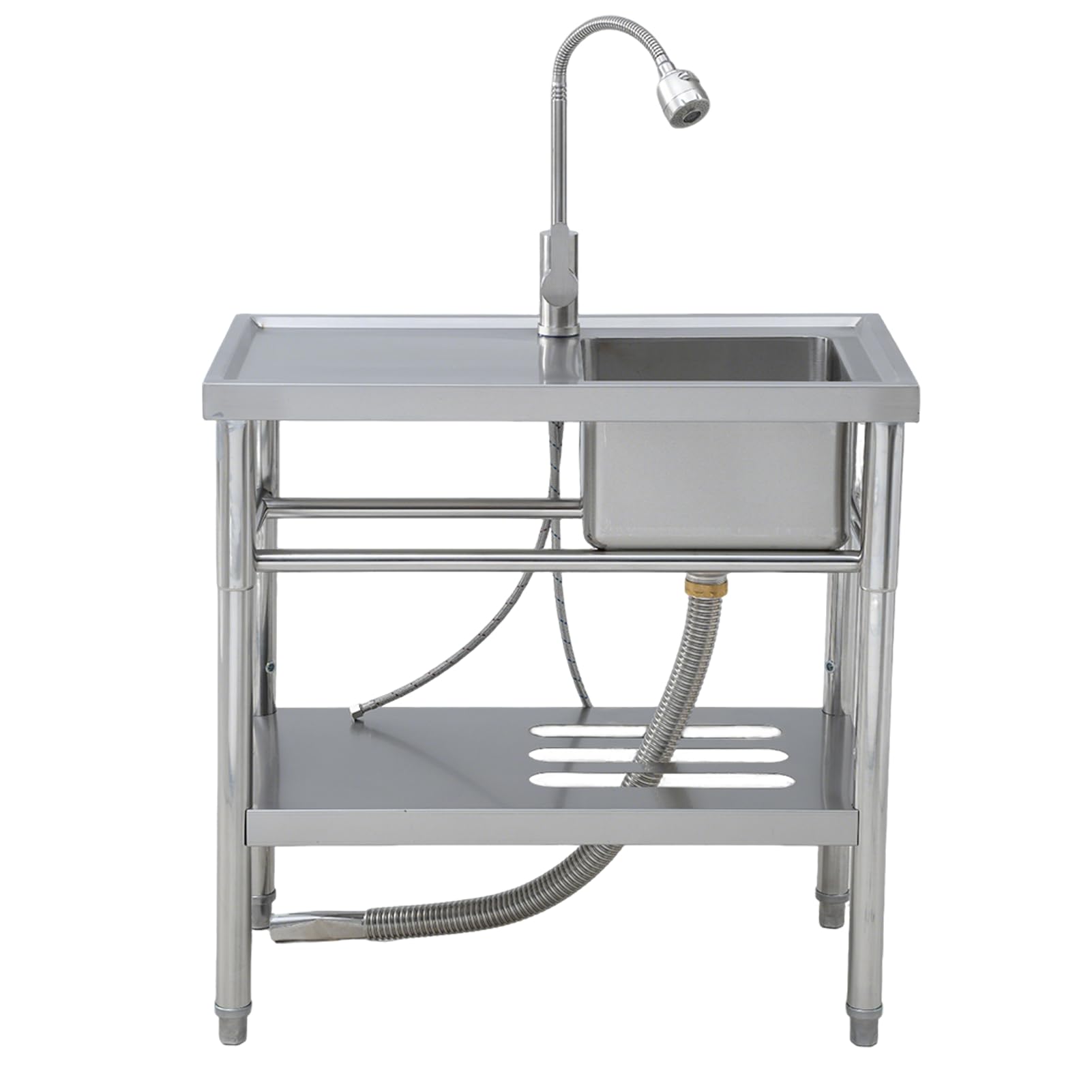

Imaxe 1.1: Acabadoview of the Garvee Stainless Steel Sink 2.0 Series, Single Sink+Workbench+Left Drawer model.

2. Instrucións de seguridade

• Always ensure the unit is stable and level before use to prevent tipping.
• Do not overload the workbench or shelves beyond their intended capacity.
• Exercise caution when handling sharp tools during assembly to avoid injury.
• Ensure all water connections are properly sealed to prevent leaks and water damage.
• Keep children away from the unit during assembly and operation.
• Do not use corrosive chemicals for cleaning, as they may damage the stainless steel finish.

3. Contido do paquete

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact Garvee customer support.

• Stainless Steel Sink Bowl
• Mesa de traballo superior
• Legs (4x) with Adjustable Feet
• Estante de almacenamento inferior
• Left Drawer Assembly
• Faucet (if included with your model)
• Drain Assembly (including strainer and pipe)
• Mounting Hardware (screws, bolts, washers, wrench)

Imaxe 3.1: Detallada view of the sink, faucet, and adjustable feet components.

4. Configuración e montaxe

Siga estes pasos atentamente para unha montaxe correcta. Recoméndase que haxa dúas persoas para certos pasos.

1. Desempaquetar compoñentes: Retire con coidado todas as pezas da embalaxe e colóqueas sobre unha superficie limpa e suave para evitar rabuñaduras.
2. Attach Legs to Workbench: Securely attach the four legs to the underside of the workbench top using the provided hardware. Ensure all bolts are tightened.
3. Instalar a balda inferior: Slide the lower storage shelf into the designated slots on the legs. Adjust its height as desired and secure it with the provided fasteners.
4. Montar o caixón: Follow the specific instructions for assembling the left drawer unit. Once assembled, slide it into its designated position under the workbench.
5. Install Sink Bowl: Place the stainless steel sink bowl into the cutout on the workbench top. Ensure it sits flush and secure it using the provided clips or sealant as per the design.
6. Monte da billa: Install the faucet into the pre-drilled hole on the workbench or sink rim. Connect the hot and cold water supply lines to the faucet.
7. Connect Drain Assembly: Attach the drain strainer to the sink bowl. Connect the included sewer pipe to the drain strainer and ensure all connections are watertight.
8. Nivelar a unidade: Place the assembled sink unit in its desired location. Adjust the height of the adjustable feet on each leg until the unit is stable and level.

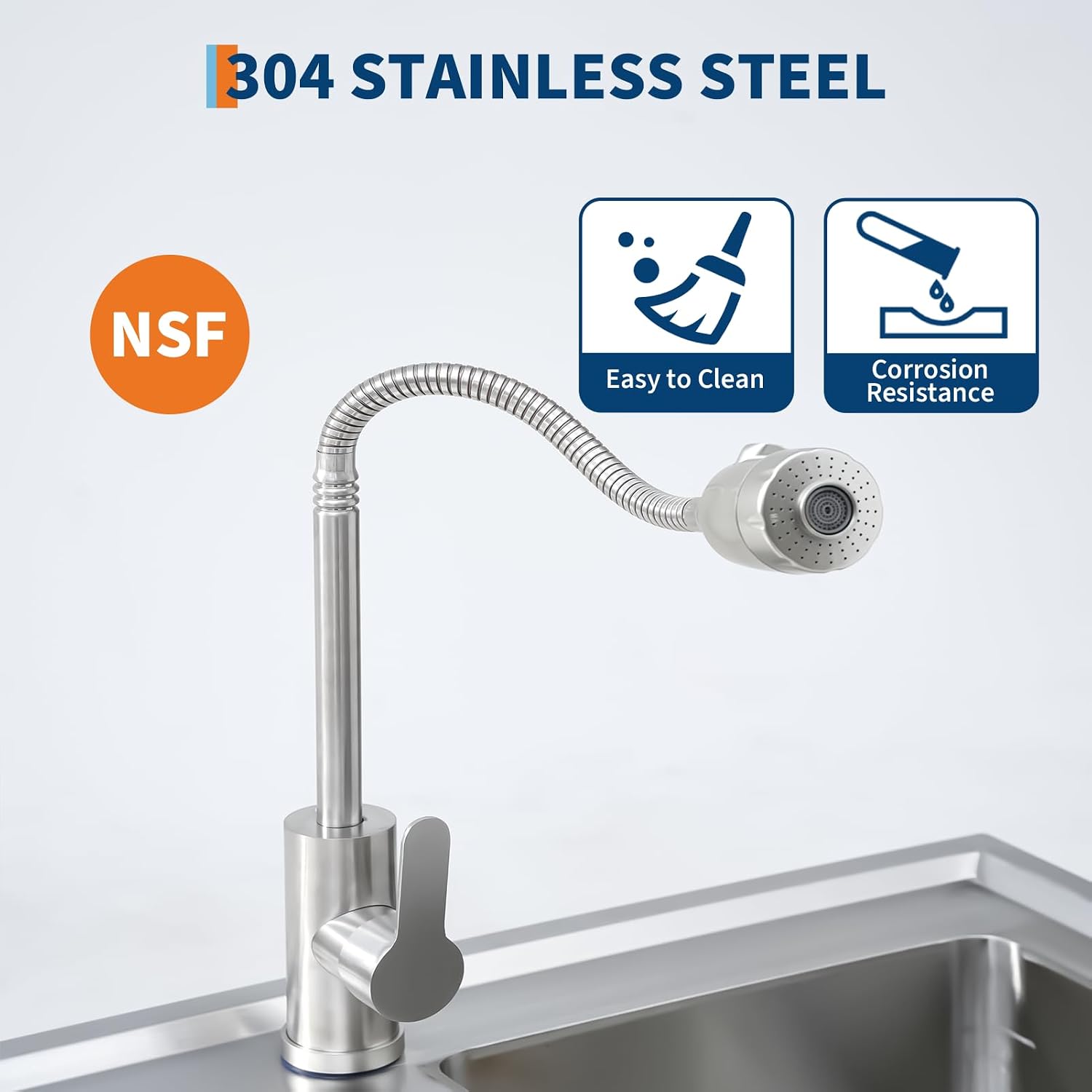

Image 4.1: Key features for assembly and operation, including faucet rotation, drain system, and adjustable feet.

Image 4.2: Details on structural stability with reinforced poles, the lower storage shelf, and the high-quality sewer pipe connection.

5. Instrucións de funcionamento

Your Garvee Stainless Steel Sink is designed for ease of use in various settings.

• Caudal de auga: Use the faucet handle to control water temperature and flow. The faucet typically allows for 360-degree rotation for convenience.
• Drenaxe: Ensure the drain strainer is properly seated to prevent large debris from entering the plumbing. The lift-and-turn drain type allows for easy opening and closing of the drain.
• Workbench Use: The integrated workbench provides a stable surface for food preparation or other tasks.
• Almacenamento: The lower shelf and left drawer offer additional storage space for cleaning supplies, utensils, or other items.

Imaxe 5.1: Ex.ample of the sink in use, demonstrating its functionality for washing and preparation.

6. Mantemento

Regular cleaning and maintenance will prolong the life and appearance of your stainless steel sink.

• Limpeza diaria: Wipe down the sink and workbench with a soft cloth, warm water, and a mild dish soap after each use. Rinse thoroughly and dry to prevent water spots.
• Eliminación de manchas: Para manchas difíciles, use un limpador de aceiro inoxidable non abrasivo. Frote sempre na dirección da veta.
• Evitar abrasivos: Do not use steel wool, abrasive pads, or harsh chemical cleaners (e.g., bleach, ammonia-based products) as they can scratch or damage the stainless steel finish.
• Evitar arañazos: Avoid dragging heavy or sharp objects across the surface. Use cutting boards for food preparation.
• Mantemento de drenaxe: Periodically remove the drain strainer and clean any accumulated debris to ensure proper drainage.

Image 6.1: Illustrates the adjustable shelf height feature and the integrated sink and workbench design, highlighting areas for cleaning.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

Garvee products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Garvee website. If you encounter any issues or require assistance, please contact Garvee customer support with your model number and purchase details.

Atención ao cliente de Garvee: Please refer to your purchase documentation or the Garvee brand store for contact information.

Tenda da marca Garvee: Visita a tenda Garvee en Amazon
