NIVIAN NVS-ENERGYMETER65DIN-W

Nivian Smart Home DIN Rail WiFi Switch with Consumption Meter

Model: NVS-ENERGYMETER65DIN-W

Marca: NIVIAN

Introdución

This instruction manual provides detailed guidance for the installation, setup, and operation of your Nivian Smart Home DIN Rail WiFi Switch with Consumption Meter. This device allows you to remotely control your electrical circuits, monitor energy consumption, and implement smart home automations, enhancing both convenience and safety in your home or business. Please read this manual thoroughly before installation and use to ensure proper functioning and to prevent any electrical hazards.

Produto rematadoview

The Nivian Smart Home DIN Rail WiFi Switch is a versatile device designed for intelligent electrical management. It integrates a WiFi-enabled switch with an energy consumption meter, offering comprehensive control and monitoring capabilities.

Características principais:

  • Control remoto: Turn circuits on/off from anywhere via the mobile app.
  • Monitorización enerxética: Real-time and historical data on electricity consumption.
  • Smart Automations: Program schedules, timers, and smart scenes.
  • Control de voz: Compatible with Alexa and Google Assistant.
  • Protección eléctrica: Automatic protection against overload, overvoltage, subvoltage, and current limits.
  • Instalación en carril DIN: Designed for easy integration into electrical panels.
  • Fire Retardant Material: V0 grade fire-retardant casing for enhanced safety.

Compoñentes incluídos:

  • Nivian Consumption Control Device (NVS-ENERGYMETER65DIN-W)

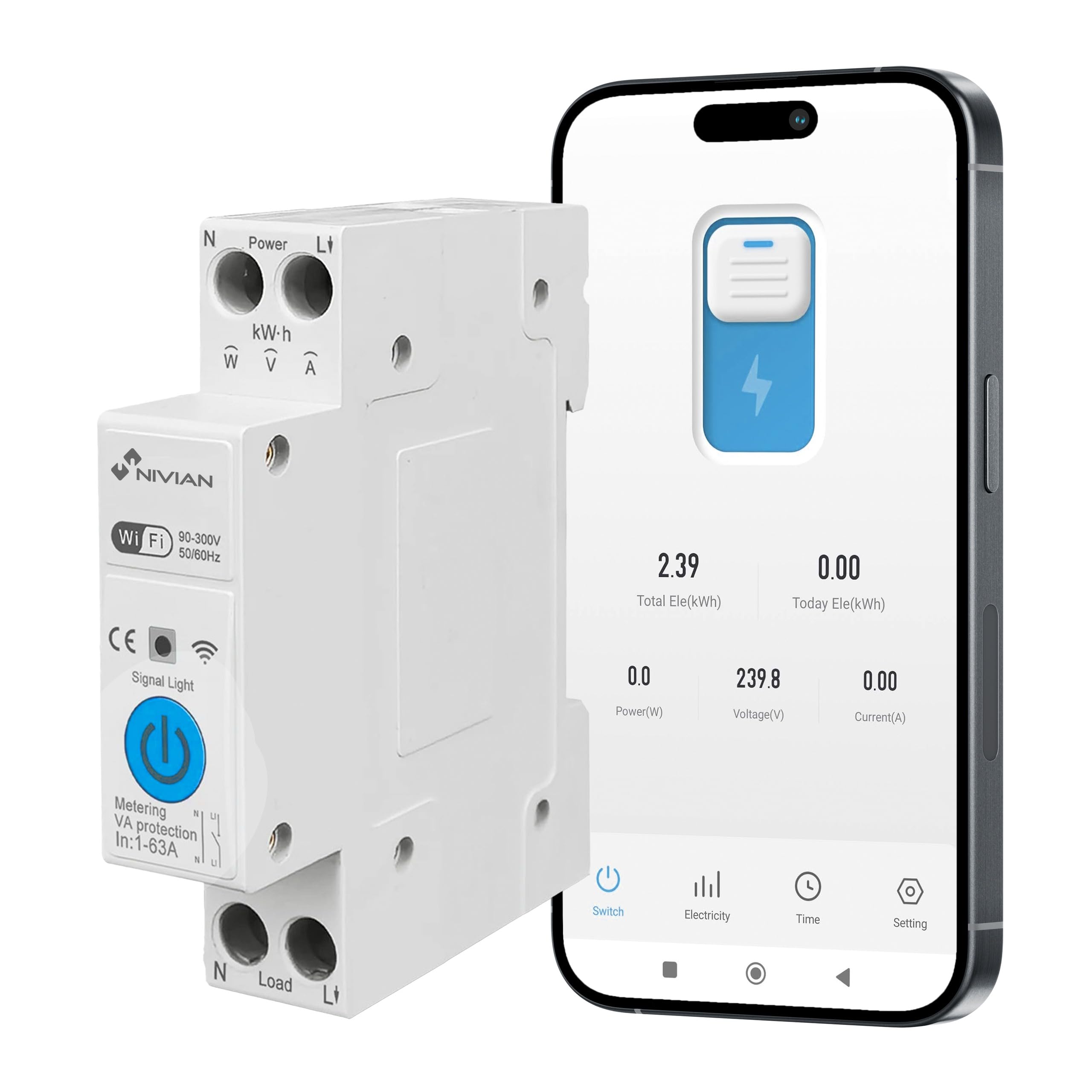

Nivian Smart Home DIN Rail WiFi Switch with Consumption Meter front view
Figura 1: Fronte view of the Nivian Smart Home DIN Rail WiFi Switch, showcasing its compact design and clear labeling.

Información de seguridade

AVISO: A instalación eléctrica só debe ser realizada por persoal cualificado. Unha instalación incorrecta pode provocar descargas eléctricas, incendios ou outros perigos.

  • Desconecte sempre a alimentación no disyuntor principal antes de instalar ou realizar o mantemento do dispositivo.
  • Asegúrese de que todas as conexións de cableado estean seguras e cumpran cos códigos eléctricos locais.
  • Non exceda a intensidade máxima de corrente de 63 A.
  • Manteña o dispositivo lonxe da auga e de ambientes con alta humidade.
  • Non intente desmontar nin modificar o dispositivo.

Instalación

The Nivian Smart Home DIN Rail WiFi Switch is designed for easy installation on a standard DIN rail within your electrical distribution board.

Pasos de instalación:

  1. Desconexión de alimentación: Before starting, ensure the main power supply to the electrical panel is completely disconnected.
  2. Montaxe: Clip the device onto a standard 35mm DIN rail in your electrical panel. Ensure it is securely fastened.
  3. Cableado:
    • Connect the incoming Live (L1) and Neutral (N) wires to the "Power" terminals at the top of the device.
    • Connect the outgoing Live (L1) and Neutral (N) wires to the "Load" terminals at the bottom of the device, leading to the circuit you wish to control.
    • Ensure all connections are tight and correct to prevent loose contacts or short circuits.
  4. Restauración de enerxía: Once wiring is complete and verified, restore power to the electrical panel. The device's signal light should illuminate.
Nivian Smart Home DIN Rail WiFi Switch installed in an electrical panel
Figure 2: The Nivian Smart Home DIN Rail WiFi Switch installed within an electrical panel, demonstrating its compact integration.

Configuración

To utilize the smart features of your Nivian device, you need to connect it to the Nivian Smart Home app (or a compatible app like Tuya Smart or Smart Life).

App Pairing Steps:

  1. Descarga a aplicación: Download the "Nivian Smart Home" app from your smartphone's app store (available for iOS and Android). Alternatively, you can use the Tuya Smart or Smart Life app.
  2. Rexistrarse/Iniciar sesión: Abre a aplicación e rexistra unha conta nova ou inicia sesión cunha xa existente.
  3. Engadir dispositivo: Na aplicación, toca a icona "+" para engadir un novo dispositivo.
  4. Emparellamento Bluetooth: The device supports quick configuration via Bluetooth. Ensure Bluetooth is enabled on your smartphone. The app should automatically detect the device or guide you through a discovery process.
  5. Conexión WiFi: Follow the in-app instructions to connect the device to your 2.4GHz WiFi network. Enter your WiFi password when prompted.
  6. Confirmación: Once successfully paired, the device will appear in your app's device list. You can then rename it for easier identification.
Smartphone screen showing the Nivian Smart Meter Pro app interface
Figure 3: A smartphone displaying the Nivian Smart Meter Pro app, illustrating the interface for operating the device and monitoring consumption.

En funcionamento

After successful setup, you can control and monitor your electrical circuits using the Nivian Smart Home app or voice commands.

Control remoto:

Open the Nivian Smart Home app, select your device, and use the on-screen toggle to switch the connected circuit on or off from anywhere with an internet connection.

Monitorización enerxética:

The app provides real-time energy consumption data (kWh, Amps, Volts, Watts). You can view daily, monthly, and yearly statistics, helping you identify energy usage patterns and potential savings.

Smartphone screen showing energy consumption graphs in the Nivian app
Figure 4: A user viewing energy consumption graphs on a smartphone, demonstrating the app's capability to configure and measure electricity usage over time.

Smart Automations:

Create custom automation rules within the app:

  • Horarios: Set specific times for the circuit to turn on or off (e.g., lights on at sunset).
  • Temporizadores: Set countdown timers for temporary control.
  • Escenas intelixentes: Trigger actions based on conditions like location, weather, or other smart devices (e.g., turn off power when leaving home).
  • Presence Simulation: Automate lights or devices to turn on/off randomly to simulate occupancy when you are away.
Living room scene with smart lighting, illustrating smart scenario creation
Figure 5: A living room with smart lighting, demonstrating the creation of smart scenarios, such as scheduling lights to turn on at a specific time.

Control de voz:

Integrate your Nivian device with Amazon Alexa or Google Assistant for hands-free control.

  1. Vincular conta: In the Alexa or Google Home app, enable the "Nivian Smart Home" skill/service and link your Nivian account.
  2. Descubra dispositivos: Ask Alexa or Google Assistant to discover new devices.
  3. Comandos de voz: Use commands like "Alexa, turn on [device name]" or "Hey Google, turn off [device name]".

Funcións de protección

The device includes intelligent electrical protections to safeguard your installation and connected equipment.

  • Protección contra sobrecarga: Automatically cuts power if the current exceeds a set limit (up to 63A).
  • Sobrevoltage Protección: Protects against damage from excessively high voltage.
  • Undervoltage Protección: Prevents equipment damage from excessively low voltage.
  • Current Limit Protection: Allows setting a maximum current threshold.
  • Leakage Current Protection: Detects and protects against hazardous leakage currents.

You can configure custom limits and receive alerts via the app if any protection is triggered, enhancing safety and preventing damage.

Smartphone showing a notification for electrical protection, with icons for overvoltage, subvoltage, current limit, and leakage current protection
Figure 6: A smartphone displaying a notification, illustrating the device's multiple protection functions including overvoltage, subvoltage, current limit, and leakage current protection.

Mantemento

The Nivian Smart Home DIN Rail WiFi Switch requires minimal maintenance.

  • Limpeza: Periodically wipe the device with a dry, soft cloth. Do not use abrasive cleaners or solvents.
  • Comprobación de conexión: Occasionally, verify that all electrical connections are secure, especially after initial installation or if the device has been moved.
  • Actualizacións de firmware: Keep the Nivian Smart Home app updated to ensure you receive the latest firmware for your device, which may include performance improvements and new features.

Resolución de problemas

If you encounter issues with your Nivian Smart Home DIN Rail WiFi Switch, refer to the following common problems and solutions:

ProblemaPosible causa/solución
O dispositivo non se conecta á wifi/aplicación
  • Asegúrate de que a túa rede wifi sexa de 2.4 GHz. O dispositivo non admite redes de 5 GHz.
  • Check WiFi signal strength at the device's location.
  • Verify correct WiFi password entry in the app.
  • Restart your WiFi router and try pairing again.
  • Ensure Bluetooth is enabled on your phone for initial pairing.
  • Reset the device (refer to the app or manufacturer's websitio web para obter instrucións específicas de restablecemento).
Device not responding to app commands
  • Check if your smartphone has an active internet connection.
  • Verify the device is connected to WiFi (check the signal light on the device).
  • Ensure the device has power.
  • Close and reopen the Nivian Smart Home app.
No energy consumption data
  • Ensure the device is correctly wired and the load is connected.
  • Check if the connected appliance is drawing power.
  • Refresh the app's display.
Cannot connect with Alexa/Google Assistant
  • Ensure your Nivian Smart Home account is correctly linked to the Alexa/Google Home app.
  • Try disabling and re-enabling the "Nivian Smart Home" skill/service in the Alexa/Google Home app.
  • Ask Alexa/Google Assistant to "discover devices" again.
  • Ensure your voice assistant device is connected to the same network as your Nivian device.
Device trips frequently
  • Check the connected load; it might be exceeding the device's current limit (63A) or the configured protection limits.
  • Inspect for short circuits or ground faults in the connected circuit.
  • Review the protection settings in the app and adjust if necessary, ensuring they are appropriate for your load.

Especificacións

CaracterísticaDetalle
Número de modeloNVS-ENERGYMETER65DIN-W
MarcaNIVIANO
Dimensións (L x W x H)8 x 3 x 2 cm (3.15 x 1.18 x 0.79 polgadas)
Peso110 g (0.24 lb)
Clasificación de corrente máxima63A
Voltage Alcance90-300 V
Frecuencia50/60 Hz
Tipo de montaxeCarril DIN
ConectividadeWiFi (2.4GHz), Bluetooth for quick setup
MaterialV0 Fire Retardant
Compoñentes incluídosNivian Consumption Control Device
Diagram showing the dimensions of the Nivian Smart Home DIN Rail WiFi Switch
Figure 7: Diagram illustrating the dimensions of the Nivian Smart Home DIN Rail WiFi Switch: 82mm height, 18mm width, and 50mm depth.

Garantía e Soporte

For detailed warranty information, technical support, and additional resources, please visit the official Nivian Home website or their social media channels.

These platforms offer tutorials, tips, and direct support to help you maximize your device's potential.

Nivian brand image with information on web, technical support, warranty, and social media links
Figure 8: Nivian branding, indicating resources for information, technical support, warranty, and links to Instagram and YouTube for tutorials and tips.
