Introdución
Thank you for choosing the SONGMICS BELLAH Collection 8-Drawer Dresser. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
This versatile dresser combines storage with modern conveniences, featuring eight spacious drawers, integrated power outlets, and customizable LED lighting. It is designed to enhance your bedroom or living space with both functionality and style.

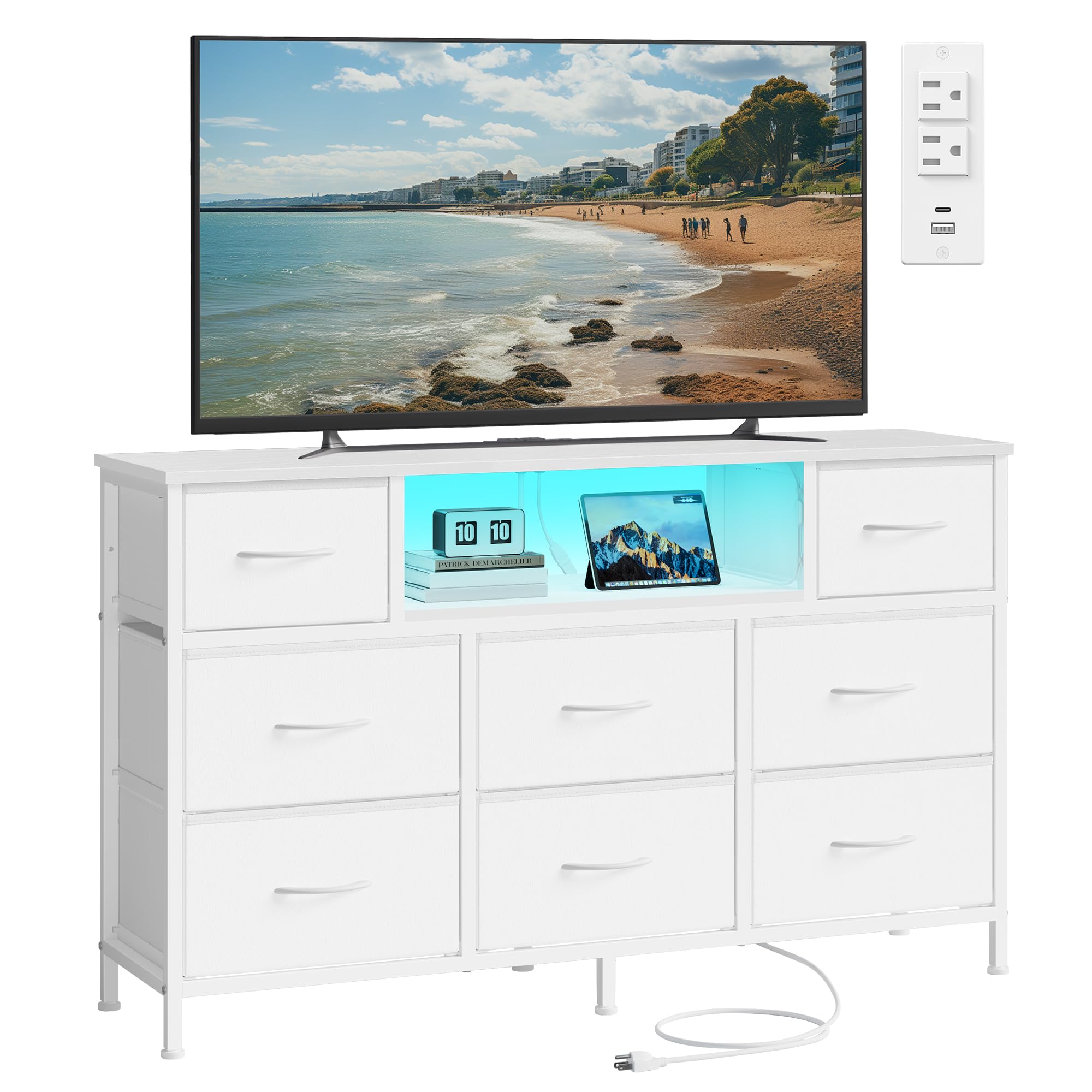

Image: The SONGMICS BELLAH Collection 8-Drawer Dresser in Cloud White, showcasing its design and functionality in a bedroom setting.
Información de seguridade
- Kit antivuelco: Always install the included anti-tip kit to prevent the dresser from tipping over, which can cause serious injury. Secure the dresser to a wall stud using the provided hardware.
- Capacidade de peso: Do not exceed the maximum weight capacity for the top surface (11.8 lbs / 30 kg) or individual drawers (11 lbs / 5 kg for small drawers, 17.6 lbs / 8 kg for large drawers). Distribute weight evenly.
- Seguridade eléctrica: Ensure the power cord is not pinched or damaged during assembly or use. Plug the dresser into a grounded outlet. Do not overload the electrical outlets. Keep liquids away from electrical components.
- Montaxe: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all screws and fasteners are tightened securely before use. Periodically check and re-tighten fasteners.
- Nenos: Keep small parts and packaging materials away from children during assembly. Do not allow children to climb on or play with the dresser.
Image: A diagram illustrating the dresser's dimensions, weight capacities for drawers and top surface, and the importance of installing the anti-tip kit for stability.
Contido do paquete
Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.
- 1 x Chest of Drawers (Frame components)
- 8 caixóns de tecido
- 1 x Accessory Kit (Screws, bolts, tools)
- 1 x Kit antivuelco
- 1 x Manual de instrucións (este documento)
Instrucións de configuración e montaxe
Assembly is required for this product. Please follow the step-by-step instructions provided in the separate assembly guide included in your package. A general overview do proceso ofrécese a continuación:
- Desempaquetar e identificar: Carefully unpack all components and lay them out on a clean, soft surface. Identify each part using the labels and the assembly guide.
- Montaxe do cadro: Follow the diagrams to connect the steel frame components using the provided screws and tools. Ensure all connections are secure.
- Instalar o panel superior: Attach the particleboard top panel to the assembled frame.
- Inserir caixóns: Fold and insert the MDF-reinforced fabric drawers into their designated slots.
- Instalar estación de carga: Secure the power strip with AC outlets and USB ports into its designated location on the top panel.
- Instalación de luces LED: Attach the LED light strip to the underside of the open shelf as per the instructions.
- Colocar os pés axustables: Screw the adjustable feet into the bottom of the dresser frame. Adjust them to ensure the dresser is level and stable.
- Instalar o kit antivuelco: This is a critical safety step. Secure the anti-tip kit to the back of the dresser and firmly attach it to a wall stud.
Image: A close-up diagram illustrating the correct method for installing a fabric drawer into the dresser's frame.
Instrucións de funcionamento
Sistema de iluminación LED
The integrated LED lights offer customizable ambiance for your space.
- Métodos de control: The LED lights can be controlled via a physical button on the unit or through a dedicated mobile application. Refer to the separate LED light manual for app download and pairing instructions.
- Selección de cor: Escolle entre máis de 60,000 cores para combinar co teu ambiente ou decoración.
- Axuste de brillo: Axusta a intensidade da luz ao teu gusto.
- Temporizadores: Configura horarios para que as luces se acendan ou apaguen automaticamente.
- Music/Mic Sync: The lights can synchronize with music or ambient sounds detected by your device's microphone, creating dynamic lighting effects.
Image: An illustration of the LED lighting system, highlighting its various features such as color options, dimming, music sync, and app control.
Estación de carga integrada
The dresser includes a convenient charging station to power your electronic devices.
- Portos: The charging station features 2 AC outlets (250V/13A), 1 USB-A port (5V/2A), and 1 USB-C port (5V/2A).
- Uso: Plug in phones, tablets, game consoles, or other small electronic devices for charging.
- Cable de alimentación: The dresser is equipped with a 4.9 ft power cord. Ensure it is fully extended and not obstructed.
Imaxe: Primeiro plano view of the built-in charging station, detailing the USB-A, USB-C, and AC outlets for effortless device charging.
Mantemento
- Limpeza: Wipe the dresser's surfaces with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Caixóns de tecido: The drawers are made of non-woven fabric with MDF reinforcement. For minor spills, gently blot with a damp cloth and allow to air dry. Do not machine wash or submerge in water.
- Pés axustables: Periodically check the adjustable feet and re-level the dresser if necessary to ensure stability.
- Fixadores: Over time, fasteners may loosen. Periodically check all screws and bolts and tighten them as needed to maintain structural integrity.
Image: A hand wiping the dresser surface with a dry cloth, demonstrating proper cleaning.
Image: A close-up of the adjustable feet, showing how they can be rotated to level the dresser on uneven surfaces.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| As luces LED non se acenden nin responden. | Power cord not connected; loose connection; app issue. | Ensure power cord is securely plugged into a working outlet. Check all LED strip connections. Restart the mobile app or try controlling via the physical button. |
| Charging ports (USB/AC) not working. | Dresser not plugged in; power strip issue; device compatibility. | Verify the dresser's main power cord is plugged in. Test with a different device or cable. Ensure the power strip is correctly installed and connected. |
| Drawers are difficult to open/close or fall out. | Overloaded drawers; incorrect installation; loose frame. | Reduce the weight in the drawers. Ensure drawers are correctly inserted into their slots. Check that all frame fasteners are tight. |
| A cómoda parece inestable ou tambaleante. | Chan irregular; elementos de fixación soltos; kit antivuelco non instalado. | Adjust the leveling feet on the bottom of the dresser. Tighten all assembly fasteners. Ensure the anti-tip kit is securely installed to a wall stud. |
Especificacións
| Característica | Detalle |
|---|---|
| Marca | CANCIÓNS |
| Nome do modelo | BELLAH Collection - Dresser with Outlets and LED Lights |
| Número de modelo | ULGS433WH02S |
| Dimensións do produto (P x A x A) | 30 cm x 114 cm x 68 cm (11.8 polgadas de profundidade x 44.8 polgadas de ancho x 26.8 polgadas de alto) |
| Peso do elemento | 29 libras (13.15 kg) |
| Material | MDF (Medium Density Fiberboard), Particleboard, Steel, PVC Synthetic Leather (Fabric Drawers) |
| Tipo de acabado | Branco da nube |
| Número de caixóns | 8 |
| Lonxitude do cable de alimentación | 4.9 pés |
| Saídas AC | 2 (250 V/13 A) |
| Porto USB-A | 1 (5 V/2 A) |
| Porto USB-C | 1 (5 V/2 A) |
| Montaxe necesaria | Si |
| Instrucións de coidado | Limpe cun pano seco |
Garantía e Soporte
SONGMICS is committed to providing high-quality products. While specific warranty details may vary by region and retailer, we stand behind the quality of our products.
If you encounter any issues with your dresser, require replacement parts, or have questions regarding assembly or operation, please contact SONGMICS customer support. Our team is available to assist you.
Please have your model number (ULGS433WH02S) and purchase information ready when contacting support to ensure efficient service.
