AMERLIFE Queen Size Murphy Bed Instruction Manual

Produto rematadoview

The AMERLIFE Queen Size Murphy Bed is a space-saving solution designed for compact living areas such as guest rooms, bedrooms, and home offices. This wall-mounted bed transforms from a stylish cabinet into a comfortable sleeping surface, maximizing floor space when not in use. It features a gas-lift mechanism for smooth operation, a foldable headboard guard, integrated LED lighting, and a built-in charging station.

Imaxe: Product dimensions showing the bed in both closed (cabinet) and open (bed) positions, along with packaging details indicating 2 boxes. Dimensions are 66.1"L x 16.1"W x 91.3"H.

Información de seguridade

• Montaxe na parede: This Murphy bed debe be securely installed on a solid structural wall. It is non axeitado for hollow walls or drywall without proper stud attachment.
• Anti-Tip Brackets: Five anti-tip brackets are included to enhance safety and stability. Ensure all brackets are correctly installed as per the assembly instructions.
• Requisitos do colchón: Use a mattress between 8-10 inches thick, weighing 66-88 lbs (30-40 kg). A mattress outside this range may affect the gas-lift mechanism's performance and safety.
• Operación: Always ensure the area around the bed is clear of obstructions, children, and pets before lowering or raising the bed.
• Asemblea de dúas persoas: Assembly requires a minimum of two adults to ensure safe and correct installation.

Imaxe: Graphic illustrating installation tips, including 2 hours assembly time for two people, ensuring installation on a solid wall, assembling near the final wall, and requiring a power drill. A friendly reminder states it's not for children or pets under 55 lbs (25 kg).

Configuración e montaxe

The AMERLIFE Murphy Bed comes packaged in two boxes with all necessary hardware and detailed instructions. Assembly is estimated to take approximately 2 hours with two adults. A power drill is recommended for certain steps.

Pasos clave de montaxe:

1. Desembalaxe: Desembale coidadosamente todos os compoñentes e verifique coa lista de pezas do manual.
2. Montaxe do cadro: Assemble the main cabinet frame according to the provided diagrams.
3. Anexo á parede: Identify wall studs and securely attach the cabinet to a solid structural wall using the provided anti-tip hardware. This step is crucial for safety.
4. Bed Frame Integration: Install the metal bed frame and gas struts into the cabinet structure.
5. Colocación do colchón: Place your recommended mattress (8-10 inches thick, 66-88 lbs) onto the bed frame.
6. LED Light & Charging Station: Install the LED light strip and connect the built-in charging station to a power outlet.

Instrucións de funcionamento

Opening the Bed:

1. Desbloquear: Ensure the bed is unlocked from its upright cabinet position.
2. Empuñadura de agarre: Firmly grip the handle on the front panel of the bed.
3. Lower Bed Platform: Gently pull the bed platform downwards. The gas-lift mechanism will assist in a smooth, controlled descent.
4. Estender as pernas: Once fully lowered, extend the metal support legs to lock the bed in place, ensuring stability.

Pechando a cama:

1. Dobrar as pernas: Retract the metal support legs.
2. Lift Bed: Firmly grip the handle and lift the bed platform upwards. The gas-lift mechanism will assist in raising the bed smoothly back into the cabinet.
3. Seguro: Ensure the bed is fully upright and securely latched into the cabinet position.

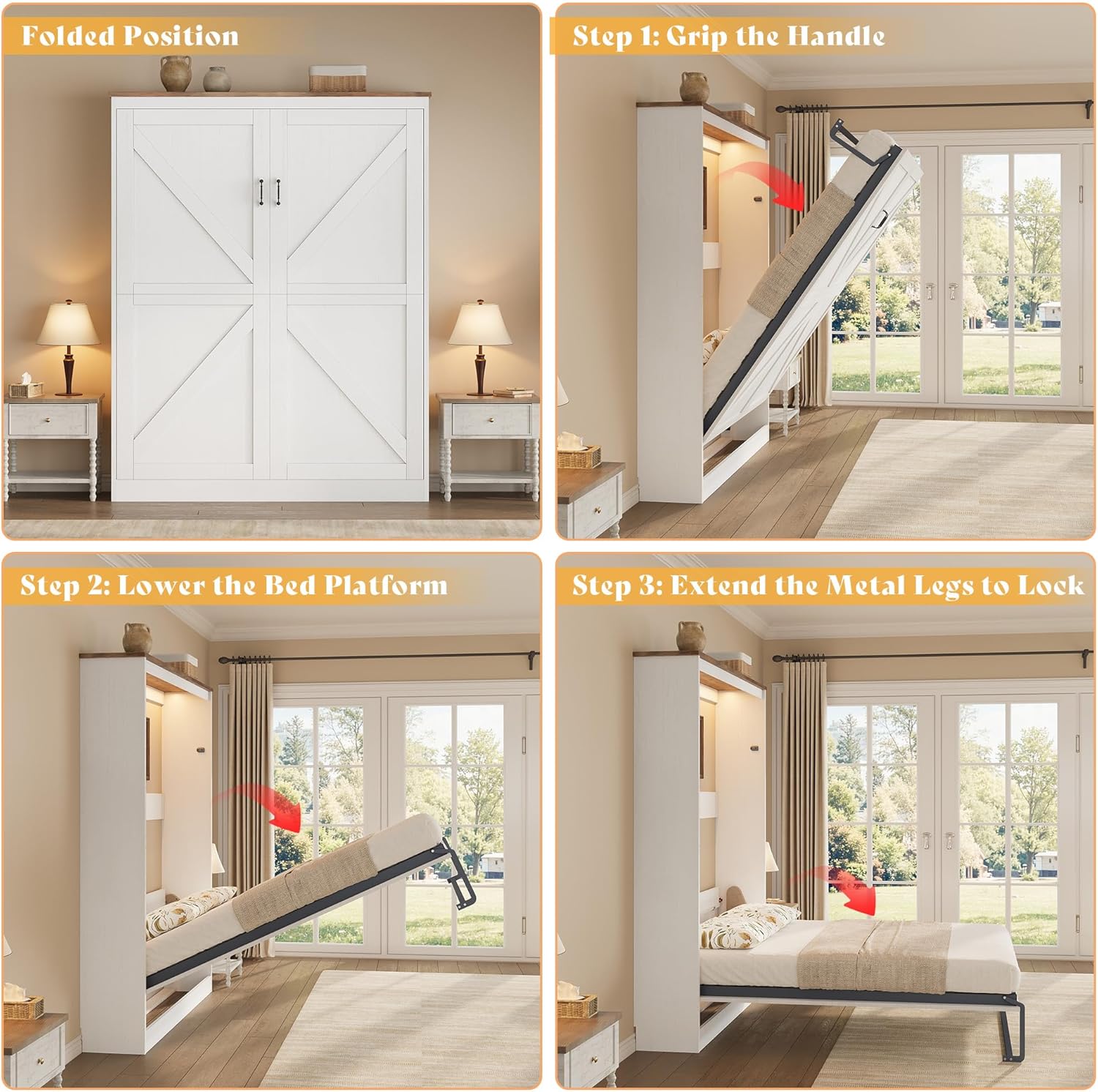

Imaxe: A four-panel graphic demonstrating the steps to open the Murphy bed: 1) Grip the handle, 2) Lower the bed platform, 3) Extend the metal legs to lock. It also shows the bed in its folded cabinet position.

LED Lighting & Charging Station:

• Luces LED: The integrated LED light strip offers adjustable brightness and color settings. Use the provided remote control to customize your ambiance.
• Estación de carga: A built-in charging station includes 1 Type-C port (5V/2.1A), 1 USB port (5V/2.1A), and 2 AC outlets (125V/12A) for convenient device charging.
• Foldable Headboard Guard: A foldable headboard guard is designed to keep pillows securely in place and prevent them from falling behind the bed when in use.

Imaxe: The Murphy bed in its open position, showcasing the LED light strip with various color options and a remote control for adjustment.

Imaxe: Close-up of the built-in charging station, highlighting 1 Type-C Port, 1 USB Port, 2 AC Outlets, and a 5 ft Power Cord.

Mantemento

• Limpeza: Limpe as superficies cun suave, damp pano. Evite produtos químicos agresivos ou produtos de limpeza abrasivos que poidan danar o acabado.
• Verificación de hardware: Periodically check all screws, bolts, and connections to ensure they remain tight. Tighten as needed.
• Puntales de gas: The gas-lift mechanism is designed for durability. If you notice any issues with smooth operation, contact customer support. Do not attempt to repair or modify the gas struts yourself.
• Luces LED: If the LED lights malfunction, check the power connection and remote control battery. For persistent issues, contact customer support.

Resolución de problemas

Bed Does Not Close/Open Smoothly:

• Check Mattress Weight: Ensure your mattress meets the recommended weight of 66-88 lbs. A mattress that is too light or too heavy can affect the gas-lift mechanism.
• Obstáculos: Verify there are no items obstructing the bed's path when opening or closing.
• Hardware: Check all assembly hardware, especially around the gas struts and hinges, to ensure they are securely fastened.

As luces LED non funcionan:

• Conexión de alimentación: Ensure the LED light strip is properly plugged into the charging station and the charging station is connected to a live power outlet.
• Control remoto: Check the battery in the remote control and ensure it is pointed directly at the LED receiver.

Estación de carga non funciona:

• Toma de corrente: Confirm the charging station's power cord is securely plugged into a working wall outlet.
• Compatibilidade do dispositivo: Ensure your devices are compatible with the charging station's output specifications (USB 5V/2.1A, AC 125V/12A).

Especificacións

Garantía e Soporte

For warranty information, technical support, or replacement parts, please contact AMERLIFE customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

Normalmente podes atopar información de asistencia na páxina web do fabricante websitio web ou a través do vendedor onde se comprou o produto.
