Aigo Luna A275 Mini-Tower Gaming PC Case User Manual

1. Introdución

The Aigo Luna A275 is a compact mini-tower PC case designed for users seeking a powerful system in a reduced footprint. It features a modern design with a tempered glass side panel and includes three pre-installed Rainbow fans for efficient cooling and aesthetic lighting. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Aigo Luna A275 PC case.

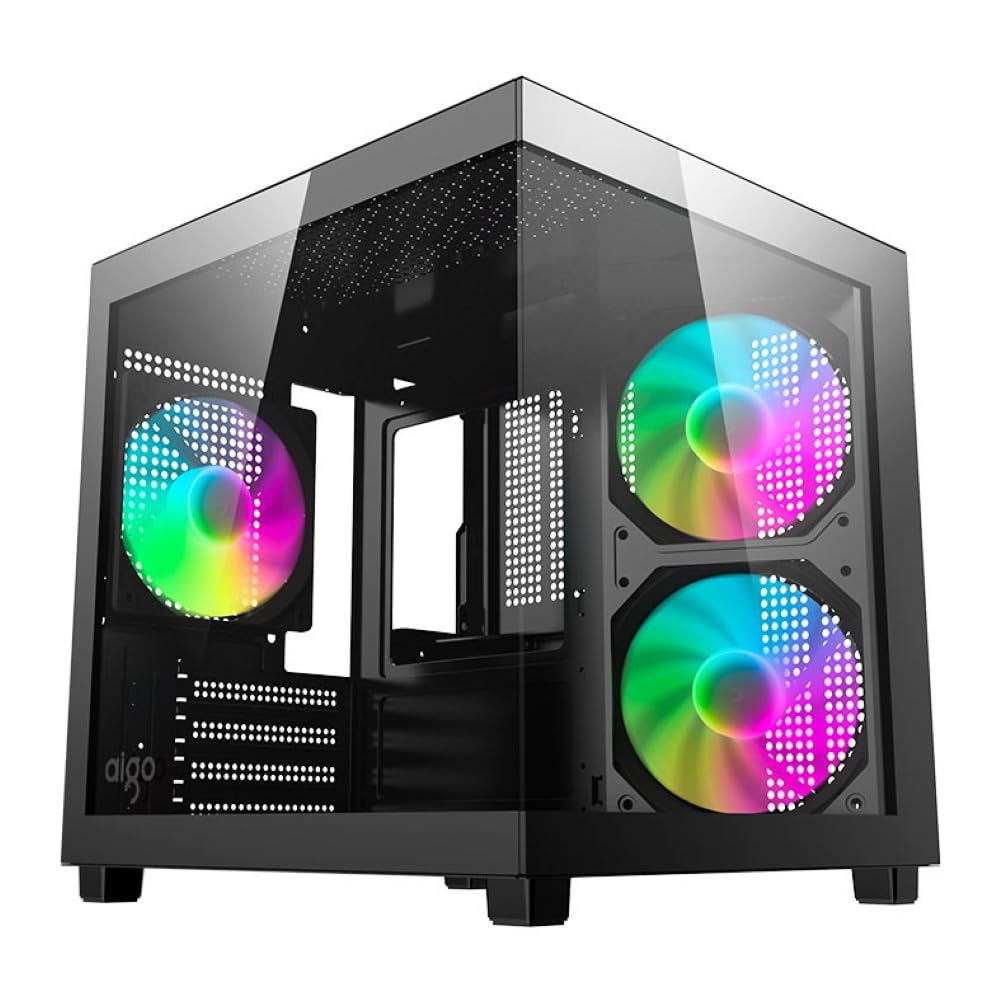

Imaxe 1.1: Fronte view of the Aigo Luna A275 Mini-Tower Gaming PC Case, showcasing its compact design and illuminated Rainbow fans.

2. Características clave

• Pre-installed Rainbow Fans: Includes 3 pre-installed Rainbow fans for enhanced airflow and aesthetic lighting without additional accessories.
• Panel lateral de vidro temperado: A tempered glass side panel allows for clear viewing of internal components and enhances the system's aesthetics.
• Compact Mini-Tower Design: Optimizes desk space while maintaining compatibility with essential PC components.
• Compatibilidade da placa base: Supports Micro-ATX and Mini-ITX motherboards, offering flexibility for various hardware configurations.
• GPU Support: Accommodates graphics cards up to 290 mm in length, suitable for gaming and high-performance applications.
• Liquidación do refrigerador da CPU: Supports CPU coolers up to 155 mm in height, providing options for effective cooling.
• Soporte de refrixeración líquida: Compatible with water coolers up to 240 mm, allowing for advanced liquid cooling solutions.
• Opcións de almacenamento: Dedicated space for 1 x 3.5" HDD and 2 x 2.5" SSDs, balancing loading speed and storage capacity.
• Panel de E/S frontal: Equipped with 1 x USB 3.0, 2 x USB 2.0, and HD audio connections for convenient peripheral access.
• Optimized Internal Structure: Designed for easy assembly and organized component management, contributing to a clean and functional interior.

3. Configuración e instalación

Before beginning installation, ensure you have all necessary components and tools. Refer to your motherboard and component manuals for specific installation instructions.

3.1 Preparación do caso

1. Coloque a caixa sobre unha superficie estable e plana.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws and gently sliding it off. Set it aside on a soft, non-abrasive surface to prevent scratches.
3. Retire o panel lateral traseiro para acceder á área de xestión de cables.

Imaxe 3.1: Interior view of the Aigo Luna A275 case with the side panel removed, showing the internal layout and fan placement.

3.2 Instalación de compoñentes

1. Placa base: Install the I/O shield into the rear opening of the case. Secure the motherboard to the standoffs using appropriate screws. Ensure all standoffs align with the motherboard's screw holes.
2. Unidade de alimentación (PSU): Install the PSU into its designated compartment, typically at the bottom rear of the case. Secure it with screws from the rear.
3. Unidades de almacenamento:
   • For 3.5" HDDs: Mount the drive into the 3.5" drive bay.
   • For 2.5" SSDs: Mount the drives into the 2.5" SSD mounts.
4. Tarxeta gráfica (GPU): Remove the necessary expansion slot covers. Insert the GPU into the PCIe slot on the motherboard and secure it with screws.
5. Refrixeración (opcional): If installing additional fans or a liquid cooler, mount them in the designated locations (top, side, bottom, rear) as per the case specifications.

Imaxe 3.2: Interna view of the Aigo Luna A275 case, illustrating potential component placement such as motherboard, GPU, and fans.

3.3 Xestión de cables

Route all power and data cables through the cutouts in the motherboard tray to the rear side of the case. Use cable ties or Velcro straps to bundle and secure cables, ensuring optimal airflow and a clean appearance.

3.4 Connecting Front Panel Cables

Conecta os cables do panel frontal (USB 3.0, USB 2.0, audio HD, interruptor de alimentación, interruptor de reinicio, LED de alimentación, LED do disco duro) aos conectores correspondentes da túa placa base. Consulta o manual da túa placa base para coñecer a localización exacta dos conectores.

4. Funcionamento

Once all components are installed and cables connected, replace the side panels. Connect your monitor, keyboard, mouse, and power cable to the system.

1. Encendido: Press the power button located on the front I/O panel. The system should boot, and the Rainbow fans will illuminate.
2. Portos do panel frontal: Use the USB 3.0, USB 2.0, and audio jacks on the front panel for convenient access to peripherals and audio devices.
3. Funcionamento do ventilador: The pre-installed Rainbow fans operate automatically to provide airflow. Their illumination is static Rainbow.

5. Mantemento

Un mantemento regular axuda a garantir un rendemento óptimo e unha maior duración dos compoñentes do teu PC.

• Filtros de po: Periodically check and clean any removable dust filters (if present) to maintain good airflow and prevent dust buildup inside the case. Use compressed air or a soft brush.
• Limpeza exterior: Limpe as superficies exteriores cun suave, damp pano. Evite produtos de limpeza abrasivos ou solventes. Para o panel de vidro temperado, use un limpador de cristais e un pano de microfibra.
• Internal Dust: Every few months, open the case and use compressed air to remove dust from internal components, especially heatsinks and fan blades. Ensure the system is powered off and unplugged before cleaning.

6 Solución de problemas

Se tes problemas, ten en conta os seguintes pasos básicos para a súa resolución:

• Sen enerxía:
  • Ensure the power cable is securely connected to the PSU and the wall outlet.
  • Check if the PSU's power switch is in the "ON" position.
  • Verifique que o cable do interruptor de alimentación do panel frontal estea conectado correctamente á placa base.
• Sen visualización:
  • Confirm that the monitor is connected to the graphics card (not the motherboard's integrated graphics, unless intended).
  • Volva colocar a tarxeta gráfica na súa ranura PCIe.
  • Check RAM modules are properly seated.
• Fans Not Spinning/Lighting:
  • Ensure fan power connectors (e.g., 4-Pin MOLEX) are securely connected to the power supply.
  • Check for any obstructions preventing fan rotation.
• Sobrequecemento:
  • Verify that all case fans are spinning correctly and oriented for proper airflow.
  • Clean any dust buildup from fans and heatsinks.
  • Ensure adequate space around the case for ventilation.

7. Especificacións técnicas

8. Garantía e soporte

This Aigo Luna A275 PC case comes with a 12 meses de garantía desde a data de compra. Esta garantía cobre defectos de fabricación e fallos de materiais en condicións de uso normal.

For warranty claims or technical support, please contact your retailer or the official Aigo support channels. Keep your proof of purchase for warranty validation.

The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, accidents, or natural disasters.
