Kohler K-2210-N-0 Caxton 1-Bowl Undermount Bath Sink User Manual

Introdución

The Kohler K-2210-N-0 Caxton 1-Bowl Undermount Bath Sink is designed to provide a seamless and elegant look for your bathroom. Crafted from durable vitreous china, this sink is intended for undercounter installation, integrating smoothly with your chosen countertop. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new sink.

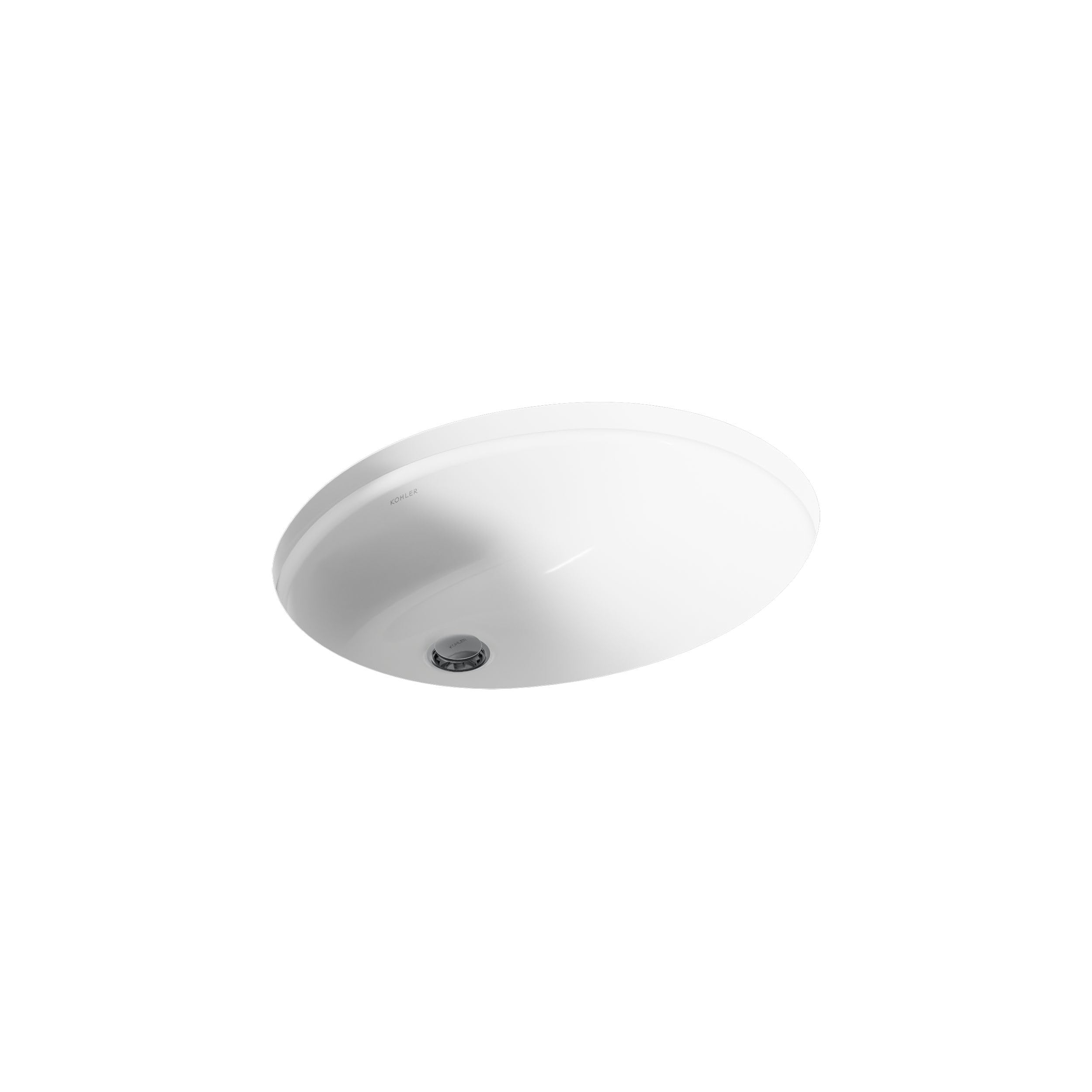

Figure 1: Kohler K-2210-N-0 Caxton Undermount Bath Sink in White.

Información de seguridade

• Use sempre o equipo de protección individual (EPI) axeitado, como lentes e luvas de seguridade, durante a instalación.
• Ensure all water supply lines are shut off before beginning any installation or maintenance work.
• Handle the vitreous china sink with care to prevent chipping or breakage.
• If you are unsure about any installation steps, consult a qualified professional plumber.
• This model features a sealed overflow drain, meaning it does not have a visible overflow hole. Exercise caution to prevent overfilling and potential water damage.

Compoñentes incluídos

The Kohler K-2210-N-0 package includes the following:

• Kohler K-2210-N-0 Caxton 1-Bowl Undermount Bath Sink

Note: Faucets, drains, and other plumbing accessories are sold separately and are not included with the sink.

Especificacións

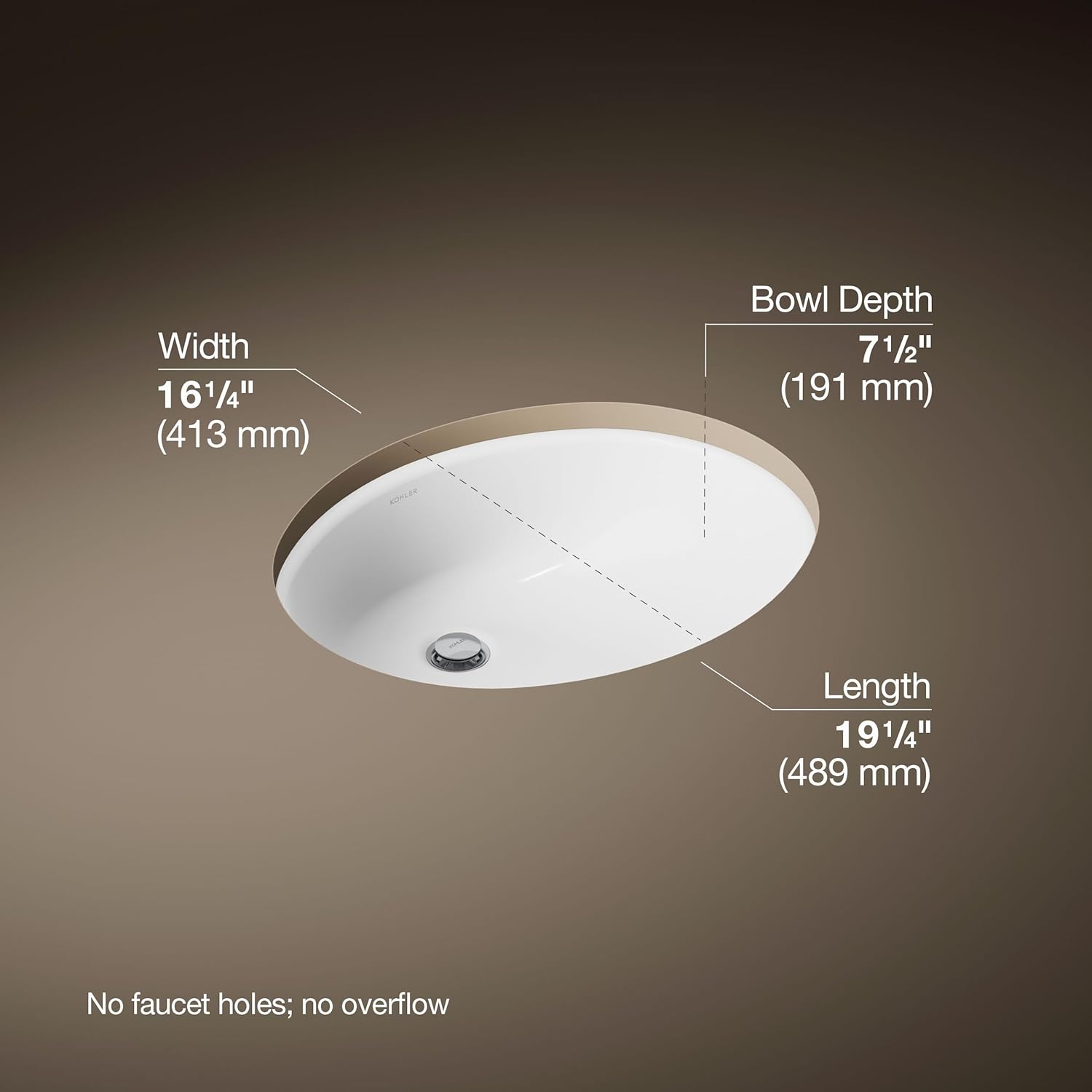

Figure 2: Detailed dimensions of the Kohler Caxton sink, showing width, length, and bowl depth.

Configuración e instalación

The Kohler K-2210-N-0 Caxton sink is designed for undermount installation, providing a clean and integrated look with your countertop. It is compatible with standard 14" x 17" countertop cutouts.

Comprobacións previas á instalación:

• Verify that your countertop has the correct cutout dimensions for an undermount sink.
• Ensure all necessary plumbing components (faucet, drain assembly, P-trap, supply lines) are available and compatible.
• Inspect the sink for any damage prior to installation.

Pasos de instalación (guía xeral):

1. Preparar a encimera: Ensure the underside of the countertop around the sink cutout is clean, dry, and free of debris.
2. Aplicar sellador: Apply a continuous bead of silicone sealant around the rim of the sink where it will meet the underside of the countertop.
3. Colocar o lavabo: Carefully lift and position the sink onto the underside of the countertop, aligning it with the cutout.
4. Asegurar o lavabo: Use the provided mounting clips and hardware to secure the sink firmly to the countertop. Tighten the clips evenly to ensure a tight seal.
5. Conectar fontanería: Install the drain assembly, faucet, and connect the water supply lines and P-trap according to their respective manufacturer's instructions.
6. Proba de fugas: Once all connections are made, turn on the water supply and check thoroughly for any leaks.

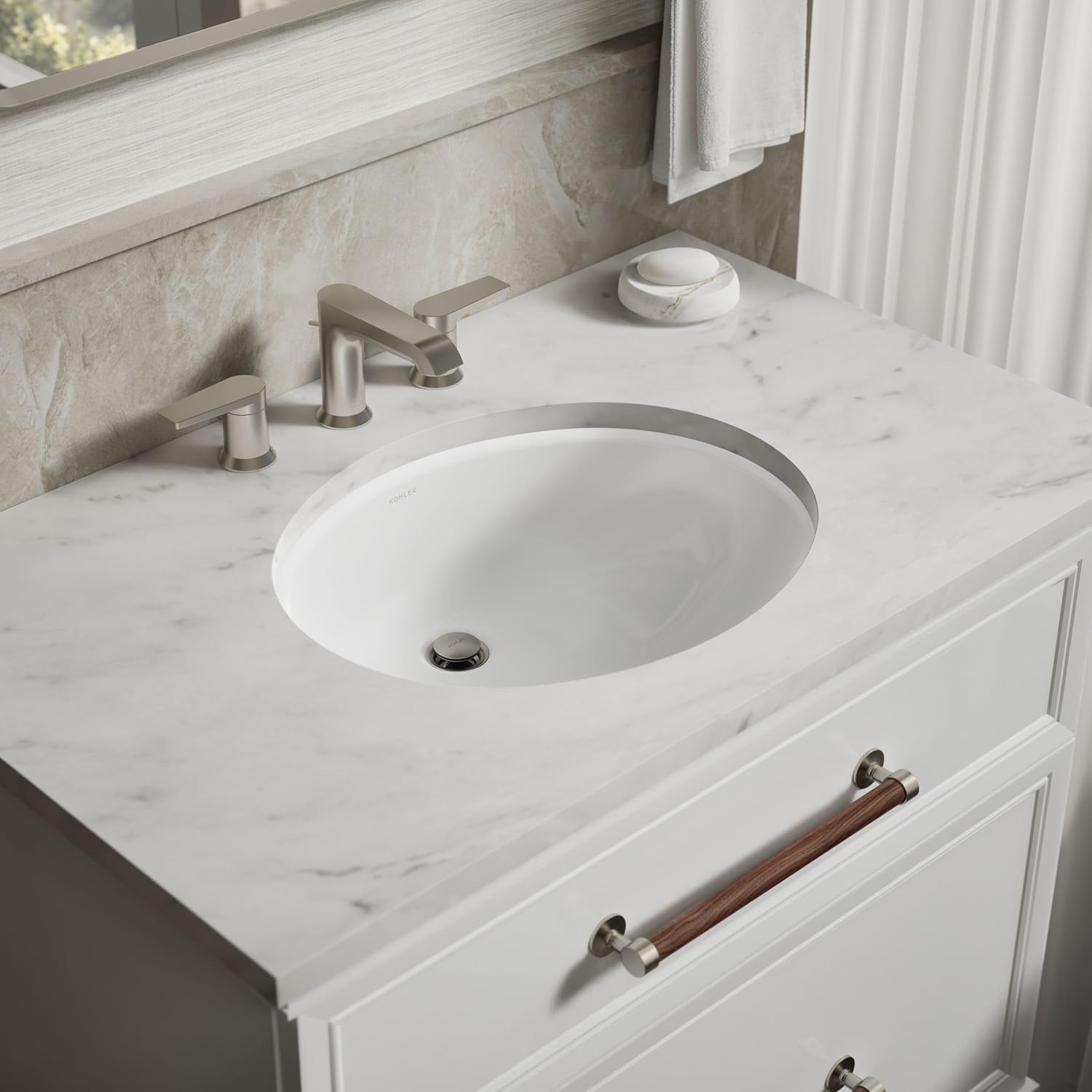

Figure 3: The Kohler Caxton sink seamlessly installed beneath a countertop.

Instrucións de funcionamento

Operating your Kohler Caxton sink is straightforward. Simply use your installed faucet to control water flow and temperature. Remember that this model features a sealed overflow drain, meaning it does not have a visible overflow hole. While this design offers a clean aesthetic, it requires users to be mindful of water levels to prevent accidental overfilling.

Figura 4: Primeiro plano view of the smooth, oval bowl of the Kohler Caxton sink.

Mantemento e coidados

To maintain the pristine appearance and longevity of your Kohler Caxton vitreous china sink, follow these care guidelines:

• Limpeza regular: Clean the sink regularly with a soft cloth, warm water, and a mild, non-abrasive cleaner.
• Evitar abrasivos: Do not use abrasive cleaners, scouring pads, or harsh chemicals (e.g., strong acids, alkalis, or drain cleaners) as these can damage the vitreous china finish.
• Enxágüe ben: After cleaning, rinse the sink thoroughly with clean water and wipe dry to prevent water spots and mineral buildup.
• Previr as manchas: Promptly wipe away any spills, especially those from acidic or staining substances like coffee, tea, or certain cosmetics.
• Protexer contra impactos: Avoid dropping heavy or sharp objects into the sink, which could cause chips or cracks.

Resolución de problemas

Esta sección aborda problemas comúns que podes atopar co teu lavabo.

Issue: Water does not drain properly.

• Check Drain Stopper: Ensure the drain stopper is fully open and not obstructed.
• Inspect P-Trap: The P-trap beneath the sink may be clogged. Carefully remove and clean it.
• Main Line Clog: If other drains in your home are also slow, there might be a clog in the main plumbing line. Consult a plumber.

Issue: Water leaks from under the sink.

• Comproba as conexións: Tighten all plumbing connections (supply lines, drain assembly, P-trap). Do not overtighten.
• Inspect Sealant: Ensure the silicone sealant between the sink and countertop is intact and providing a watertight seal. Reapply if necessary.
• Compoñentes danados: Inspect pipes and fittings for cracks or damage. Replace any faulty parts.

Issue: Sink appears discolored or stained.

• Limpeza: Refer to the "Maintenance and Care" section for proper cleaning procedures. Persistent stains may require specialized vitreous china cleaners.
• Calidade da auga: Hard water can leave mineral deposits. Regular cleaning and drying can prevent this.

Información da garantía

The Kohler K-2210-N-0 Caxton 1-Bowl Undermount Bath Sink comes with a Garantía limitada dun ano from the manufacturer. This warranty covers defects in material and workmanship under normal use and service. For specific terms, conditions, and to register your product, please refer to the official Kohler website or contact Kohler customer service.

Figure 5: Kohler's commitment to quality, often backed by a limited warranty.

Soporte e Contacto

Para obter máis axuda, rexistro de produtos ou para view additional Kohler products, please visit the official Kohler websitio:

www.kohler.com

You can also contact Kohler customer service for support related to your product.
