1. Produto rematadoview
The EPI Sport Utility Clutch Kit WE425007 is engineered for optimal performance in various utility applications, including trail riding, occasional mud and sand riding, plowing, and hauling. This kit is designed to compensate for power loss and slow response often associated with adding oversized tires. It provides improved low-end and midrange acceleration, quicker backshift for crisp throttle response, and helps reduce belt slip and clutch heat. This specific kit is calibrated for elevations between 0 and 3,000 feet and for vehicles equipped with 27-28 inch tires.
2. Compoñentes incluídos

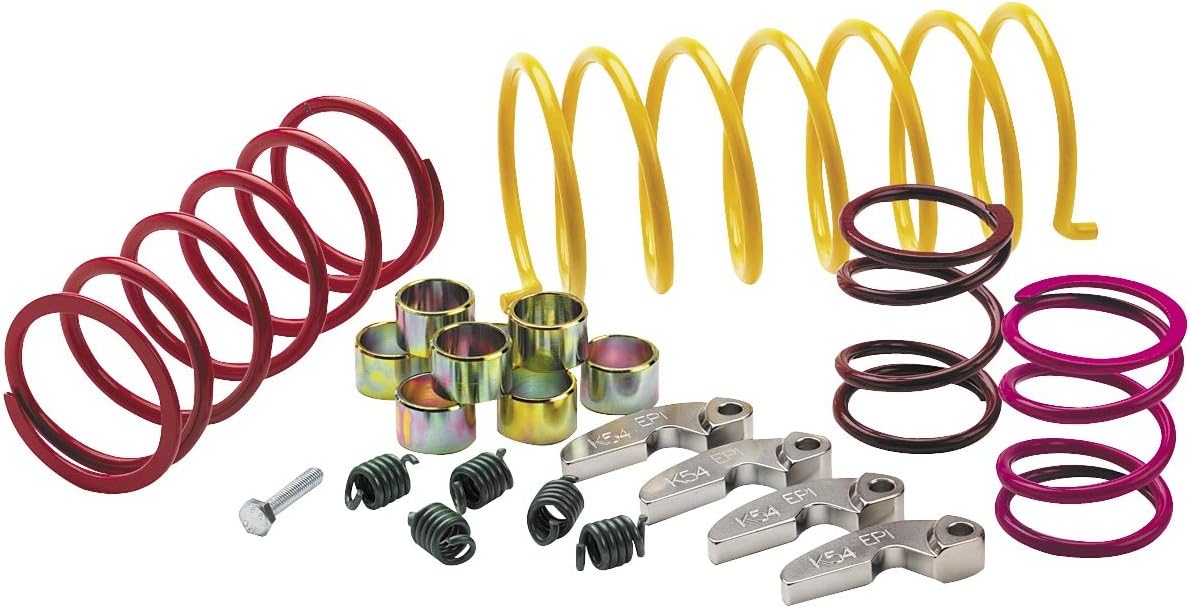

Imaxe: Máis deview of the EPI Sport Utility Clutch Kit components.
The EPI Sport Utility Clutch Kit WE425007 typically includes the following components, designed to work together for enhanced clutch performance:
- Primary Spring: Often a red spring, designed to control the engagement and shift characteristics of the primary clutch.
- Secondary Spring: Typically a yellow spring, influencing the backshift and overall performance of the secondary clutch.
- Clutch Weights (Flyweights): Silver-colored, precisely weighted components that affect how the primary clutch engages and shifts. These are marked 'K54 EPI'.
- Bushings/Rollers: Small metal cylindrical components, often gold-colored, used in the clutch assembly for smooth operation.
- Small Springs: Various smaller springs (e.g., black coiled springs) that may be included for specific clutch adjustments or components.
- Hardware: Includes bolts or other fasteners necessary for installation.
3. Guía de instalación
Installation of a clutch kit requires specialized tools and mechanical expertise. It is highly recommended that this kit be installed by a qualified professional technician to ensure proper function and safety. Incorrect installation can lead to damage to the vehicle, poor performance, or personal injury.
Pasos xerais de instalación (recoméndase a instalación por parte dun profesional):
- Preparación: Ensure the vehicle is safely secured and the engine is cool. Disconnect the battery.
- Access Clutch System: Remove necessary covers or components to gain access to the primary and secondary clutches.
- Eliminar compoñentes antigos: Carefully remove the existing primary and secondary springs, and clutch weights. Note their orientation and position.
- Instalar novos compoñentes: Install the new EPI primary spring, secondary spring, and clutch weights according to the specific instructions provided with the kit (if any, or consult a service manual for your vehicle). Ensure all bushings and hardware are correctly seated.
- Remontaxe: Reinstall all covers and components removed during disassembly. Ensure all fasteners are tightened to the manufacturer's specifications.
- Proba: After installation, perform a thorough test drive in a safe, controlled environment to verify proper clutch engagement, shifting, and overall vehicle performance. Listen for any unusual noises or vibrations.
Refer to your vehicle's service manual for detailed clutch removal and installation procedures specific to your make and model.
4. Principios de funcionamento e vantaxes
The EPI Sport Utility Clutch Kit modifies the power delivery characteristics of your vehicle's continuously variable transmission (CVT) system. By optimizing spring rates and clutch weight profiles, the kit ensures the engine operates within its optimal power band more effectively, especially when dealing with increased load from oversized tires or demanding terrain.
- Improved Low-End and Midrange Acceleration: The kit is tuned to provide a more aggressive initial engagement and stronger pull through the mid-range RPMs, which is crucial for quick starts and navigating challenging obstacles.
- Quicker Backshift: This refers to the clutch's ability to downshift rapidly when throttle is reduced or load increases, keeping the engine in its power band and providing crisp throttle response.
- Reduced Belt Slip: Proper clutch tuning minimizes belt slippage, which is a common issue with stock clutches when larger tires are installed or under heavy loads. Reduced slip leads to better power transfer and extends belt life.
- Reduced Clutch Heat: By operating more efficiently and reducing slip, the clutch system generates less heat, preserving the life of clutch components and the drive belt.
5. Mantemento
Regular inspection and maintenance of your clutch system are vital for sustained performance and longevity. While the EPI clutch kit components are durable, they are subject to wear and tear.
- Inspección de rutina: Periodically inspect the primary and secondary clutches, drive belt, and all clutch kit components for signs of wear, cracks, or damage. Check for proper alignment and cleanliness.
- Estado da correa: Regularly check the drive belt for fraying, glazing, cracks, or excessive wear. Replace the belt if any signs of damage are present.
- Clutch Cleaning: Keep the clutch components clean and free of dirt, dust, and debris. Compressed air can be used to blow out dust from the clutch housings. Avoid using lubricants on clutch faces.
- Desgaste dos compoñentes: Pay close attention to the clutch weights, springs, and bushings for signs of excessive wear or deformation. Worn components can negatively impact performance.
- Servizo profesional: Consider having your clutch system professionally inspected and serviced at recommended intervals, especially if you frequently operate in harsh conditions.
6 Solución de problemas
Esta sección ofrece orientación xeral para problemas comúns. Para problemas complexos, consulte cun técnico cualificado.
| Síntoma | Causa posible | Solución |
|---|---|---|
| Poor acceleration or sluggish response | Worn drive belt, incorrect clutch setup, worn clutch components, engine issues | Inspect/replace drive belt. Verify clutch kit installation. Check for worn springs or weights. Consult engine diagnostics. |
| Excessive belt wear or burning smell | Belt slippage, misaligned clutches, worn clutch sheaves, incorrect belt tension | Inspect belt and clutches for glazing/wear. Check clutch alignment. Ensure proper belt tension. |
| Unusual noises from clutch area | Loose components, worn bearings, foreign debris, damaged springs | Inspect all fasteners for tightness. Check for debris. Examine bearings and springs for damage. |
| Vehicle not engaging or moving | Broken drive belt, severely worn clutch components, transmission issue | Inspect drive belt. Check clutch for severe damage. Consult a professional for transmission diagnosis. |
7. Especificacións
- Número de modelo: WE425007
- Fabricante: EPI
- Peso do artigo: Aproximadamente 3.25 libras (1.47 kg)
- Dimensións do produto: Aproximadamente 10 x 5.5 x 5.5 polgadas (25.4 x 13.97 x 13.97 cm)
- Recommended Elevation: 0-3000 pés
- Tamaño de pneumático recomendado: 27-28 polgadas
- Aplicación: Sport Utility Vehicles (ATVs/UTVs)
8. Garantía e soporte
For specific warranty information regarding your EPI Sport Utility Clutch Kit WE425007, please refer to the documentation included with your purchase or visit the official EPI website. Warranty terms typically cover manufacturing defects and may vary. For technical support, installation assistance, or parts inquiries, it is recommended to contact EPI directly through their official customer service channels or consult an authorized EPI dealer.
EPI Official Websitio: www.epiperformance.com
