1. Introdución

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Beverage-Air HF3-5S Horizon Series Three Section Reach-In Freezer. Please read this manual thoroughly before operating the unit and retain it for future reference.

1.1 Información de seguridade

Always observe basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Ensure the unit is properly grounded. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Disconnect power before performing any maintenance or cleaning.

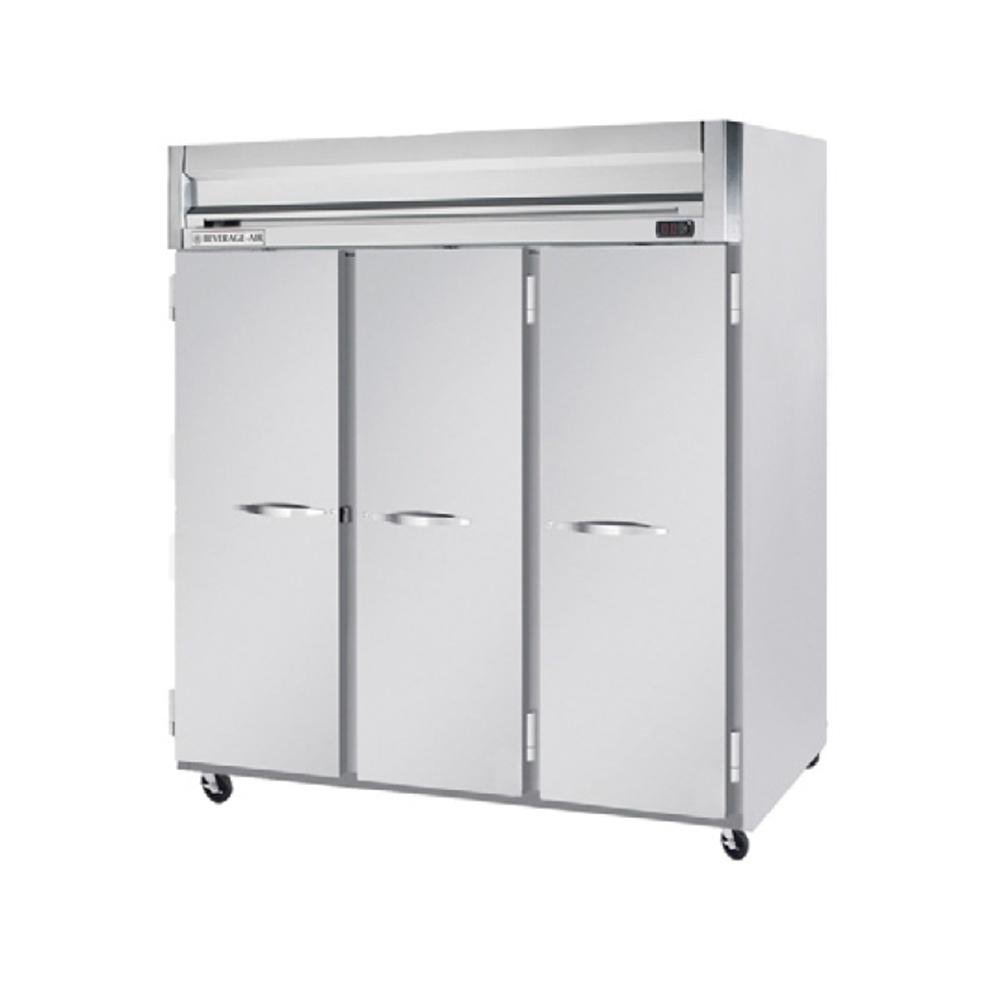

This image displays the Beverage-Air HF3-5S commercial reach-in freezer. It features a stainless steel front with three solid swing doors, each equipped with a handle. The unit is mounted on casters for mobility. The top-mounted refrigeration system is visible above the doors.

2. Configuración e instalación

2.1 Desembalaxe

Carefully remove all packaging materials. Inspect the freezer for any shipping damage. Report any damage immediately to the carrier and your supplier.

2.2 Colocación

Position the freezer on a level, sturdy surface capable of supporting its weight (approximately 873 lbs). Ensure adequate clearance around the unit for proper ventilation, especially for the top-mounted refrigeration system. The unit is equipped with 6-inch casters for ease of movement during installation.

2.3 Conexión eléctrica

The Beverage-Air HF3-5S freezer requires a 208/230V, 1 HP, 4-wire electrical circuit. This unit is designed for field wiring and must be hard-wired by a qualified electrician in accordance with all local and national electrical codes. Ensure the power supply matches the unit's requirements.

3. Instrucións de funcionamento

3.1 Inicio inicial

1. After electrical connection, allow the unit to sit for at least 2 hours before powering on to allow refrigerants to settle.
2. Acende o interruptor principal.
3. The electronic control with digital display will activate. Allow the freezer to reach its operating temperature of approximately 0°F (-18°C) before loading products.

3.2 Control de temperatura

The electronic control system allows for precise temperature management. Refer to the digital display for the current internal temperature. Consult the separate control panel manual (if provided) for detailed instructions on adjusting temperature settings.

3.3 Loading and Access

• The freezer features three solid swing doors with a 120° stay-open feature for convenient loading and unloading.
• Each door section contains three epoxy-coated steel wire shelves, adjustable in 1/2-inch increments, to accommodate various product sizes.
• Interior lighting illuminates the cabinet for better visibility of contents.

3.4 Desconxelación automática

The unit is equipped with an automatic defrost system, which periodically removes frost buildup from the evaporator coil. This process is managed by the electronic control system and does not require manual intervention.

4. Mantemento

4.1 Limpeza

• Exterior: Clean the stainless steel front and gray painted sides regularly with a mild detergent and a soft cloth. Avoid abrasive cleaners.
• Interior: The aluminum interior should be cleaned periodically with a non-abrasive cleaner. Remove shelves for thorough cleaning.
• Tiradores das portas: The antimicrobial handles should be wiped down regularly to maintain hygiene.
• Serpentín do condensador: The top-mounted refrigeration system includes a condenser coil that requires regular cleaning to ensure efficient operation. Access is provided via a removable access panel. Consult a qualified technician for this procedure.

4.2 Comprobacións de rutina

• Inspect door gaskets for tears or damage that could affect sealing.
• Ensure shelves are securely in place.
• Monitor the digital display for consistent temperature readings.

5 Solución de problemas

Antes de contactar co servizo técnico, volva aview os seguintes problemas comúns:

• Unit Not Running: Check power supply, circuit breaker, and ensure the unit is plugged in correctly (if applicable for initial setup, though this unit is hard-wired).
• Refrixeración insuficiente: Verify temperature setting, ensure doors are closing properly, check for excessive frost buildup (though automatic defrost is present, severe issues could occur), and ensure condenser coil is clean.
• Ruído inusual: Check for loose components or obstructions around the fan motor.

For issues not resolved by these steps, contact a qualified service technician.

6. Especificacións

7. Garantía e soporte

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Beverage-Air customer service directly. Ensure you have your model number (HF3-5S) and serial number available when contacting support.
