Emtek 8369 Square Style Brass Modern Double Cylinder Deadbolt User Manual

1. Introdución

Thank you for choosing the Emtek 8369 Square Style Brass Modern Double Cylinder Deadbolt. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new deadbolt. Please read this manual thoroughly before installation and retain it for future reference.

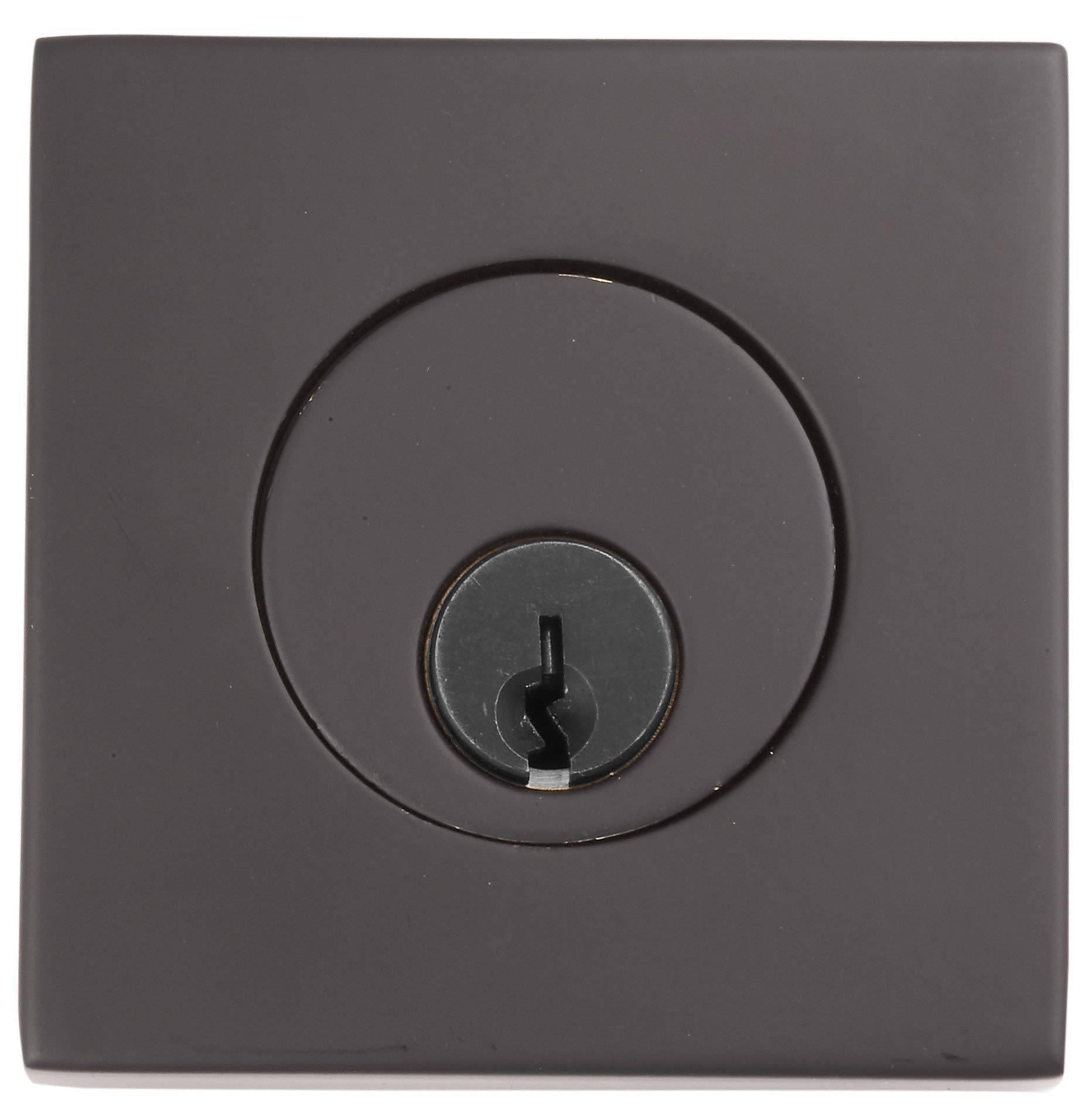

Figure 1: Emtek 8369 Square Style Brass Modern Double Cylinder Deadbolt. This image displays the complete deadbolt assembly in a flat black finish, highlighting its square modern design.

2. Información de seguridade

Always follow basic safety precautions when installing and operating this product to reduce the risk of injury or damage.

• Use equipo de protección individual axeitado, como lentes de seguridade, durante a instalación.
• Asegúrese de que todos os compoñentes estean presentes e sen danos antes de comezar a instalación.
• Use only the tools specified in the installation guide.
• Do not modify the deadbolt or its components. Unauthorized modifications may compromise security and void the warranty.
• Manteña os nenos e as mascotas lonxe da zona de instalación.
• This is a double cylinder deadbolt, requiring a key for both interior and exterior operation. Ensure all occupants are aware of this feature and that a key is readily accessible in case of emergency.

3. Contido do paquete

Verify that all parts are included in your package before proceeding with installation.

• Exterior Cylinder Assembly
• Interior Cylinder Assembly
• Deadbolt Latch Mechanism
• Placa de folga
• Reinforcement Plate (if included)
• Parafusos de montaxe
• Chaves (normalmente 2)
• Modelo de instalación (se está incluído)

4. Configuración e instalación

4.1 Ferramentas necesarias

• Destornillador Phillips
• Cinta métrica
• Lapis
• Drill with appropriate bits (if new door preparation is needed)
• Chisel (if new door preparation is needed)

4.2 Pasos da instalación

Follow these steps carefully for a secure installation. If you are replacing an existing deadbolt, remove the old hardware first.

1. Prepara a porta: Ensure the door has the correct bore holes (typically 2-1/8 inch diameter for the deadbolt and 1 inch diameter for the latch) and backset (2-3/8 inch or 2-3/4 inch). Use the provided template if drilling new holes.
2. Instalar o pestillo: Insert the deadbolt latch into the edge bore hole of the door. Ensure the "UP" arrow (if present) faces upwards. Secure it with the provided screws. The latch bolt should extend and retract smoothly.
3. Install the Exterior Cylinder: Insert the exterior cylinder assembly through the 2-1/8 inch bore hole from the outside of the door. Ensure the tailpiece (the flat bar extending from the cylinder) passes through the slot in the latch mechanism.
4. Install the Interior Cylinder: Align the interior cylinder assembly with the exterior cylinder. The tailpiece from the exterior cylinder should engage with the cam mechanism on the interior cylinder. Secure the interior cylinder to the exterior cylinder using the long mounting screws provided. Tighten screws evenly until snug, but do not overtighten.
5. Instalar a placa de peche: Close the door and mark the center of the deadbolt latch on the door frame. Chisel out a recess for the strike plate and secure it with the provided screws. Ensure the deadbolt extends fully into the strike plate opening without obstruction.
6. Proba de funcionamento: Insert a key into both the exterior and interior cylinders. Turn the key to ensure the deadbolt extends and retracts smoothly without binding.

No official product videos were provided by the seller for installation. Please refer to the written instructions and diagrams (if available in a physical manual) for guidance.

5. Instrucións de funcionamento

The Emtek 8369 is a double cylinder deadbolt, meaning it requires a key to lock and unlock from both the interior and exterior sides of the door.

• Para bloquear: Insert the key into the cylinder on either side of the door. Turn the key clockwise (or counter-clockwise, depending on installation) until the deadbolt bolt fully extends into the strike plate. Remove the key.
• Para desbloquear: Insert the key into the cylinder on either side of the door. Turn the key counter-clockwise (or clockwise) until the deadbolt bolt fully retracts into the door. Remove the key.

Important: For safety, always ensure a key is readily available inside the premises for emergency egress, as this deadbolt cannot be opened from the inside without a key.

6. Mantemento

Proper maintenance will ensure the longevity and smooth operation of your deadbolt.

• Limpeza: Limpar as superficies exteriores cun pano suave eamp pano. Evite produtos de limpeza abrasivos, solventes ou produtos químicos agresivos, xa que poden danar o acabado.
• Lubricación: Periodically (e.g., once a year), apply a small amount of graphite lubricant or a silicone-based lubricant specifically designed for locks into the keyway. Do not use oil-based lubricants, as they can attract dirt and dust.
• Parafusos de verificación: Occasionally check all mounting screws for tightness. Loose screws can affect the deadbolt's performance and security.
• Coidados clave: Do not force a key into the lock. If the key is difficult to insert or turn, check for obstructions or consider lubricating the lock.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

Emtek products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, including coverage and duration, please refer to the warranty card included with your product or visit the official Emtek websitio.

For technical support, replacement parts, or further assistance, please contact Emtek customer service directly. Contact information can typically be found on the product packaging or the official Emtek websitio.

No specific warranty or support contact details were provided in the product data.
