Holmes Cool Mist Humidifier HM1300BF-UM Instruction Manual

Instrucións de seguridade importantes

Please read and save these important safety instructions before using your humidifier. Failure to follow these instructions may result in electric shock, fire, or injury.

• Always place the humidifier on a firm, flat, level, and water-resistant surface.
• Non coloque o humidificador preto de fontes de calor como estufas, radiadores ou quentadores.
• Asegúrate de que o cable de alimentación non estea axustado nin colocado debaixo de obxectos pesados.
• Unplug the humidifier from the electrical outlet before filling, cleaning, or moving it.
• Non faga funcionar o humidificador cun cable ou enchufe danados.
• Manteña o humidificador fóra do alcance dos nenos e das mascotas.
• Do not block air vents or openings on the humidifier.
• Use only clean, cool tap water in the water tank. Do not add essential oils or other additives directly to the water tank unless specifically instructed by the manufacturer.

Produto rematadoview

The Holmes Cool Mist Humidifier HM1300BF-UM is designed to provide refreshing, invisible cool mist for small rooms. It helps relieve cough, cold symptoms, and dry skin by adding moisture to the air.

• Capacidade: Holds up to 1.0 gallon (3.79 liters) of water.
• Tempo de execución: Operates for up to 24 hours per tank filling.
• Configuración de velocidade: Features two speed settings for customized comfort.
• Protección antimicrobiana: Contains an Antimicrobial Product Protection Additive to help prevent the growth of mold and bacteria.
• Requisito do filtro: Requires Holmes A or Sunbeam A Filter Models HWF62, SWF62, or SF212.

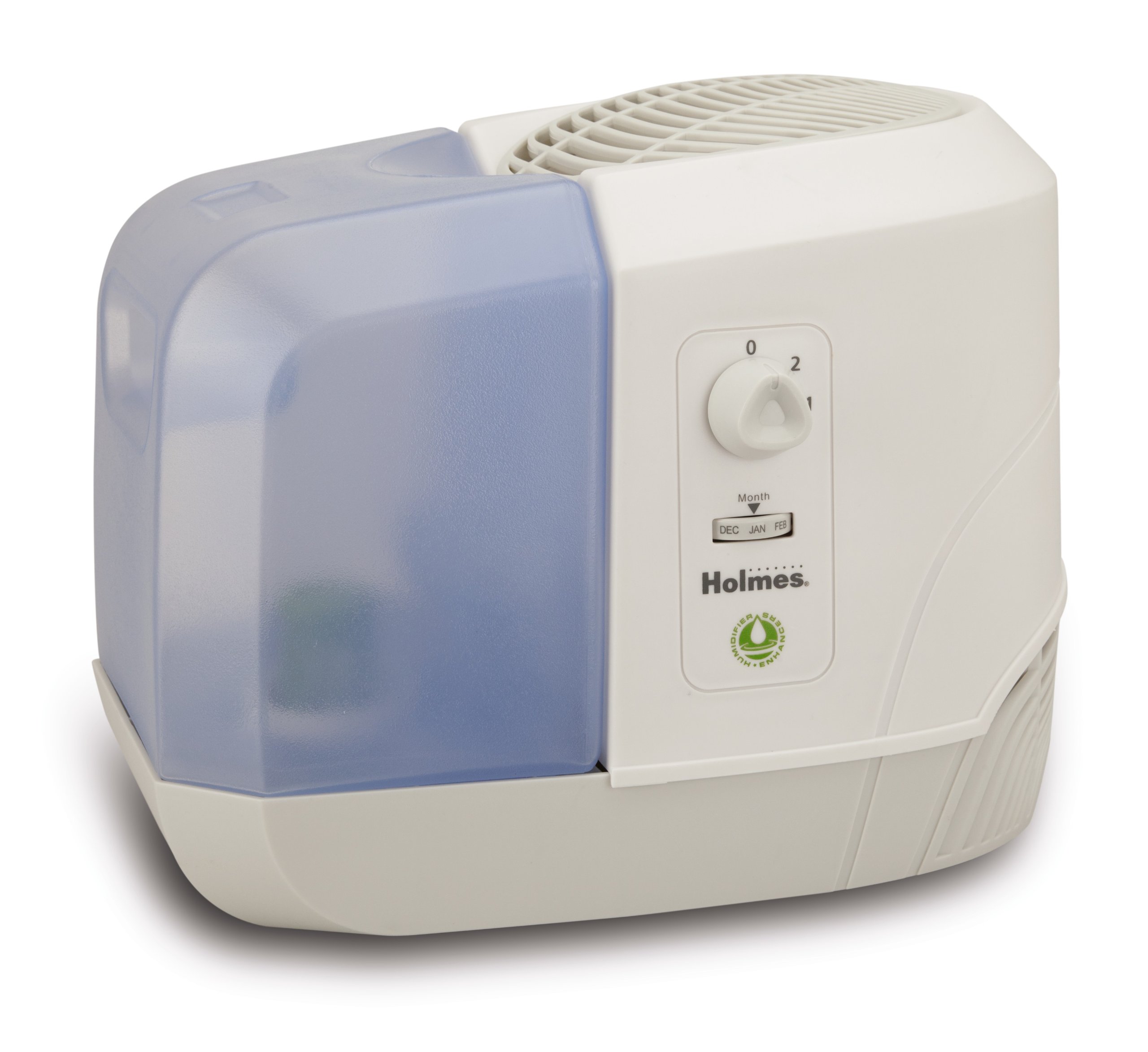

Image: Holmes Cool Mist Humidifier HM1300BF-UM. This image shows the humidifier unit with its clear blue water tank and white base, highlighting its compact design and key features like the control dial and filter information.

Configuración e montaxe

1. Desempaquetar: Retire con coidado todos os compoñentes da embalaxe. Garde a embalaxe para o seu almacenamento ou transporte futuros.
2. Colocación: Choose a suitable location for your humidifier. Place it on a flat, water-resistant surface at least six inches away from walls and furniture. Do not place it directly on carpet or finished floors.
3. Encher o depósito de auga:
   • Retire o depósito de auga da base.
   • Unscrew the tank cap and fill the tank with cool, clean tap water. Do not overfill.
   • Volva colocar a tapa do depósito de forma segura.
   • Coloque o depósito de auga cheo de volta na base do humidificador, asegurándose de que estea asentado correctamente.
4. Inserir filtro: Ensure the required Holmes A or Sunbeam A filter (HWF62, SWF62, or SF212) is correctly inserted into the designated filter slot within the humidifier unit. The filter should be pre-soaked in water for 15 minutes before first use to ensure optimal wicking.

Instrucións de funcionamento

1. Encendido: Enchufe o humidificador nunha toma eléctrica de 120 V CA.
2. Seleccionar velocidade: Turn the control dial to select your desired mist output setting:
   • Baixa (1): For continuous, gentle humidification.
   • Alto (2): For faster humidification or when higher moisture levels are desired.
3. Monitor de nivel de auga: The humidifier will automatically shut off when the water tank is empty. Refill the tank as described in the Setup section.
4. Apagado: To turn off the humidifier, turn the control dial to the 'OFF' position and unplug the unit from the electrical outlet.

Mantemento e Limpeza

Regular cleaning and maintenance are crucial for optimal performance and to prevent the growth of mold and bacteria. Always unplug the humidifier before cleaning.

Mantemento diario:

• Refill the water tank with fresh, cool tap water.
• Non deixes stagnant water in the tank or base for extended periods.

Limpeza semanal:

1. Auga baleira: Remove the water tank and empty any remaining water from both the tank and the base.
2. Limpar o tanque: Fill the water tank halfway with water and add 2 tablespoons of white vinegar. Shake vigorously and let stand for 20 minutes. Rinse thoroughly with clean water until the vinegar smell is gone.
3. Base limpa: Wipe the inside of the base with a soft cloth dampened with white vinegar. Rinse the base thoroughly with clean water.
4. Limpar o filtro: If the filter appears discolored or stiff, it may need cleaning or replacement. You can gently rinse the filter under cool water to remove loose mineral deposits. Do not wring or twist the filter.

Substitución do filtro:

The humidifier requires Holmes A or Sunbeam A Filter Models HWF62, SWF62, or SF212. Filters typically last 1 to 3 months, depending on water hardness and usage. Replace the filter when it becomes hard, discolored, or when mist output decreases significantly.

Image: Holmes A Replacement Filter. This image displays the 'A' series replacement filter, indicating compatibility with Holmes, Sunbeam, and Bionaire humidifiers. It serves as a visual guide for identifying the correct filter type.

Resolución de problemas

Especificacións

• Número de modelo: HM1300BF-UM
• Marca: HOLMES
• Cor: Branco
• Capacidade: 1.0 galón (3.79 litros)
• Dimensións do produto: 11.1 x 14.7 x 11.8 polgadas
• Peso do artigo: 5.3 libras
• Tipo de filtro: Holmes A or Sunbeam A (HWF62, SWF62, SF212)
• Potencia: 120 V CA

Garantía e Soporte

Specific warranty details for the Holmes Cool Mist Humidifier HM1300BF-UM are not provided in this document. Please refer to the warranty card included with your product packaging or visit the official Holmes websitio para obter información detallada sobre a garantía.

For customer support, replacement parts, or additional product information, please visit the HOLMES Store on Amazon or contact Holmes customer service directly.
