Techko S187D Safe Pool Alarm Instruction Manual

1. Produto rematadoview

The Techko S187D Safe Pool Alarm is designed to enhance safety around pool areas by providing an audible alert when an entry point is opened. This alarm is compliant with UL 2017 safety standards and child pool safety laws, offering a high-output 110-115 dB, 6-tone alarm with "Always On" protection. It features a bypass function for temporary deactivation and a secondary sensor for screen doors.

Image: Techko S187D Safe Pool Alarm installed on a pool gate, emphasizing child safety.

2. Características clave

• Conformidade UL 2017: Meets safety standards and child pool safety laws.
• High-Output Alarm: Produces 110-115 dB, 6-tone sound for immediate alert.
• "Always On" Protection: Ensures continuous monitoring of entry points.
• Función de derivación: Two bypass buttons temporarily disable the alarm for 10 seconds, indicated by a blinking LED.
• Patented Screen Door Sensor: Allows sliding glass doors to remain open without triggering the alarm when the screen door is closed. Note: One alarm per door/entry point; secondary sensor does not function as a separate alarm.
• Fácil instalación: Includes adhesives and placers for mounting on walls and door frames, designed to be out of reach of children.
• Duradeiro e resistente ás inclemencias meteorolóxicas: IP65 waterproof rating suitable for moderate rain and snow.
• Indicador de batería baixa: An always-on red LED indicates when the 9V battery (not included) needs replacement.

3. Contido do paquete

The Techko S187D Safe Pool Alarm package includes the following components:

• 1 x S187D Pool Alarm Unit
• 1 x Secondary Sensor
• 1 x Secondary Bypass Button
• 1 x Mounting Kit (screws and wall anchors)
• 2 x 3M Adhesives
• 4 x Sensor Spacers
• 2 x Extra Zipties

Imaxe: Detallada view of all components included in the Techko S187D Safe Pool Alarm box.

4. Configuración e instalación

Proper installation is crucial for the effective operation of your Techko S187D Safe Pool Alarm. Follow these steps carefully:

1. Escolla o lugar de instalación: Decide where to install the alarm (e.g., pool gate, door, window, or other entry point to your pool area).
2. Limpar a superficie: Ensure the installation surface is clean, dry, and free of any debris for optimal adhesive performance.
3. Attach Magnetic Sensors: Remove the adhesive backing from the magnetic sensors and attach them to the entry point. Ensure they are aligned and close enough to trigger the alarm when separated.
4. Mount the Alarm Unit: Use the included adhesives or screws from the mounting kit to securely attach the main alarm unit to the surface. Position it out of reach of children (typically 54 inches or higher).
5. Install Secondary Bypass Button: Attach the secondary bypass button to the opposite side of the door/gate using adhesives. Plug its cable into the bottom of the main alarm unit.
6. Inserir batería: Open the battery compartment (usually at the bottom or back of the unit), connect a 9V battery (not included) to the terminal, and place it inside. Close the compartment securely.
7. Proba a alarma: Open and close the gate, door, or window. The alarm should sound when the magnetic contact is broken without pressing the bypass button.

Image: The alarm unit and magnetic sensor installed on a sliding door, demonstrating its versatility.

Image: The alarm and its secondary bypass button mounted on a metal pool gate.

Guía de vídeo de instalación:

Video: A detailed guide on installing the Techko Safe Pool Alarms, applicable to models S187D, S189, and S287. This video demonstrates surface preparation, sensor attachment, alarm unit mounting, and secondary bypass button installation.

5. Funcionamento

The Techko S187D Safe Pool Alarm operates to provide immediate alerts for unauthorized entry into your pool area.

• Activación da alarma: When the magnetic contact between the main unit and its sensor (or secondary sensor) is broken, the high-output 110-115 dB alarm will sound immediately.
• Función de derivación: To temporarily disable the alarm for 10 seconds (e.g., for authorized entry/exit), press the "BYPASS" button on the main unit or the secondary bypass button before opening the entry point. The LED indicator will blink during the bypass period. After 10 seconds, the alarm will automatically re-arm.
• Screen Door Functionality: If using the patented screen door sensor, you can keep the main sliding glass door open without triggering the alarm, provided the screen door remains closed and its sensor contact is maintained.

Image: The secondary sensor allows for screen doors to be open without triggering the main alarm.

6. Mantemento

• Substitución da batería: The alarm requires one 9V battery (not included). A red "Low Battery" LED indicator will remain on when the battery needs to be replaced. Replace the battery promptly to ensure continuous protection.
• Limpeza: Wipe the alarm unit and sensors with a soft, damp cloth as needed. Avoid using harsh chemicals or abrasive cleaners.
• Resistencia á intemperie: The unit has an IP65 waterproof rating, making it resistant to moderate rain and snow. However, avoid submerging the unit in water.

Image: The alarm unit demonstrating its IP65 weather-resistant design in rainy conditions.

7 Solución de problemas

• A alarma non soa:
  • Check if the 9V battery is installed correctly and is not depleted (look for the "Low Battery" LED).
  • Ensure the magnetic sensors are properly aligned and separate sufficiently when the entry point is opened.
  • Verify that the bypass button is not pressed or stuck.
• Falsas alarmas:
  • Ensure the magnetic sensors are securely attached and do not shift, causing accidental separation.
  • Check for any obstructions that might be interfering with the sensor alignment.
• Bypass Button Not Working:
  • Confirm the secondary bypass button is correctly plugged into the main unit.
  • Ensure the button is fully depressed and released.

8. Especificacións

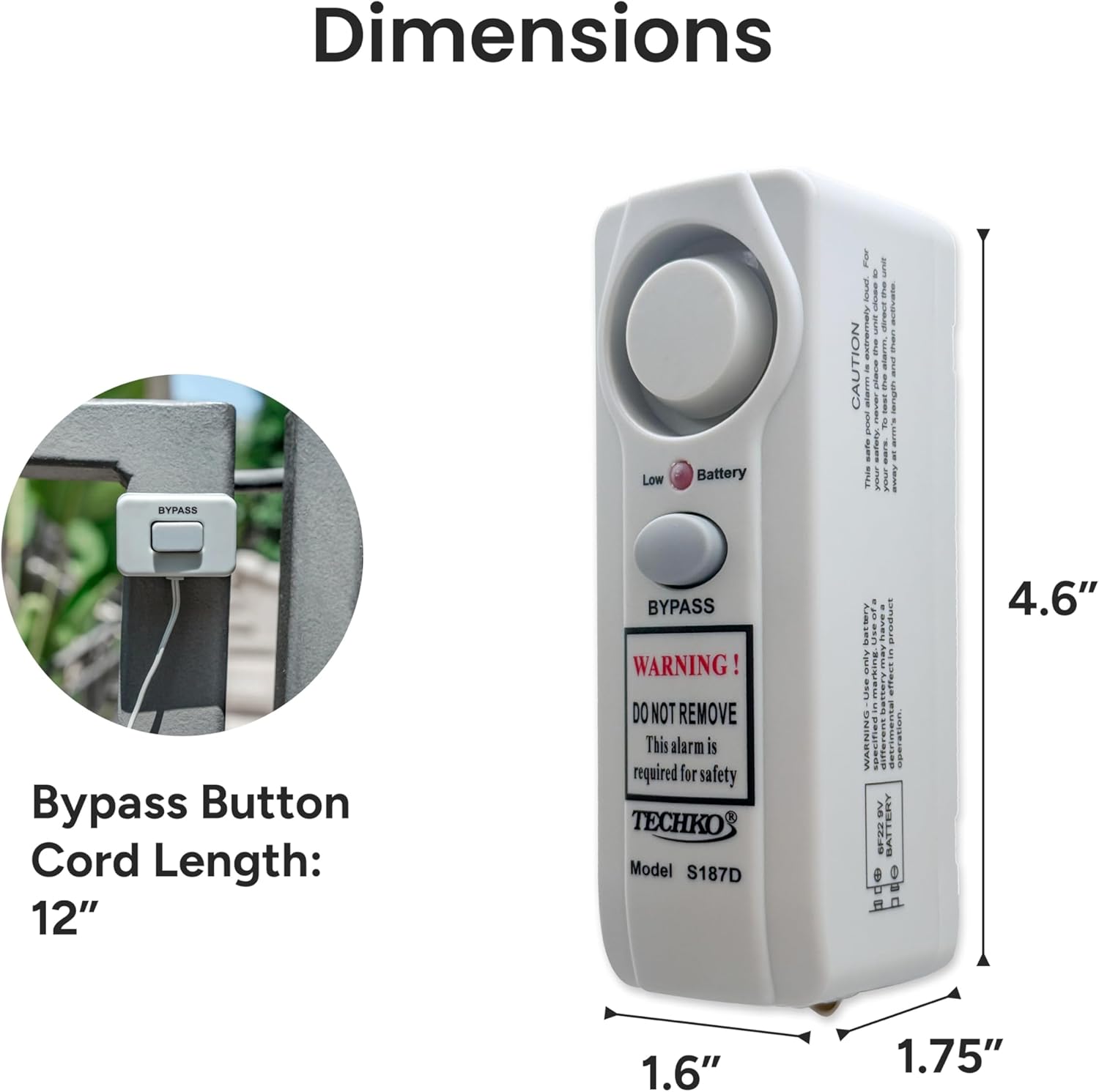

Image: Dimensions of the Techko S187D Safe Pool Alarm.

9. Garantía e soporte

For warranty information, technical support, or any inquiries regarding your Techko S187D Safe Pool Alarm, please contact TECHKO customer service directly. Refer to the product packaging or the official TECHKO websitio web para obter os datos de contacto máis actualizados.
