Manual de instrucións do reloxo analóxico-dixital Casio Edifice EFA-131D-1A1VDF

1. Introdución

This manual provides detailed instructions for the proper use and maintenance of your Casio Edifice EFA-131D-1A1VDF Analog-Digital Watch. Please read this manual carefully to ensure correct operation and to fully utilize all features of your timepiece.

The Casio Edifice EFA-131D-1A1VDF features a black dial, stainless steel case, and stainless steel band. It combines analog timekeeping with digital display functions, offering versatility and precision.

• Cor da esfera: Negro
• Forma da caixa: Redondo
• Dial Glass Material: Mineral
• Cor de banda: Prata
• Material da banda: Aceiro inoxidable
• Watch Movement Type: Cuarzo
• Watch Display Type: Analóxico-dixital
• Material da caixa: Aceiro inoxidable
• Diámetro da caixa: 49 milímetros
• Tipo de peche: Broche de despregamento

2. Setup and Initial Settings

Before using your watch, it is important to set the correct time and date.

2.1. Adjusting the Analog Time

1. Pull the crown (B) out to the second click. This will stop the second hand.
2. Xire a coroa para axustar as agullas das horas e dos minutos á hora desexada.
3. Empuxe de novo a coroa á posición normal.

2.2. Adjusting the Digital Time and Date

The digital display can be adjusted using the buttons on the side of the watch.

1. Preme o MODO button (C) repeatedly until the Timekeeping Mode is displayed.
2. Manteña premida Axustar button (A) until the city code starts to flash in the digital display. This indicates the setting screen.
3. Usa o ADIANTE button (D) and REVERSO button (E) to select the desired setting item (e.g., city code, DST, 12/24-hour format, hour, minute, year, month, day).
4. Usa o MODO button (C) to move between setting items.
5. Unha vez configurados todos os axustes, prema o botón Axustar button (A) to exit the setting screen.

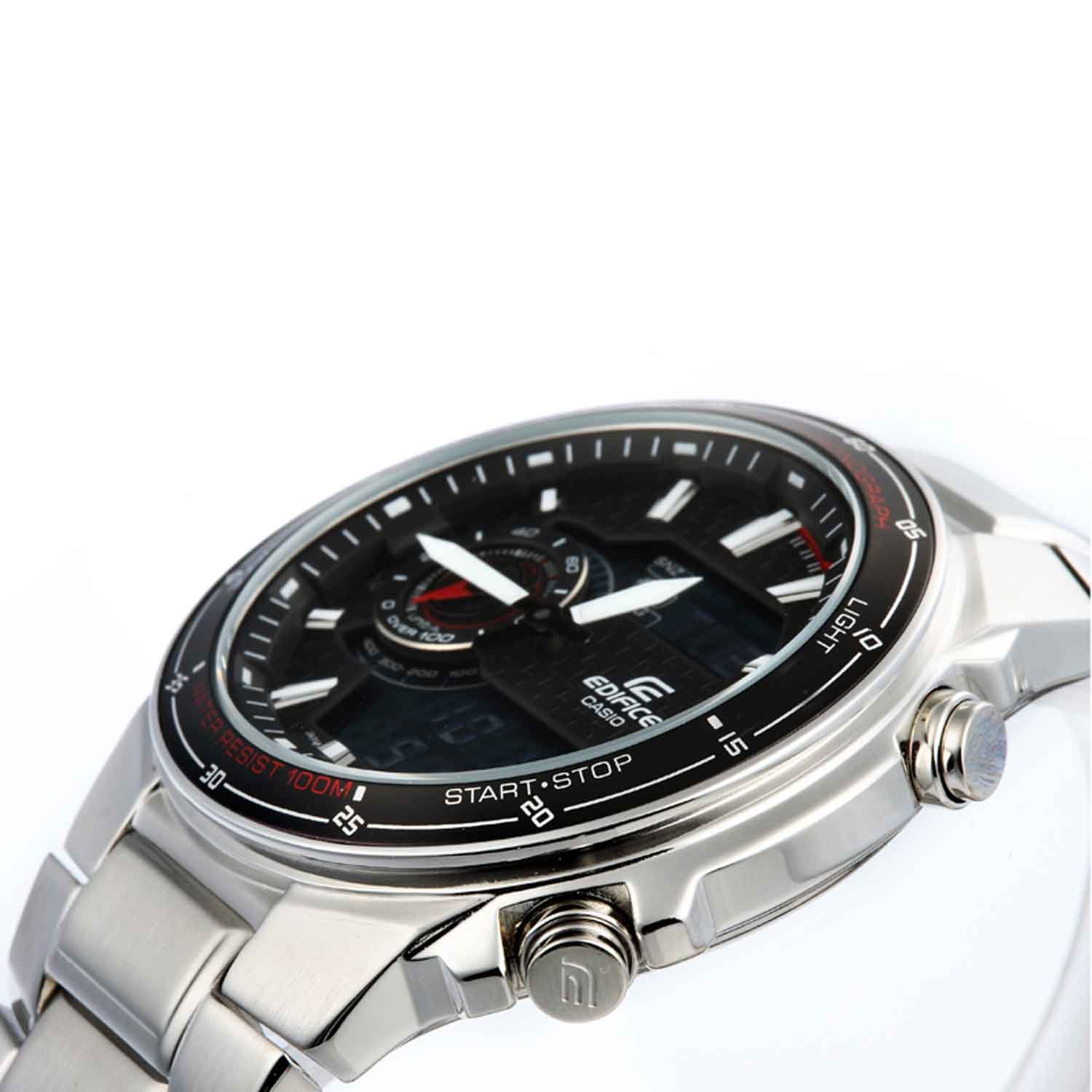

Imaxe: Fronte view of the Casio Edifice EFA-131D-1A1VDF watch, highlighting the analog and digital displays, and the various control buttons for setting adjustments.

2.3. Axuste da banda

The stainless steel band can be adjusted for a comfortable fit. It is recommended to have this adjustment performed by a qualified jeweler or watch technician to prevent damage to the band or clasp.

3. Funcionamento das funcións do reloxo

Your Casio Edifice watch offers several functions accessible via the MODO botón (C).

3.1. Navegación de modo

Preme o MODO button (C) to cycle through the different modes:

• Modo de hora: Mostra a hora e data actuais.
• Modo cronómetro: Mide o tempo transcorrido.
• Modo de alarma: Sets daily alarms.
• Modo hora mundial: Displays the current time in various cities around the world.

3.2. Función de cronómetro

1. Navigate to the Stopwatch Mode using the MODO botón (C).
2. Preme o INICIAR/PARAR button (D) to start the stopwatch.
3. Preme o INICIAR/PARAR button (D) again to stop the stopwatch.
4. Preme o RESET button (E) to reset the stopwatch to zero.

3.3. Función de alarma

1. Navegue ao modo de alarma usando o botón MODO botón (C).
2. Manteña premida Axustar button (A) until the alarm time starts to flash.
3. Usa o ADIANTE button (D) and REVERSO button (E) to set the desired alarm hour and minute.
4. Preme o Axustar button (A) to confirm and exit the setting screen.
5. Preme o ADIANTE button (D) in Alarm Mode to toggle the alarm ON/OFF.

3.4. Illumination (Light)

Preme o LUZ button (F) to illuminate the digital display for easy viewen condicións de pouca luz.

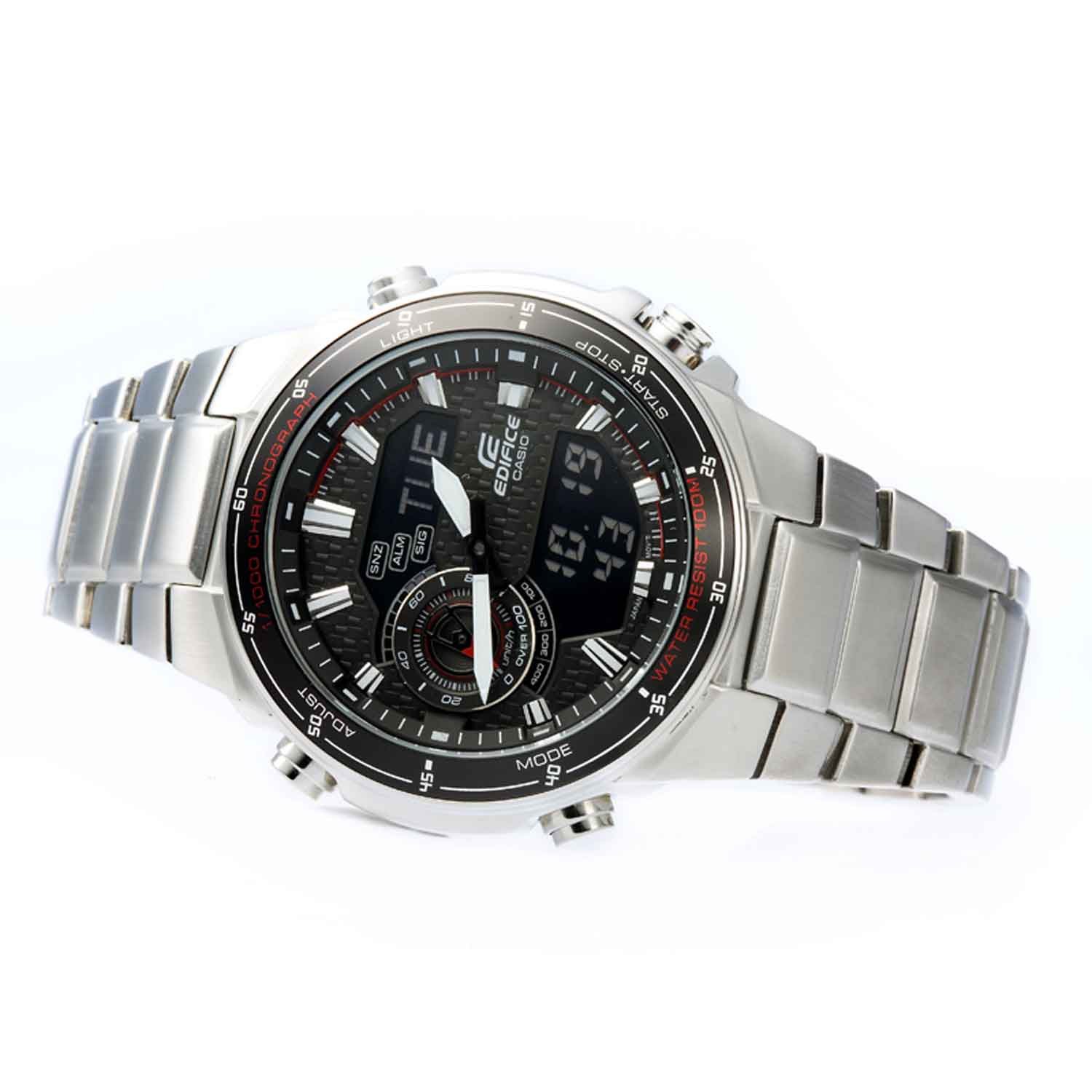

Imaxe: Fronte angulada view of the Casio Edifice EFA-131D-1A1VDF watch, illustrating the digital display and the positions of the control buttons for various functions.

4. Mantemento

Proper maintenance ensures the longevity and performance of your watch.

4.1. Resistencia á auga

This watch is water resistant up to 100 meters (10 BAR). This means it is suitable for swimming and snorkeling, but not for scuba diving. Do not operate the watch buttons or crown while the watch is wet or submerged in water.

4.2. Limpeza

Wipe the watch case and band with a soft, dry cloth to remove dirt and moisture. For stainless steel bands, a soft brush with mild soapy water can be used, followed by thorough rinsing and drying. Avoid using chemical cleaners or solvents.

4.3. Substitución da batería

The watch is powered by a quartz movement. When the battery runs low, the display may dim or the watch may stop functioning. Battery replacement should be performed by an authorized Casio service center or a qualified watch technician to ensure proper sealing and water resistance.

Imaxe: Costas view of the Casio Edifice EFA-131D-1A1VDF watch, displaying the stainless steel case back where water resistance information is typically engraved, and the deployment clasp.

5 Solución de problemas

Se tes problemas co teu reloxo, consulta os seguintes problemas e solucións comúns:

• Watch is not keeping accurate time (Analog or Digital):

  Ensure the time settings are correct as described in Section 2. If the issue persists, the battery may be low and require replacement.

• A pantalla dixital está en branco ou escura:

  This typically indicates a low battery. Replace the battery at an authorized service center.
• Os botóns non responden:

  Check if the watch is wet. Do not operate buttons underwater. If the watch is dry and buttons are still unresponsive, there might be an internal malfunction requiring professional inspection.

• Condensación dentro do reloxo:

  If condensation appears inside the watch glass and does not clear quickly, it may indicate a breach in water resistance. Seek immediate professional service to prevent further damage.

6. Especificacións

Image: Close-up of the watch's case back, detailing engraved specifications such as water resistance and material composition.

7. Garantía e soporte

7.1. Información da garantía

Your Casio Edifice EFA-131D-1A1VDF watch comes with a 2 anos de garantía doméstica from the manufacturer. This warranty covers manufacturing defects under normal use. Please retain your purchase receipt as proof of warranty.

7.2. Atención ao cliente

For warranty claims, service, or further assistance, please contact Casio customer support or visit an authorized Casio service center. Contact details can typically be found on the official Casio websitio web ou a súa tarxeta de garantía.
