Weiser Lock GDC9471 Elements Single Cylinder Deadbolt Instruction Manual

Introdución

This manual provides comprehensive instructions for the installation, operation, maintenance, and rekeying of your Weiser Lock GDC9471 Elements Single Cylinder Deadbolt. This deadbolt is designed for security and convenience, featuring SmartKey technology for easy rekeying and enhanced resistance against picking and bumping.

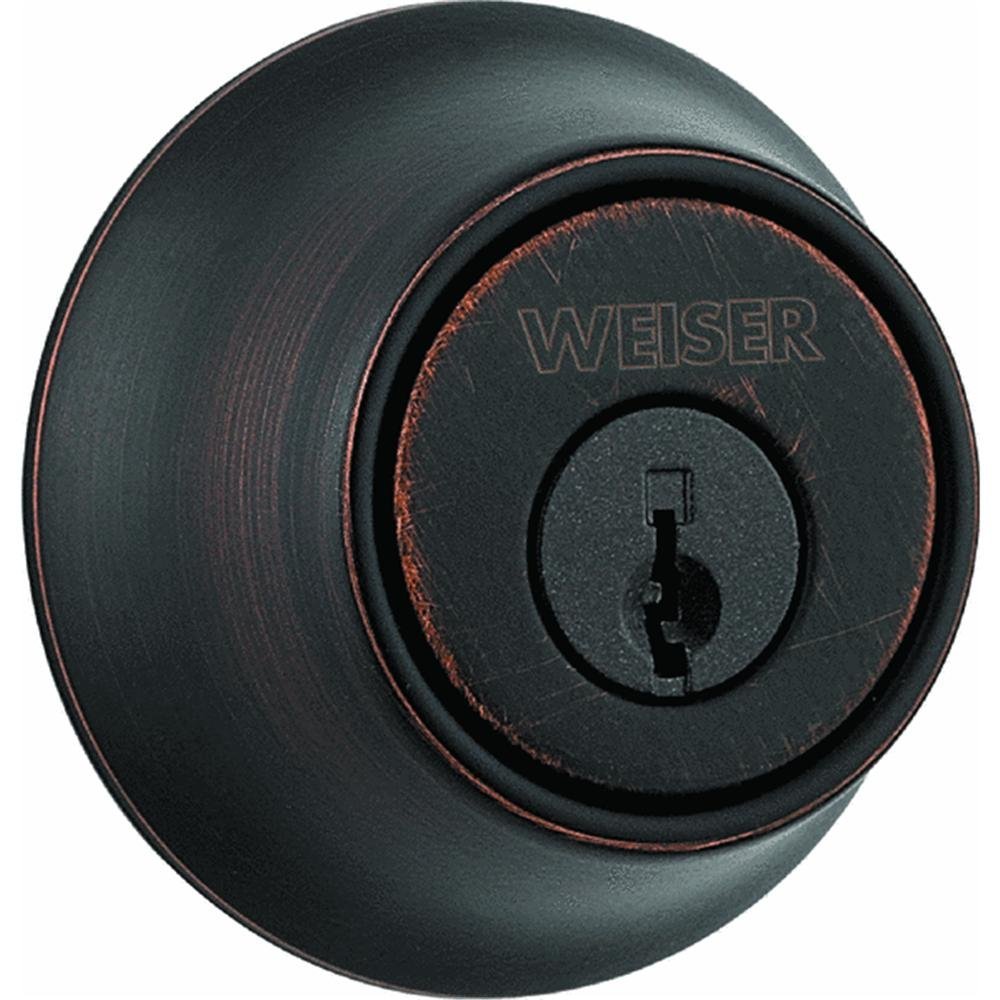

Image: Weiser Lock GDC9471 Elements Single Cylinder Deadbolt, showing the exterior key cylinder and interior thumb turn components.

Características do produto

• Deseño dun só cilindro: Key access from the exterior, thumb turn operation from the interior.
• Full 1-inch Throw: Provides enhanced security with a robust deadbolt extension.
• Seguridade SmartKey: Features a Kwikset chassis with SmartKey cylinder technology, eliminating traditional pins and springs.
• Rekeying Capability: Allows for instant rekeying in three simple steps using the included learning tool.
• Seguridade mellorada: Designed to be bump-resistant and highly pick-resistant.
• Retroceso axustable: Standard adjustable backset for versatile installation.

Contido do paquete

Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:

• Exterior Deadbolt Cylinder Assembly
• Interior Thumb Turn Assembly
• Deadbolt Latch Mechanism
• Placa de folga
• Parafusos de montaxe
• Teclas estándar
• SmartKey Rekeying Learning Tool

Requisitos de instalación

Asegúrate de que a túa porta cumpra as seguintes especificacións para unha instalación correcta:

• Espesor da porta: Fits all standard doors 1-3/4 inches thick.
• Crossbore Hole: Requires a 2-1/8 inch diameter crossbore hole.
• Edge Bore: Requires a 1 inch diameter edge bore.
• Retroceso: Compatible with 2-3/8 inch to 2-3/4 inch adjustable backsets.

For detailed installation steps, refer to the diagram included with your product packaging. Professional installation is recommended if you are unfamiliar with door hardware installation.

Instrucións de funcionamento

Locking the Deadbolt:

• Desde o exterior: Insert the key into the exterior cylinder and turn it 90 degrees clockwise to extend the deadbolt into the strike plate. Remove the key.
• Desde o interior: Rotate the thumb turn on the interior assembly to extend the deadbolt into the strike plate.

Unlocking the Deadbolt:

• Desde o exterior: Insert the key into the exterior cylinder and turn it 90 degrees counter-clockwise to retract the deadbolt. Remove the key.
• Desde o interior: Rotate the thumb turn on the interior assembly to retract the deadbolt.

Instrucións de cambio de tecla SmartKey

The SmartKey feature allows you to rekey your deadbolt to a new key in three simple steps. This is useful for security updates or if you wish to use a single key for multiple SmartKey locks.

1. Inserir clave actual: Insert your currently working key fully into the cylinder and turn it 90 degrees clockwise to the horizontal position.
2. Insert Learning Tool: While the current key is still turned 90 degrees, insert the SmartKey learning tool fully into the small hole on the face of the cylinder. Remove the learning tool.
3. Inserir nova clave: Remove the current key. Insert your new key fully into the cylinder and turn it 180 degrees counter-clockwise back to the vertical position. Your lock is now rekeyed to the new key. Test the new key to ensure proper operation.

Importante: Proba sempre a chave nova coa porta aberta primeiro para evitar que se peche accidentalmente.

Mantemento

Regular maintenance ensures the longevity and smooth operation of your deadbolt.

• Limpeza: Limpar as superficies exteriores cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou solventes que poidan danar o acabado.
• Lubricación: If the deadbolt mechanism feels stiff, apply a small amount of graphite-based lubricant (not oil-based) into the keyway and the latch mechanism. Do not over-lubricate.
• Apertura do parafuso: Periodically check and tighten all mounting screws to ensure the deadbolt remains securely fastened to the door. Do not overtighten.

Resolución de problemas

Especificacións

Garantía e Soporte

Specific warranty details are not provided in this document. For warranty information, technical support, or to purchase replacement parts, please contact Weiser customer service directly. You can typically find contact information on the manufacturer's websitio web ou na embalaxe do produto.

Fabricante: Pechadura Weiser
