AL-KO 21-inch Left-Hand Mower Blade Instruction Manual

1. Produto rematadoview

This manual provides instructions for the AL-KO 21-inch left-hand mower blade, a quality replacement part designed for AL-KO garden tractors. This blade is engineered for counter-clockwise rotation.

Especificacións clave:

• Lonxitude: 524 mm
• Axle Hole Diameter: 16.2 mm
• Side Hole Centers: 150 mm
• Replaces OEM-nr.: 521208

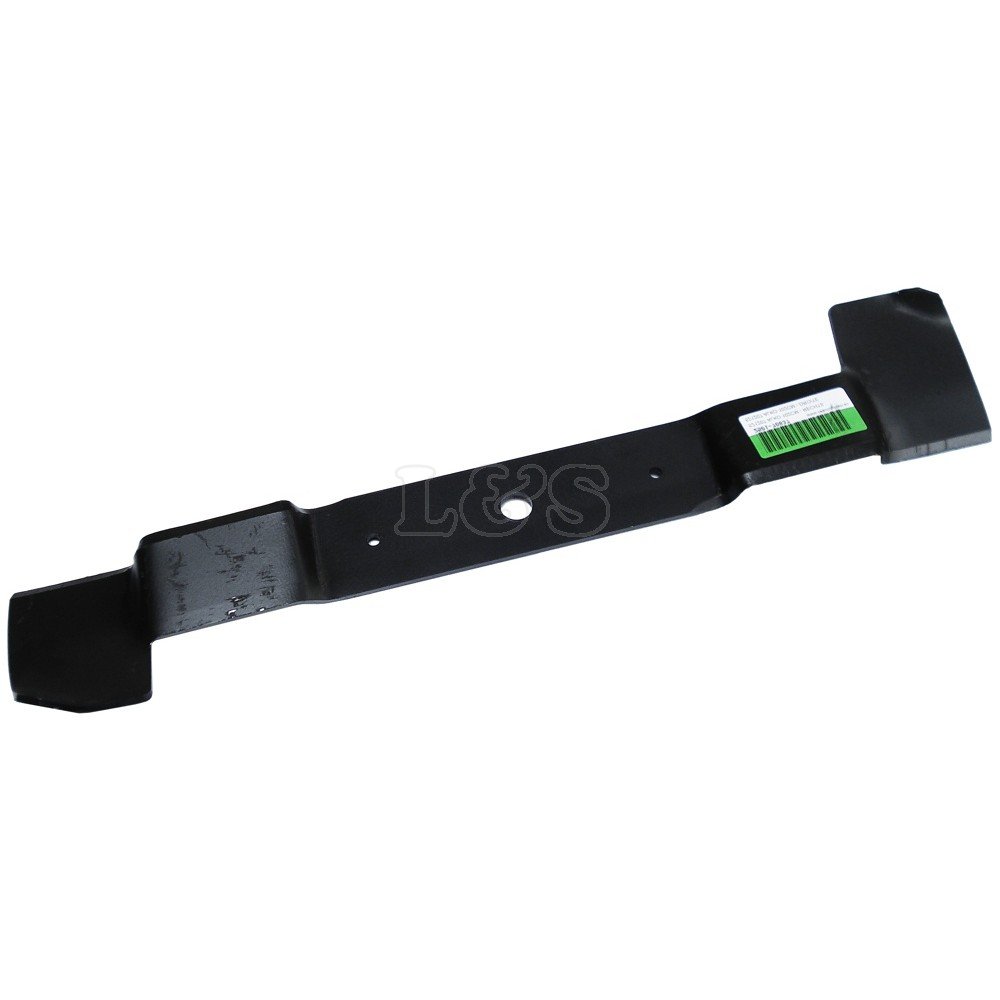

Image: AL-KO 21-inch Left-Hand Mower Blade, showing its general shape and design.

2. Información de seguridade

Always prioritize safety when working with lawn mower blades. Failure to follow these instructions may result in serious injury.

• Desconectar a enerxía: Before performing any maintenance or installation, ensure the garden tractor engine is completely off and the spark plug lead is disconnected to prevent accidental starting.
• Usar equipo de protección: Always wear heavy-duty work gloves to protect your hands from the sharp edges of the blade. Safety glasses are also recommended.
• Superficie estable: Work on a flat, stable surface. If lifting the tractor, ensure it is securely supported to prevent it from falling.
• Nitidez da lámina: Mower blades are extremely sharp. Handle with extreme care.
• Nenos e espectadores: Manter os nenos e os transeúntes lonxe da zona de traballo.

3. Configuración e instalación

Follow these steps to safely replace your mower blade:

1. Preparar o tractor: Ensure the tractor is turned off, the spark plug lead is disconnected, and the parking brake is engaged.
2. Acceder á lámina: Carefully tilt the tractor or raise the mower deck to access the underside where the blade is located. Ensure the tractor is stable and cannot tip over.
3. Retirar a lámina antiga: Using a wrench, loosen the bolt that secures the blade to the spindle. You may need to use a block of wood to prevent the blade from turning while loosening the bolt. Note the orientation of the old blade before removal.
4. Clean Spindle Area: Clean any grass clippings or debris from the spindle and blade mounting area.
5. Instalar unha nova lámina: Position the new AL-KO 21-inch left-hand blade onto the spindle, ensuring the cutting edge is facing the correct direction for counter-clockwise rotation. The blade should sit flush against the spindle flange.
6. Lámina segura: Reinstall the blade bolt and tighten it securely with a wrench. Refer to your garden tractor's manual for the specific torque specifications. Overtightening or undertightening can cause damage or unsafe operation.
7. Verificación final: Once the blade is installed, ensure it is securely fastened and can rotate freely without obstruction. Reconnect the spark plug lead.

4. Instrucións de funcionamento

After successful installation, operate your garden tractor according to its manufacturer's instructions. The new blade will provide efficient cutting performance when used correctly.

• Always ensure the blade is free of debris before starting the engine.
• Avoid striking hard objects (rocks, roots, metal) as this can damage the blade and the mower.
• Regularly check the blade for wear and damage during operation breaks.

5. Mantemento

Proper maintenance extends the life of your blade and ensures optimal cutting performance.

• Limpeza: After each use, clean grass clippings and debris from the blade and the underside of the mower deck. This prevents rust and maintains balance.
• Inspección: Regularly inspect the blade for signs of wear, nicks, bends, or cracks. A damaged blade can cause uneven cutting and excessive vibration.
• Afiado: Sharpen the blade as needed to maintain a keen cutting edge. Ensure the blade remains balanced after sharpening to prevent vibration. If you are unsure how to sharpen a blade correctly, consult a professional.
• Substitución: Replace the blade if it is severely bent, cracked, or worn beyond safe limits. A general guideline is to replace blades annually or more frequently with heavy use.

6 Solución de problemas

If you experience issues with your mower's cutting performance, consider the following:

• Corte irregular: Causa: Dull, bent, or improperly installed blade; uneven mower deck. Solución: Inspect and sharpen/replace the blade. Ensure the blade is installed correctly and the mower deck is level.
• Vibración excesiva: Causa: Bent, unbalanced, or loose blade. Solución: Disconnect spark plug, inspect blade for damage. Replace if bent or cracked. Ensure blade bolt is tightened to specifications. Balance the blade if necessary.
• Poor Grass Discharge: Causa: Clogged mower deck; incorrect blade rotation; dull blade. Solución: Clean the underside of the mower deck. Verify the blade is installed with the cutting edge facing the correct direction for counter-clockwise spin. Sharpen or replace the blade.

7. Especificacións

8. Compatible AL-KO Garden Tractor Models

This 21-inch left-hand mower blade is suitable for the following AL-KO garden tractor models:

• AL-KO T1000R (Nos: 118523 & 11747)
• AL-KO T1000 before 12/04 (No: 118329)
• AL-KO T1000 after 12/04 (No: 118329)
• AL-KO T1000HD (No: 118917)
• AL-KO T13-102HD (No: 118148)
• AL-KO T15-102HD (Nos: 118620 and 118866)
• AL-KO T16-102HDH (No: 118868)
• AL-KO T16-102HD-H (No: 118755)
• AL-KO T16-102 before 02/00 (No: 110919)
• AL-KO T16-102 after 02/00 (No: 110919)
• AL-KO T18-102HD (Nos: 118248 and 118870)
• AL-KO T18-102HDE (No: 118623)
• AL-KO T20-102HDE (Nos: 118748, 118241 and 118871)

9. Garantía e soporte

This product is a quality replacement part. For specific warranty information, please refer to your original purchase documentation or contact your retailer.

For technical support regarding your AL-KO garden tractor or general inquiries about AL-KO products, please consult your tractor's user manual or visit the official AL-KO websitio web para obter información de contacto do servizo de atención ao cliente.
