1. Introdución
This manual provides essential instructions for the safe installation, operation, and maintenance of the DODGE P2B-GTM-100 Two-Bolt Pillow Block. This non-expansion bearing unit features a cast iron housing and is designed for a 1-inch bore diameter shaft. Proper adherence to these instructions will ensure optimal performance and longevity of the product.
2. Información de seguridade
Always prioritize safety during installation, operation, and maintenance. Failure to follow safety precautions can result in serious injury or equipment damage.
- Lea o manual completo: Understand all instructions before proceeding.
- Equipos de protección individual (EPI): Always wear appropriate PPE, including safety glasses, gloves, and protective footwear.
- bloqueo/Tagfóra: Ensure all power sources are disconnected and locked out before working on machinery.
- Ferramentas adecuadas: Use only the correct tools for the task.
- Persoal cualificado: Installation and maintenance should only be performed by trained and qualified personnel.
- Heavy Component: The pillow block may be heavy. Use proper lifting techniques or equipment to prevent injury.
3. Configuración e instalación
Careful installation is crucial for the proper function and lifespan of the pillow block bearing.
- Inspeccionar compoñentes: Before installation, inspect the pillow block for any signs of damage during shipping. Ensure the bore is clean and free of debris.
- Preparar superficie de montaxe: The mounting surface must be clean, flat, and rigid to prevent misalignment and vibration.
- Position the Pillow Block: Place the pillow block on the prepared mounting surface.
- Insert Shaft: Carefully slide the 1-inch diameter shaft through the bearing bore. Ensure the shaft is clean and free of burrs.
- Parafusos de montaxe seguros: Insert the two mounting bolts through the base of the pillow block and into the mounting surface. Hand-tighten the bolts initially.
- Align Shaft: Ensure proper shaft alignment. Misalignment can lead to premature bearing failure. Use appropriate alignment tools if necessary.
- Torque Mounting Bolts: Gradually tighten the mounting bolts to the manufacturer's recommended torque specifications (refer to specific engineering drawings or Dodge technical data for precise values). Tighten bolts in an alternating pattern to ensure even pressure.
- Lubricar: Apply appropriate lubricant as specified in the Maintenance section.

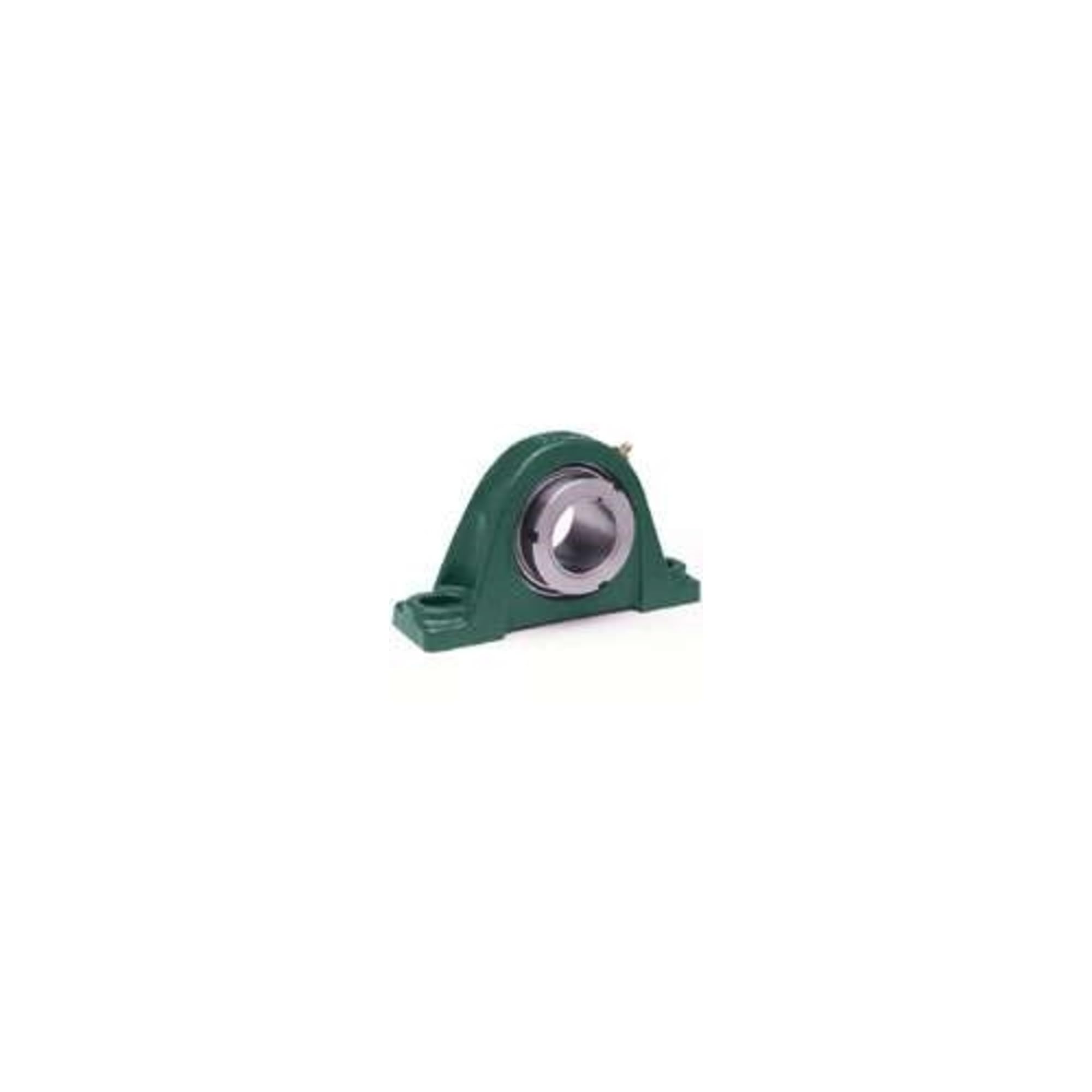

Figura 1: DODGE P2B-GTM-100 Two-Bolt Pillow Block. This image shows the cast iron housing with two mounting bolt holes and the central bore for the shaft.
4. Instrucións de funcionamento
Once installed, the DODGE P2B-GTM-100 pillow block is designed for continuous operation within its specified load and speed limits. Ensure the operating environment is free from excessive dust, moisture, or corrosive agents that could compromise bearing integrity.
- Iniciación: During the initial hours of operation, monitor the bearing for unusual noise, vibration, or excessive heat.
- Monitorización de temperatura: Periodically check the bearing temperature. Excessive heat can indicate lubrication issues or overload.
- Monitorización de vibracións: Excessive vibration can indicate misalignment or damage.
5. Mantemento
Regular maintenance is essential to maximize the service life of your DODGE P2B-GTM-100 pillow block.
- Lubricación: The bearing requires periodic lubrication. Consult the specific bearing insert documentation or Dodge lubrication guidelines for the recommended lubricant type and frequency. Over-lubrication can be as detrimental as under-lubrication.
- Inspección: Regularly inspect the pillow block for signs of wear, corrosion, or damage. Check for loose mounting bolts.
- Limpeza: Keep the area around the bearing clean to prevent contaminants from entering the seal.
- Integridade do selo: Inspect the bearing seals for damage or deterioration. Damaged seals can allow contaminants to enter the bearing.
6 Solución de problemas
This section outlines common issues and potential solutions.
| Síntoma | Causa posible | Solución |
|---|---|---|
| Ruído excesivo | Lack of lubrication, contamination, misalignment, worn bearing. | Check lubrication, clean, verify alignment, replace bearing if worn. |
| Sobrequecemento | Insufficient lubrication, over-lubrication, excessive load, misalignment, tight fit. | Adjust lubrication, reduce load, check alignment, verify shaft fit. |
| Vibración | Misalignment, unbalanced shaft, loose mounting bolts, worn bearing. | Check alignment, balance shaft, tighten bolts, replace bearing. |
| Premature Failure | Improper installation, inadequate lubrication, overloading, contamination. | Review installation steps, ensure proper lubrication, verify load, maintain clean environment. |
7. Especificacións
Key specifications for the DODGE P2B-GTM-100 Two-Bolt Pillow Block are listed below.
| Especificación | Valor |
|---|---|
| Marca | Esquivar |
| Número de modelo | P2B-GTM-100 |
| Material | Ferro fundido |
| Diámetro de perforación | 1 polgadas |
| Tipo de rodamento | Two-Bolt Pillow Block, Non-Expansion |
| Número de rodamento | 129217 |
| UPC | 782475879588 |
8. Garantía e soporte
For warranty information, technical support, or replacement parts, please contact Dodge customer service or visit the official Dodge website. Keep your purchase receipt and product model number (P2B-GTM-100) readily available when seeking support.
Dodge Official Websitio: Visit the Dodge Store on Amazon
