The Briggs & Stratton 40451 10000-watt Home Standby Generator System is designed to provide reliable backup power for your home during utility outages. This system includes a 10 kW generator and a 100-Amp, 16-circuit automatic transfer switch, ensuring a seamless transition to backup power when needed. Its compact design allows for flexible placement options, including as close as 18 inches from your home, adhering to National Fire Protection Agency 37 standards.
Key features of this system include:
- 100-Amp, 16-Circuit Automatic Transfer Switch: Facilitates flexible indoor/outdoor installation and automatic power transfer.
- Symphony II Power Management: This module (sold separately) can manage power for homes up to 4,200 sq. ft. with a 3-Ton air conditioner, optimizing power usage and potentially reducing the need for a larger, more expensive generator.

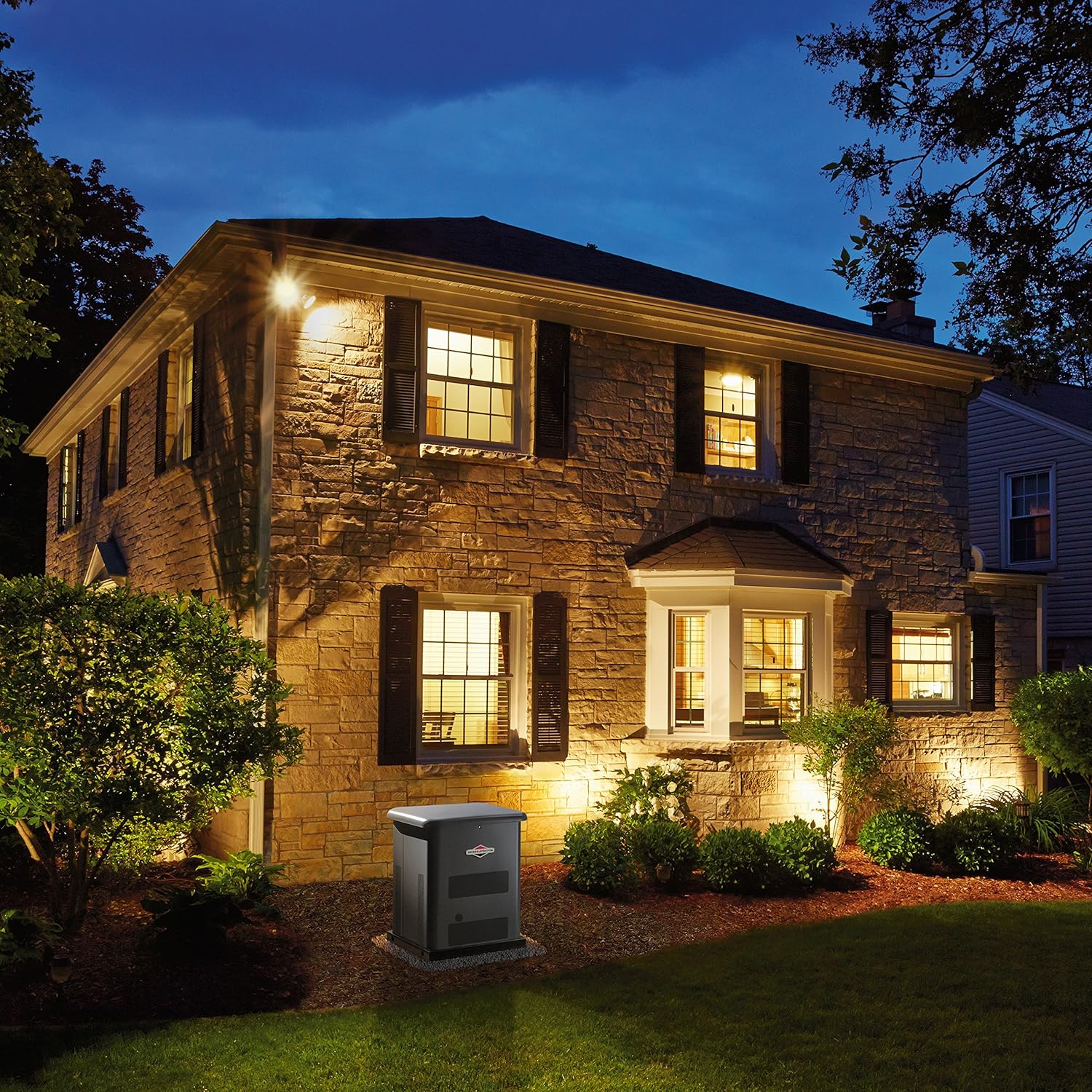

- Closer Placement Options: Engineered for installation as close as 18 inches from your home, complying with NFPA 37 standards.
- Garantía completa de 5 anos: Backed by a 5-year parts, labor, and travel limited warranty for peace of mind.
Configuración e instalación
Installation of the Briggs & Stratton 40451 Home Standby Generator System requires professional expertise due to its connection to your home's electrical and fuel systems. It is crucial to consult with a certified electrician and a qualified gas technician to ensure proper and safe installation in compliance with all local codes and regulations.
General steps for professional installation typically include:
- Selección do sitio: Choose a location that meets clearance requirements (e.g., 18 inches from the home) and provides adequate ventilation, away from windows and doors.
- Foundation Preparation: Install a stable, level concrete pad or gravel base for the generator.
- Conexión eléctrica: Connect the generator to the automatic transfer switch, which then connects to your home's electrical panel. This ensures automatic power transfer during outages.
- Fuel Line Connection: Connect the generator to your home's natural gas or liquid propane supply.
- System Activation and Testing: After all connections are secure, the system will be activated and thoroughly tested to ensure proper operation and automatic transfer functionality.
Refer to the detailed installation guide provided with your product for specific instructions and diagrams.
Instrucións de funcionamento
The Briggs & Stratton 40451 Home Standby Generator System is designed for automatic operation. When utility power is interrupted, the automatic transfer switch detects the outage and signals the generator to start. Once the generator reaches optimal operating speed, the transfer switch automatically disconnects your home from the utility grid and connects it to the generator, restoring power to your essential circuits.
When utility power is restored, the transfer switch senses the return of power, transfers your home back to the utility grid, and signals the generator to shut down after a brief cool-down period.

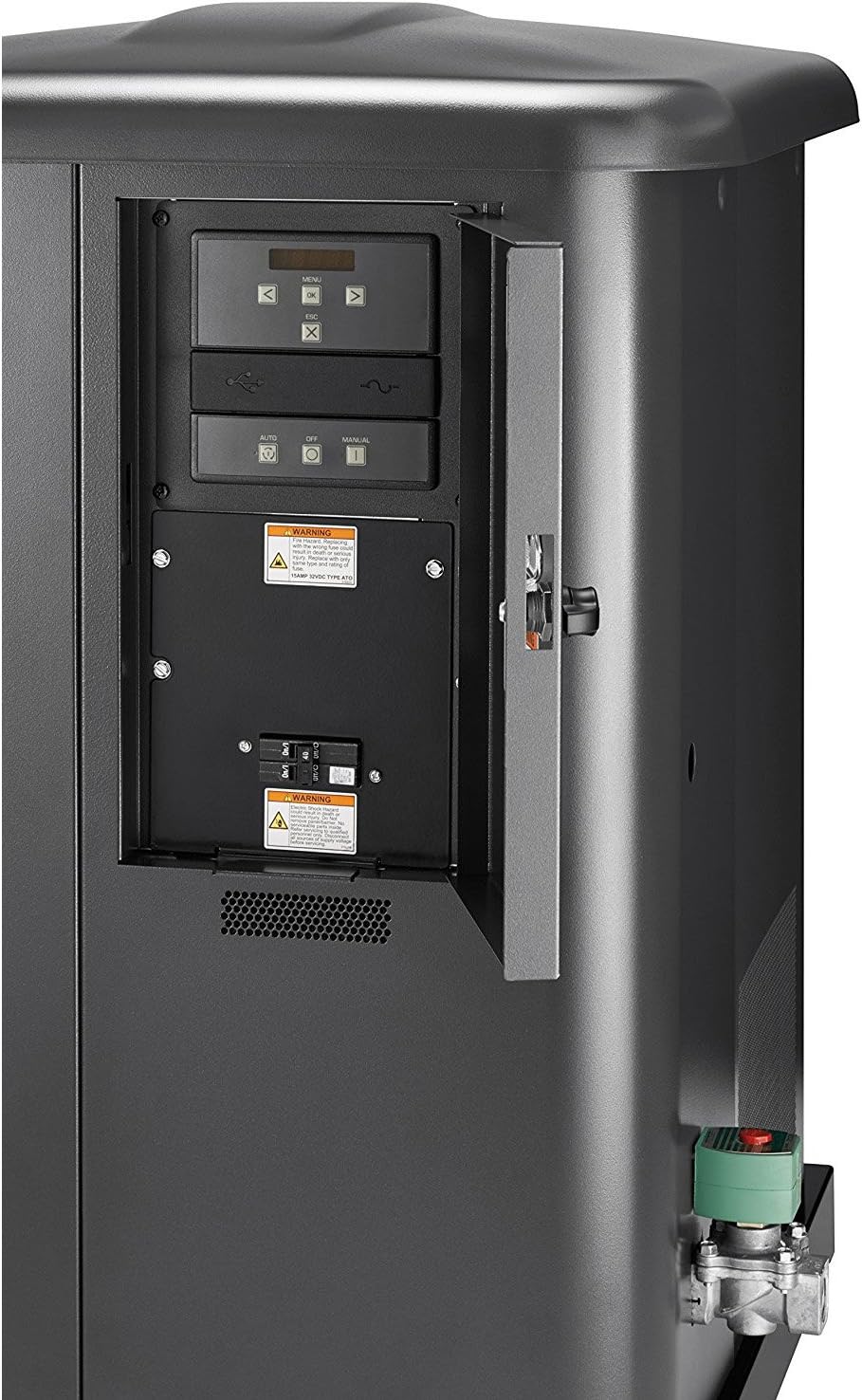

Operación manual: In some cases, manual operation may be desired or necessary. Consult your specific model's control panel instructions for details on manually starting and stopping the generator. Always ensure the automatic transfer switch is in the correct position for manual operation to prevent backfeeding the utility grid.
Symphony II Power Management: If equipped, the Symphony II Power Management system intelligently manages your home's power demands. It prioritizes essential appliances and sheds non-essential loads as needed to prevent overload, allowing a smaller generator to power more of your home.
Mantemento
Regular maintenance is essential to ensure the longevity and reliable operation of your Briggs & Stratton 40451 generator system. Adhere to the maintenance schedule outlined in your owner's manual.
- Inspeccións de rutina: Periodically check for visible damage, leaks, or obstructions around the unit.
- Cambios de aceite: Follow the recommended intervals for oil changes, typically every 100-200 hours of operation or annually.
- Substitución do filtro de aire: Inspect and replace the air filter as needed, especially in dusty environments.
- Inspección/Substitución da buxía: Check and replace spark plugs according to the maintenance schedule.
- Mantemento da batería: Ensure the battery terminals are clean and tight. Check battery fluid levels if applicable.
- Exercise Cycle: Most standby generators perform a weekly or bi-weekly exercise cycle to ensure readiness. Verify this function is active.
For complex maintenance tasks or if you are unsure, contact a certified Briggs & Stratton service technician.
Resolución de problemas
This section provides general troubleshooting tips for common issues. Always refer to your specific owner's manual for detailed troubleshooting guides and safety warnings. If you are unable to resolve an issue, contact a qualified service technician.
| Problema | Causa posible | Solución |
|---|---|---|
| Generator fails to start | Low fuel level, dead battery, circuit breaker tripped, fault code. | Check fuel supply, inspect battery connections, reset circuit breakers, consult fault codes in manual. |
| No power to home circuits | Transfer switch not engaged, main breaker tripped, individual circuit breaker tripped. | Verify transfer switch position, check main breaker on generator and home panel, reset individual circuit breakers. |
| Generator runs but shuts down quickly | Overload, low oil pressure, overheating, fuel supply issue. | Reduce electrical load, check oil level, ensure proper ventilation, verify fuel flow. |
| Ruídos ou vibracións pouco comúns | Loose components, worn parts, engine issue. | Inspect for loose parts, contact service technician for internal engine issues. |
Always disconnect power before performing any inspections or maintenance.
Especificacións
| Especificación | Detalle |
|---|---|
| Marca | Briggs & Stratton |
| Número de modelo | 40451 |
| Wattage (Running/Starting) | 10000 vatios |
| Potencia máxima do motor | 10 quilovatios |
| Tipo de combustible | Gas natural / propano líquido |
| Voltage | 120/240V (implied from 120.24) |
| Interruptor de transferencia | 100 Amp, 16 Circuit Automatic Transfer Switch |
| Tipo de motor | 4 Trazo |
| Peso do elemento | 272 libras |
| Dimensións do produto | 28 x 24.4 x 35.1 polgadas |
| Cor | Gris |
| Características especiais | Fuel Efficient, Symphony II Power Management, Closer Placement Options |
Garantía e Soporte
The Briggs & Stratton 40451 Home Standby Generator System is backed by a comprehensive 5-year parts, labor, and travel limited warranty. This warranty ensures that your investment is protected and provides peace of mind regarding potential issues.
For warranty claims, technical support, or to locate an authorized service dealer, please refer to the contact information provided in your product's owner's manual or visit the official Briggs & Stratton website. Always have your model number (40451) and serial number ready when contacting support.
Imaxes do produto
Vídeos de produtos
Briggs & Stratton Power Management Explained
This video provides an animated explanation of how Briggs & Stratton's power management system works. It illustrates how the generator intelligently prioritizes and reroutes power to essential appliances during an outage, allowing a smaller generator to efficiently power more of your home's needs without overloading. This feature is highly relevant to the 40451 model's Symphony II Power Management capability.
