Antec HCG-850M 850W Power Supply User Manual

1. Introdución

Thank you for choosing the Antec HCG-850M 850W Power Supply. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your power supply unit. Please read this manual thoroughly before installation and retain it for future reference.

2. Información de seguridade

Always observe the following safety precautions to prevent injury or damage to your system:

• Non open the power supply casing. Alto volumetagHai electrodos no interior, mesmo cando a unidade está desconectada.
• Non insert any objects into the power supply's ventilation openings.
• Ensure the power supply is installed in a well-ventilated area.
• Use only the modular cables provided with this power supply. Using incompatible cables can cause damage.
• Disconnect the AC power cord from the wall outlet before installing or removing the power supply.
• This product is designed for use in personal computers only.

3. Contido do paquete

Verifica que todos os elementos estean presentes no teu paquete:

• Antec HCG-850M 850W Power Supply
• Modular Cable Set (PCI-E, SATA, Peripheral, CPU)
• Cable de alimentación de CA
• Parafusos de montaxe
• Manual de usuario (este documento)

4. Produto rematadoview

The Antec HCG-850M is an 850-watt, 80 PLUS Bronze certified, semi-modular power supply designed for high-performance personal computers. It features a quiet 135mm fan for efficient cooling and robust protection circuits to ensure stable power delivery.

4.1 Características principais

• 850 Watts Continuous Power
• 80 PLUS Bronze Certified Efficiency
• Semi-Modular Cable Management
• Ventilador silencioso de 135 mm
• Factor de forma ATX
• Multiple Protection Circuits (OCP, OVP, UVP, SCP, OPP, OTP)

4.2 Unidade de alimentación

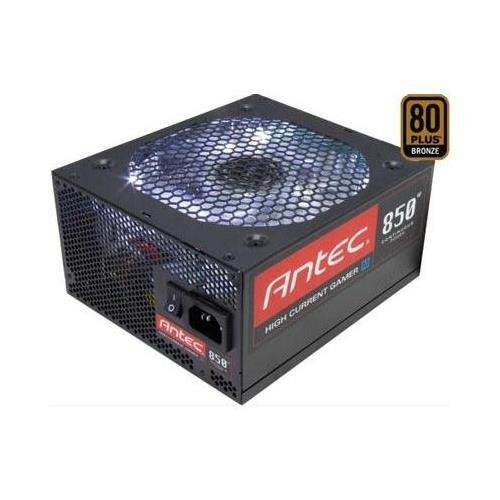

Imaxe 1: Fronte view of the Antec HCG-850M 850W Power Supply, showing the fan grille and modular cable connectors. This unit provides stable power to your computer components.

5. Configuración e instalación

Follow these steps to install your Antec HCG-850M power supply:

1. Prepara o teu sistema: Ensure your computer is completely powered off and unplugged from the wall outlet. Open your computer case.
2. Retirar a fonte de alimentación antiga (se corresponde): Disconnect all cables from your old power supply. Unscrew and remove the old PSU from the case.
3. Montar a nova fonte de alimentación: Carefully place the Antec HCG-850M into the power supply bay of your computer case. Secure it with the provided mounting screws. Ensure the fan is oriented correctly for optimal airflow (typically facing down if there's a bottom vent, or up if not).
4. Conectar os cables esenciais:
   • Connect the 24-pin ATX motherboard power cable.
   • Connect the 4+4-pin or 8-pin EPS/CPU power cable to your motherboard.
5. Conectar cables modulares: Attach the necessary modular cables for your components (e.g., PCI-E for graphics cards, SATA for hard drives/SSDs, Peripheral for fans/accessories). Connect them securely to both the power supply and the respective components.
6. Xestión de cables Pasa os cables con coidado para mellorar a circulación do aire e a estética.
7. Pechar a caixa e acender: Close your computer case. Connect the AC power cord to the power supply and then to a wall outlet. Flip the power switch on the PSU to the 'ON' position. Power on your computer.

6. Instrucións de funcionamento

Once installed, the Antec HCG-850M operates automatically. Here are some general operating guidelines:

• Encendido/apagado: Use your computer's power button to turn the system on or off. The switch on the power supply itself should generally remain in the 'ON' position during normal operation.
• Estabilidade do sistema: Ensure your system is stable. If you experience unexpected shutdowns or reboots, refer to the troubleshooting section.
• Ventilación: Maintain good airflow around your computer case to prevent overheating of components, including the power supply.

7. Mantemento

Proper maintenance can extend the lifespan of your power supply:

• Limpeza do po: Periodically clean dust from the power supply's fan grille and the interior of your computer case using compressed air. Always disconnect the AC power cord before cleaning.
• Comprobación do cable: Occasionally check that all power cables are securely connected to the power supply and components.
• Ambiente: Operate the power supply in a clean, dry environment with stable temperatures.

8 Solución de problemas

If you encounter issues with your power supply, try the following steps:

8.1 No Power to System

• Ensure the AC power cord is securely plugged into both the wall outlet and the power supply.
• Check that the power supply's ON/OFF switch is in the 'ON' position.
• Verify all internal power cables (24-pin ATX, CPU, PCI-E) are correctly and firmly connected.
• Proba a toma de corrente con outro dispositivo para asegurarte de que teña corrente.
• Se é posible, proba a fonte de alimentación noutro sistema que saiba que funciona ou cun probador de fontes de alimentación.

8.2 System Instability or Random Shutdowns

• Asegúrate de que os requisitos de alimentación do teu sistema non superen a capacidade de 850 W da fonte de alimentación.
• Check for overheating components. Ensure proper case ventilation and clean any dust buildup.
• Verify all power connections are secure. Loose connections can cause intermittent power delivery.
• If the issue persists, it may indicate a fault with the power supply or another component. Consider professional diagnosis.

9. Especificacións

10. Garantía e soporte

Antec products are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Antec website. For technical support or customer service, please contact Antec directly through their official support channels.

Official Antec Websitio: www.antec.com
