1. Introdución
Thank you for choosing the Danby DIM2500SSDB Portable Countertop Ice Maker. This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and keep it for future reference.
This attractive and modern ice making unit is designed to fit effortlessly into your room’s existing décor. It features a see-through window, black lid, and durable stainless-steel exterior. Utilizing R134A refrigerant, it is environmentally friendly and can produce up to 25 lbs (12 kg) of ice each day in one-size ice cubes. The unit can store up to 2 lbs (1 kg) of ice at any time. Electronic LED controls make programming easy, and a state-of-the-art alarm system notifies you when the ice container is full. The ice maker also includes a convenient self-cleaning function.
2. Información de seguridade
Para reducir o risco de incendio, descarga eléctrica ou lesións ao usar a máquina de xeo, siga estas precaucións básicas:
- Le todas as instrucións antes de usar o aparello.
- Conéctese só a tomas conectadas a terra correctamente.
- Non mergulle o cable, a ficha nin ningunha parte do aparello en auga ou outros líquidos.
- É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
- Desenchufe da toma cando non estea en uso, antes de poñer ou quitar pezas e antes de limpar.
- Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou teña dano dalgún xeito.
- Non use ao aire libre.
- Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
- Non use o aparello para outros usos que os previstos.
- Garantir unha ventilación adecuada ao redor da unidade.
3. Produto rematadoview
The Danby DIM2500SSDB Portable Countertop Ice Maker is designed for convenience and efficiency. Key features include:
- Portable, electric ice maker produces up to 25 lbs of ice per day (1 cube size).
- Stores up to 2 lbs of ice at one time - an alarm will sound when the ice bucket is full.
- Simple electronic controls with LED display and self-clean function.
- See-through window on lid for easy monitoring.
- Includes ice scoop.
4. Configuración
Before first use, ensure the ice maker is placed on a stable, level surface away from direct sunlight and heat sources. Allow the unit to stand upright for at least 2 hours before plugging it in. This allows refrigerants to settle.
Preparación inicial:
- Desempaquetar: Retire todos os materiais de embalaxe e comprobe se hai danos.
- Limpar: Clean the interior and exterior of the unit with a soft cloth and mild detergent. Rinse thoroughly.
- Posición: Place the ice maker in a well-ventilated area. Ensure there is adequate space around the unit for proper air circulation.
- Encher o depósito de auga: Open the lid and fill the water reservoir with potable water up to the maximum fill line. Do not overfill.
- Conectar enerxía: Conecte a máquina de xeo a unha toma de corrente con conexión a terra.
5. Instrucións de funcionamento
Your Danby ice maker is designed for simple operation. Follow these steps to start making ice:
Facer xeo:
- Encendido: Preme o Poder button on the control panel. The unit will begin its ice-making cycle.
- Monitor de progreso: The LED indicators on the control panel will show the current status, such as 'Making Ice' or 'Ice Full'. The transparent lid allows you to visually monitor the ice production.
- Colección de xeo: Once ice is made, it will drop into the ice storage basket. An alarm will sound when the basket is full.
- Recuperar xeo: Use a culler para xeo incluída para retirar o xeo da cesta.
- Funcionamento continuo: The unit will automatically continue making ice as long as there is water in the reservoir and the ice basket is not full. If the water level is low, the 'Add Water' indicator will illuminate.
Panel de control LED:
- Indicador de potencia: Illuminates when the unit is on.
- Indicador de xeo cheo: Ilumínase cando a cesta de almacenamento de xeo está chea.
- Engadir indicador de auga: Ilumínase cando é necesario encher o depósito de auga.
- Self-Clean Indicator: Illuminates during the self-cleaning cycle.
6. Mantemento e Limpeza
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Danby ice maker.
Función de autolimpeza:
Your ice maker is equipped with a convenient self-cleaning function. To activate:
- Asegúrate de que a unidade estea baleira de xeo e auga.
- Fill the water reservoir with a mixture of water and a mild cleaning solution (e.g., diluted vinegar or a specialized ice maker cleaner).
- Manteña premido o Limpo button (refer to your unit's specific button layout if different from general LED controls) for approximately 3 seconds to start the self-cleaning cycle.
- Once the cycle is complete, drain the cleaning solution from the unit (typically via a drain plug at the back or bottom).
- Rinse the reservoir thoroughly with clean water and run a few cycles with fresh water to ensure all cleaning solution residue is removed.
Limpeza xeral:
- Exterior: Limpe o exterior cun suave, damp pano. Evite produtos de limpeza abrasivos.
- Interior: Periodically clean the interior components, including the ice basket and water reservoir, with a mild detergent and warm water.
- Descalcificación: If you use hard water, mineral deposits may accumulate. Use a descaling solution as needed to prevent buildup.
7 Solución de problemas
If you experience issues with your ice maker, consult the following common troubleshooting tips:
| Problema | Causa posible | Solución |
|---|---|---|
| A máquina de xeo non produce xeo. | Non hai auga no depósito. | Fill water reservoir to the MAX level. |
| A máquina de xeo non produce xeo. | Unit is unplugged or power outage. | Ensure unit is plugged in and power is supplied. |
| Ice is too small or cloudy. | A temperatura da auga é demasiado alta. | Use colder water. |
| Ice Full indicator is on, but basket is not full. | Ice sensor is obstructed or dirty. | Clean the ice sensor. |
| A unidade é ruidosa. | Ruídos de funcionamento normal (compresor, bomba de auga). | This is normal. Ensure unit is on a stable surface. |
8. Especificacións
- Marca: Danby
- Nome do modelo: Danby
- Información do modelo: DIM2500SSDB

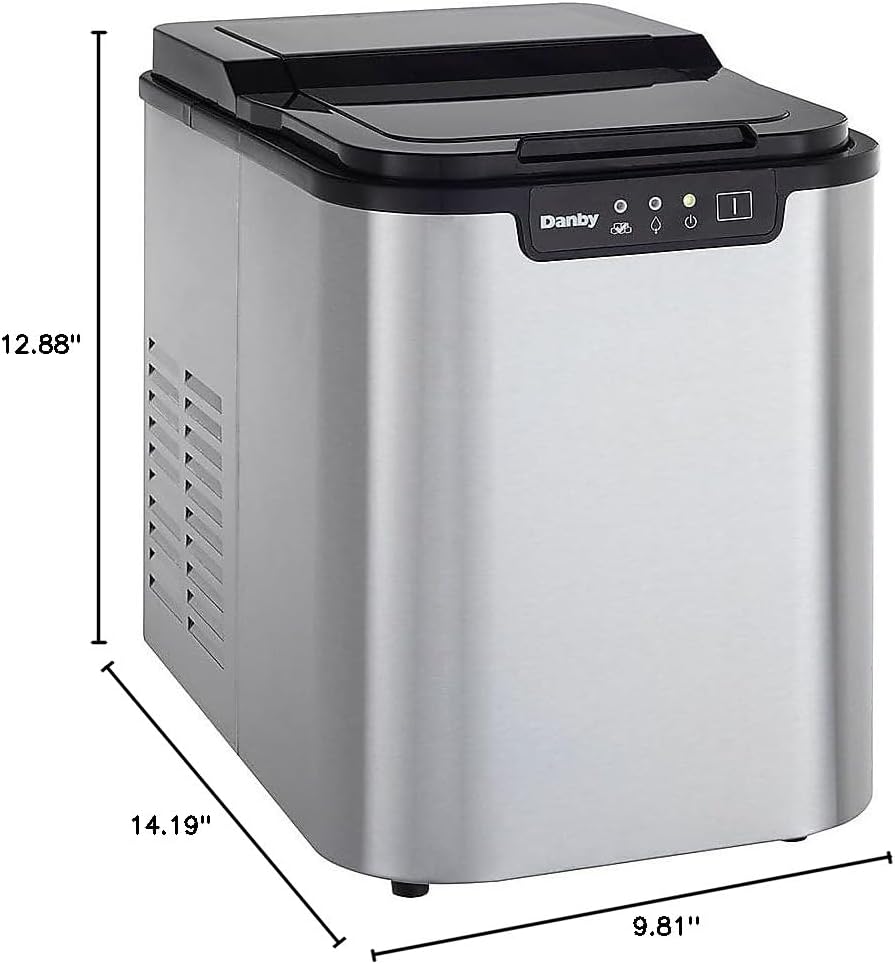

- Dimensións do produto: 14.19" D x 9.81" W x 12.88" H
- Capacidade: 2 Cubic Feet (stores up to 2 lbs of ice)
- Produción de xeo: Ata 25 libras ao día
- Wattage: 200 vatios
- Voltage: 120 voltios
- Refrigerante: R134a
- Material: Aceiro inoxidable
- Cor: Inoxidable
- Peso do artigo: 22 libras
- Tipo de instalación: Encimera
- Características especiais: Portable, Self-Clean Function, LED Controls
- UPC: 667649029795, 722651277487, 067638906517
9. Garantía e soporte
Your Danby DIM2500SSDB Portable Countertop Ice Maker comes with comprehensive warranty coverage:
- A 12 meses de garantía en pezas e man de obra.
- A Garantía gratuíta de 10 ano on major components.
For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official Danby website. Please have your model number (DIM2500SSDB) and proof of purchase ready when contacting support.
