Manual do usuario da báscula de mesa Ohaus RC31P3 Ranger de 3000 unidades

1. Introdución

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Ohaus RC31P3 Ranger 3000 Count Bench Scale. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

The Ohaus Ranger Count 3000 is a high-precision counting scale designed for accurate counting and packaging of various parts. It features advanced software, a 30-item library, and a high internal counting resolution for precise measurements of even small components.

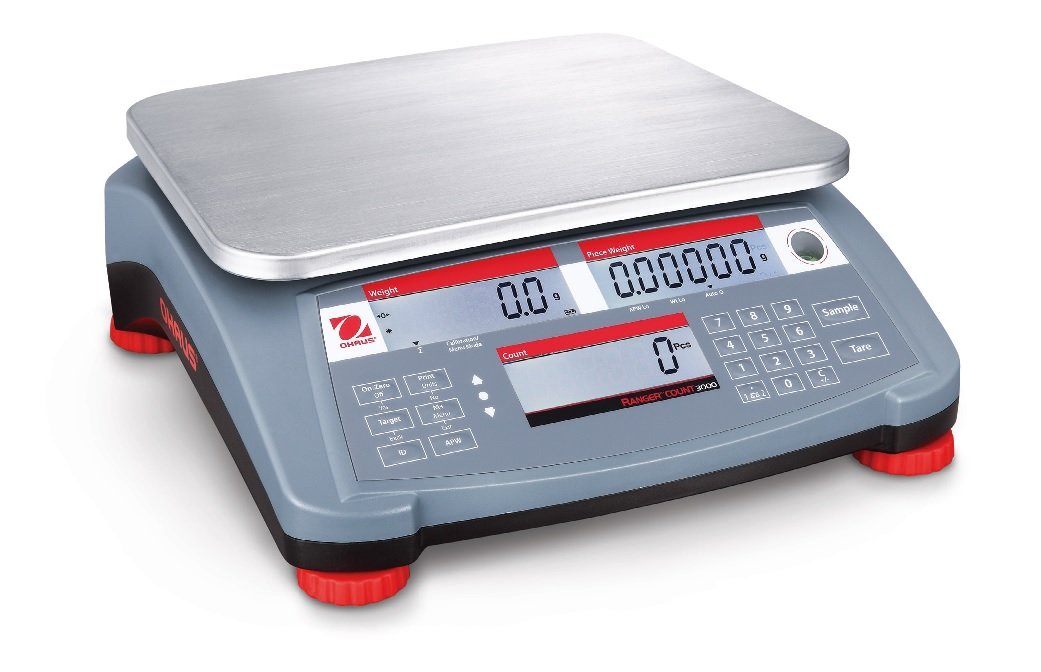

Figura 1: Ohaus RC31P3 Ranger 3000 Count Bench Scale. This image displays the complete scale unit, featuring a stainless steel weighing pan, a gray base with red feet, and a control panel with three backlit LCD displays for weight, piece weight, and count, along with a numeric keypad and function buttons.

2. Información de seguridade

Siga sempre as precaucións de seguridade básicas ao usar este produto para reducir o risco de lesións ou danos.

• Ensure the scale is placed on a stable, level surface.
• Do not exceed the maximum capacity of 3 kg (6 lb).
• Evite expoñer a báscula a temperaturas extremas, humidade ou luz solar directa.
• Non mergullo a balanza en auga ou outros líquidos.
• Use only the specified power adapter or ensure the internal rechargeable battery is properly charged.
• Keep the scale clean and free from dust and debris.

3. Configuración

3.1 Desembalaxe

Carefully remove all components from the packaging. Retain the packaging for future transport or storage. Verify that all items listed in the packing list are present.

3.2 Colocación

Place the scale on a firm, level, and stable surface, away from vibrations, drafts, and rapid temperature changes. Adjust the leveling feet until the bubble in the level indicator is centered.

3.3 Conexión de alimentación

Connect the provided AC adapter to the power input on the rear of the scale and then to a suitable power outlet. The internal rechargeable battery will begin charging automatically. The scale can operate on battery power for over 200 hours when fully charged.

4. Instrucións de funcionamento

4.1 Pesaxe básica

1. Preme o ON/OFF botón para encender a báscula.
2. Wait for the display to show 0.0 g (or selected unit) and the stability indicator to appear.
3. Place the item(s) to be weighed on the center of the weighing pan.
4. Read the weight displayed on the Peso LCD.
5. To tare the scale (zero out the weight of a container), place the empty container on the pan and press the Tare botón.

4.2 Conta de pezas

The Ranger 3000 features advanced parts counting capabilities.

1. Ensure the scale is tared (display shows 0.0).
2. Preme o Sample botón.
3. Introduza o número de sample pieces using the numeric keypad (e.g., 10, 20, 50, 100).
4. Place the corresponding number of sample pieces on the weighing pan.
5. Preme o Sample button again to confirm. The scale will calculate the Average Piece Weight (APW) and display the count.
6. Elimina o sample pieces and place the bulk quantity of items on the pan. The Conta display will show the total number of pieces.
7. The scale includes a low APW alert and automatic APW recalculation for enhanced accuracy.

4.3 Checkweighing / Checkcounting

This function allows you to check if a batch of items falls within a specified target range.

1. Access the checkweighing/checkcounting menu (refer to the full user manual for detailed menu navigation).
2. Set the desired target weight or count range (upper and lower limits).
3. Place items on the pan. The scale will indicate if the weight/count is within, above, or below the set limits.

4.4 Acumulación

The accumulation feature allows you to sum up multiple weighing or counting results.

1. Perform a weighing or counting operation.
2. Preme o Acumulación button (or equivalent, consult full manual) to add the current result to the total.
3. Repeat for subsequent measurements.
4. View the accumulated total when needed.

5. Mantemento

5.1 Limpeza

Limpe a báscula regularmente con anuncioamp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure no liquid enters the scale's interior. The stainless steel pan can be removed for separate cleaning.

5.2 Coidado coa batería

To maximize battery life, fully charge the internal rechargeable battery before first use and after extended periods of storage. Avoid completely discharging the battery frequently. The scale features a low battery indicator.

5.3 Calibración

Periodic calibration may be required to maintain accuracy. Refer to the full Ohaus Ranger 3000 user manual for detailed calibration procedures. Calibration should ideally be performed by qualified personnel using certified weights.

6 Solución de problemas

7. Especificacións

• Modelo: RC31P3
• Número de modelo do fabricante: 30031788
• Capacidade: 3 kg (6 lb)
• Lexibilidade: 0.0001 kg (0.0002 lb)
• Certified Readability: 0.001 kg (0.002 lb)
• Internal Counting Resolution: 1:1,500,000
• Visualización: 3 Backlit LCDs (Weight, Piece Weight, Count)
• Potencia: AC Adapter or Internal Rechargeable Battery (200+ hours operation)
• Conectividade: Porto RS232
• Dimensións (L x W x H): 12.9 x 12.2 x 4.6 polgadas (32.8 x 31.0 x 11.7 cm)
• Peso: 9.2 libras (4.17 kg)
• Aprobacións: NTEP & Measurement Canada approved
• Características principais: Advanced Parts Counting Software, Low APW Alert, Automatic APW Recalculation, Rapid Stabilization, 30 Item Library, Auto Shut-off, Auto Tare.

8. Garantía e soporte

For warranty information, please refer to the documentation included with your purchase or visit the official Ohaus website. Technical support can be obtained by contacting Ohaus customer service directly. Please have your model number (RC31P3) and serial number ready when contacting support.

Fabricante: Ohaus
